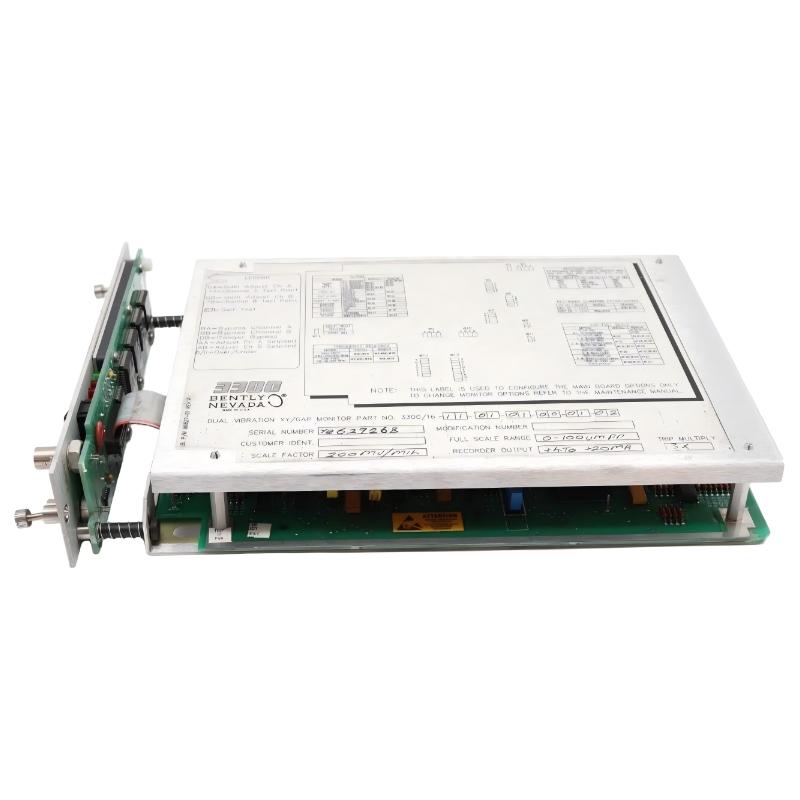

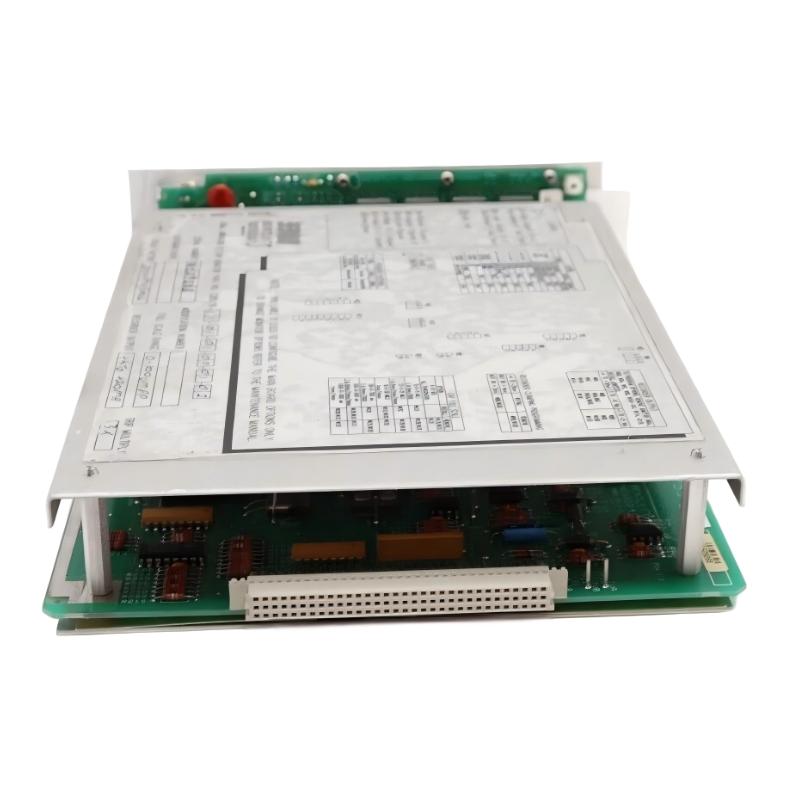

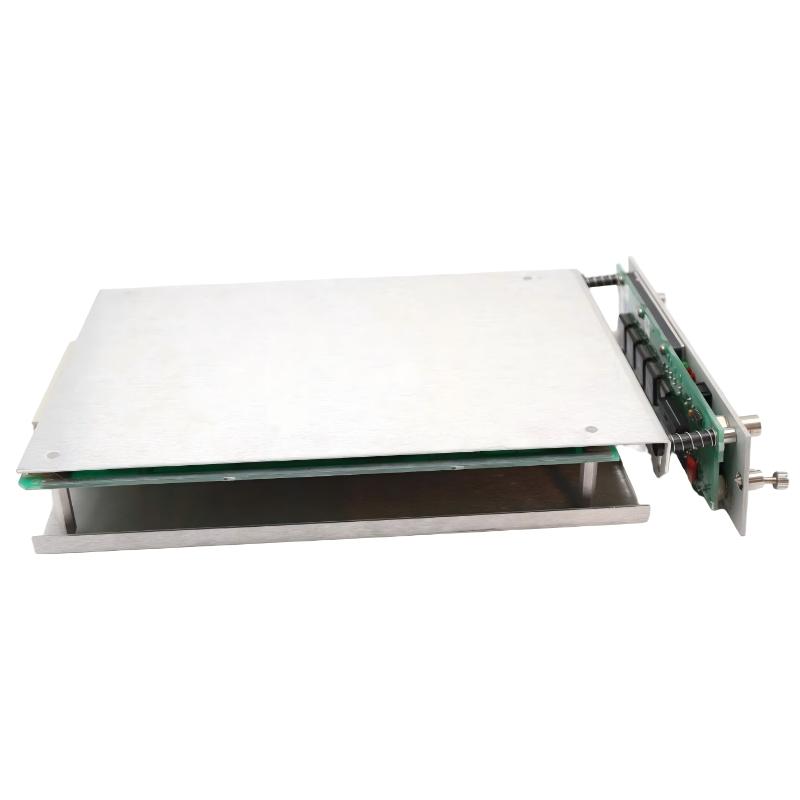

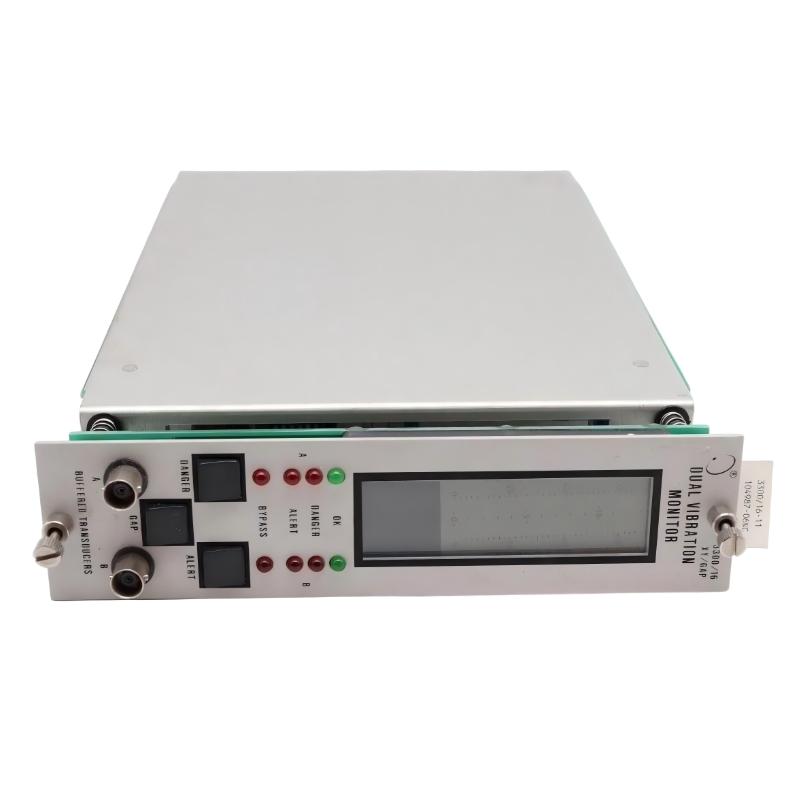

Bently Nevada 3300/16-11-01-02-00-02-00 XY/Gap Dual Vibration Monitor

Applications and Machinery Protection Monitoring

The Bently Nevada 3300/16-11-01-02-00-02-00 XY/Gap Dual Vibration Monitor is a specialized machinery protection module designed for continuous monitoring of rotating equipment vibration and shaft position conditions. It provides dual-channel monitoring capability by measuring XY radial vibration signals and gap position data, helping operators identify mechanical issues before they lead to costly equipment failures.

This vibration monitor is widely used in critical industrial machinery applications, including turbines, compressors, pumps, generators, and large rotating equipment. Installed within a Bently Nevada 3300 monitoring system, it supports accurate vibration analysis, machine protection functions, and predictive maintenance strategies.

For reliability engineers, maintenance teams, and industrial operators, the 3300/16-11-01-02-00-02-00 provides a dependable monitoring solution that improves equipment safety, enhances fault detection capability, and supports long-term machinery reliability.

Advantages and Technical Performance Features

• Dual-Channel Vibration Monitoring Capability
  The 3300/16 provides XY vibration measurement combined with gap monitoring, allowing comprehensive evaluation of rotating equipment conditions.
• Accurate Machinery Protection Data
  The module delivers reliable vibration and position information required for detecting abnormal mechanical behavior.
• Designed for Bently Nevada 3300 Systems
  It integrates with compatible 3300 rack-based monitoring architectures for industrial machinery protection applications.
• Supports Predictive Maintenance Operations
  Continuous vibration monitoring helps engineers identify imbalance, misalignment, looseness, and other mechanical issues.
• Reliable Industrial Performance
  Built for demanding environments, the monitor supports continuous operation in critical machinery applications.
• Efficient Replacement Solution
  Replacing a damaged vibration monitor helps restore machinery protection functions while reducing system downtime.

Technical FAQs and Troubleshooting Guide

1. What is the main function of the Bently Nevada 3300/16-11-01-02-00-02-00 monitor?
The module monitors XY vibration signals and shaft gap position data to provide machinery condition information and protection monitoring.

2. What symptoms indicate a possible 3300/16 monitor failure?
Common symptoms include incorrect vibration readings, channel faults, alarm activation, signal loss, or unstable monitoring values.

3. How can technicians troubleshoot a 3300/16 vibration monitor problem?
Engineers should check sensor inputs, verify signal wiring, review system diagnostics, inspect configuration settings, and test connected probes.

4. Which sensors are typically connected to the 3300/16 monitor?
The monitor is designed to work with compatible proximity probes and transducer systems used for vibration and shaft position measurement.

5. Can incorrect sensor installation affect vibration monitoring accuracy?
Yes. Incorrect probe installation, wiring issues, or improper gap adjustment may result in inaccurate vibration measurements.

6. Can a faulty 3300/16 module affect machinery protection functions?
Yes. A malfunctioning monitor may prevent accurate alarm generation or reduce the effectiveness of the protection system.

7. What components should be checked during troubleshooting?
Technicians should inspect proximity probes, extension cables, transducers, rack connections, power supply modules, and communication interfaces.

8. How can users improve the reliability of the 3300/16 monitor?
Maintaining proper rack installation, stable power conditions, clean cabinets, and regular system inspections can improve reliability.

9. Is the 3300/16-11-01-02-00-02-00 compatible with all Bently Nevada monitoring racks?
Compatibility depends on the specific 3300 system configuration and module requirements. Proper system verification is necessary before installation.

10. What factors can cause vibration monitoring errors?
Possible causes include faulty probes, damaged cables, electrical interference, incorrect configuration, mechanical issues, and unstable power conditions.
