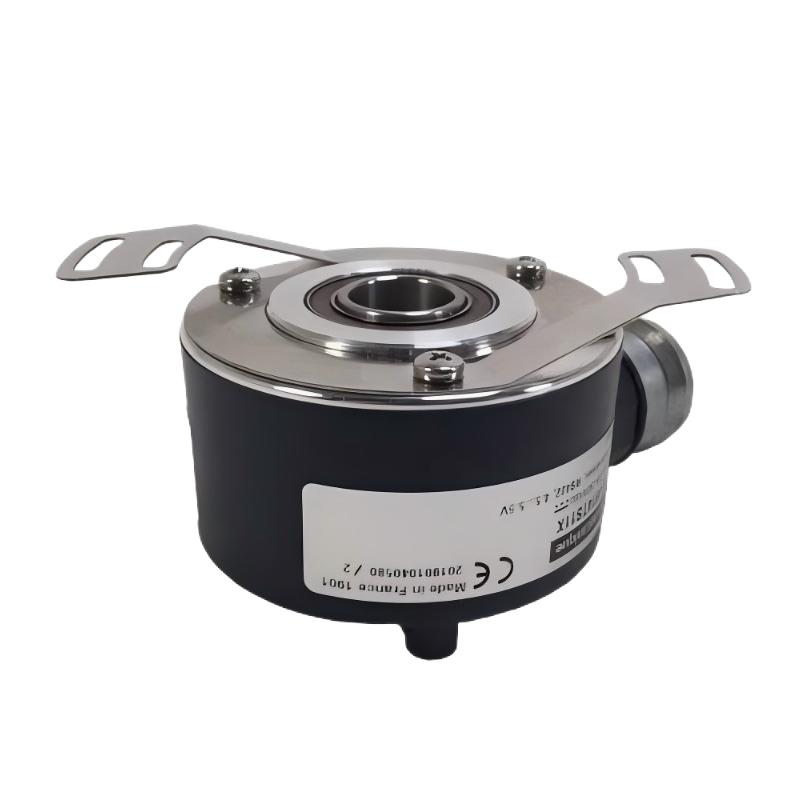

Schneider XCC-1406TR03K XCC Incremental Encoder

Applications and Industrial Motion Control

The Schneider XCC-1406TR03K XCC Incremental Encoder is a precision rotary feedback component designed for industrial automation systems that require accurate speed, direction, and position detection. By converting mechanical rotation into electrical pulse signals, this encoder provides essential feedback information for controllers, drives, and motion systems.

This XCC series incremental encoder is commonly used in automated machinery, conveyor systems, packaging equipment, motor control applications, CNC machines, and industrial production lines. Its compact 40 mm design makes it suitable for applications where reliable feedback performance and efficient installation are required.

For machine builders, automation engineers, and maintenance professionals, the Schneider XCC-1406TR03K provides a dependable feedback solution that improves motion accuracy, enhances machine synchronization, and supports stable long-term operation.

Advantages and Motion Feedback Benefits

• Accurate Rotary Position Feedback
  The XCC-1406TR03K delivers reliable pulse feedback signals, allowing automation controllers to accurately track rotation speed and position.
• Stable Industrial Performance
  Designed for continuous operation in industrial environments, the encoder provides consistent feedback for demanding automation applications.
• Compact and Flexible Installation
  The 40 mm diameter structure allows convenient integration into machines with limited installation space.
• Improved Motion Control Accuracy
  Precise feedback signals help reduce positioning errors and improve overall machine performance.
• Suitable for Various Automation Equipment
  The encoder can be applied in manufacturing machinery, material handling systems, and motor-driven equipment.
• Reliable Replacement Component
  The XCC-1406TR03K provides a practical replacement option for maintaining existing Schneider automation systems.

Technical FAQs and Troubleshooting Guide

1. What is the main function of the Schneider XCC-1406TR03K encoder?
The encoder converts shaft rotation into electrical pulse signals used for speed, direction, and position feedback.

2. What are common signs of an incremental encoder failure?
Typical symptoms include missing pulses, incorrect position feedback, unstable speed readings, machine positioning errors, or controller alarms.

3. How can technicians troubleshoot encoder signal problems?
Engineers should check power supply, output signals, cable connections, mechanical alignment, and the receiving controller input.

4. What industrial applications commonly use XCC series encoders?
They are widely used in automated machinery, conveyors, packaging systems, robotics, and motor control equipment.

5. Can incorrect wiring affect encoder performance?
Yes. Incorrect wiring or loose connections can cause signal loss, incorrect pulse counting, or unstable feedback output.

6. How does mechanical vibration affect encoder operation?
Excessive vibration may cause coupling problems, unstable feedback signals, and premature component wear.

7. Which components should be inspected during encoder troubleshooting?
Technicians should inspect the encoder, mounting system, coupling, signal cables, power supply, PLC input module, and drive controller.

8. How can users extend the service life of the XCC-1406TR03K?
Proper installation, vibration control, cable protection, and regular maintenance inspections can improve reliability.

9. Is the XCC-1406TR03K compatible with all Schneider automation systems?
Compatibility depends on the controller interface, electrical specifications, mounting requirements, and application configuration.

10. What causes unstable encoder feedback signals?
Common causes include electrical interference, damaged cables, poor connections, incorrect installation, mechanical misalignment, and power supply issues.
