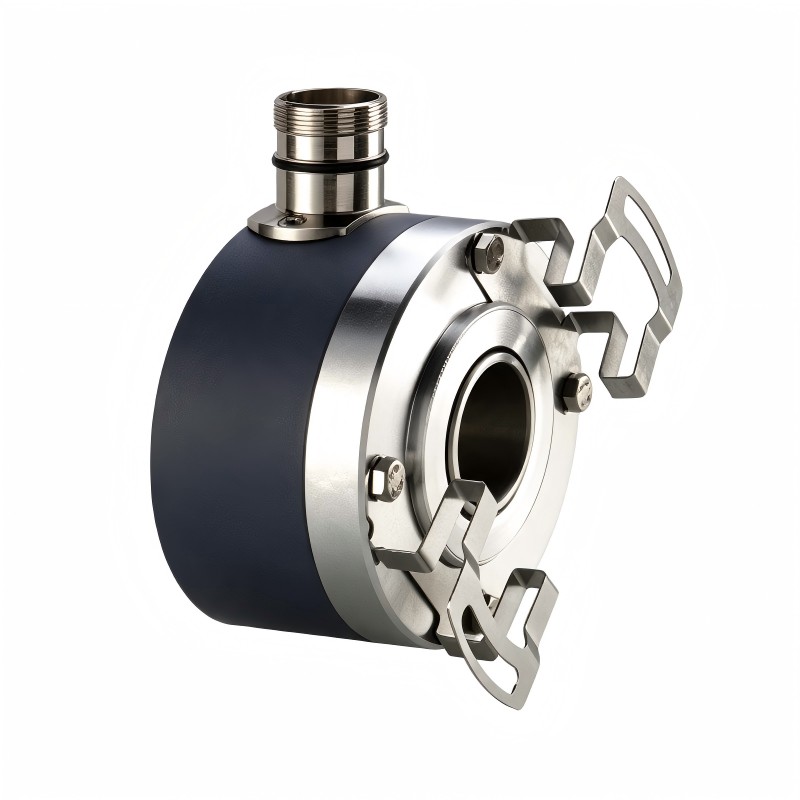

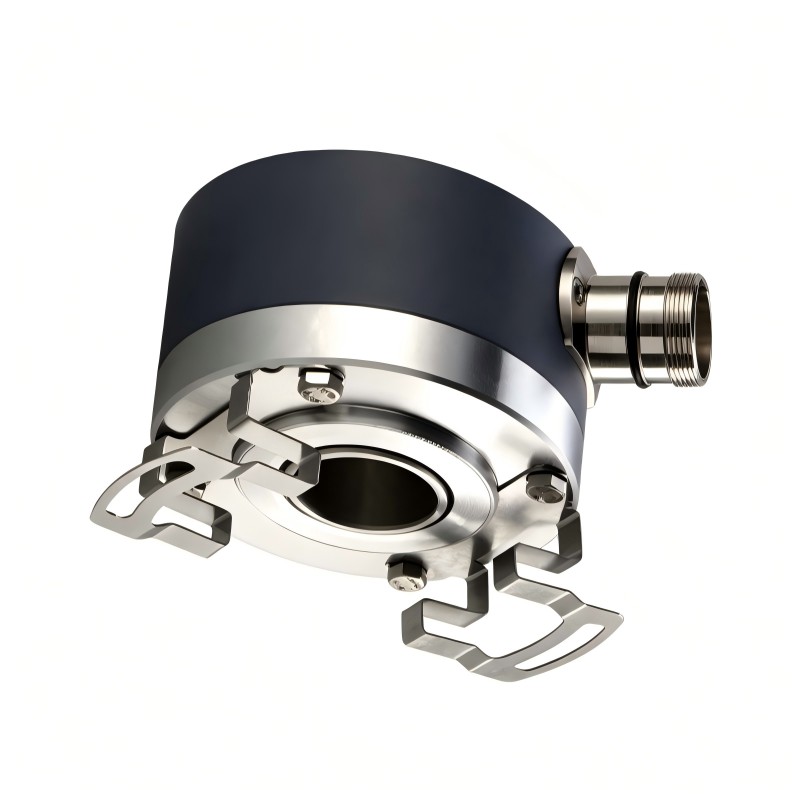

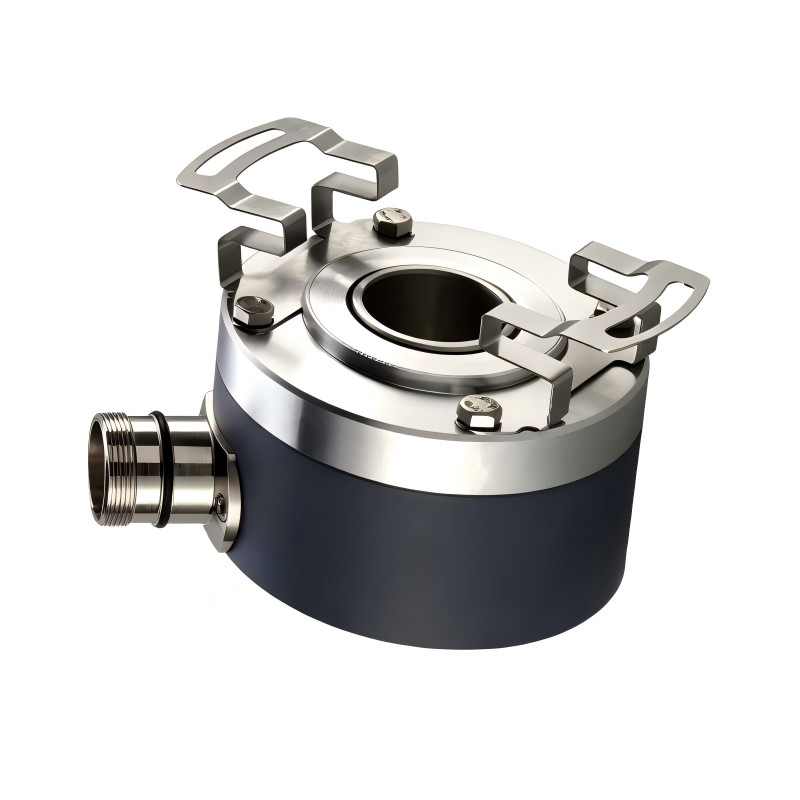

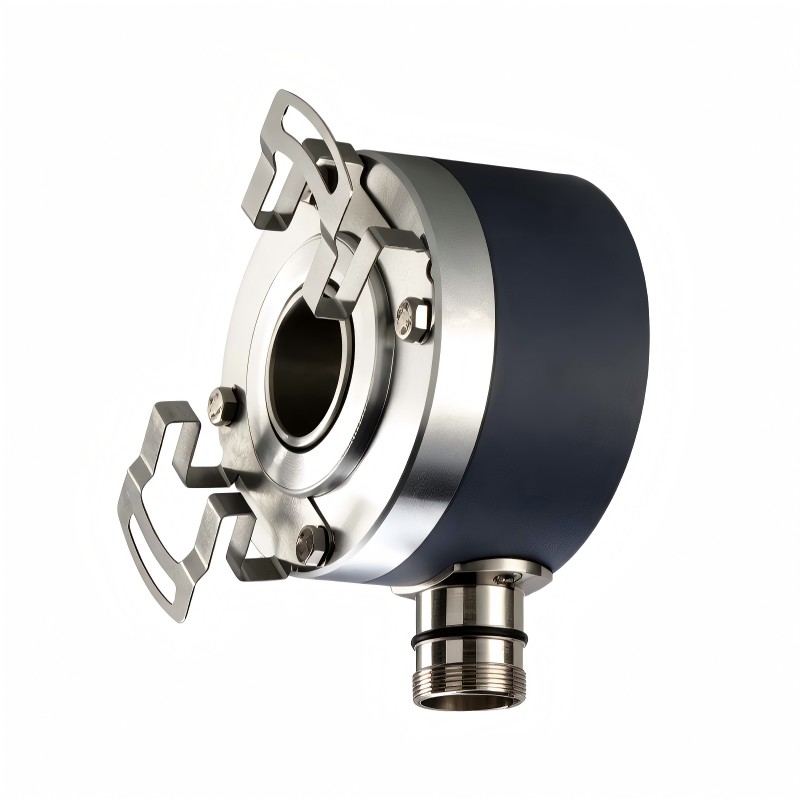

Schneider XCC-2930TS81SBN XCC Single-Turn Absolute Encoder

Applications and Industrial Positioning Systems

The Schneider XCC-2930TS81SBN XCC Single-Turn Absolute Encoder is designed for industrial automation applications requiring accurate angular position measurement and reliable feedback performance. By providing direct absolute position information within a single rotation, this encoder enables control systems to achieve precise positioning without depending on pulse counting or additional reference operations.

This encoder is widely applied in automation equipment where positioning accuracy, repeatability, and fast startup response are essential. It provides dependable feedback for machines that require precise rotary control, including robotics, servo systems, and advanced manufacturing equipment.

Typical application areas include:

• Precision servo motion systems
• Industrial robotics and automated handling equipment
• CNC machinery and processing systems
• Rotary indexing machines
• Automated assembly lines
• Packaging and production equipment
• High-accuracy positioning applications

Product Advantages and Technical Performance Benefits

The Schneider XCC-2930TS81SBN combines absolute sensing technology with a robust industrial design, delivering reliable position feedback for demanding automation environments.

Key advantages include:

• Direct absolute position feedback
  Provides immediate rotary position information without requiring movement calculation from previous pulse signals.
• High positioning accuracy
  Supports precise machine control applications where repeatability and stability are critical.
• Fast machine startup capability
  Allows automation systems to recognize position status quickly after power-up.
• Durable industrial construction
  Designed for continuous operation in professional manufacturing environments.
• Flexible automation integration
  Compatible with suitable PLC systems, motion controllers, and industrial drive platforms.
• Improved operational efficiency
  Helps reduce positioning errors and supports smoother machine performance.

Technical FAQs About Schneider XCC-2930TS81SBN Single-Turn Absolute Encoder

1. What is the main function of the Schneider XCC-2930TS81SBN encoder?
The encoder provides absolute rotary position feedback, allowing control systems to determine the shaft position directly within one rotation.

2. What is the advantage of using an absolute encoder instead of an incremental encoder?
An absolute encoder provides a unique position value at each point of rotation, reducing the need for reference movements after startup.

3. Can the XCC-2930TS81SBN be used in servo motion applications?
Yes. When electrical communication requirements are compatible, it can provide accurate feedback for servo drives and motion controllers.

4. Does this encoder need a homing sequence after power restoration?
Absolute encoders generally provide position information immediately after startup, minimizing the need for traditional homing operations.

5. What causes incorrect encoder position feedback?
Possible causes include incorrect wiring, communication parameter errors, mechanical alignment issues, signal interference, or controller configuration problems.

6. How can engineers troubleshoot encoder communication failures?
They should check power supply stability, wiring connections, communication settings, controller diagnostics, and feedback signals.

7. Why is proper grounding important for absolute encoder systems?
Correct grounding helps reduce electrical noise and electromagnetic interference that may affect feedback reliability.

8. Can the XCC-2930TS81SBN be integrated into PLC-based automation systems?
Yes. It can be connected with compatible PLC controllers and motion modules that support absolute encoder feedback.

9. What installation factors influence encoder accuracy?
Mechanical alignment, shaft coupling quality, vibration control, and correct electrical installation all affect measurement performance.

10. What maintenance procedures help extend encoder service life?
Regular inspection of mounting conditions, connectors, cables, and feedback performance helps ensure reliable long-term operation.
