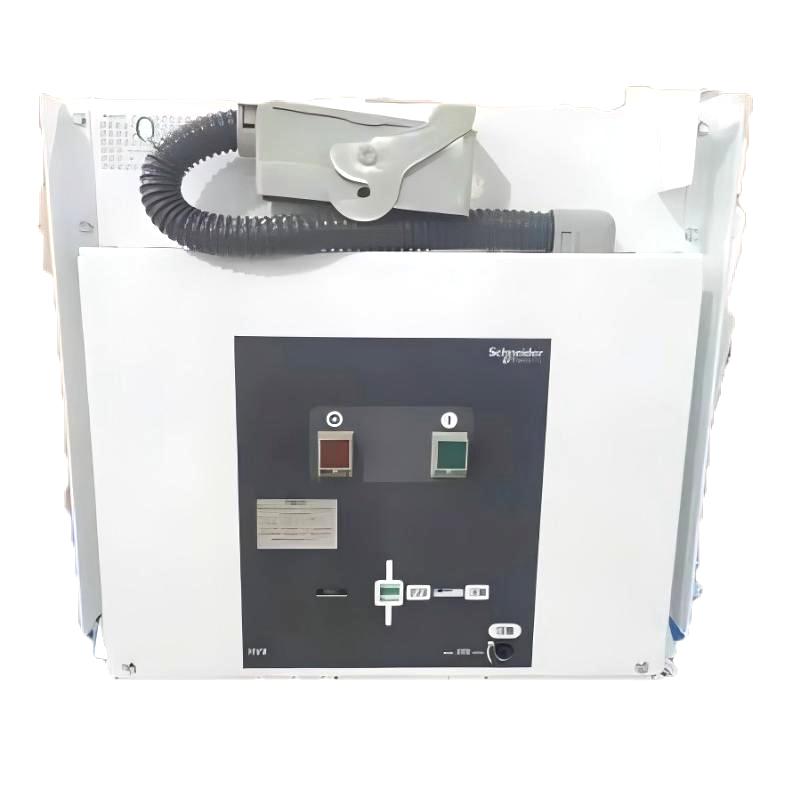

Schneider HVX 24-31-16-E Vacuum Circuit Breaker

Applications and Medium Voltage Power Distribution Protection

The Schneider HVX 24-31-16-E Vacuum Circuit Breaker is designed for medium-voltage electrical distribution systems that require reliable switching, efficient fault interruption, and enhanced operational safety. It provides dependable circuit protection for industrial facilities, power substations, and electrical infrastructure where stable energy distribution is essential.

Equipped with vacuum interruption technology, the HVX series circuit breaker delivers excellent arc extinguishing performance and reliable switching capability. It is widely used in medium-voltage switchgear systems to protect transformers, motors, feeders, and other critical electrical equipment from abnormal operating conditions.

Typical application areas include:

• Medium-voltage power distribution networks
• Industrial electrical substations
• Factory power supply systems
• Transformer protection applications
• Motor control and protection systems
• Energy infrastructure facilities
• Medium-voltage switchgear assemblies

Technical Advantages and Operational Benefits

The Schneider HVX 24-31-16-E combines advanced vacuum switching technology with a robust mechanical design to provide long-term reliability in demanding electrical environments.

Key advantages include:

• Reliable vacuum interruption performance
  Uses vacuum switching technology to provide effective arc extinction and stable fault interruption capability.
• Enhanced electrical system protection
  Helps isolate electrical faults quickly, reducing potential damage to connected equipment.
• High switching reliability
  Designed for frequent operational cycles while maintaining consistent performance.
• Improved safety for maintenance operations
  Supports safer power system management through dependable circuit isolation.
• Flexible integration with switchgear systems
  Suitable for installation in compatible medium-voltage distribution equipment.
• Long service life and reduced maintenance demand
  Vacuum technology minimizes contact wear and supports efficient lifecycle management.

Technical FAQs About Schneider HVX 24-31-16-E Vacuum Circuit Breaker

1. What is the primary function of the Schneider HVX 24-31-16-E?
The circuit breaker controls and protects medium-voltage electrical circuits by safely interrupting normal and fault currents.

2. Why does the HVX 24-31-16-E use vacuum interruption technology?
Vacuum technology provides efficient arc extinguishing, reliable switching performance, and improved electrical insulation characteristics.

3. Where is this vacuum circuit breaker commonly installed?
It is commonly installed in industrial plants, substations, switchgear systems, and medium-voltage distribution networks.

4. What should be checked if the circuit breaker cannot complete an opening operation?
Engineers should inspect control voltage, trip signals, mechanical operating mechanisms, wiring connections, and protection system status.

5. What are common causes of unexpected circuit breaker trips?
Possible causes include electrical faults, incorrect protection settings, control circuit problems, or abnormal system conditions.

6. How can the HVX 24-31-16-E operating failure be diagnosed?
Troubleshooting should include checking electrical control circuits, mechanical movement, auxiliary contacts, and protection relay signals.

7. What maintenance inspections are recommended for vacuum circuit breakers?
Regular maintenance should include checking operating mechanisms, control wiring, contact condition, and mechanical components.

8. Can the HVX 24-31-16-E be integrated into automated power monitoring systems?
Yes. With compatible control and monitoring equipment, it can be incorporated into modern electrical automation systems.

9. Why is commissioning important after installing a medium-voltage circuit breaker?
Commissioning verifies correct wiring, mechanical operation, protection functions, and safe system performance before energization.

10. What factors affect the service reliability of a vacuum circuit breaker?
Proper installation, operating conditions, maintenance quality, and correct protection settings all influence long-term reliability.
