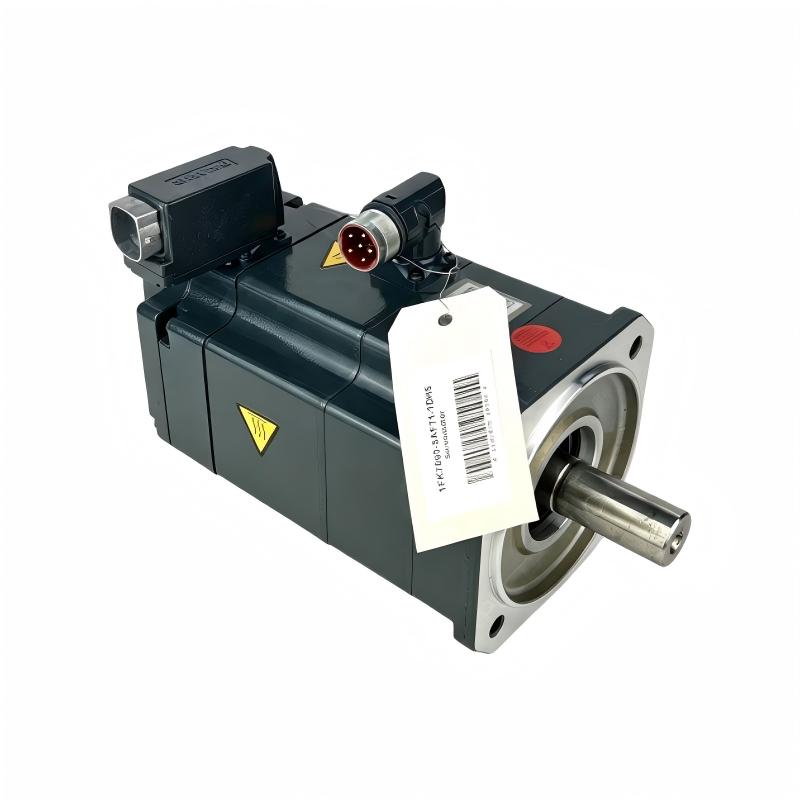

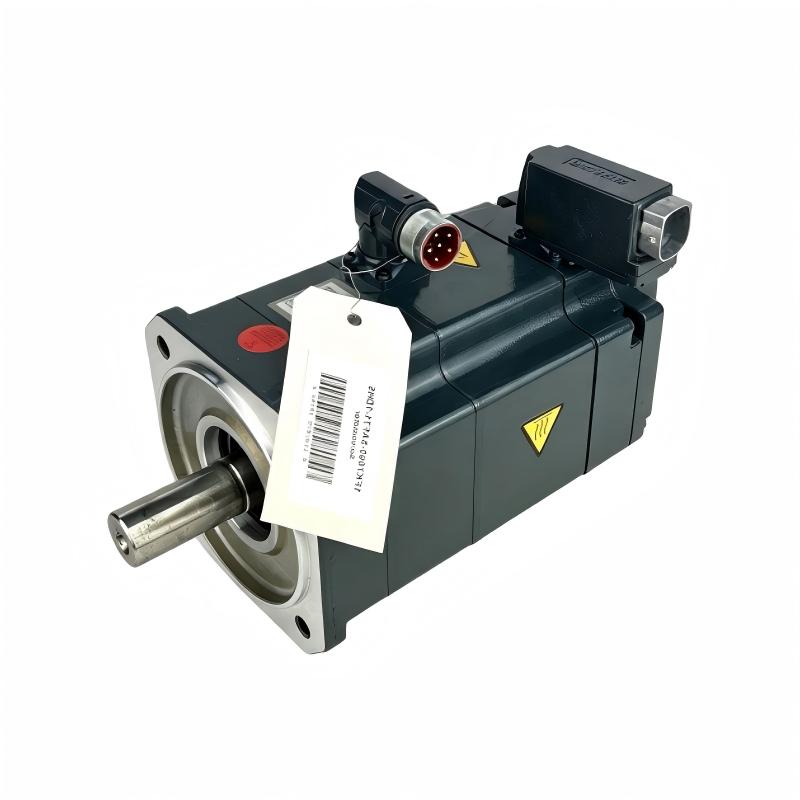

Siemens 1FK7060-5AF71-1DH5 Servo Motor

Applications and High-Precision Industrial Motion Solutions

The Siemens 1FK7060-5AF71-1DH5 Servo Motor is designed for demanding industrial automation applications where accurate positioning, stable torque output, and reliable motion performance are essential. As part of the Siemens SIMOTICS S servo motor family, it provides precise control of speed, torque, and mechanical movement for advanced production equipment.

This servo motor is suitable for automation systems that require consistent performance under continuous operation. Its strong dynamic characteristics and compatibility with Siemens motion control platforms make it an ideal solution for machine builders and system integrators developing high-performance manufacturing equipment.

Typical application areas include:

• CNC machining and metal processing equipment
• Robotic automation systems
• Precision assembly machines
• Packaging and production machinery
• Material handling systems
• Semiconductor manufacturing equipment
• Automated industrial positioning systems

Engineering Advantages and Motion Performance Features

The Siemens 1FK7060-5AF71-1DH5 combines Siemens servo technology with a robust mechanical structure to deliver dependable motion control in complex industrial environments.

Key advantages include:

• Superior positioning accuracy
  Provides precise movement control for applications requiring high repeatability and synchronization.
• Strong dynamic response capability
  Supports rapid acceleration and deceleration for efficient machine cycles.
• Stable operation under demanding loads
  Maintains reliable torque performance during continuous industrial processes.
• Flexible machine integration
  The 63 mm shaft height design enables convenient installation in various automation systems.
• Optimized servo system compatibility
  Works with suitable Siemens drive solutions for coordinated motion control.
• Enhanced production reliability
  Helps reduce motion-related errors and improves overall equipment efficiency.

Technical FAQs About Siemens 1FK7060-5AF71-1DH5 Servo Motor

1. What is the main purpose of the Siemens 1FK7060-5AF71-1DH5 Servo Motor?
It is used to provide accurate rotary motion control for industrial automation equipment requiring precise positioning and speed regulation.

2. What makes this servo motor suitable for complex automation applications?
Its closed-loop control capability, stable torque output, and dynamic response allow precise machine operation.

3. Which Siemens drive systems can control this servo motor?
It is designed for integration with compatible Siemens SINAMICS servo drive systems.

4. What causes servo motor feedback errors?
Possible causes include encoder connection problems, damaged feedback components, incorrect parameters, or electrical interference.

5. How can users troubleshoot servo motor vibration issues?
Engineers should inspect mechanical alignment, coupling conditions, mounting stability, and servo tuning parameters.

6. Why does servo motor tuning affect machine accuracy?
Proper tuning optimizes response characteristics and reduces overshoot, vibration, and positioning deviation.

7. What can cause a servo motor to lose synchronization with the controller?
Possible causes include communication faults, incorrect configuration, feedback problems, or drive parameter errors.

8. Can the Siemens 1FK7060-5AF71-1DH5 be used for continuous production applications?
Yes. It is suitable for industrial environments requiring stable and repeated motion cycles.

9. What inspections are recommended before operating this servo motor?
Check wiring, mechanical mounting, encoder connections, drive parameters, and system safety settings before startup.

10. How can operators improve servo motor operating reliability?
Regular preventive maintenance, correct loading, proper parameter adjustment, and monitoring operating conditions help extend service life.
