Ingersoll Rand 47588565001 / 42837054 Gearbox Maintenance Package

Introduction

The Ingersoll Rand 47588565001 / 42837054 Gearbox Maintenance Package listing combines a dedicated gearbox-maintenance reference with a separately documented sealant reference.

47588565001 is listed in the Ingersoll Rand spare-parts catalog as a Gear Box Maintenance Package. It appears in a sequence of related maintenance products including the 2,000-hour preventive maintenance kit 47588561001, 4,000-hour kit 47588562001, 8,000-hour water-cooled kit 47588563001, 8,000-hour air-cooled kit 47588564001, and air-cooled hose maintenance kit 47588566001.

A gearbox is a critical part of a rotary screw compressor drivetrain. It transfers motor power to the airend while maintaining the required speed relationship between rotating components. Reliable lubrication, correct mechanical alignment, and effective sealing are therefore important to long-term drivetrain performance.

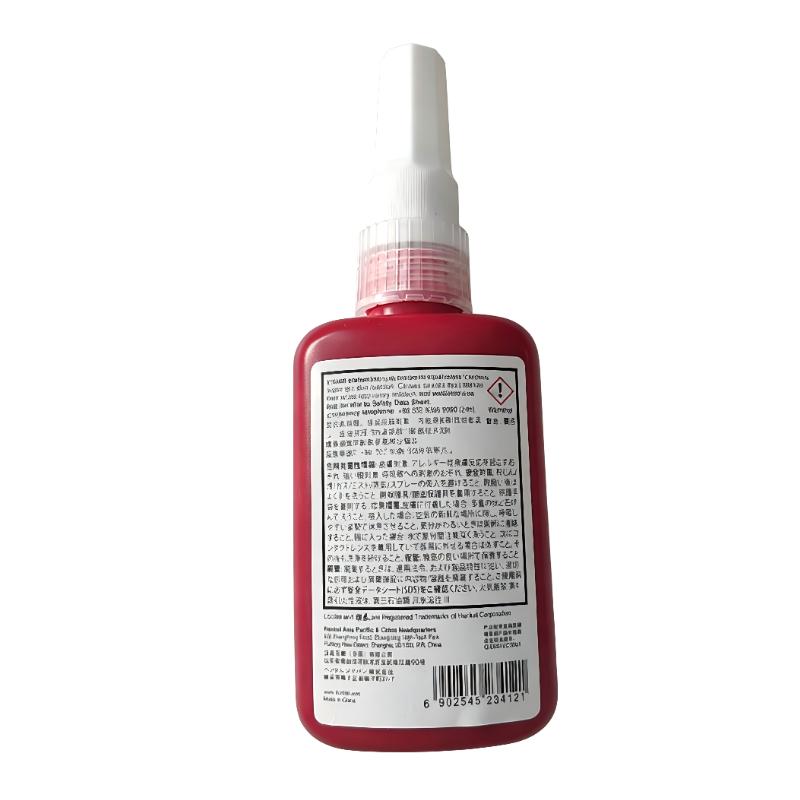

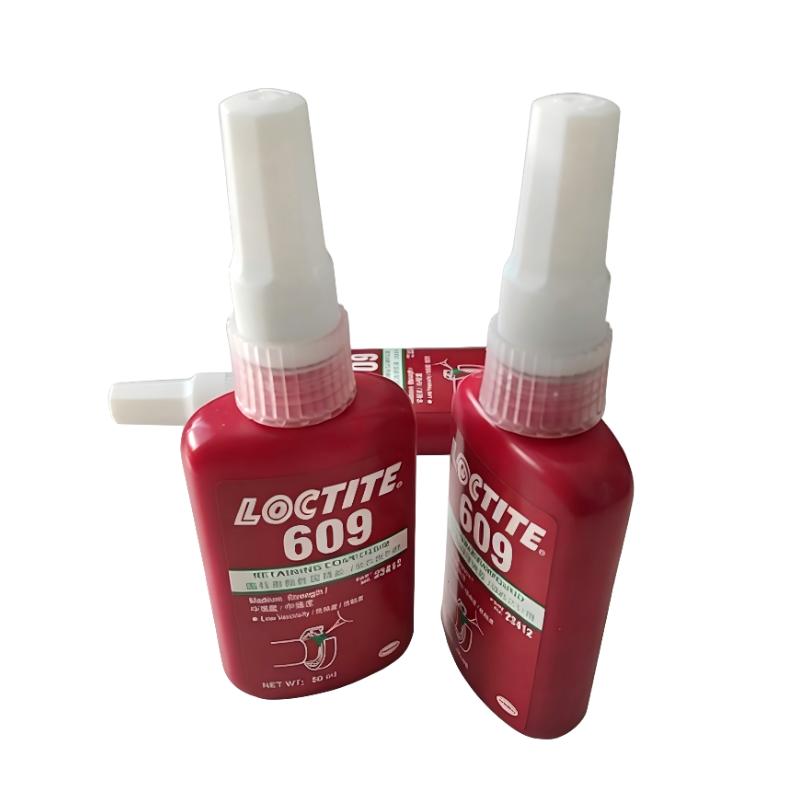

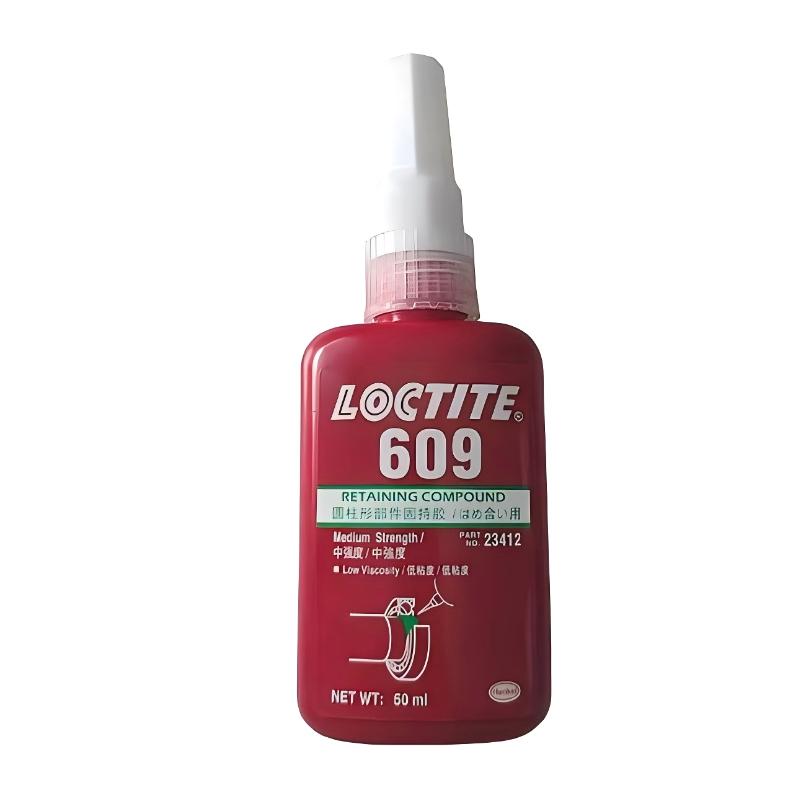

The second supplied reference, 42837054, is a different type of service item. Ingersoll Rand parts documentation identifies it as Loctite Sealant 609.

The same parts documentation indicates that 39136304, identified as Loctite RC/609, was replaced by the newer part number 42837054. This makes 42837054 useful as a current identification reference when older service documentation contains 39136304.

Sealant plays a different role from a conventional gasket or O-ring. It is applied to specific mating surfaces or threaded interfaces when the compressor manufacturer's assembly procedure calls for a liquid sealing compound.

During gearbox maintenance, old sealant should be removed from applicable surfaces without damaging the mating faces. Oil, dirt, corrosion, and residue can interfere with proper adhesion and sealing.

The technician should also inspect gearbox housings, covers, shafts, seals, fasteners, and other accessible components during scheduled service. Evidence of lubricant leakage, abnormal wear, scoring, or overheating should be investigated before the gearbox is returned to operation.

Correct application quantity is important. Excess sealant can migrate into unwanted areas, while insufficient coverage can leave leakage paths. The applicable service procedure should determine the bead size, curing requirements, and assembly sequence.

Gearbox lubricant condition should also be evaluated during maintenance where required. Abnormal contamination, metal particles, discoloration, or unexpected lubricant loss may indicate a mechanical problem that cannot be resolved simply by replacing sealing materials.

After reassembly, the gearbox should be checked for leakage and abnormal operating conditions. Vibration, temperature, noise, and lubricant level are useful indicators when verifying drivetrain condition after maintenance.

The broader Ingersoll Rand parts catalog includes another gearbox maintenance package, 47588685001, as well as configuration-specific gearbox kits such as 47556925001 and 47556926001. These references demonstrate that gearbox maintenance packages vary according to compressor family and configuration.

The relationship between the two supplied references should therefore be understood carefully. Public documentation establishes 47588565001 as a gearbox maintenance package and 42837054 as Loctite Sealant 609, but it does not provide a complete OEM bill of materials proving that 42837054 represents the entire contents of 47588565001.

Exact compressor-model coverage for 47588565001, complete kit contents, sealant quantity, and engineering dimensions were not reliably established from the available public documentation. These details should be confirmed against the compressor serial number and applicable Ingersoll Rand service documentation before ordering.

The supplied pair is treated as one product listing as requested, while the independently documented role of each reference is retained for technical accuracy.

Technical Specifications

The part descriptions and replacement relationship for 42837054 are supported by available Ingersoll Rand parts catalogs. Exact package dimensions, weight, sealant quantity, and complete kit specifications were not reliably established and are therefore not fabricated.

Recommended Companion Models

These references are grouped with 47588565001 in the same maintenance series and provide complementary scheduled-maintenance or cooling-system service coverage. They are companion products rather than automatic substitutes for the gearbox maintenance package.

Frequently Selected Alternatives
