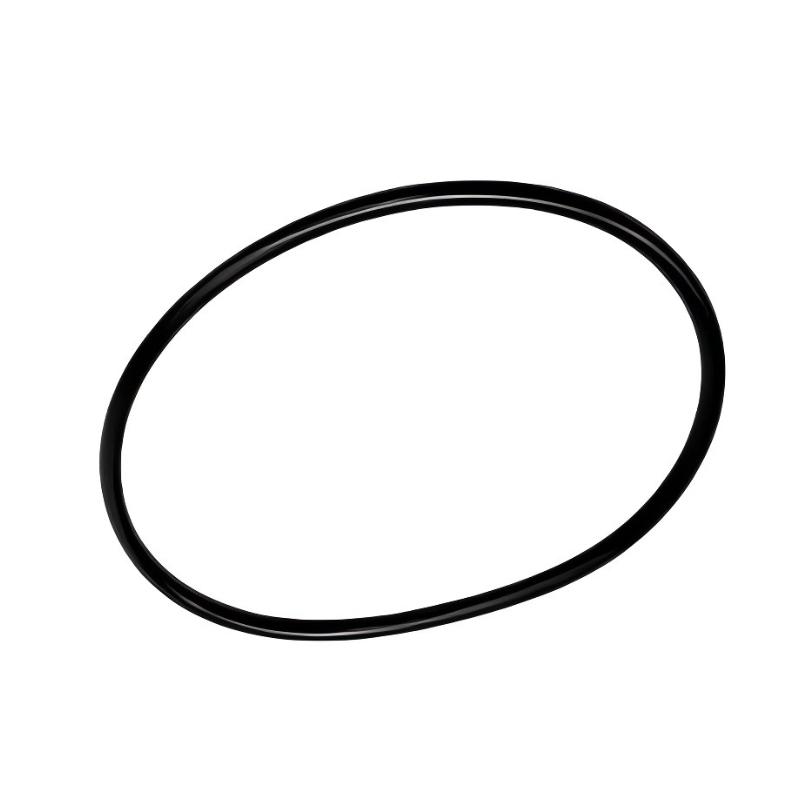

Ingersoll Rand 47545142001 39253992 Gear Casing Service Kit

Introduction

The Ingersoll Rand 47545142001 39253992 Gear Casing Service Kit is designed around planned maintenance of the compressor gearcase and its associated sealing interfaces. 47545142001 is listed as a Kit, Gear Casing Services, while 39253992 is identified as an O-ring located between the gearcase and the air-end in the applicable service configuration.

In a gear-driven rotary screw compressor, the gearcase provides the mechanical connection between the motor and air-end while operating within a lubricated environment. The interfaces surrounding the gearcase must therefore maintain precise mechanical alignment and dependable sealing. A small sealing component such as 39253992 can play an important role in preserving those operating conditions.

The 39253992 reference is well established in Ingersoll Rand compressor documentation. A published parts manual identifies it as the O-ring in the motor assembly for 125 HP, 150 HP, 90 kW, 110 kW, and 200 HP, 132 kW, 160 kW configurations. The same part number is also listed broadly in Ingersoll Rand spare-parts catalogs as an O-ring.

For the New Cobra M90–160 and M90–160 VSD configurations, the service-parts list gives a particularly useful description: 39253992 is the O-ring for the gearbox-to-air-end interface and appears within the 47545142001 gear casing service package. This establishes a direct maintenance relationship between the two requested references.

A gearcase-to-air-end O-ring must maintain sealing performance while exposed to compressor lubricant, temperature changes, vibration, and the mechanical conditions of a continuously operating compressor. Correct part selection is therefore more important than simply matching an approximate physical size.

During maintenance, the old O-ring should be removed without damaging the surrounding groove or sealing surface. The mating areas should then be cleaned and inspected before the replacement is installed. Even a correct replacement part can leak if the groove is contaminated or the mating surface has developed scratches, corrosion, or burrs.

Installation technique also matters. The applicable Ingersoll Rand service procedure should be followed for cleaning, lubrication, handling, and seating of the O-ring. Excessive stretching, twisting, cutting, or contamination can create a leakage path that may not be visible immediately after assembly.

The broader 47545142001 service group includes several complementary components, including shaft seal 89292445, motor shaft sleeve 89292478, O-ring 95023388 for specified motor sizes, motor-to-gearcase gasket 39454558, and sealant 42837054. This illustrates that gearcase maintenance is typically best approached as an integrated inspection of several related interfaces.

The distinction between 39253992 and other O-rings is particularly important. The same New Cobra service list identifies 95023107 for 90–110 kW applications and 95023388 for 132–160 kW applications, while 39253992 serves the gearcase-to-air-end interface. A visually similar seal should therefore never be treated as an automatic substitute.

The part is also documented independently by industrial compressor-parts suppliers as an Ingersoll Rand O-ring for compressed-air equipment. A public procurement catalog further identifies 39253992 specifically as a rubber O-ring for an Ingersoll Rand compressor air-end assembly.

For maintenance planners, replacing the O-ring during a scheduled gearcase service can be more efficient than waiting for visible leakage. When the gearcase is already accessible, inspecting the seal, shaft sleeve, gasket, mating surfaces, and related components allows technicians to address emerging wear before it causes avoidable downtime.

When leakage is observed after replacement, the investigation should extend beyond the O-ring itself. Possible causes include damaged sealing surfaces, incorrect groove geometry, shaft movement, improper installation, or degradation of adjacent seals and gaskets.

For purchasing teams, the most reliable identification method is to record the full compressor model and serial number together with the part reference. This is especially important because Ingersoll Rand uses multiple gearcase service-kit configurations for different compressor families and frame sizes. The published service list itself shows different gearcase kits for New Cobra, R90–110 I, R90–160 IE, R90–160 N, and M200–250 machines.

Exact dimensions, material composition, hardness, package dimensions, kit weight, and complete application coverage for 39253992 were not sufficiently verified from authoritative documentation. These values are therefore intentionally not estimated.

For industrial compressor operators, 47545142001 and 39253992 provide a practical combination for targeted gearcase service. Accurate part identification, careful surface preparation, and correct O-ring installation can help maintain lubricant containment, reduce leakage-related interruptions, and support dependable long-term compressor performance.

Technical Specifications

The published service list specifically identifies 39253992 as the O-ring between the gearcase and main unit/air-end within the 47545142001 gear casing service group.

Recommended Companion Models

These references are directly associated with the same gear casing service group for applicable New Cobra and M90–160 configurations. They address complementary sealing or mechanical interfaces and are not automatic substitutes for 39253992.
