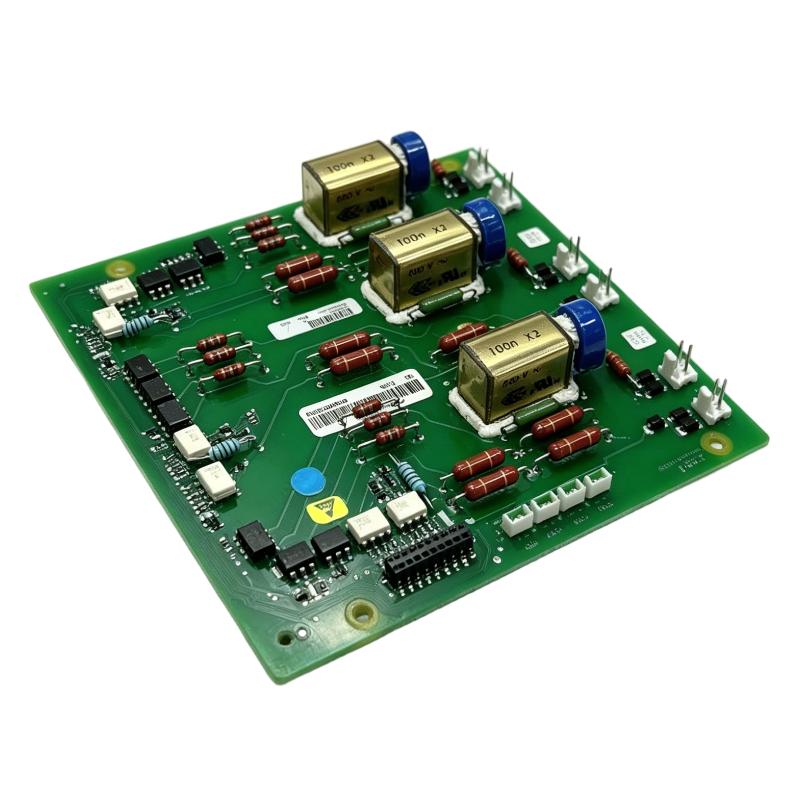

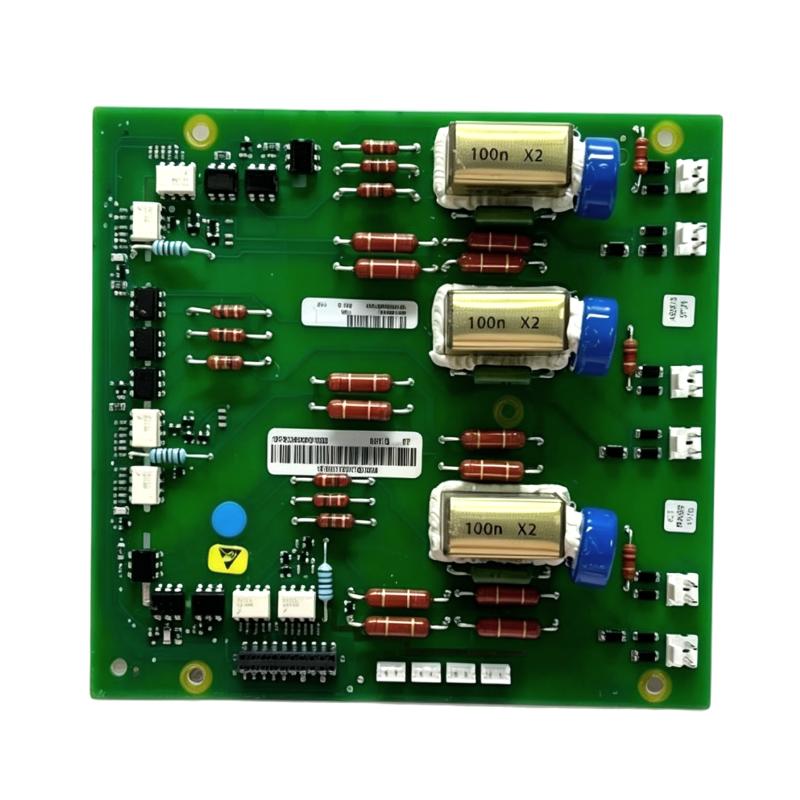

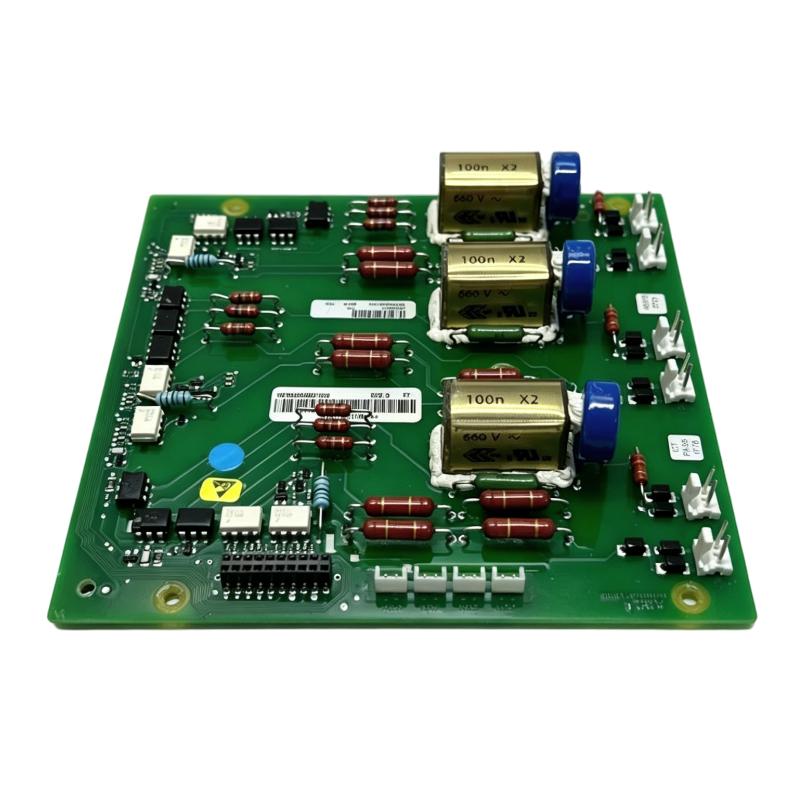

ABB 1SFB536068D1023 High Voltage Drive Board

Applications

The ABB 1SFB536068D1023 High Voltage Drive Board is a specialized electronic board intended for use within compatible ABB high-voltage drive equipment. As part of a drive control architecture, it supports the electronic coordination required for controlled power conversion and motor operation.

High-voltage drive systems are commonly deployed where large motors must operate efficiently and with precise control. A dedicated drive board plays an important role in maintaining communication between control logic, power electronics, feedback circuits, and protective functions.

Typical applications include:

• High-voltage industrial motor drives
• Large pumps
• Industrial fans and blowers
• Compressors
• Mining and material-handling equipment
• Cement and heavy-process machinery
• Water and wastewater infrastructure
• Oil and gas processing equipment
• Large industrial production lines
• High-power motor-control systems

The 1SFB536068D1023 is particularly relevant to maintenance operations involving compatible ABB high-voltage drive assemblies, where replacement of a defective board can restore drive functionality without replacing the complete system.

Advantages

The 1SFB536068D1023 is a specialized drive component designed to work as part of a larger high-voltage drive architecture. Its importance becomes particularly apparent in systems where drive availability directly affects large-scale production equipment.

Dedicated Drive Control Function
The board supports the electronic control architecture required by compatible drive equipment, helping coordinate the interaction between control logic and power electronics.

Suitable for High-Power Applications
High-voltage drives are used for large industrial motors where conventional low-voltage drive equipment is not appropriate. Specialized control electronics are essential for these systems.

Supports Precise Motor Operation
A properly functioning drive-control system allows motor speed and operating conditions to be managed according to the requirements of the connected process.

Useful for Preventive Maintenance
Keeping critical spare control boards available can reduce downtime when an electronic component fails in an important high-voltage drive installation.

Reduced Replacement Scope
When diagnostics confirm that the board itself is defective and the remaining drive assembly is healthy, replacing the individual board may be more efficient than replacing the complete drive.

Lightweight Board Construction
The specified 250 × 35 × 230 mm dimensions and 0.40 kg (0.88 lb) weight make the component comparatively easy to handle during controlled maintenance procedures.

Technical FAQs

1. What is the ABB 1SFB536068D1023 used for?
It is a High Voltage Drive Board intended for compatible ABB high-voltage drive equipment. Its function is associated with the drive's electronic control and power-conversion architecture.

2. Why are dedicated control boards used in high-voltage drives?
High-voltage drives contain complex power electronics and protection systems. Dedicated control boards provide the electronic processing and coordination required to operate these circuits safely and accurately.

3. What symptoms may indicate a drive-board problem?
Possible symptoms include drive startup failure, abnormal diagnostic messages, loss of communication between internal assemblies, unexpected trips, or incorrect control behavior. These symptoms can also originate from power modules, sensors, wiring, or external control equipment.

4. Can this board be installed in any ABB high-voltage drive?
No. Drive boards are equipment-specific. The exact part number and host drive configuration should be verified before installation.

5. What should be checked before replacing a high-voltage drive board?
Review the drive fault history, control power, communication signals, connectors, wiring, cooling conditions, and related power electronics. This helps determine whether the board is actually responsible for the fault.

6. Can poor cooling cause drive-board problems?
Yes. Excessive temperature can shorten the service life of electronic components and may cause intermittent or permanent faults. Cooling fans, air paths, filters, cabinet temperature, and thermal conditions should therefore be checked during troubleshooting.

7. Why might a new board fail to communicate with the drive?
Possible causes include incorrect board installation, damaged connectors, communication wiring problems, incompatible hardware revision, configuration differences, or faults elsewhere in the drive control system.

8. Should the board be tested while the high-voltage drive is energized?
High-voltage drive systems contain potentially lethal electrical energy. Internal board replacement and electrical testing should only be performed by appropriately qualified personnel using the equipment manufacturer's isolation, discharge, and safety procedures.

9. What should be verified after installing the replacement board?
Check connector seating, wiring, board identification, configuration, diagnostic status, and communication with other drive assemblies. The drive should then undergo controlled commissioning before being returned to normal production.

10. How can unnecessary board replacement be avoided?
Use the drive's diagnostic information and a systematic fault-isolation process. Check power supplies, communication paths, connectors, environmental conditions, and associated hardware before concluding that the drive board has failed.
