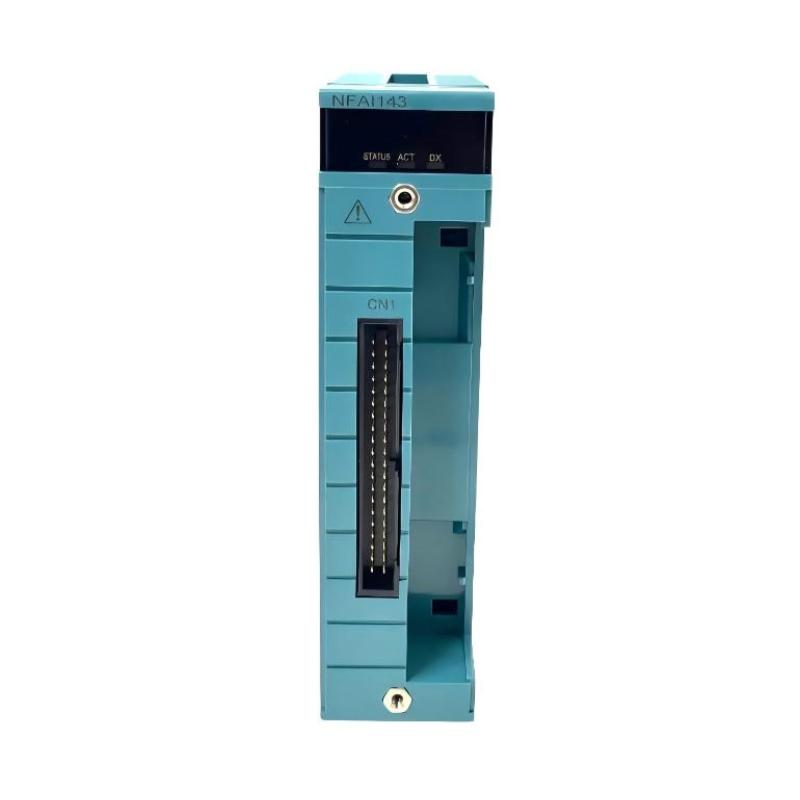

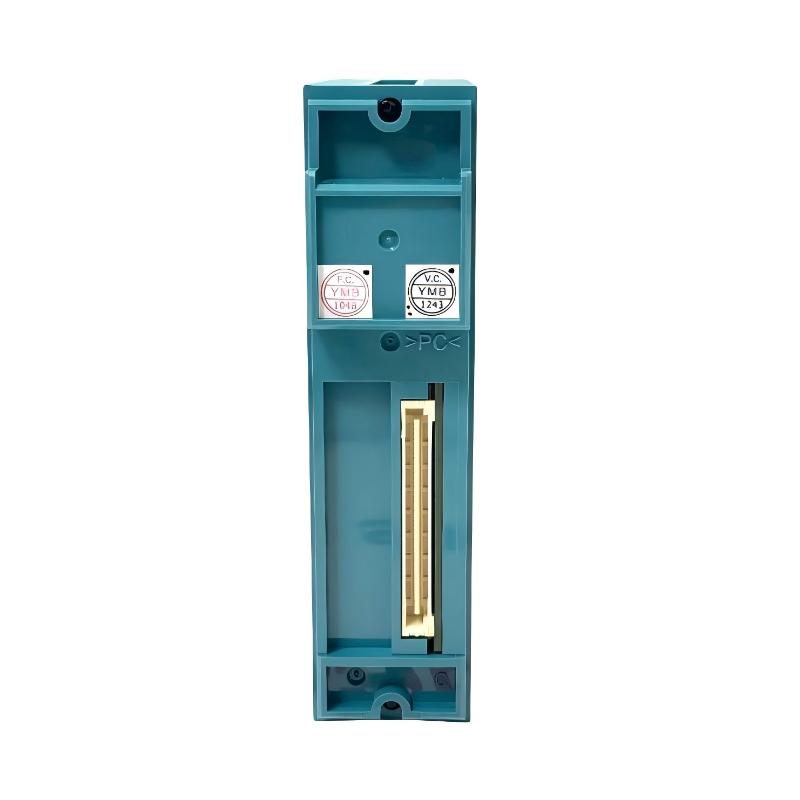

Yokogawa NFAI143-H50 S1 Analog Input Module

Applications

• High-precision analog signal acquisition in process automation systems

• Oil & gas, chemical, and refining plant instrumentation monitoring

• Integration with distributed control systems for real-time data collection

• Power plant process measurement and control loops

• Industrial environments requiring stable multi-channel analog input handling

Advantages

• Excellent signal accuracy for critical measurement tasks

• Stable multi-channel acquisition with minimal signal interference

• Seamless compatibility with Yokogawa control architectures

• Compact form factor for efficient cabinet space utilization

• Reliable long-term operation in demanding industrial environments

Technical FAQs

1. Q: What types of analog signals does the NFAI143-H50 S1 support?
   A: It supports standard industrial analog inputs such as 4–20 mA signals.

2. Q: How many input channels are available on this module?
   A: The module typically supports 16 analog input channels.

3. Q: Does it provide channel isolation?
   A: Yes, it includes electrical isolation to prevent signal interference between channels.

4. Q: What level of accuracy can be expected?
   A: High accuracy suitable for process-critical measurements, typically within ±0.1% of full scale.

5. Q: How is the module integrated into the control system?
   A: It connects via the system backplane for direct communication with the controller.

6. Q: Is it suitable for hazardous industrial environments?
   A: Yes, when used with appropriate certified system configurations.

7. Q: Does it support real-time data processing?
   A: Yes, it provides fast and stable data acquisition for real-time control applications.

8. Q: What diagnostic features are included?
   A: Built-in diagnostics monitor channel status and detect faults or abnormal signals.

9. Q: Can the module be calibrated?
   A: Yes, calibration can be performed using Yokogawa engineering tools.

10. Q: Is redundancy supported in system configurations?
    A: Yes, it can be deployed in redundant systems to enhance reliability.
