Introduction

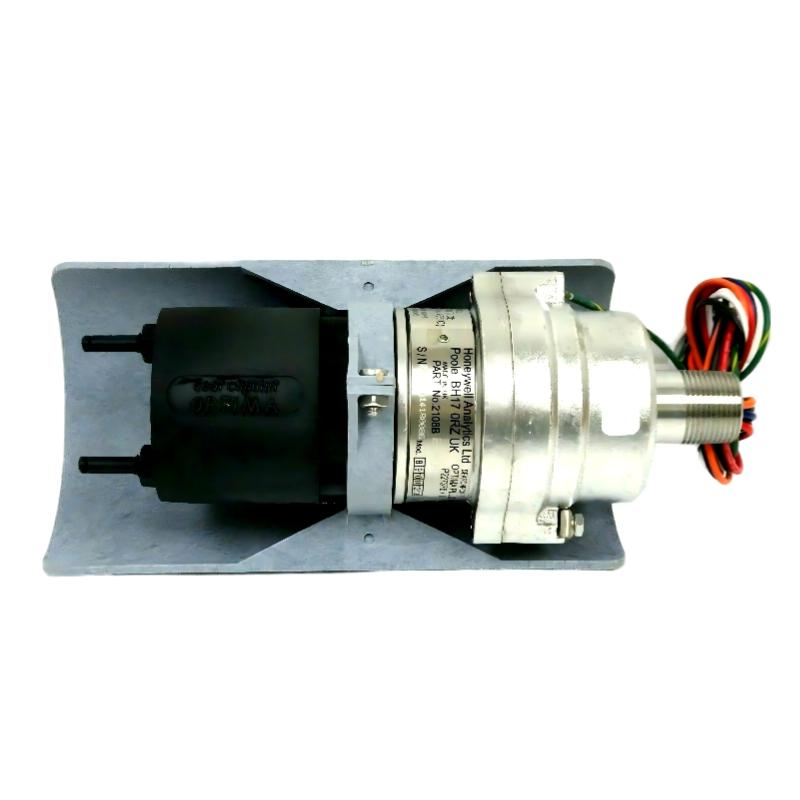

The Honeywell 2108B2101H Infrared Gas Detector is an industrial fixed gas-monitoring device intended for applications where continuous detection of hazardous gas conditions is required. Gas detection is an important layer of protection in facilities where combustible gases may be released through leaks, process failures, equipment damage, or maintenance activities.

Infrared detection technology operates by analyzing how target gas molecules interact with infrared radiation. This provides a fundamentally different sensing method from catalytic or electrochemical technologies and can offer useful advantages for appropriate industrial applications.

Fixed gas detectors are normally installed at carefully selected locations throughout a facility. Detector placement is not simply a matter of mounting the unit close to a process machine. Gas density, airflow, ventilation, potential release points, equipment layout, and the behavior of the target gas all influence the most effective detection location.

The 2108B2101H can serve as part of a broader gas detection system in industrial facilities such as refineries, petrochemical plants, gas processing facilities, and other process environments. When a hazardous concentration is detected, the resulting signal can be used by the facility's alarm, control, or safety architecture to initiate the appropriate response.

For maintenance teams, replacing a detector requires more than matching the physical enclosure. The detector type, gas configuration, electrical interface, alarm settings, calibration requirements, and system compatibility should all be verified before returning the unit to service.

Technical Specifications

Parameter	Specification
Brand	Honeywell
Model	2108B2101H
Product Type	Infrared Gas Detector
Detection Technology	Infrared
Application	Fixed Industrial Gas Detection
Typical Installation	Process Plants and Hazardous Industrial Areas
Primary Function	Continuous Gas Monitoring
Typical System Integration	Gas Detection, Alarm and Safety Systems
Dimensions	380 × 85 × 250 mm
Weight	1.60 kg (3.53 lb)

The detector measures 380 × 85 × 250 mm and weighs 1.60 kg (3.53 lb). The installation arrangement should provide sufficient physical access for inspection, testing, cleaning, and maintenance.

Because fixed gas detectors are safety-related instruments, installation and commissioning should be carried out according to the applicable site engineering requirements. The detector's sensing technology and configuration must also be matched to the target gas and intended monitoring application.

Recommended Related Models

Model	Product Type	Typical Application
Honeywell Searchpoint Optima Plus	Infrared Gas Detector	Fixed combustible gas monitoring
Honeywell Searchline Excel	Open-Path Gas Detector	Long-distance gas detection
Honeywell Sensepoint XCD	Gas Detector	Industrial fixed gas monitoring
Honeywell Sensepoint Plus	Gas Detector	Industrial gas detection
Honeywell Touchpoint Plus	Gas Detection Controller	Gas monitoring system control

These Honeywell products cover fixed-point, open-path, and gas-system control applications. The appropriate detector depends on the target gas, installation environment, detection distance, hazardous-area requirements, and overall safety-system architecture.

Popular Related Models

Model	Product Type	Typical Use
Honeywell Searchpoint Optima Plus	Infrared Gas Detector	Fixed gas monitoring
Honeywell Searchline Excel	Open-Path Gas Detector	Area and perimeter gas detection
Honeywell Sensepoint XCD	Gas Detector	Industrial gas monitoring
Honeywell Sensepoint Plus	Gas Detector	Fixed-point gas detection
Honeywell Touchpoint Plus	Gas Detection Controller	Centralized gas safety monitoring

For gas detection equipment, the correct replacement should always be selected according to the complete application rather than physical compatibility alone. Target gas, sensing technology, hazardous-area classification, output interface, alarm configuration, installation location, and calibration requirements should all be confirmed before commissioning.

Applications

The Honeywell 2108B2101H Infrared Gas Detector is designed for continuous monitoring of combustible gas hazards in industrial environments. Infrared gas detection technology provides a non-contact measurement method that can identify gas concentrations without relying on a conventional catalytic sensing element.

This type of detector is particularly valuable in facilities where early detection of gas releases is an important part of the overall safety strategy.

Typical applications include:

Oil and gas facilities
Petrochemical plants
Refineries
Chemical processing facilities
Gas processing installations
Compressor stations
Tank farms
Industrial boiler areas
Power-generation facilities
Process plants
Hazardous-area monitoring systems

The detector can be integrated into a wider gas detection and safety architecture, allowing gas concentration information and alarm conditions to be communicated to plant control, safety, or emergency-response systems.

Advantages

The 2108B2101H uses infrared detection technology to provide continuous gas monitoring for demanding industrial environments. Its design makes it suitable for facilities where dependable detection and rapid response are important operational requirements.

Infrared Detection Technology
Infrared sensing provides a non-contact method of detecting suitable gas concentrations by analyzing the interaction between gas molecules and infrared radiation.

Continuous Gas Monitoring
Continuous monitoring allows the detector to identify changes in the surrounding atmosphere rather than relying only on periodic manual checks.

Suitable for Industrial Safety Systems
The detector can form part of a broader fixed gas detection architecture used to alert operators and initiate appropriate safety actions.

Useful in Hazardous Industrial Areas
Gas detection is critical in facilities where combustible or hazardous gases may be released during normal operation, maintenance, equipment failure, or process upsets.

Reduced Dependence on Catalytic Sensing
Infrared technology can be advantageous for certain applications where catalytic sensors may be affected by environmental or poisoning conditions.

Practical Maintenance Replacement
For existing Honeywell gas detection installations, using the correct detector configuration can simplify maintenance and help restore monitoring coverage quickly.

Compact Industrial Construction
The detector measures 380 × 85 × 250 mm and weighs 1.60 kg (3.53 lb), providing a practical enclosure size for fixed gas-monitoring installations.

Technical FAQs

1. What is the Honeywell 2108B2101H used for?
It is an infrared gas detector designed for continuous monitoring of suitable gas hazards in industrial environments.

2. How does an infrared gas detector work?
The detector uses infrared optical absorption characteristics associated with target gases. Changes in infrared absorption are processed to determine the presence or concentration of the monitored gas.

3. What is the advantage of infrared detection over catalytic detection?
Infrared detection does not depend on the same catalytic combustion process used by catalytic bead sensors. This can provide advantages in certain environments where sensor poisoning, oxygen dependence, or long-term stability are concerns.

4. Where should a fixed gas detector be installed?
The location depends on the target gas, gas density, potential leak sources, airflow, ventilation, equipment arrangement, and applicable safety engineering requirements. Detector placement should be determined through a formal site assessment.

5. What can cause false or unstable gas readings?
Possible causes include contaminated optical surfaces, environmental conditions, incorrect installation, electrical problems, unsuitable detector placement, calibration issues, or conditions outside the detector's specified operating range.

6. How should an infrared gas detector be maintained?
Maintenance normally includes visual inspection, cleaning of appropriate optical surfaces, verification of electrical connections, functional testing, and calibration or response testing according to the applicable maintenance procedure.

7. What should be checked if the detector produces a fault alarm?
Review the detector's diagnostic indication first. Then inspect power supply conditions, wiring, optical condition, environmental factors, calibration status, and communication with the receiving control system.

8. Can the detector be connected to a plant safety system?
A compatible detector can be incorporated into a gas detection architecture that provides alarm and status information to an appropriate control or safety system. The complete electrical interface must be verified during system design.

9. Why is detector calibration important?
Calibration verifies that the detector's response corresponds appropriately to the intended reference condition. Regular verification helps maintain confidence in gas concentration measurements and alarm performance.

10. What should be verified after replacing the detector?
Confirm mechanical installation, electrical wiring, configuration, detector status, alarm outputs, and communication. Functional testing should then verify that the detector and receiving safety system respond correctly.
