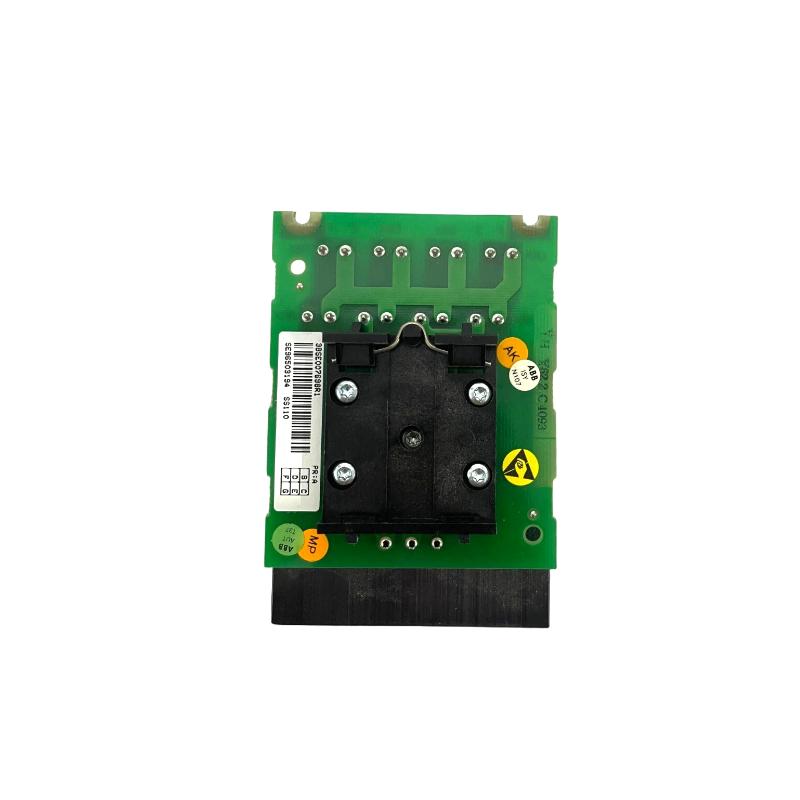

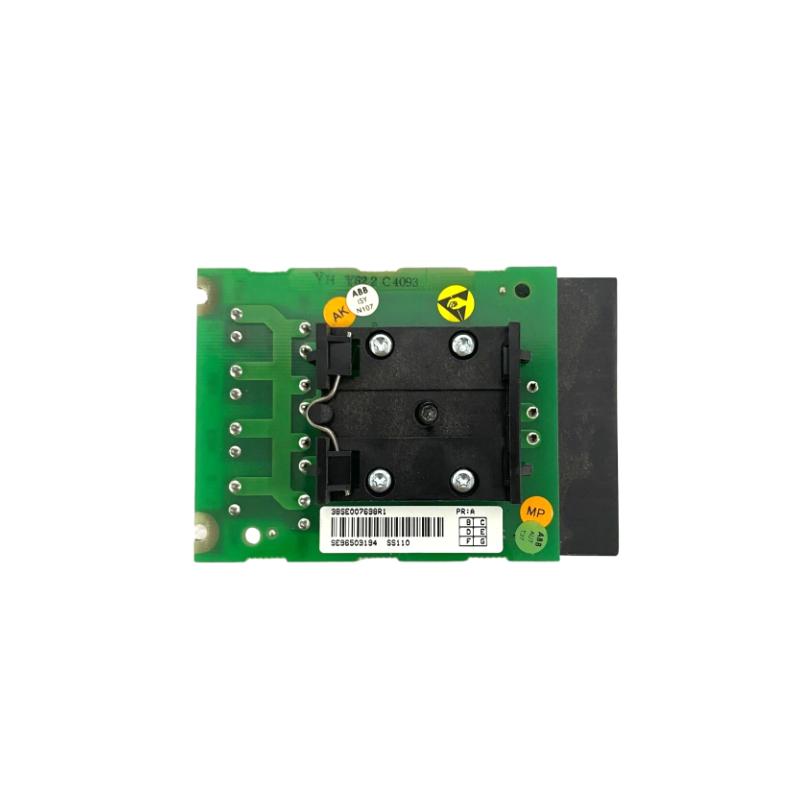

SS110 3BSE007698R1-3 SS110 3BSE007698R1-2 SS110 3BSE007698R1-1 SS110 3BSE007698R1-4

The ABB SS110 Power Supply Module is a robust and reliable power supply solution designed for a wide range of industrial automation applications. Providing a stable 24V DC output with high energy efficiency, the SS110 ensures your automation systems, PLCs, control systems, and machinery receive consistent and reliable power. Whether you're operating manufacturing equipment, material handling systems, or energy management infrastructure, the SS110 is engineered to meet the demands of critical applications, delivering uninterrupted power while minimizing operational costs.

With advanced protection features and a compact design, the SS110 is built to withstand industrial environments, offering maximum reliability, energy efficiency, and ease of integration. Its high-efficiency performance, combined with robust protection mechanisms, makes it a key component for enhancing operational uptime and extending the lifespan of your equipment.

Technical Specifications

Specification	Details
Model	SS110 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	5A
Efficiency	92% (at full load)
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Weight	1.5 kg (3.31 lbs)
Dimensions (W x H x D)	120 x 140 x 95 mm (4.72 x 5.51 x 3.74 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

For additional flexibility and performance, consider these related ABB models:

ABB SS120: Compact power supply for applications requiring higher output current.
ABB SS150: High-performance power supply module for larger systems with greater power demands.
ABB DCS 800 Series: Comprehensive control and power management solutions for industrial automation.
ABB PM850: Power protection module designed to safeguard industrial systems from electrical faults.
ABB SM850: Modular power supply for scalable systems requiring higher output and flexibility.

Popular ABB Models

ABB offers a wide range of power supplies and automation products for various industrial applications. Below are some of the most popular models:

ABB SD880: Heavy-duty power supply module for demanding industrial environments.
ABB ACS580: Energy-efficient variable frequency drives for precise motor control.
ABB IRB 6700: High-performance industrial robots designed for automated manufacturing processes.
ABB PPM500: Power protection system that ensures the safety and longevity of your equipment.
ABB MNS 3.0: Flexible, modular power distribution system for industrial facilities.

Applications

The ABB SS110 Power Supply Module is suitable for a wide range of industrial applications, including:

Automation Systems: Provides stable 24V DC power to PLCs, control systems, and robotics, ensuring smooth and continuous automation processes.
Manufacturing Plants: Powers automated production lines, assembly machines, and packaging systems, ensuring uninterrupted manufacturing processes.
Material Handling: Ideal for powering conveyors, sorters, and automated storage systems in logistics and material handling environments.
HVAC Systems: Supplies reliable power to heating, ventilation, and air conditioning systems in large commercial and industrial buildings.
Energy Systems: Powers critical control systems in energy distribution, renewable energy plants, and electrical grids.

Advantages

High Efficiency: The SS110 operates with an efficiency rating of 92% at full load, reducing energy consumption and minimizing heat generation, which in turn lowers operational costs.
Compact Design: With its compact form factor, the SS110 saves valuable space in control panels and industrial setups while maintaining high power output.
Advanced Protection Features: The module includes essential protection features such as overvoltage, overcurrent, short circuit, thermal protection, and surge protection to ensure safe operation.
Wide Input Voltage Range: The SS110 supports an input voltage range of 85-265 VAC, making it compatible with power supplies in different regions.
Easy Installation: The SS110 is designed for quick and easy installation using standard DIN rail mounting, streamlining setup time in industrial control cabinets or machinery enclosures.
Long-Term Reliability: Designed to operate continuously in industrial environments, the SS110 ensures high uptime and reliable performance over its lifespan.

Technical FAQs

What is the input voltage range for the ABB SS110?
- The SS110 operates with an input voltage range from 85-265 VAC, making it versatile and adaptable to different global power standards.
What is the efficiency rating of the SS110?
- The SS110 offers a 92% efficiency rating at full load, helping reduce energy costs and minimize heat production.
What protection features are included in the SS110?
- The SS110 is equipped with overvoltage, overcurrent, thermal, short circuit, and surge protection features to safeguard your equipment.
How much current can the SS110 supply?
- The SS110 is capable of supplying up to 5A of current at 24V DC, making it ideal for medium-sized systems and applications.
Can the SS110 be used in outdoor environments?
- The SS110 is designed for indoor use, but it can be housed in an appropriate enclosure for outdoor applications.
What is the operating temperature range for the SS110?
- The SS110 operates within a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for various industrial environments.
How is the SS110 mounted?
- The SS110 uses a standard DIN rail mounting system, which simplifies the installation process in control panels and industrial settings.
What are the dimensions and weight of the SS110?
- The SS110 weighs 1.5 kg (3.31 lbs) and has dimensions of 120 x 140 x 95 mm (4.72 x 5.51 x 3.74 inches), making it compact for industrial use.
Is the SS110 suitable for large systems?
- The SS110 is designed for medium-sized systems. For larger applications, consider models like the SS120 or SS150 for greater current output.
Can the SS110 be integrated with other ABB systems?
- Yes, the SS110 is fully compatible with other ABB industrial automation and control products, allowing for seamless integration into larger systems.
