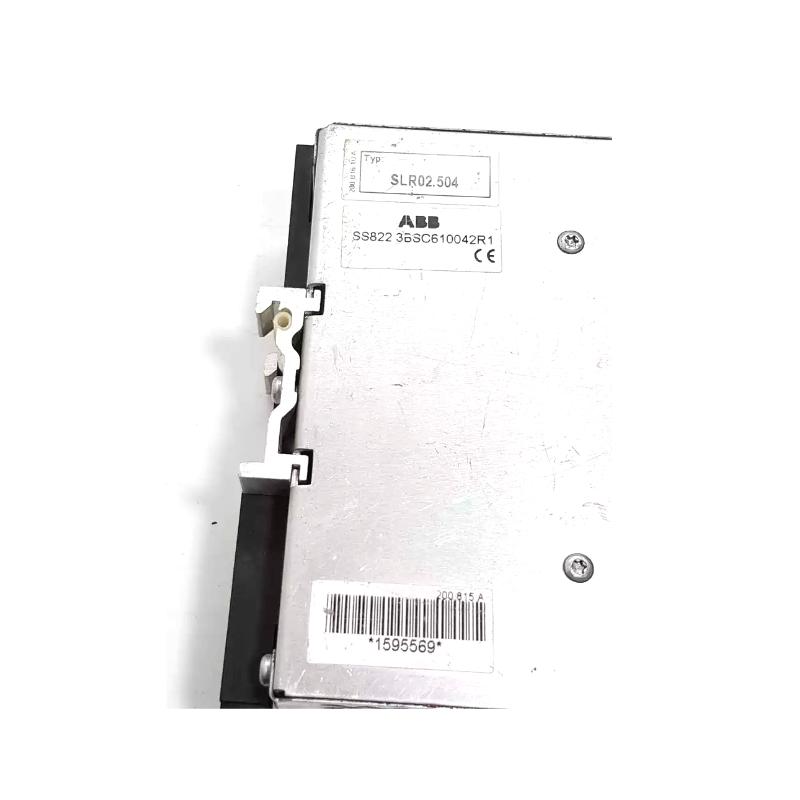

The ABB SS822 Power Supply Module is a versatile and high-performance power supply solution designed for industrial automation systems that require consistent, reliable 24V DC output. Whether you’re powering programmable logic controllers (PLCs), sensors, or other industrial control systems, the SS822 provides the necessary power to keep operations running smoothly and efficiently.

Built with advanced protection features and optimized for energy efficiency, the SS822 offers an exceptional level of reliability in demanding industrial environments. Its robust design and easy integration into industrial control panels make it an ideal choice for medium to large automation systems. With a high-efficiency rating and a range of protective features, this power supply module ensures maximum uptime while minimizing energy costs, making it a crucial component for modern industrial facilities.

Technical Specifications

Specification	Details
Model	SS822 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	10A
Efficiency	94% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	2.2 kg (4.85 lbs)
Dimensions (W x H x D)	140 x 160 x 115 mm (5.51 x 6.30 x 4.53 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

For projects requiring additional power capacity or features, consider these related ABB models:

ABB SS820: Compact power supply solution for smaller automation systems or less demanding applications.
ABB SS850: High-output power supply module ideal for larger systems requiring higher current capacity.
ABB DCS 800 Series: Advanced control and power solutions for complex automation needs in industrial systems.
ABB PM850: Power protection module to safeguard systems from electrical faults, surges, and interruptions.
ABB SM860: Modular power supply solution for scalable and flexible industrial automation systems.

Popular ABB Models

ABB provides a comprehensive portfolio of power supplies and automation solutions. Here are some popular models:

ABB SD880: Rugged and high-capacity power supply module designed for heavy-duty industrial environments.
ABB ACS580: Energy-efficient variable frequency drives for precise motor control in industrial processes.
ABB IRB 6700: Precision industrial robots for high-speed, high-accuracy manufacturing applications.
ABB PPM500: Power protection systems designed to protect critical systems from electrical disturbances.
ABB MNS 3.0: Modular power distribution system for efficient and scalable electrical installations in industrial plants.

Applications

The ABB SS822 Power Supply Module is designed for a wide variety of industrial applications, including:

Automation Systems: Provides reliable 24V DC power to PLCs, controllers, robotics, and other automation systems, ensuring consistent operation in industrial environments.
Manufacturing Plants: Ideal for powering automated production lines, assembly machines, and packaging systems, ensuring smooth and uninterrupted processes.
Material Handling: Perfect for material handling systems such as conveyors, sorters, and automated storage and retrieval systems.
HVAC Systems: Powers HVAC systems, ensuring reliable operation of heating, ventilation, and air conditioning in large industrial and commercial facilities.
Energy Systems: Supplies stable and efficient power to control systems in renewable energy plants, electrical grids, and energy distribution networks.

Advantages

High Efficiency: Operating at 94% efficiency at full load, the SS822 minimizes energy consumption, helping to reduce operational costs and the overall carbon footprint.
Compact and Durable: Despite its high current output, the SS822’s compact design saves valuable space in control panels and enclosures while providing robust and reliable performance.
Comprehensive Protection: The SS822 comes equipped with overvoltage, overcurrent, thermal, short-circuit, and surge protection to safeguard your equipment and ensure safe operation.
Wide Input Voltage Range: The SS822 supports an input voltage range of 85-265 VAC, making it suitable for use in various regions with different power supply standards.
Easy Installation: The module uses DIN rail mounting, which makes installation quick and easy, reducing setup time and increasing efficiency during deployment.
Long-Term Reliability: Designed for continuous operation in industrial environments, the SS822 offers high reliability, reducing the need for maintenance and downtime.

Technical FAQs

What is the input voltage range for the ABB SS822?
- The SS822 operates with an input voltage range of 85-265 VAC, making it adaptable to different power grids worldwide.
What is the efficiency of the SS822 power supply?
- The SS822 achieves 94% efficiency at full load, ensuring minimal energy loss and helping reduce operating costs.
What protection features does the SS822 offer?
- The SS822 includes overvoltage, overcurrent, short circuit, thermal protection, and surge protection to safeguard both the power supply and the connected systems.
How much current can the SS822 provide?
- The SS822 provides up to 10A of current at a stable 24V DC output, making it suitable for medium to large industrial applications.
Can the SS822 be used outdoors?
- The SS822 is designed for indoor use. However, it can be installed in an enclosure for outdoor use to protect it from environmental elements.
What is the operating temperature range for the SS822?
- The SS822 operates within a temperature range of -10°C to 70°C (14°F to 158°F), making it suitable for use in a variety of industrial environments.
How is the SS822 mounted?
- The SS822 uses a standard DIN rail mounting system, which simplifies installation in industrial control panels or machinery enclosures.
What are the dimensions and weight of the SS822?
- The SS822 weighs 2.2 kg (4.85 lbs) and has dimensions of 140 x 160 x 115 mm (5.51 x 6.30 x 4.53 inches), offering a compact form factor for high-performance applications.
Is the SS822 suitable for large systems?
- Yes, with a 10A output, the SS822 is ideal for larger systems that require stable and reliable 24V DC power.
Can the SS822 be integrated with other ABB systems?
- Yes, the SS822 is compatible with a wide range of ABB automation and control products, making integration seamless within larger systems.
