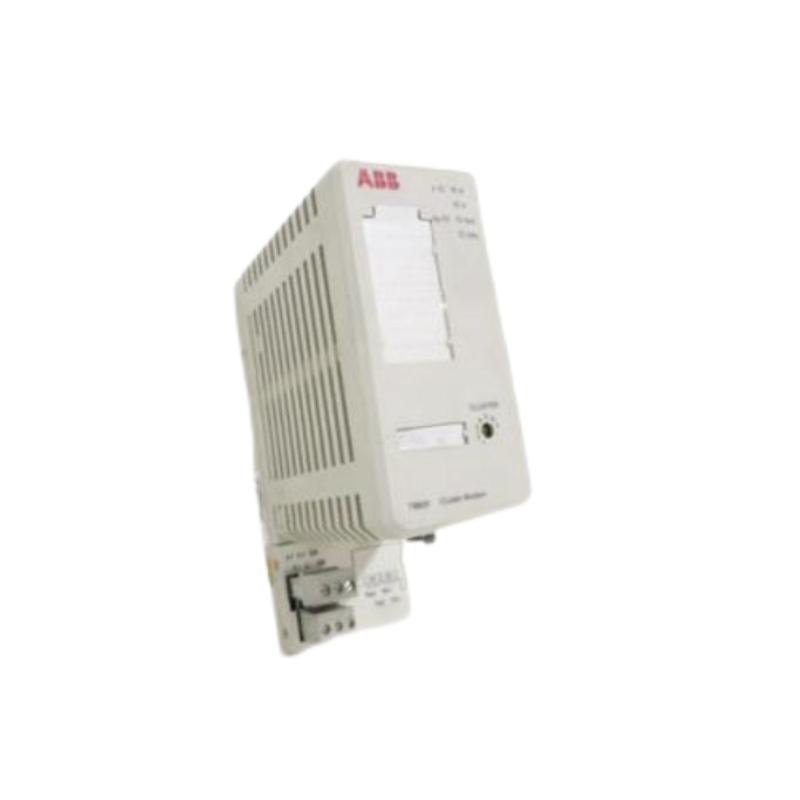

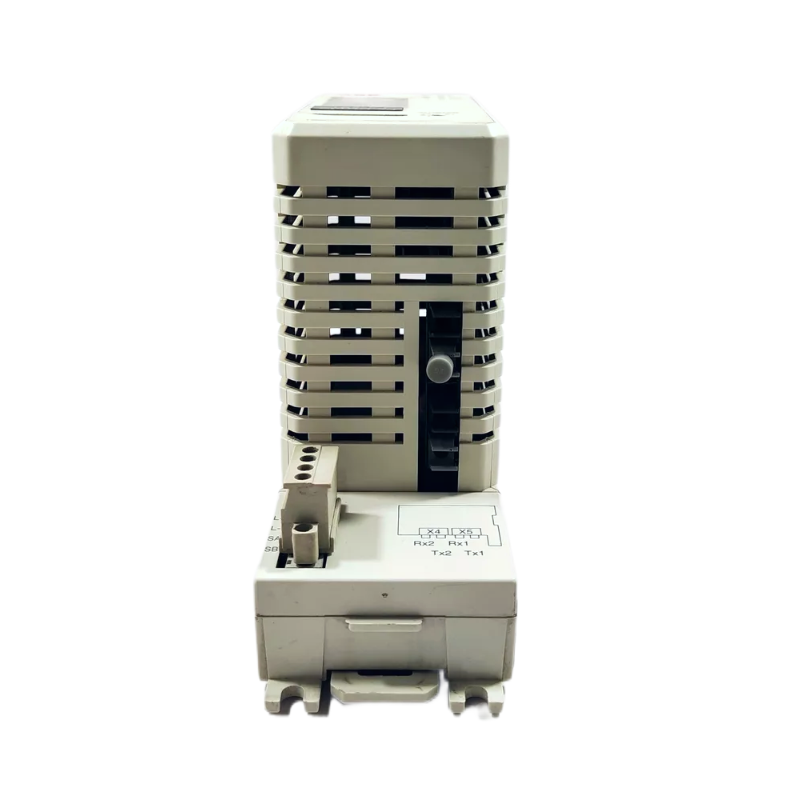

ABB TB820 3BSE008555R1 1(1) ABB TB820 3BSE008555R1 2(1) ABB TB820 3BSE008555R1 3(1) ABB TB820 3BSE008555R1 5(1)

The ABB TB820 Power Supply Module is a highly efficient and reliable 24V DC power supply solution designed to meet the needs of demanding industrial automation and control systems. Whether you're powering PLCs, control systems, sensors, actuators, or other critical equipment, the TB820 ensures stable and uninterrupted power delivery, enhancing the performance and reliability of your systems.

Built for large-scale industrial environments, the TB820 offers superior efficiency, a robust design, and comprehensive protection features. Capable of delivering up to 30A of current, this power supply is ideal for systems that require a high-output, dependable power source. The compact form factor and DIN rail mounting design make the TB820 easy to integrate into control panels, while its advanced protection features safeguard both the module and connected devices from electrical disturbances.

The TB820 is perfect for applications in industries such as manufacturing, material handling, energy management, and HVAC systems, where high performance and operational efficiency are essential.

Technical Specifications

Specification	Details
Model	TB820 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	30A
Efficiency	96% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	4.0 kg (8.82 lbs)
Dimensions (W x H x D)	180 x 210 x 160 mm (7.09 x 8.27 x 6.30 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

For different industrial power requirements, consider these other ABB models:

ABB TB815: A high-output power supply delivering 25A for large-scale systems, perfect for medium to heavy-duty industrial applications.
ABB TB810: Ideal for applications requiring 15A output, providing a compact yet reliable power solution for medium systems.
ABB TB805: A lower-output model providing 6A, suitable for smaller industrial automation setups.
ABB DCS 800 Series: A versatile line of power supply systems designed for larger, more complex automation solutions.
ABB PM850: A power protection module for safeguarding your systems against electrical faults and ensuring long-term equipment durability.

Popular ABB Models

ABB offers a broad range of products designed for industrial automation. Here are some other popular models:

ABB SD880: High-capacity power supply for heavy-duty industrial systems.
ABB ACS580: Variable frequency drives designed to optimize motor performance and energy efficiency in industrial processes.
ABB IRB 6700: Industrial robots designed for precision and high performance in manufacturing, assembly, and material handling tasks.
ABB PPM500: Power protection systems that ensure stable and continuous operation of critical equipment.
ABB MNS 3.0: Modular and scalable power distribution systems ideal for industrial and commercial facilities.

Applications

The ABB TB820 Power Supply Module is ideal for powering a variety of industrial systems and automation processes:

Automation Systems: Supplies reliable 24V DC power to PLCs, sensors, control systems, and other devices critical to industrial automation operations.
Manufacturing Plants: Powers automated production lines, assembly robots, packaging machines, and other manufacturing equipment, ensuring smooth production flows.
Material Handling: Powers conveyors, sorters, automated storage/retrieval systems, and other material handling equipment in warehouses, distribution centers, and logistics.
HVAC Systems: Ensures stable 24V DC power for HVAC systems in large commercial and industrial buildings, maintaining optimal climate conditions.
Energy Management: Powers control systems in energy plants, electrical grids, and renewable energy installations, providing reliable power for monitoring and controlling critical infrastructure.

Advantages

High Efficiency: The TB820 operates with an efficiency of 96% at full load, reducing energy consumption and heat generation while improving operational efficiency.
Advanced Protection Features: It comes with comprehensive protection against overvoltage, overcurrent, short-circuit, thermal overloads, and surge protection, ensuring that both the power supply and connected equipment are protected from electrical faults.
High Output Capacity: With a 30A output, the TB820 is capable of supporting large-scale industrial systems that require substantial power.
Compact Design: Despite its high output current, the TB820 maintains a compact design, allowing easy integration into control panels and machinery enclosures without occupying excessive space.
Wide Input Voltage Range: The TB820 operates within an input voltage range of 85-265 VAC, making it suitable for use in various global power supply standards.
Easy Installation: Featuring DIN rail mounting, the TB820 simplifies installation and secures the power supply module in industrial control panels, helping to streamline setup and maintenance.
Long-Term Reliability: Designed for harsh industrial environments, the TB820 is built to provide continuous, stable power over long periods, reducing the risk of downtime and maintenance costs.

Technical FAQs

What is the input voltage range for the ABB TB820?
- The TB820 operates within an input voltage range of 85-265 VAC, which is suitable for most global power standards.
What is the efficiency rating of the TB820?
- The TB820 achieves a high efficiency of 96% at full load, reducing energy usage and heat output, contributing to lower operating costs.
What protection features are included with the TB820?
- The TB820 includes overvoltage, overcurrent, thermal, short-circuit, and surge protection to safeguard the power supply module and the connected systems.
How much current can the TB820 provide?
- The TB820 can supply up to 30A of current at 24V DC, making it suitable for larger systems and high-power industrial applications.
Can the TB820 be used outdoors?
- The TB820 is designed for indoor use. However, it can be placed in protective enclosures for outdoor use or in environments with harsh conditions.
What is the operating temperature range for the TB820?
- The TB820 operates within a temperature range of -10°C to 70°C (14°F to 158°F), which is suitable for a wide variety of industrial environments.
How is the TB820 mounted?
- The TB820 is designed for DIN rail mounting, simplifying installation and ensuring a secure attachment within industrial control panels.
What are the dimensions and weight of the TB820?
- The TB820 weighs 4.0 kg (8.82 lbs) and has dimensions of 180 x 210 x 160 mm (7.09 x 8.27 x 6.30 inches), offering a compact design despite its high power output.
Is the TB820 suitable for large industrial systems?
- Yes, with its 30A output, the TB820 is ideal for large-scale industrial systems that require reliable and substantial 24V DC power.
Can the TB820 be integrated with other ABB systems?
- Yes, the TB820 is fully compatible with other ABB products, making it easy to integrate into larger automation systems and control infrastructures.
