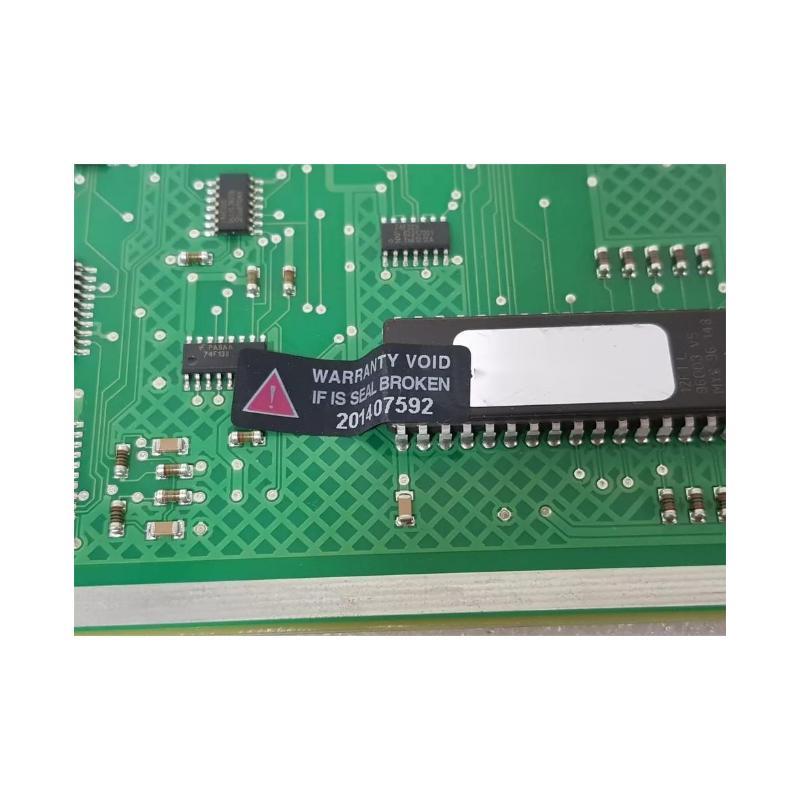

ABB TC520 3BSE001449R1-2 TC520 3BSE001449R1 5 TC520 3BSE001449R1 4

The ABB TC520 Power Supply Module is a compact and efficient 24V DC power supply designed to provide reliable and stable energy for a wide range of industrial automation systems. With a robust output capacity of 30A, the TC520 is perfect for powering control systems, PLCs, sensors, actuators, and other essential industrial components. It ensures consistent performance, making it ideal for applications in manufacturing, material handling, HVAC, and energy management, where uptime and reliability are critical.

The ABB TC520 offers an energy-efficient solution, designed to operate with high efficiency (up to 96%), reducing operational costs and minimizing heat output. With its advanced protection features, including overvoltage, overcurrent, and short-circuit protection, the TC520 ensures the safety and longevity of both the power supply and the connected equipment. Its compact design and ease of installation make it a flexible solution for space-constrained environments, ideal for control panels, enclosures, and industrial automation systems.

Technical Specifications

Specification	Details
Model	TC520 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	30A
Efficiency	96% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	7.8 kg (17.2 lbs)
Dimensions (W x H x D)	290 x 270 x 160 mm (11.42 x 10.63 x 6.30 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

ABB offers a range of power supplies with varying output capacities to meet the needs of different industrial applications. Below are some recommended models that complement the TC520:

ABB TC510: A 45A power supply that offers similar features but with a higher output capacity for medium-scale industrial applications.
ABB TB850: A 120A power supply module designed for larger-scale systems requiring high current output for automation processes.
ABB TB852: A 200A power supply solution for high-demand applications, providing ample power for complex industrial systems.
ABB SM860: A flexible modular power supply that can be tailored to fit complex systems with customizable configurations.
ABB DCS 800 Series: A scalable and reliable power supply series ideal for industrial systems with large, fluctuating energy requirements.

Popular ABB Models

ABB is a global leader in industrial automation, offering a wide variety of reliable products. Some of the popular models from ABB include:

ABB ACS580: A versatile variable frequency drive (VFD) for efficient motor control in industrial automation systems.
ABB IRB 6700: A high-performance industrial robot known for its speed and precision in automated manufacturing and assembly tasks.
ABB SD880: A robust, high-output power supply for demanding industrial environments, offering reliable 24V DC power for large systems.
ABB PPM500: A power protection module designed to shield equipment from power surges and disturbances, ensuring the longevity of connected systems.
ABB MNS 3.0: A modular power distribution system used to optimize energy management and ensure reliability in large industrial facilities.

Applications

The ABB TC520 Power Supply Module is a reliable choice for a wide range of industrial applications that require 24V DC power. Key applications include:

Industrial Automation: Provides power to PLCs, sensors, actuators, and other components, ensuring the smooth operation of automated manufacturing processes and control systems.
Manufacturing: Powers production lines, robotic arms, packaging systems, and assembly machines, optimizing production efficiency and reducing downtime in industries such as automotive and electronics.
Material Handling: Suitable for powering automated material handling systems such as conveyors, sorters, and storage/retrieval systems (ASRS) used in logistics, warehousing, and distribution centers.
HVAC Systems: Ideal for powering HVAC control systems in industrial, commercial, and residential settings, ensuring efficient climate control and energy management.
Energy Management: Powers control and monitoring systems in power plants, electrical grids, and renewable energy systems, helping manage energy distribution and optimize performance.

Advantages

Compact and Efficient: The TC520 offers a space-saving design with a high-efficiency rating of 96%, reducing energy consumption and heat generation, ideal for small-to-medium industrial setups.
Advanced Protection Features: The module is equipped with built-in protection features like overvoltage, overcurrent, thermal overload, short-circuit, and surge protection, ensuring the safety and reliability of your entire system.
Easy Installation: Designed for DIN rail mounting, the TC520 can be quickly and securely installed in industrial control panels, saving time and labor during setup.
Reliable Performance: The TC520 ensures continuous power to sensitive equipment, minimizing downtime and enhancing the operational efficiency of automated systems.
Wide Temperature Range: With an operating temperature range of -10°C to 70°C (14°F to 158°F), the TC520 is suitable for use in a variety of industrial environments, from harsh outdoor conditions to climate-controlled indoor settings.
Global Voltage Compatibility: The TC520 supports an input voltage range of 85-265 VAC, making it suitable for use worldwide and adaptable to different electrical standards.
Energy Savings: Thanks to its high efficiency, the TC520 reduces energy costs, contributing to more sustainable and cost-effective operations.

Technical FAQs

What input voltage range does the ABB TC520 support?
- The TC520 can accept input voltages ranging from 85-265 VAC, making it adaptable to various power standards globally.
What is the efficiency of the TC520?
- The TC520 operates at 96% efficiency at full load, ensuring minimal energy loss and reduced heat output.
What protection features are included?
- The TC520 includes overvoltage, overcurrent, thermal overload, short-circuit, and surge protection, providing comprehensive safety for both the module and connected equipment.
How much current can the TC520 supply?
- The TC520 can supply up to 30A of 24V DC power, making it suitable for medium-sized industrial applications.
Can the TC520 be used outdoors?
- While designed for indoor use, the TC520 can be used in outdoor environments if installed in a protective enclosure to shield it from the elements.
What is the operating temperature range for the TC520?
- The TC520 operates in a temperature range of -10°C to 70°C (14°F to 158°F), making it versatile enough for a wide range of industrial applications.
How is the TC520 mounted?
- The TC520 is designed for DIN rail mounting, allowing for easy and secure installation in control panels, industrial cabinets, and enclosures.
What are the dimensions and weight of the TC520?
- The TC520 has dimensions of 290 x 270 x 160 mm (11.42 x 10.63 x 6.30 inches) and weighs 7.8 kg (17.2 lbs).
Is the TC520 suitable for larger systems?
- While the TC520 is ideal for medium-scale systems requiring 30A of power, ABB offers higher-capacity models such as the TB850 and TB852 for more demanding applications.
Can the TC520 be integrated with other ABB products?
- Yes, the TC520 is fully compatible with other ABB automation products, ensuring seamless integration into existing or new industrial automation systems.
