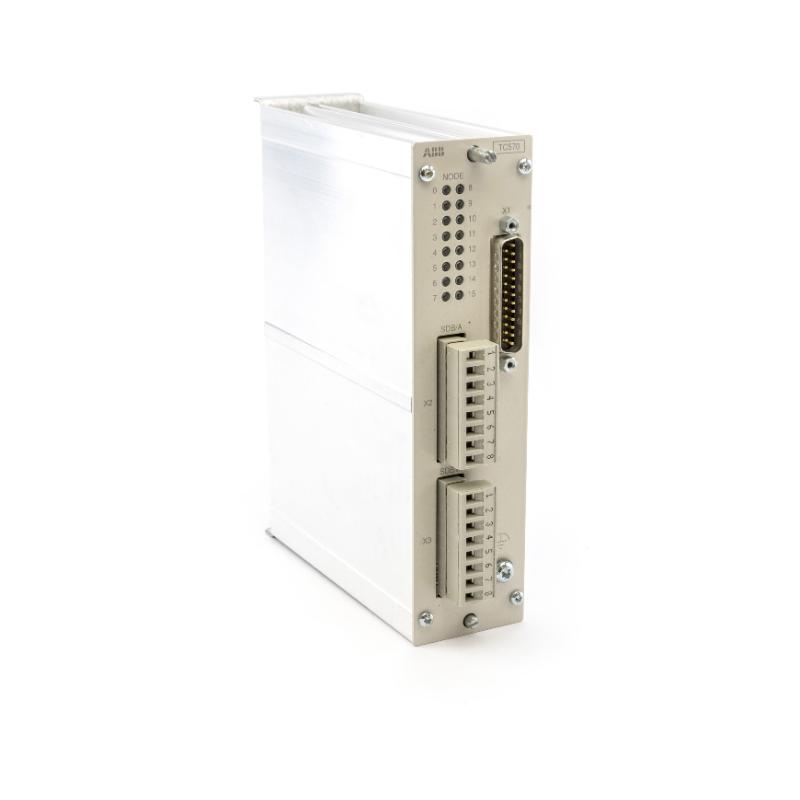

The ABB TC570 Power Supply Module is a high-performance 24V DC power solution designed to meet the needs of large-scale, high-demand industrial automation systems. With its 70A output capacity, the TC570 is engineered to provide reliable, continuous power to a wide range of industrial equipment, including PLCs, sensors, actuators, robots, and control systems. This power supply module ensures stable and efficient energy delivery, making it ideal for applications in manufacturing, material handling, HVAC, energy management, and other critical industrial environments.

Operating with up to 98% efficiency, the ABB TC570 minimizes energy consumption while maximizing output. Its advanced protection features, including overvoltage, overcurrent, and short-circuit protection, ensure that both the module and connected systems remain safe from electrical faults. Designed for easy installation with DIN rail mounting, the TC570 is a versatile and reliable power supply that ensures continuous uptime in demanding industrial operations.

Technical Specifications

Specification	Details
Model	TC570 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	70A
Efficiency	98% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	11.5 kg (25.35 lbs)
Dimensions (W x H x D)	350 x 380 x 250 mm (13.78 x 14.96 x 9.84 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

For a wider range of power supply needs, ABB offers several power supply models that complement the TC570:

ABB TC530: A 50A power supply module ideal for medium-scale industrial systems that require reliable 24V DC power.
ABB TC520: A smaller 30A version, suitable for compact and less power-intensive industrial applications.
ABB TB850: A high-capacity 120A power supply, ideal for systems requiring larger power output and enhanced scalability.
ABB TB852: A robust 200A power supply solution for systems with significant power demands, providing stable and reliable energy.
ABB DCS 800 Series: A modular and scalable power supply system, offering flexibility and adaptability for diverse industrial environments.

Popular ABB Models

ABB offers a wide range of automation and control products. Some of the most popular models include:

ABB ACS580: A variable frequency drive (VFD) that provides efficient motor control in industrial automation systems.
ABB IRB 6700: A high-performance industrial robot used for automation tasks that require speed, accuracy, and precision.
ABB SD880: A high-output power supply module designed for large industrial systems, offering reliable 24V DC power.
ABB PPM500: A power protection module that ensures the protection of systems from electrical disturbances.
ABB MNS 3.0: A modular and scalable power distribution system, ideal for large industrial facilities requiring high efficiency and reliability.

Applications

The ABB TC570 Power Supply Module is suitable for a variety of industrial applications, including:

Industrial Automation: Supplies power to PLCs, sensors, actuators, robotics, and other critical control systems in automated manufacturing processes.
Manufacturing: Provides reliable energy for automated production lines, robotic arms, CNC machines, and packaging systems, ensuring seamless production processes.
Material Handling: Powers material handling systems such as conveyors, sorters, and automated storage/retrieval systems (ASRS) in logistics, warehouses, and distribution centers.
HVAC Systems: Supplies power for HVAC systems in industrial, commercial, and residential buildings, ensuring smooth and efficient operation.
Energy Management: Used in energy production, smart grids, and renewable energy applications, the TC570 ensures stable and efficient power management.

Advantages

High Output Capacity: With 70A output, the TC570 is suitable for medium to large-scale industrial systems that require significant power for continuous operation.
Exceptional Efficiency: Operating with up to 98% efficiency, the TC570 reduces energy waste, making it a cost-effective solution for energy-conscious industries.
Comprehensive Protection: The TC570 features advanced protection mechanisms such as overvoltage, overcurrent, short-circuit, and surge protection, ensuring the safety of both the power supply and the connected systems.
Compact and Robust Design: Despite its high output, the TC570 is compact and durable, designed to withstand harsh industrial conditions and fit easily into control panels or enclosures.
Wide Temperature Range: The TC570 operates effectively within a temperature range of -10°C to 70°C, making it suitable for various industrial environments.
Global Compatibility: With an input voltage range of 85-265 VAC, the TC570 is compatible with international power standards, providing flexibility for use across different regions.
Easy Installation: The module is designed for DIN rail mounting, allowing for quick and secure installation in industrial control systems, panels, and cabinets.

Technical FAQs

What input voltage range does the ABB TC570 support?
- The TC570 supports an input voltage range of 85-265 VAC, making it compatible with a variety of global power standards.
What is the efficiency of the TC570?
- The TC570 operates with up to 98% efficiency, minimizing energy consumption and reducing heat production.
What protection features are included with the TC570?
- The TC570 includes overvoltage, overcurrent, thermal overload, short-circuit, and surge protection to safeguard both the module and connected systems.
How much current can the TC570 supply?
- The TC570 can supply up to 70A of 24V DC power, making it suitable for medium to large industrial automation systems.
Can the TC570 be used outdoors?
- While designed for indoor use, the TC570 can be installed in protective enclosures for outdoor applications.
What is the operating temperature range for the TC570?
- The TC570 operates in a temperature range of -10°C to 70°C (14°F to 158°F), providing reliable performance in diverse industrial environments.
How is the TC570 mounted?
- The TC570 is designed for DIN rail mounting, allowing easy and secure installation in industrial control panels and enclosures.
What are the dimensions and weight of the TC570?
- The TC570 weighs 11.5 kg (25.35 lbs) and has dimensions of 350 x 380 x 250 mm (13.78 x 14.96 x 9.84 inches).
Is the TC570 suitable for large systems?
- The TC570 is ideal for medium to large industrial systems, offering reliable power delivery for demanding automation processes.
Can the TC570 be integrated with other ABB products?
- Yes, the TC570 is fully compatible with other ABB products, ensuring seamless integration into existing or new industrial automation systems.
