Brand:Siemens Item No.:6SN1118-0NH11-0AA0 Product Origin:Germany Product Dimensions:330 x 51 x 152 mm Product Weight:0.828 Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

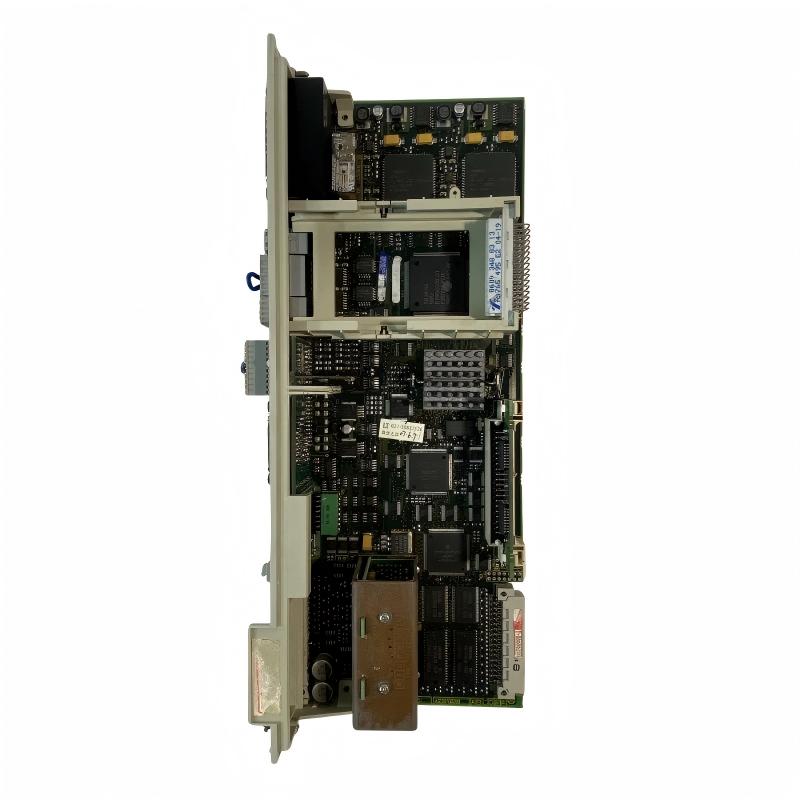

The 6SN1118-0NH11-0AA0 belongs to the Siemens SIMODRIVE 611 universal E HR generation of control hardware. Siemens documentation identifies this model as the two-axis universal E HR control board for encoder-based closed-loop control, with the 0NH11-0AA0 version introduced as the HR control board for the universal E platform.
The control unit is intended to work as part of a complete drive system rather than as a standalone PLC. Its operation depends on the surrounding SIMODRIVE hardware, encoder feedback, parameterization, memory configuration, and applicable motion-control options.
For equipment owners operating legacy Siemens machine tools and production systems, the main value of this module is its role in maintaining an established motion-control architecture. When sourcing a replacement, the complete Siemens order number should always be matched rather than selecting a visually similar control board.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6SN1118-0NH11-0AA0
Product Family
SIMODRIVE 611 universal E HR
Product Type
Dual-Axis Control Unit
Control Type
Closed-loop motion control
Number of Axes
2
Encoder Type
Incremental encoder, sin/cos 1 Vpp
Absolute Encoder
EnDat supported in applicable configuration
Control Functions
Speed, rotational-speed and torque setpoint control
Communication
PROFIBUS-DP motion-control configuration
Dimensions
330 × 51 × 152 mm
Weight
0.83 kg (1.83 lb)
Product Status
Legacy / discontinued model
Recommended Related Models
Model
Product Type
Relationship
Siemens 6SN1118-0NH11-0AA1
SIMODRIVE 611 universal E HR Control Unit
Successor version
Siemens 6SN1118-0NH10-0AA0
SIMODRIVE 611 universal E Control Unit
Earlier related version
Siemens 6SN1114-0NB01-0AA0
Motion Control / PROFIBUS-DP Option Module
Associated motion-control option
Siemens 6SN1118-0NH01-0AA0
SIMODRIVE 611 universal Control Unit
Related two-axis encoder control version
Popular Related Models
Model
Product Type
Siemens 6SN1118-0NH11-0AA1
SIMODRIVE 611 universal E HR Control Unit
Siemens 6SN1118-0NH10-0AA0
SIMODRIVE 611 universal E Control Unit
Siemens 6SN1118-0NH01-0AA0
SIMODRIVE 611 universal HR Control Unit
Siemens 6SN1118-0NK01-0AA0
SIMODRIVE 611 universal HR Control Unit
Siemens 6SN1118-0NJ01-0AA0
SIMODRIVE 611 universal HR Control Unit
For replacement projects, always verify the complete MLFB, encoder interface, software generation, memory module, and associated SIMODRIVE configuration before ordering a related model.
Applications in Motion Control Systems
The Siemens 6SN1118-0NH11-0AA0 is designed for two-axis closed-loop control within SIMODRIVE 611 universal E drive systems. Its feedback capability allows the controller to process encoder information for accurate speed, rotational-speed, and torque control.
Typical applications include machine tools, production machinery, positioning systems, and other industrial equipment using Siemens SIMODRIVE motion-control technology. The unit is also associated with Siemens motion-control configurations using PROFIBUS-DP and can be used in systems where coordinated drive control is required.
For maintenance teams, this control unit can be particularly useful when servicing established SIMODRIVE installations. Keeping the original control architecture can reduce the need for extensive changes to machine wiring, drive configuration, and application software.
Why the 6SN1118-0NH11-0AA0 Remains Useful
Two-axis closed-loop control
The unit is designed to control two axes, making it suitable for machines where multiple motion channels must be managed from a compact control platform.
Flexible encoder feedback
The control unit supports incremental encoder signals using sin/cos 1 Vpp and absolute-value encoder feedback using EnDat. This provides flexibility when integrating different feedback arrangements within supported SIMODRIVE configurations.
Speed and torque control
The 6SN1118-0NH11-0AA0 is intended for applications involving speed, rotational-speed, and torque setpoint control, making it suitable for demanding motion-control tasks.
SIMODRIVE 611 universal E integration
Its design is specifically associated with the SIMODRIVE 611 universal E platform, making it a useful replacement or maintenance component for existing systems rather than a generic motion controller.
PROFIBUS-DP capability
The relevant SIMODRIVE configuration uses PROFIBUS-DP motion-control functionality, allowing the drive system to communicate with higher-level automation equipment in supported installations.
Practical maintenance value
For older production machinery, replacing a failed control unit with a matching or technically compatible component can help preserve the existing machine configuration and minimize unnecessary system modifications.
Technical FAQs
1. What type of device is the Siemens 6SN1118-0NH11-0AA0?
It is a SIMODRIVE 611 universal E HR two-axis closed-loop control unit used for industrial motion-control applications.
2. How many axes can the 6SN1118-0NH11-0AA0 control?
The unit is designed for two-axis control.
3. What encoder signals are supported?
The unit is designed for incremental encoder feedback using sin/cos 1 Vpp and supports absolute encoder feedback through EnDat in the applicable SIMODRIVE configuration.
4. Can this control unit be used for torque control?
Yes. The device is intended for applications involving speed, rotational-speed, and torque setpoint control.
5. Does the 6SN1118-0NH11-0AA0 work with PROFIBUS-DP?
It is used in SIMODRIVE configurations supporting motion control with PROFIBUS-DP. The exact communication hardware and system configuration should be checked before replacement.
6. What should be checked before replacing this control unit?
Verify the complete MLFB number, SIMODRIVE hardware configuration, encoder type, software requirements, memory module, option modules, and machine-specific parameters before installation.
7. Can the memory module be transferred during a control-board replacement?
Siemens replacement procedures for this family specify transferring the memory module when replacing certain defective control boards. The machine data should be backed up and the correct replacement procedure followed before commissioning.
8. What should be done before removing the control unit?
The associated power module must be placed in a no-voltage condition and appropriate electrical safety procedures must be followed before the control board is removed.
9. Is the 6SN1118-0NH11-0AA0 interchangeable with 6SN1118-0NH11-0AA1?
The 6SN1118-0NH11-0AA1 is identified as a successor version, but replacement should not be treated as a simple plug-and-play substitution without checking the machine's hardware, software, memory, and configuration requirements.
10. What is the role of this unit within a SIMODRIVE system?
It provides the control and feedback-processing functions required for the associated two-axis closed-loop drive configuration, working together with the SIMODRIVE power section and applicable motion-control components.
