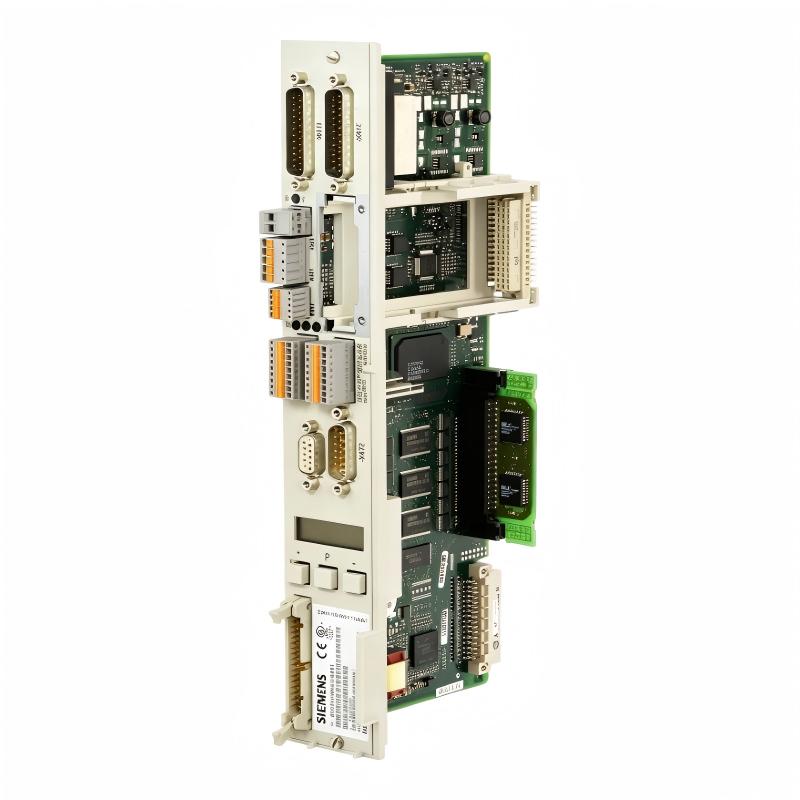

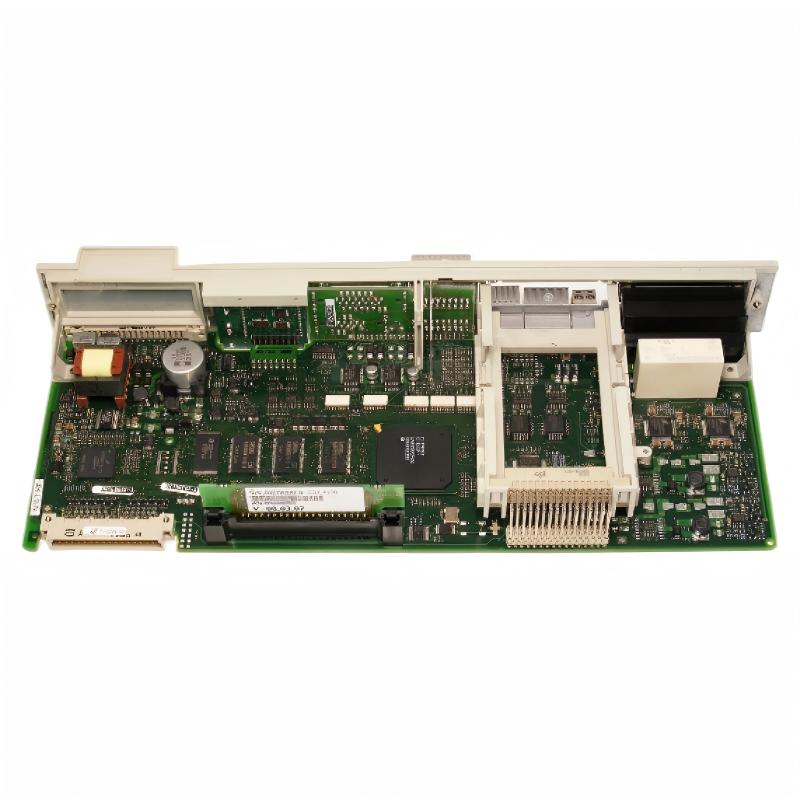

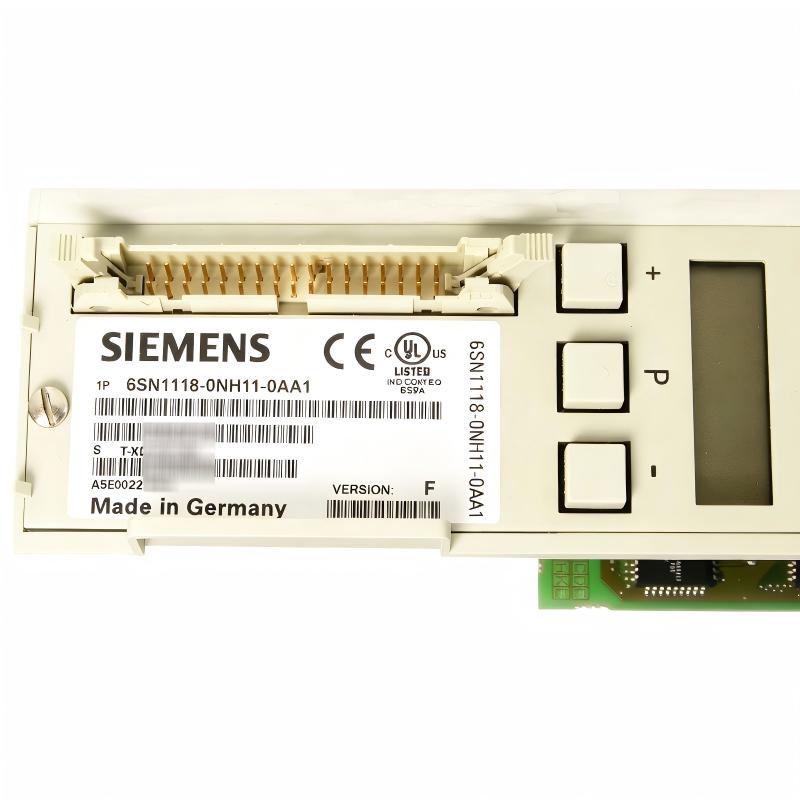

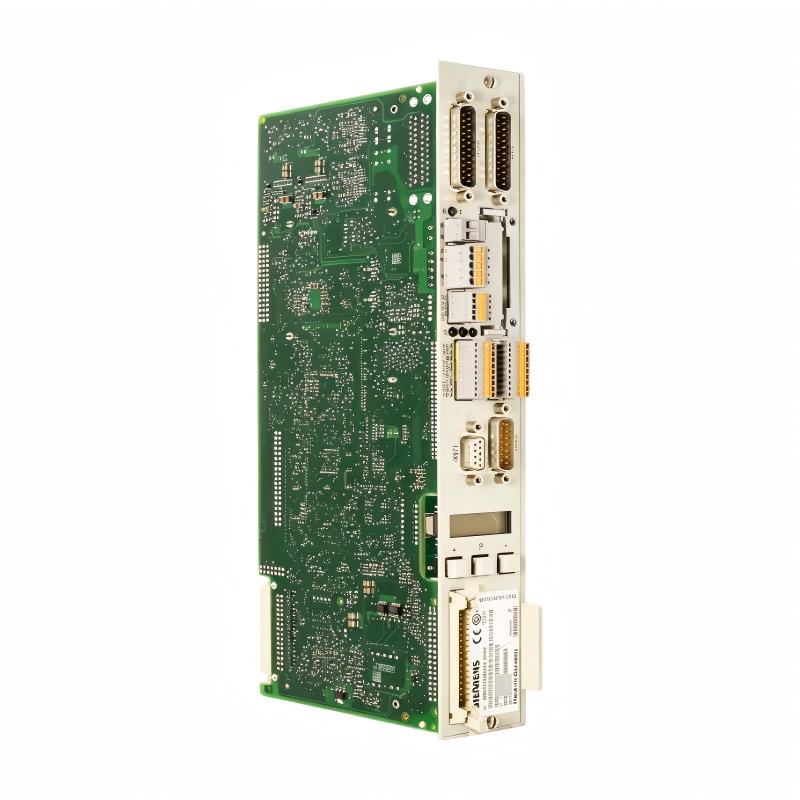

Siemens 6SN1118-0NH11-0AA1 Dual-Axis Control Loop Module

Applications and Motion Control

The Siemens 6SN1118-0NH11-0AA1 is designed for two-axis closed-loop control in SIMODRIVE 611 universal E systems. It receives feedback from compatible encoder systems and processes the information required for precise control of the associated drive axes.

Typical applications include CNC machine tools, machining centers, production machinery, positioning equipment, and other industrial systems requiring coordinated servo or spindle motion.

The module is particularly suitable for installations where reliable feedback processing and stable communication between the drive system and higher-level CNC or automation equipment are important. When correctly configured, it can provide the control functions needed for speed, velocity, and torque setpoint applications.

Key Advantages for Industrial Automation

Two-axis control architecture
The 6SN1118-0NH11-0AA1 provides control for two axes within the SIMODRIVE 611 universal E platform, making it suitable for machines requiring coordinated multi-axis operation.

HRS control technology
The HRS control board represents a higher-performance generation of SIMODRIVE control hardware. It was introduced to replace earlier control-board versions and is associated with the corresponding HRS software generation.

Flexible encoder feedback
The module supports incremental encoder feedback using sin/cos 1 Vpp signals and absolute encoder feedback using EnDat. This gives system integrators flexibility when working with compatible motor and machine feedback devices.

Speed and torque control
The control loop module is designed for applications involving speed, velocity, and torque setpoints, making it suitable for industrial servo and spindle control systems.

PROFIBUS-DP integration
When the appropriate option module is installed, the SIMODRIVE 611 universal E system can communicate through PROFIBUS-DP with a compatible higher-level controller.

Suitable for legacy machine maintenance
Many established machine tools and production systems continue to use SIMODRIVE technology. A correctly matched 6SN1118-0NH11-0AA1 can therefore be valuable for repair, replacement, refurbishment, and spare-parts programs.

Compact control hardware
The module combines the required control functions into a compact plug-in design intended for installation within the SIMODRIVE 611 drive system.

Technical FAQs

1. What is the Siemens 6SN1118-0NH11-0AA1?
It is a SIMODRIVE 611 universal E HRS dual-axis control loop module used for closed-loop industrial motion control.

2. How many axes can the module control?
The 6SN1118-0NH11-0AA1 is designed for two-axis control.

3. What encoder feedback does it support?
It supports incremental encoder feedback using sin/cos 1 Vpp and absolute-value encoder feedback using EnDat.

4. What control functions are available?
The module is designed for applications involving speed, velocity, and torque setpoint control.

5. Can the module communicate through PROFIBUS-DP?
Yes. The SIMODRIVE 611 universal E configuration can use the appropriate PROFIBUS-DP motion-control option for communication with compatible higher-level systems.

6. What PROFIBUS-DP option is associated with this module?
The applicable motion-control option is Siemens 6SN1114-0NB01-0AA0.

7. What software generation is associated with the HRS control board?
The HRS generation is associated with Siemens software requirements beginning with the applicable HRS software generation. Existing system software and hardware should be checked before replacing an earlier control board.

8. Can the 6SN1118-0NH11-0AA1 replace the 6SN1118-0NH11-0AA0?
The 0AA1 is the HRS version that replaced the earlier HR control-board generation. However, replacement should be carried out according to the complete system configuration, including software, memory module, option module, and machine parameters.

9. What should be checked before installing this module?
Verify the complete MLFB, existing SIMODRIVE hardware, encoder interface, software version, memory module, communication options, and machine-specific parameters before commissioning.

10. Is this module suitable for CNC machine tools?
Yes. The SIMODRIVE 611 universal E platform is intended for industrial motion-control applications and can be integrated into compatible CNC and machine-tool configurations.
