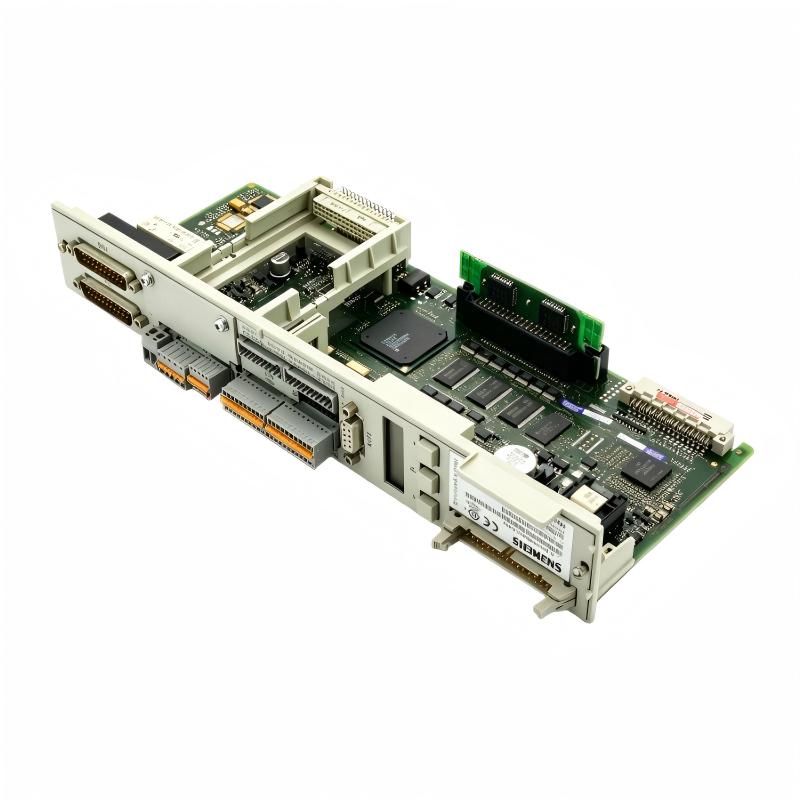

Siemens 6SN1118-0NJ01-0AA1 Single-Axis Control Loop Module
Siemens 6SN1118-0NJ01-0AA1 Single-Axis Control Loop Module
0.0
Points
Brand:Siemens Item No.:6SN1118-0NJ01-0AA1 Product Origin:Germany Product Dimensions:305 x 51 x 127 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6SN1118-0NJ01-0AA1 belongs to the SIMODRIVE 611 universal HRS generation and is designed for single-axis control-loop applications. The HRS generation was developed as a higher-performance control architecture for supported SIMODRIVE systems.
The module should be considered one component of a complete drive-control system. Its operation depends on the associated power module, motor, feedback system, machine parameters, software, and any installed communication or option hardware.
This makes correct system identification especially important when sourcing replacement equipment. Control modules from the same SIMODRIVE family may have similar physical characteristics while supporting different axis configurations, feedback technologies, or software requirements.
For maintenance engineers, automation integrators, and industrial equipment suppliers, the 6SN1118-0NJ01-0AA1 can therefore be a useful spare component for extending the service life of compatible Siemens motion-control equipment.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6SN1118-0NJ01-0AA1
Product Family
SIMODRIVE 611 universal HRS
Product Type
Single-Axis Control Loop Module
Control Type
Closed-loop motion control
Number of Axes
1
Control Architecture
HRS
Application
CNC, machine tools and industrial drive systems
System Integration
SIMODRIVE 611 universal
Dimensions
305 × 51 × 127 mm
Weight
0.80 kg (1.76 lb)
Product Status
Legacy / discontinued
Recommended Related Models
Model
Product Type
Relationship
Siemens 6SN1118-0NJ01-0AA0
SIMODRIVE 611 universal HR Single-Axis Control Unit
Earlier related version
Siemens 6SN1118-0NH11-0AA1
SIMODRIVE 611 universal E HRS Dual-Axis Control Loop Module
Related HRS control hardware
Siemens 6SN1118-0NH01-0AA1
SIMODRIVE 611 universal HR Dual-Axis Control Unit
Related dual-axis control hardware
Siemens 6SN1118-0NK01-0AA1
SIMODRIVE 611 universal HRS Control Unit
Related HRS control version
Popular Related Models
Model
Product Type
Siemens 6SN1118-0NJ01-0AA0
SIMODRIVE 611 universal HR Single-Axis Control Unit
Siemens 6SN1118-0NH11-0AA1
SIMODRIVE 611 universal E HRS Dual-Axis Control Loop Module
Siemens 6SN1118-0NH01-0AA1
SIMODRIVE 611 universal HR Dual-Axis Control Unit
Siemens 6SN1118-0NK01-0AA1
SIMODRIVE 611 universal HRS Control Unit
Siemens 6SN1114-0NB01-0AA0
SIMODRIVE PROFIBUS-DP Option Module
For replacement applications, verify the complete Siemens MLFB, control generation, feedback configuration, software version, memory module, option hardware, and associated SIMODRIVE power section before installation.
Applications in CNC and Industrial Drive Systems
The Siemens 6SN1118-0NJ01-0AA1 is designed for single-axis closed-loop control within compatible SIMODRIVE 611 universal systems. It processes feedback from the associated drive and provides the control functions needed to regulate the motor according to the configured operating requirements.
Typical applications include CNC machine tools, machining centers, automated production equipment, positioning systems, and industrial machinery using Siemens SIMODRIVE technology.
The module is especially useful for maintaining older machines where the original SIMODRIVE architecture remains operational. Instead of replacing an entire drive system, a correctly matched control loop module can provide a practical route for restoring the affected axis, subject to hardware, software, and feedback compatibility.
Core Advantages for Motion Control
Dedicated single-axis architecture
The 6SN1118-0NJ01-0AA1 is designed for one-axis control, making it a suitable choice for machines where an individual drive requires dedicated closed-loop regulation.
HRS control technology
The module belongs to the HRS generation of SIMODRIVE 611 universal control hardware. This generation provides an updated control architecture compared with earlier HR versions.
Closed-loop feedback control
The control loop module processes feedback from the associated drive system to support accurate regulation of the controlled axis.
Speed and torque control
The module is intended for applications involving speed and torque setpoints, supporting the control requirements of industrial servo and drive applications.
SIMODRIVE system compatibility
Its design is intended for integration into the SIMODRIVE 611 universal platform rather than operation as an independent PLC or standalone motion controller.
Useful for legacy equipment maintenance
The 6SN1118-0NJ01-0AA1 can be valuable when repairing established CNC and industrial automation equipment that still uses SIMODRIVE 611 technology.
Straightforward identification for replacement
The complete Siemens MLFB should be used when sourcing this module. Matching the exact order number helps prevent compatibility problems between different SIMODRIVE generations and control-board variants.
Technical FAQs
1. What is the Siemens 6SN1118-0NJ01-0AA1?
It is a SIMODRIVE 611 universal HRS single-axis control loop module used for closed-loop industrial motion control.
2. How many axes does the 6SN1118-0NJ01-0AA1 control?
The module is designed for single-axis operation.
3. What is the primary function of this module?
Its primary function is to provide the control-loop processing required for the associated drive axis within a compatible SIMODRIVE system.
4. Is the 6SN1118-0NJ01-0AA1 suitable for CNC machines?
Yes. It is intended for SIMODRIVE motion-control applications commonly associated with CNC machines and machine tools.
5. What should be checked before installing a replacement?
Check the complete MLFB, SIMODRIVE power configuration, feedback device, software generation, memory configuration, option modules, and machine parameters.
6. Can this module be used as a standalone PLC?
No. It is a drive control loop module and is intended to operate as part of a complete SIMODRIVE system.
7. Is the 6SN1118-0NJ01-0AA1 an HRS version?
Yes. The 0AA1 version belongs to the HRS generation of SIMODRIVE 611 universal control hardware.
8. Can an earlier 0NJ01-0AA0 version be used as a direct replacement?
The 6SN1118-0NJ01-0AA0 belongs to an earlier control-board generation. Replacement compatibility must be evaluated according to the complete machine hardware, software, and feedback configuration.
9. What are common causes of problems after replacing a control loop module?
Incorrect hardware identification, incompatible software, incorrect machine parameters, unsuitable feedback configuration, memory-data problems, or communication and power-section issues can all prevent proper commissioning.
10. What is the best way to verify compatibility before purchase?
Compare the complete Siemens MLFB on the existing module with the replacement part and verify the associated SIMODRIVE control, power, feedback, memory, and software configuration.
