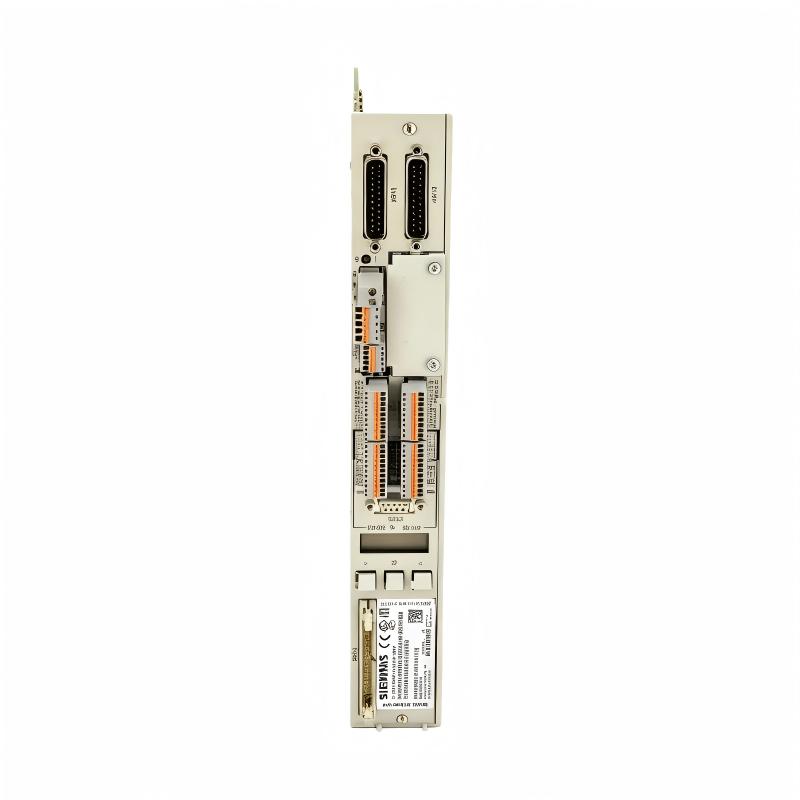

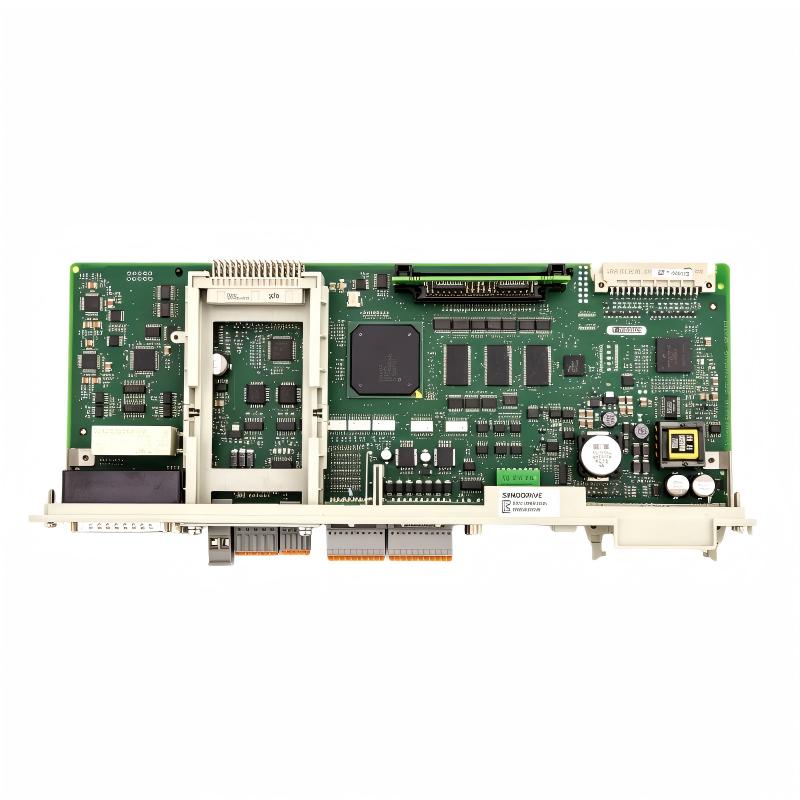

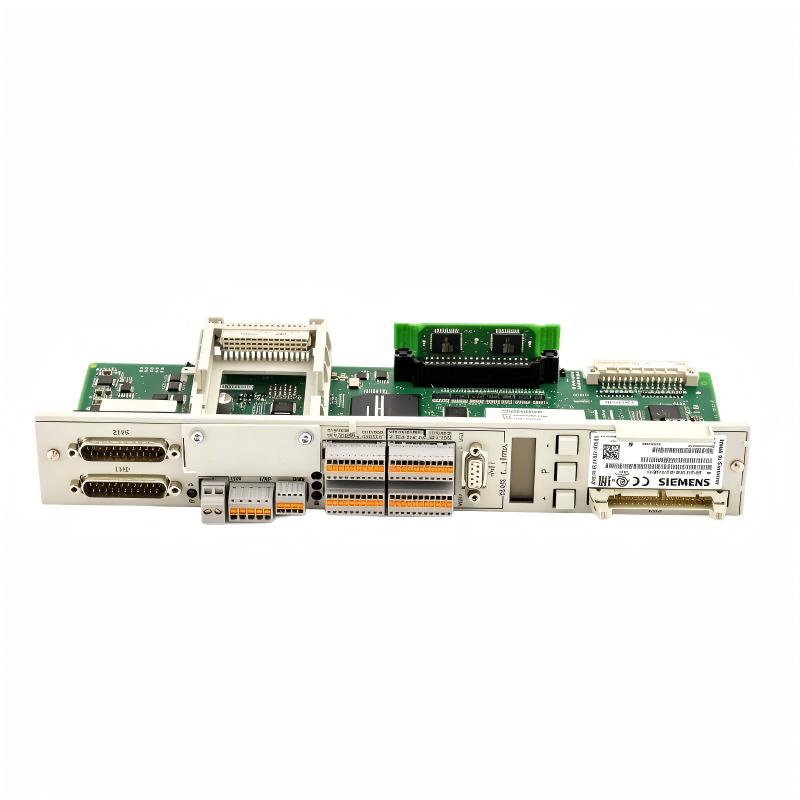

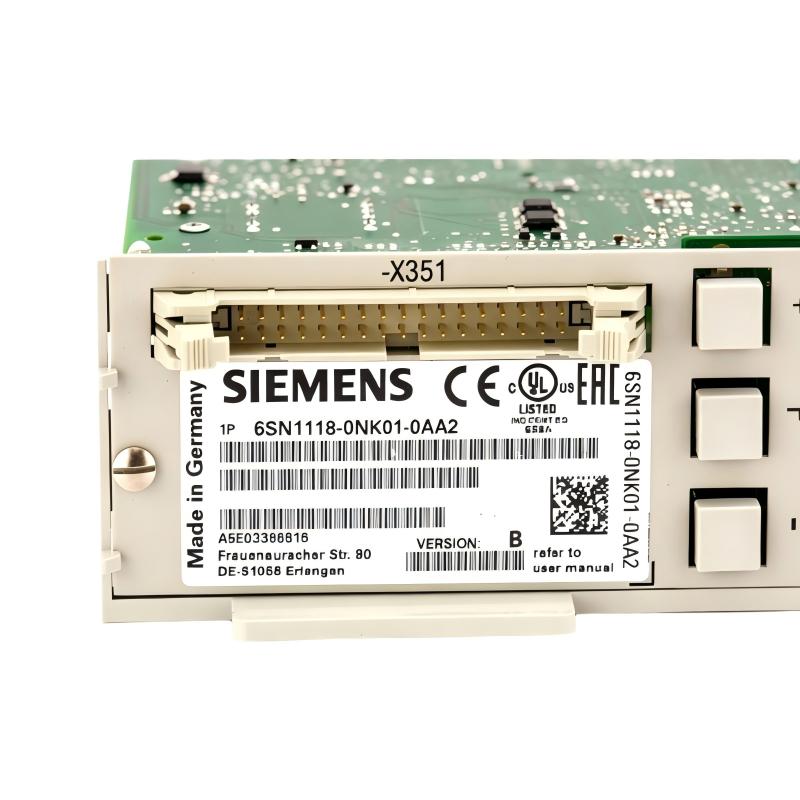

Siemens 6SN1118-0NK01-0AA2 Dual-Axis Control Loop Module

Applications in CNC and Industrial Motion Systems

The Siemens 6SN1118-0NK01-0AA2 is a SIMODRIVE 611-related dual-axis control loop module designed for closed-loop motion-control applications. It is intended for use within modular Siemens drive systems where accurate axis regulation, feedback processing, and coordinated machine operation are required.

The module is suitable for industrial equipment that depends on reliable servo-axis control, particularly legacy CNC machines and production systems built around the SIMODRIVE 611 platform. In these installations, the control loop module works together with the appropriate power section, motor, feedback system, and higher-level machine controller.

Typical applications include:

• CNC machine tools
• Industrial servo-axis systems
• Machine-tool feed axes
• Automated production machinery
• Two-axis motion-control applications
• Servo drive replacement projects
• Legacy Siemens CNC system maintenance
• Industrial equipment refurbishment
• Closed-loop speed and torque control

For maintenance engineers, the 6SN1118-0NK01-0AA2 can be particularly useful when an existing Siemens motion-control system requires replacement control hardware while retaining the established machine architecture.

Key Advantages for Drive System Maintenance

Dual-axis control architecture
The module is designed for two-axis control applications, making it suitable for machines that require two independently regulated drive axes within a compact control arrangement.

Closed-loop operation
Feedback information is continuously incorporated into the drive-control process, allowing the associated motion system to regulate motor operation according to its configured control requirements.

Suitable for legacy Siemens equipment
The 6SN1118 family is associated with Siemens SIMODRIVE systems widely used in CNC and industrial machinery. Correctly matched replacement modules can help extend the service life of established equipment.

Compact modular design
The control module is designed to fit within the corresponding SIMODRIVE modular system. Its form factor allows it to be installed alongside compatible power and control components.

Practical replacement option
When servicing older automation equipment, replacing a failed control-loop module can be more practical than redesigning an entire drive system, provided the replacement hardware is compatible with the existing configuration.

Supports systematic troubleshooting
The module forms a defined part of the overall drive chain. This makes it possible for maintenance personnel to isolate problems by checking power electronics, feedback devices, cabling, parameters, and control hardware individually.

Technical FAQs

1. What is the Siemens 6SN1118-0NK01-0AA2 used for?
The 6SN1118-0NK01-0AA2 is a dual-axis control loop module intended for Siemens SIMODRIVE-based industrial motion-control systems. It forms part of the closed-loop control architecture used in CNC and machine-tool applications.

2. How many axes does the 6SN1118-0NK01-0AA2 support?
The module is designated as a dual-axis control loop module and is intended for two-axis applications. The exact use of each channel depends on the machine configuration and associated drive hardware.

3. What equipment is normally installed with this type of control module?
A complete drive system normally includes compatible SIMODRIVE power electronics, motors, feedback devices, DC-link and auxiliary power connections, machine-control hardware, and the necessary communication or option modules.

4. Is the 6SN1118-0NK01-0AA2 a PLC?
No. It is a drive control-loop module rather than a general-purpose PLC CPU. Its function is associated with servo and motion control inside the corresponding Siemens drive architecture.

5. What should be checked before installing a replacement module?
Verify the complete MLFB, hardware revision, software and firmware requirements, associated power module, motor type, feedback system, machine parameters, and installed options. Physical dimensions alone are not sufficient to establish compatibility.

6. Can the module be used in an existing SIMODRIVE installation?
Potentially, but compatibility must be confirmed against the specific SIMODRIVE generation and machine configuration. Different control-board revisions can have different software, firmware, and system requirements.

7. What can cause an axis to fail after a control-loop module replacement?
Possible causes include incorrect parameterization, incompatible feedback hardware, incorrect wiring, defective motor or feedback cables, power-module problems, communication issues, or a mismatch between the replacement module and the existing machine configuration.

8. Why should the original machine parameters be backed up?
Drive parameters contain important information about the motor, axis behavior, feedback configuration, limits, and control settings. Keeping a backup can significantly simplify commissioning after control hardware has been replaced.

9. How should feedback wiring be checked during commissioning?
The feedback cable should be inspected for correct connections, continuity, shielding, connector condition, and physical damage. The feedback device must also correspond to the configuration expected by the drive system.

10. Can a newer 6SN1118 module automatically replace an older revision?
No. A similar-looking Siemens control module should not automatically be considered a direct replacement. The complete order number, control generation, software compatibility, power section, feedback arrangement, and machine configuration should be verified before substitution.
