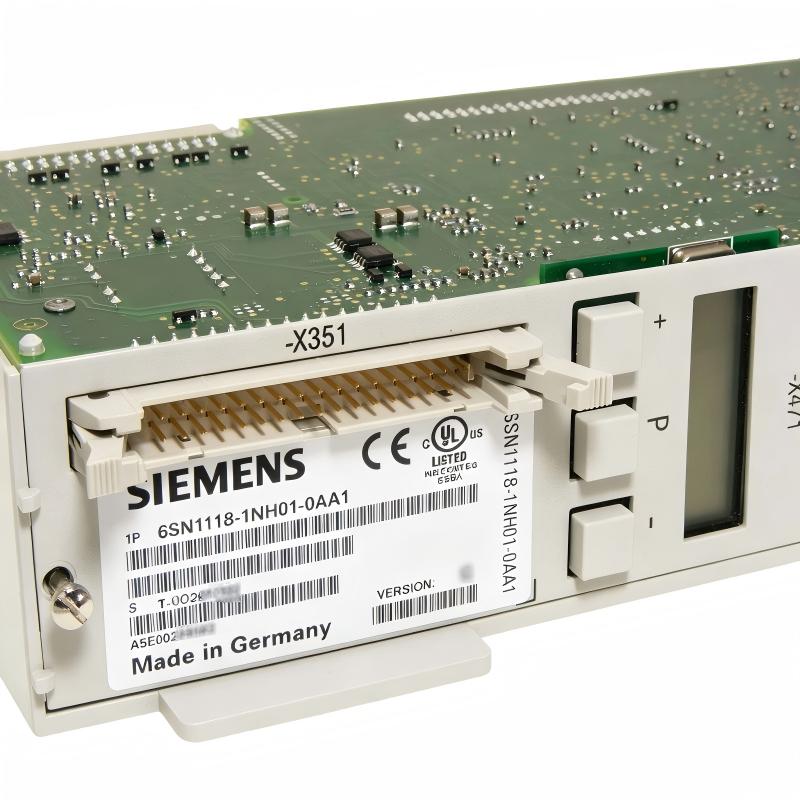

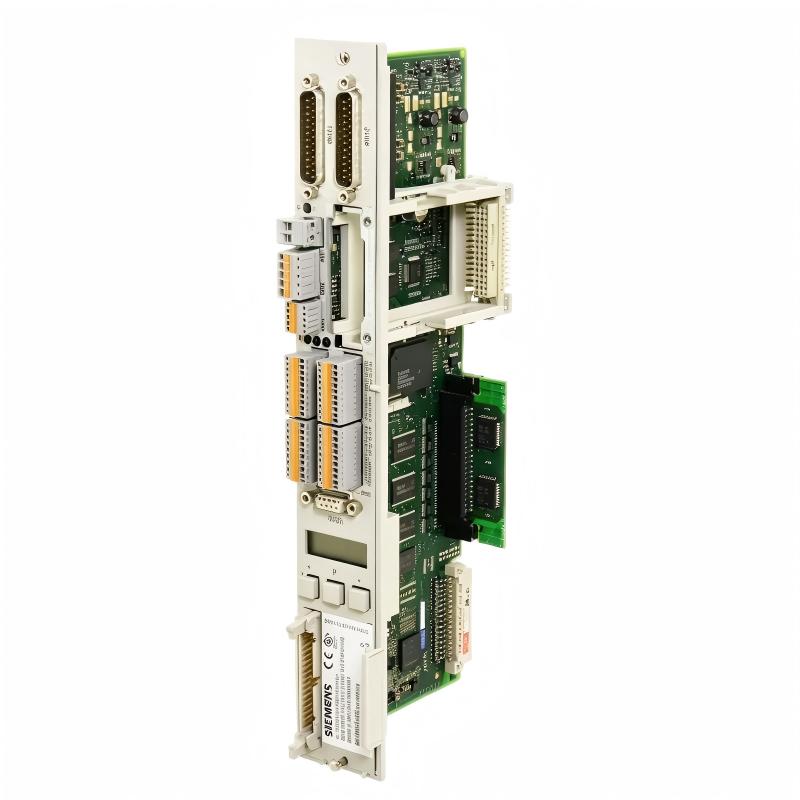

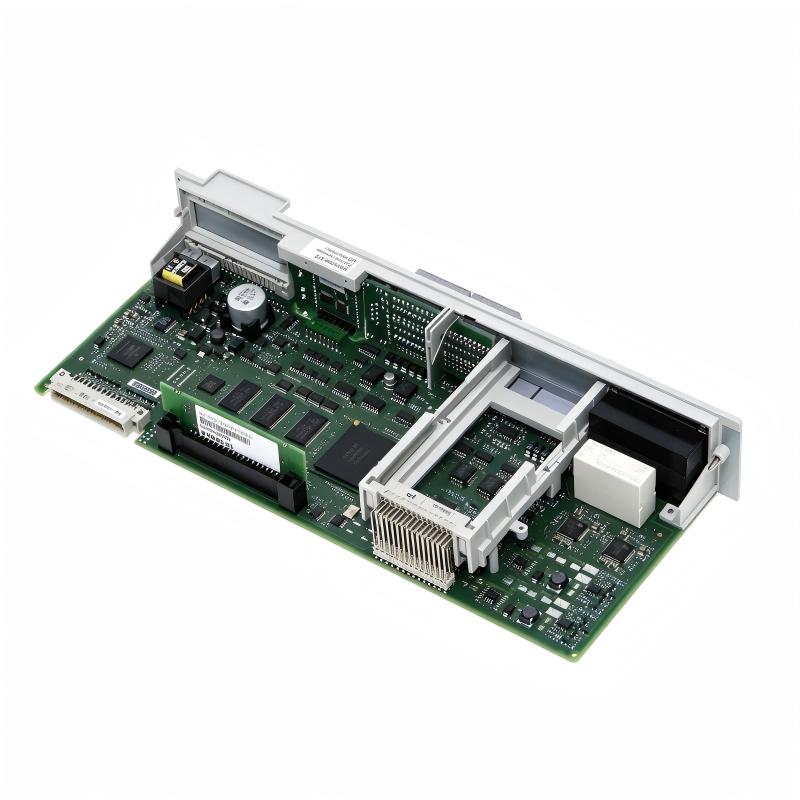

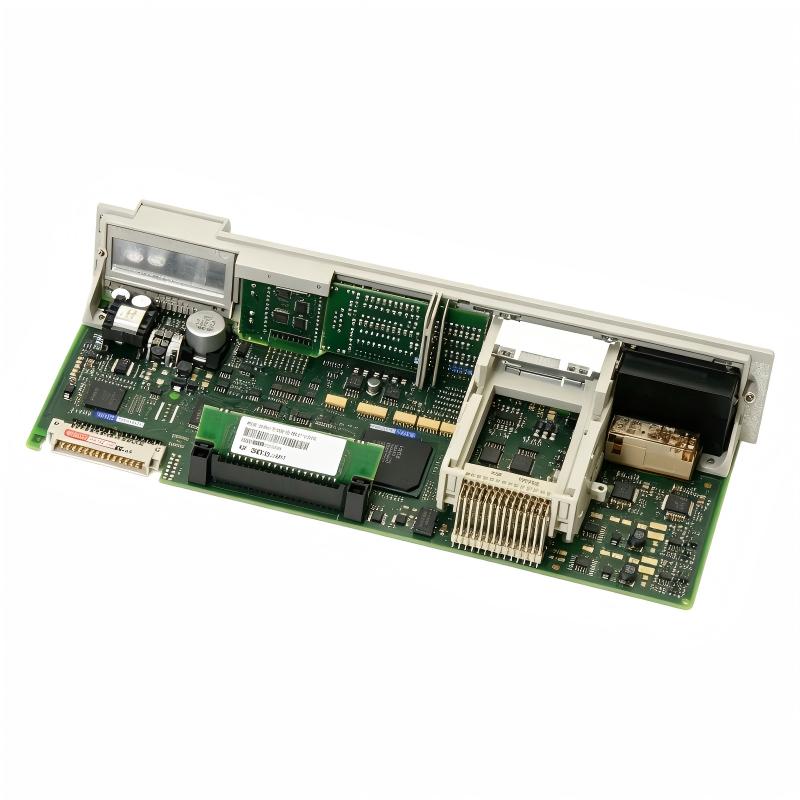

Siemens 6SN1118-1NH01-0AA1 Dual-Axis Control Loop Module

Applications and Positioning Control

The Siemens 6SN1118-1NH01-0AA1 is a SIMODRIVE 611 universal HRS dual-axis control loop module designed for closed-loop positioning applications in CNC and industrial motion-control systems. It belongs to the Siemens 6SN1118 control-unit family and is intended to work with compatible SIMODRIVE power modules, servo motors, and encoder feedback systems.

As a two-axis control module, it provides independent control functions for two drive axes. The 1NH01 configuration is associated with positioning operation, making it suitable for machine tools and automated equipment where accurate axis movement and repeatable positioning are required.

Typical applications include:

• CNC machine tools
• Machine-tool feed axes
• Servo positioning systems
• Industrial motion-control equipment
• Automated production machinery
• Multi-axis machine systems
• SIMODRIVE 611 universal HRS installations
• CNC machine refurbishment
• Legacy Siemens drive-system replacement
• Industrial equipment maintenance and modernization

The module is particularly valuable in existing SIMODRIVE installations where maintaining the original Siemens drive architecture is preferable to replacing the complete motion-control platform.

Key Benefits for Industrial Motion Systems

Dual-axis positioning control
The 6SN1118-1NH01-0AA1 provides control for two drive axes, allowing two servo axes to be managed within one control-unit position in the SIMODRIVE system.

Encoder-based closed-loop control
The module works with compatible encoder feedback to provide the feedback information required for accurate motor regulation and positioning.

Positioning functionality
The 1NH01 designation identifies this configuration as a positioning control version. This makes it different from the corresponding 0NH01 n-set control module.

HRS-generation architecture
The -0AA1 version belongs to the later HRS generation of SIMODRIVE 611 universal control hardware. This is an important consideration when replacing earlier HR-generation modules.

Modular system integration
The control-loop module is designed to operate with the appropriate SIMODRIVE power section and associated system components. Communication and additional functionality can be added through compatible option modules.

Practical for CNC maintenance
For older CNC machines, using the correct control-loop module can help preserve existing motor, power-module, and machine-control configurations while reducing the need for extensive system modifications.

Technical FAQs

1. What is the Siemens 6SN1118-1NH01-0AA1 used for?
It is a two-axis closed-loop control-loop module for SIMODRIVE 611 universal HRS systems. The module is intended for positioning applications and works with compatible encoder-based servo configurations.

2. How many axes does the 6SN1118-1NH01-0AA1 control?
It is designed as a dual-axis control module, providing two independent drive-control channels. The exact configuration depends on the associated SIMODRIVE power modules and machine architecture.

3. What is the difference between 6SN1118-1NH01-0AA0 and 6SN1118-1NH01-0AA1?
Both are two-axis encoder positioning control modules, but the 0AA1 version belongs to the HRS generation, while the 0AA0 version is associated with the earlier HR generation. Software and system compatibility should therefore be checked before substitution.

4. What type of feedback is associated with the 1NH01 control module?
The 1NH01 family is designed for compatible encoder feedback, including incremental encoder signals such as sin/cos 1 Vpp. The exact encoder configuration should be confirmed against the motor and machine documentation.

5. Is this module a standalone servo drive?
No. It is a control-loop module within the modular SIMODRIVE 611 architecture. A complete drive system requires compatible power electronics, motors, feedback devices, power connections, and machine-control hardware.

6. Can the 6SN1118-1NH01-0AA1 be used with a CNC controller?
Yes. It is intended for integration into CNC and industrial motion-control systems. The CNC controller and SIMODRIVE system exchange the required control information through the configured system interfaces and options.

7. What should be checked before replacing a 6SN1118-1NH01-0AA0 with the 0AA1 version?
Check the machine software, firmware requirements, control-board generation, associated power module, encoder configuration, parameter memory, and installed options. A successor model should be verified against the complete system before installation.

8. What can cause positioning errors after replacing the module?
Incorrect encoder wiring, unsuitable machine parameters, encoder incompatibility, incorrect axis assignment, defective feedback cables, or power-section problems can all affect positioning performance. Troubleshooting should begin with the complete feedback and drive chain.

9. Should existing parameters be backed up before replacing the control module?
Yes. Backing up the existing configuration is strongly recommended. Motor data, encoder settings, axis parameters, limits, and positioning-related settings can be important during recommissioning.

10. Can a two-axis control module be used for a single-axis machine?
SIMODRIVE 611 universal control boards with two drive controls can be configured for one-axis applications when the associated power-module and system configuration support this arrangement. The actual machine configuration should be checked before commissioning.
