Introduction

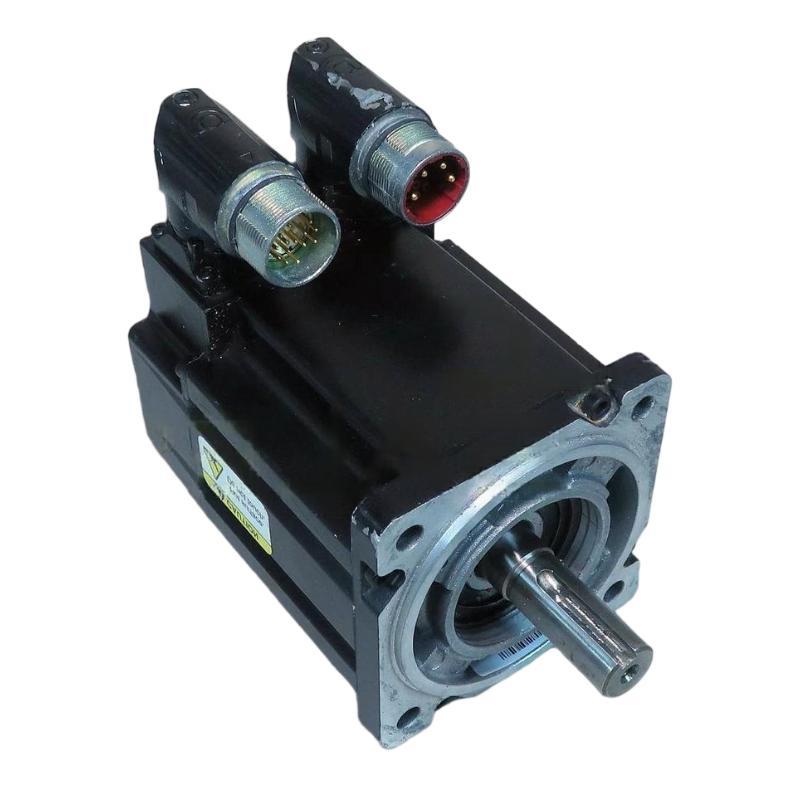

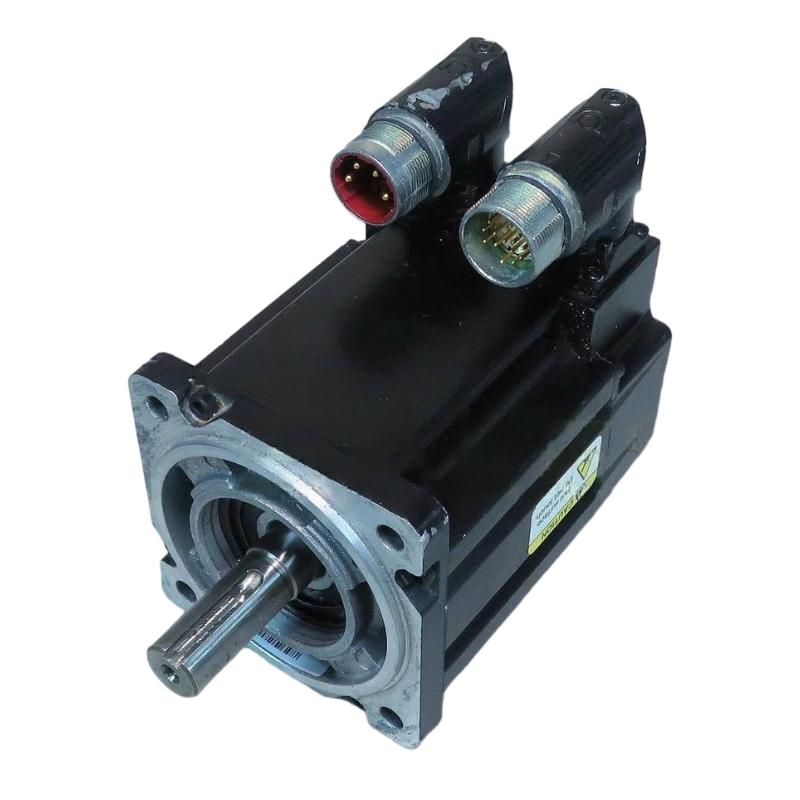

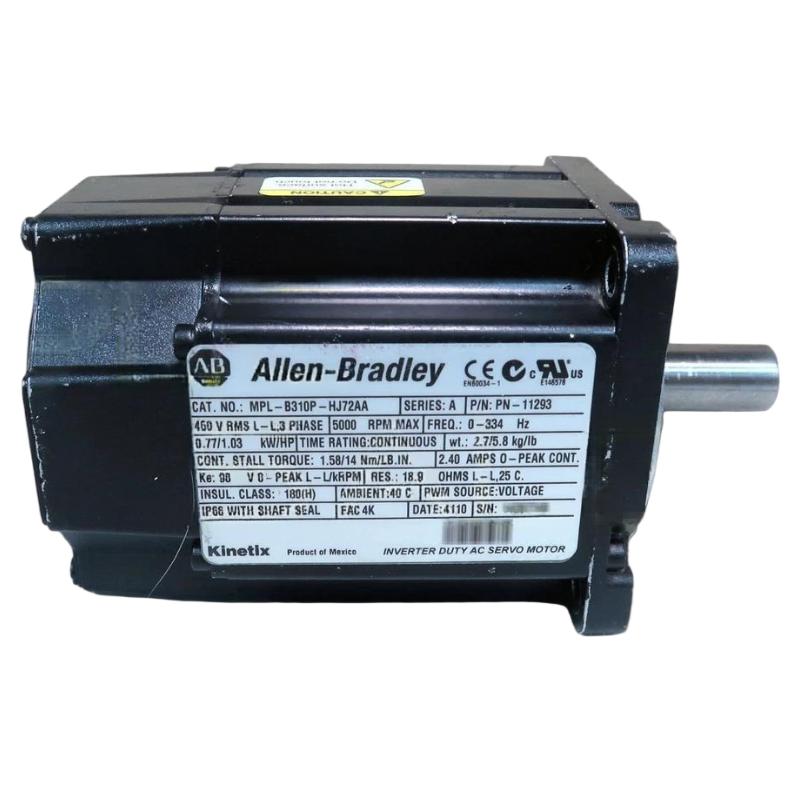

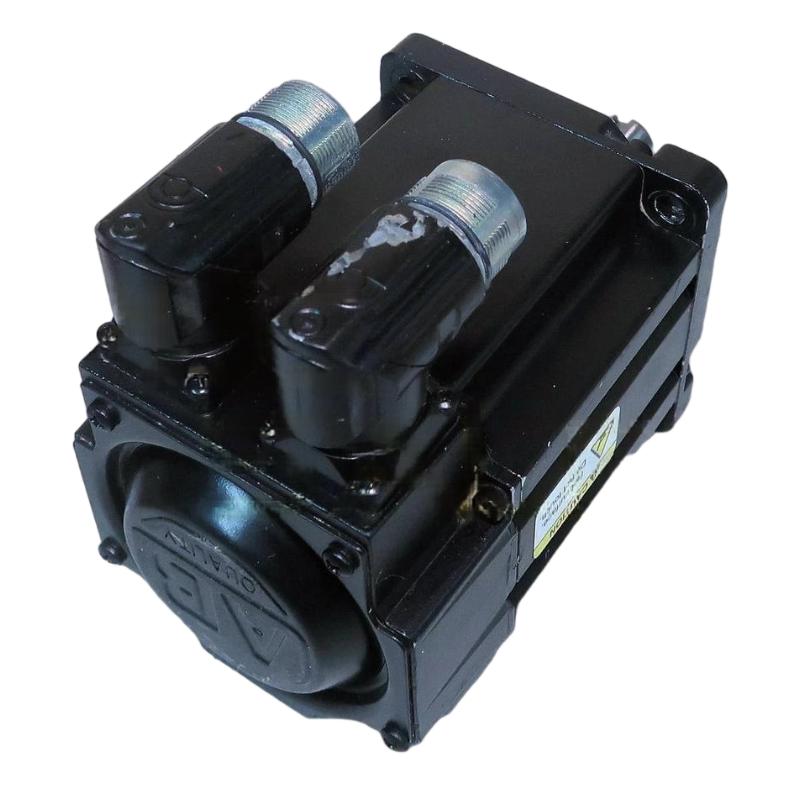

The Allen Bradley MPL-B310P-HJ72AA Servo Motor is an industrial motion-control motor designed for machinery requiring accurate and repeatable mechanical movement. It belongs to the Allen Bradley MP-Series servo motor family and is intended to operate as part of a closed-loop motion-control system.

Unlike a conventional AC motor that is primarily selected for continuous rotational operation, a servo motor is commonly integrated into a coordinated motion system where position, velocity, and acceleration need to be actively controlled. This makes the MPL-B310P-HJ72AA suitable for automated machinery in which timing and repeatability directly affect production quality.

The 100 mm frame size gives the motor a compact mechanical footprint while maintaining the characteristics required for industrial motion applications. This can be beneficial for machine builders developing compact automation equipment or replacing an existing MP-Series motor within an established mechanical design.

The MPL-B310P-HJ72AA is also relevant to industrial maintenance teams looking for a direct catalog-number-based replacement. Because servo systems depend on the interaction between the motor, drive, feedback device, controller, and mechanical load, the complete model number should always be confirmed before purchasing a replacement.

For machine builders, system integrators, and industrial automation users, this MP-Series servo motor provides a practical solution for applications where controlled motion, repeatability, and reliable integration are central to machine performance.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	MPL-B310P-HJ72AA
Product Family	MP-Series
Product Type	Servo Motor
Motor Series	MPL
Frame Size	100 mm
Application	Industrial Motion Control
Control System	Servo / Closed-Loop Motion Control
Installation	Industrial Machinery
Weight	2.70 kg (5.95 lb)

The MPL-B310P-HJ72AA has a 100 mm frame size and a listed weight of 2.70 kg (5.95 lb). Its compact form factor makes it suitable for machinery where installation space and mechanical integration are important considerations.

Because servo motor performance depends heavily on the matching drive and feedback configuration, users should verify the complete catalog number and application requirements before commissioning. Mechanical mounting, shaft alignment, feedback wiring, grounding, and servo tuning should also be checked as part of the installation process.

Recommended Related Models

When planning an Allen Bradley MP-Series motion-control system, the following models can be considered alongside the MPL-B310P-HJ72AA:

Model	Product Type
MPL-B310P-HJ72AA	MP-Series Servo Motor
MPL-B430P-HJ72AA	MP-Series Servo Motor
MPL-B540K-SJ72AA	MP-Series Servo Motor
MPL-B580K-SJ72AA	MP-Series Servo Motor

These models can be useful when evaluating different motor configurations for machine upgrades, replacement requirements, or new motion-control applications. The final selection should be based on the required torque, speed, inertia, feedback arrangement, mechanical mounting, and compatible servo drive.

Popular Related Models

For customers working with Allen Bradley servo and motion-control equipment, the following models are commonly relevant when developing or maintaining an industrial motion system:

Model	Product Family	Product Type
MPL-B310P-HJ72AA	MP-Series	Servo Motor
MPL-B430P-HJ72AA	MP-Series	Servo Motor
MPL-B540K-SJ72AA	MP-Series	Servo Motor
MPL-B580K-SJ72AA	MP-Series	Servo Motor
MPL-A420P-HK72AA	MP-Series	Servo Motor

When purchasing a replacement servo motor, the complete catalog number should be matched carefully. Servo motors with similar frame sizes can have different winding characteristics, feedback configurations, shaft specifications, or electrical requirements. Verifying the complete model before ordering helps reduce commissioning problems and ensures that the replacement motor is appropriate for the existing motion-control system.

Applications

The Allen Bradley MPL-B310P-HJ72AA Servo Motor is designed for precision motion applications where accurate positioning, controlled acceleration, repeatable speed, and dependable dynamic response are essential. As part of the Allen Bradley MP-Series servo motor family, it is well suited to automated machinery that requires coordinated motion rather than basic fixed-speed motor operation.

Typical applications include packaging machines, indexing equipment, material handling systems, automated assembly equipment, converting machinery, pick-and-place mechanisms, machine tools, and other production equipment requiring servo-based motion control.

The MPL-B310P-HJ72AA can be particularly valuable in applications where compact motor construction and responsive motion performance are important. Its 100 mm frame size provides a practical form factor for machinery designers working within limited cabinet or mechanical installation space.

For replacement and maintenance projects, matching the complete motor catalog number is important. The MPL-B310P-HJ72AA identifies a specific motor configuration, so engineers should verify mechanical dimensions, feedback requirements, electrical characteristics, and mating drive compatibility before installation.

Advantages

The MPL-B310P-HJ72AA combines the compact design of an industrial servo motor with the controlled motion characteristics expected from an Allen Bradley automation system. It can provide significantly more precise motion control than conventional induction motors when paired with a suitable servo drive and properly configured motion controller.

A key benefit is its suitability for applications requiring frequent acceleration and deceleration. Servo systems are commonly used where machines repeatedly start, stop, position, and reverse, making dynamic response an important part of overall machine productivity.

The compact 100 mm frame size is another practical advantage. It allows machine builders to incorporate servo technology without unnecessarily increasing the mechanical footprint of the motion system.

For plants already using Allen Bradley motion-control equipment, selecting an MP-Series servo motor can also help maintain consistency across the installed automation architecture. This can simplify spare-parts planning, maintenance procedures, and technician familiarity.

The MPL-B310P-HJ72AA is therefore a compelling option for industrial users looking for an established servo motor platform for precision machinery, replacement projects, and motion-system upgrades.

Technical FAQs

1. Which type of drive should be used with the MPL-B310P-HJ72AA?

The motor should be paired with a compatible Allen Bradley servo drive whose electrical, feedback, and motor-control characteristics match the specific MPL-Series motor configuration. The complete catalog number should be checked before selecting the drive.

2. What is the function of the motor feedback system?

Servo feedback allows the motion controller and drive to determine the motor's position, speed, and operating response. This information is essential for closed-loop positioning and accurate motion regulation.

3. Why is correct motor identification important during commissioning?

The motor catalog number determines important configuration information used by the motion system. Selecting the correct motor data helps ensure that the drive applies appropriate control parameters and avoids incorrect feedback or motor settings.

4. Can the MPL-B310P-HJ72AA be used for positioning applications?

Yes. Servo motors in this family are intended for applications requiring controlled positioning and coordinated motion. Actual positioning performance depends on the servo drive, controller, feedback system, mechanical load, and application configuration.

5. What should be checked if the motor oscillates during operation?

Check the servo tuning, mechanical coupling, load inertia, feedback configuration, acceleration settings, and mechanical backlash. Excessive gain or unsuitable tuning parameters can also contribute to unstable motion.

6. What can cause a servo motor to generate an overcurrent fault?

Possible causes include excessive acceleration, an overloaded mechanical system, incorrect motor parameters, mechanical binding, wiring problems, or unsuitable motion tuning. The drive's diagnostic information should be examined before changing parameters.

7. How can positioning errors be investigated?

Verify the feedback connection, motor and drive configuration, mechanical coupling, load conditions, position-command scaling, and tuning parameters. Mechanical backlash or slippage can also produce positioning errors even when the electronic control system is functioning correctly.

8. Is proper grounding important for this servo motor?

Yes. Correct grounding and shielding practices are important for servo systems because high-frequency switching from the drive can introduce electrical noise. Proper grounding and cable installation can improve feedback reliability and overall system stability.

9. What should be done before replacing an existing MPL-Series motor?

Record the existing motor catalog number and verify the mechanical mounting, shaft arrangement, feedback interface, connector configuration, and compatible servo drive. The replacement should match the original application requirements rather than being selected solely by frame size.

10. Why can a servo motor become hot during normal operation?

Servo motor temperature depends on load torque, operating duty cycle, ambient conditions, acceleration frequency, and cooling conditions. Continuous operation near the motor's limits can increase thermal loading, so application duty should be evaluated when investigating excessive temperature.
