Brand:ABB PLC Item No.:PFCL 201CE Product Origin:Sweden (SE) Product Dimensions:450 x 110 x 124.6 mm Product Weight:10 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB PFCL 201CE 3BSX802939-108 Load Cell is a professional industrial measurement component developed for applications requiring dependable vertical force measurement. It is part of ABB's PFCL 201 load-cell family, a product range associated with continuous strip and web-processing systems.
In a modern production line, tension is not simply a mechanical parameter; it can directly influence product quality, machine stability, and production efficiency. Excessive tension can damage or deform material, while insufficient tension can cause tracking problems, wrinkles, winding defects, or unstable processing. Accurate force feedback therefore gives the automation system an important measurement point for maintaining consistent operating conditions.
The PFCL 201CE works as part of a complete measurement arrangement rather than as an isolated sensor. A typical system can include two load cells, a junction box, a control unit, and associated cabling. The reaction force generated by the strip is transferred through the roll and bearings to the load cells, allowing the resulting measurement to be processed by the control system.

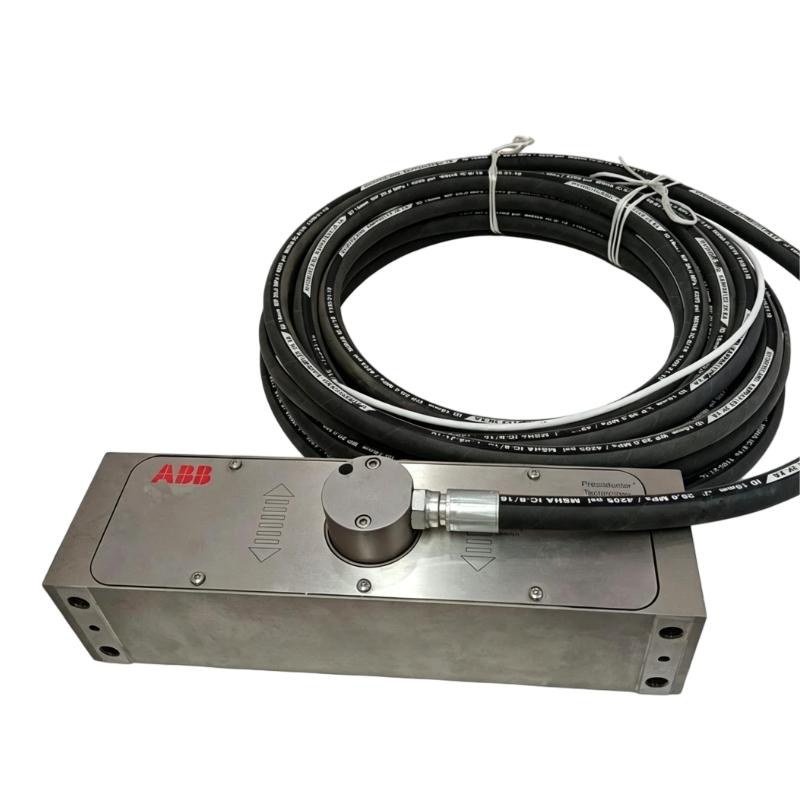

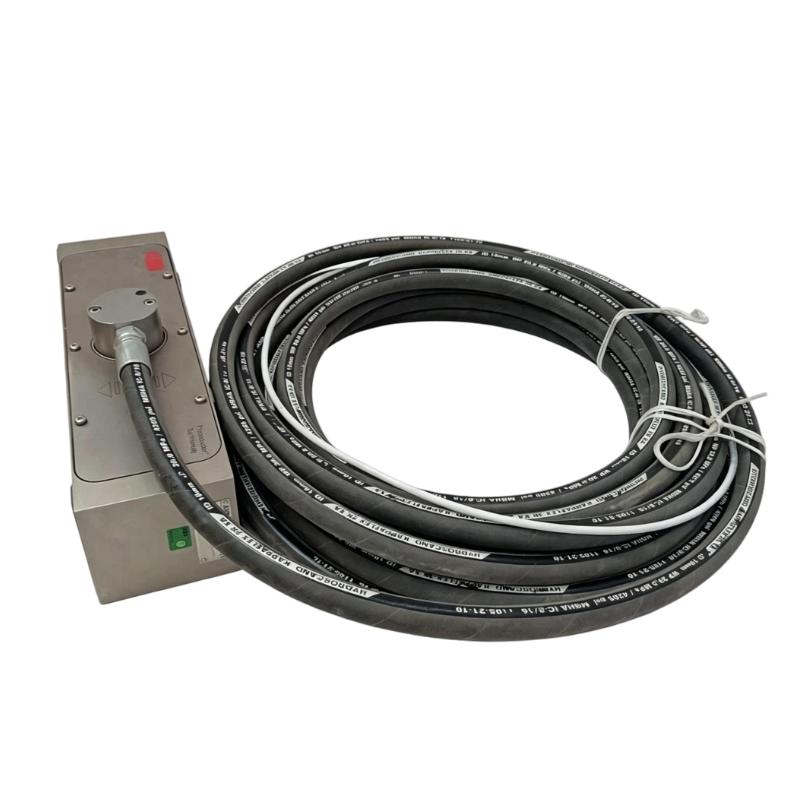

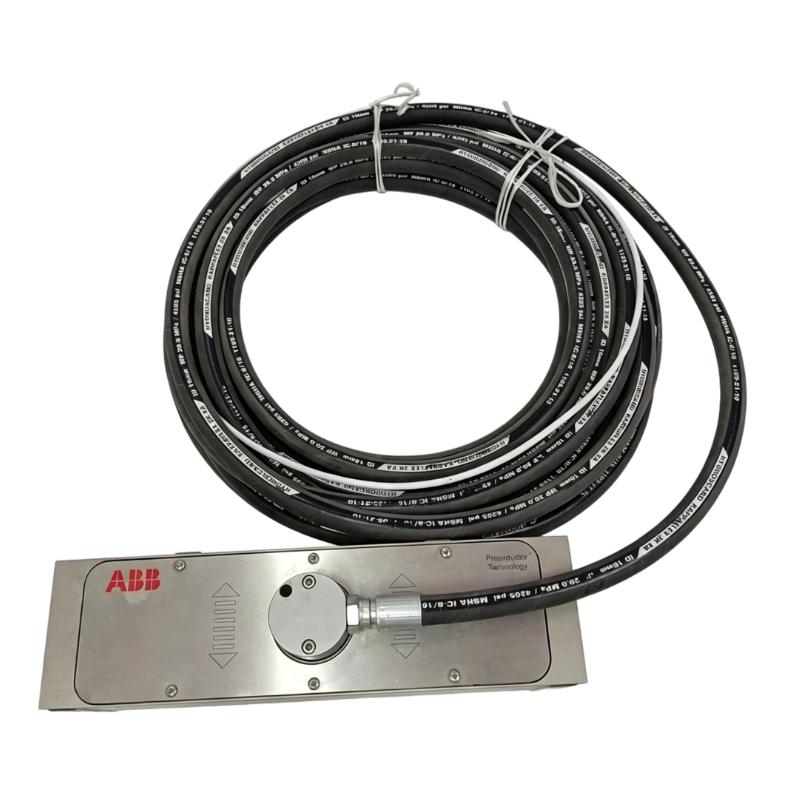

One notable characteristic of the PFCL 201CE is its fixed connection cable. This distinguishes it from PFCL 201C versions that use a detachable connection cable. For maintenance engineers, this difference is important when selecting a replacement because the cable arrangement must match the existing installation.

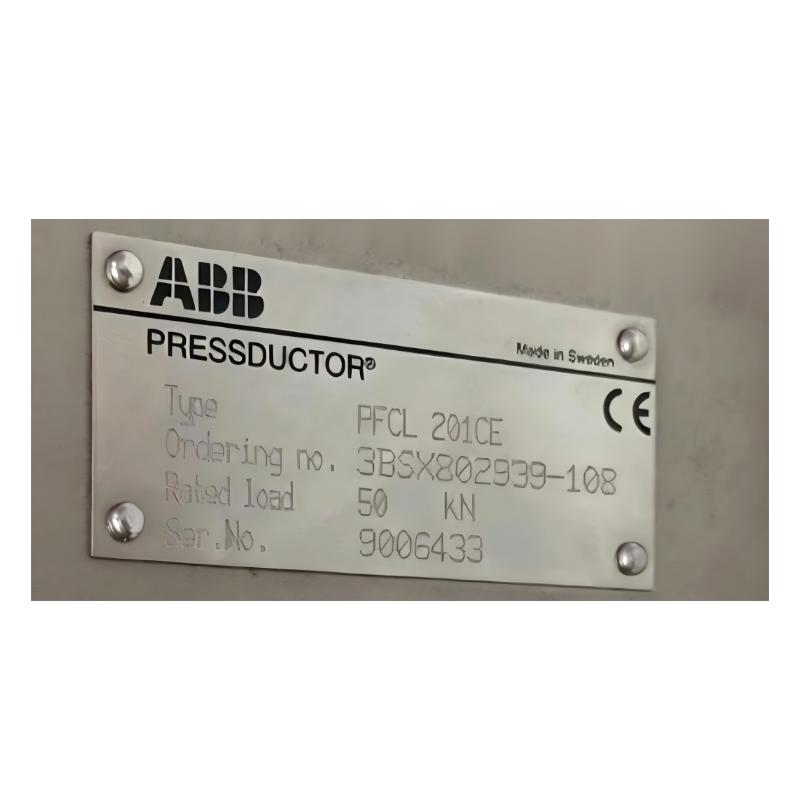

The 3BSX802939-108 version is associated with a 50 kN measurement configuration. This makes it suitable for substantial industrial force-measurement requirements, particularly in metal-processing and continuous-production environments.
For plants operating ABB tension-measurement equipment, the PFCL 201CE can be an attractive replacement choice when maintaining the original system design. Correct selection of the measurement capacity and complete part number remains essential because different PFCL configurations can share similar external dimensions while having different measurement characteristics.
Technical Specifications
Parameter
Description
Brand
ABB
Model
PFCL 201CE
Part Number
3BSX802939-108
Product Type
Load Cell
Product Family
PFCL 201
Measurement Type
Vertical Force Measurement
Typical Application
Strip Tension Measurement
Measurement Technology
Pressductor
Connection
Fixed Connection Cable
Nominal Load
50 kN
Typical Industry
Steel / Metal / Web Processing
Dimensions
450 × 110 × 124.6 mm
Weight
10.00 kg (22.05 lb)
Recommended Related Models
Model
Product Type
ABB PFCL 201CE 3BSE027062R5
Load Cell
ABB PFCL 201CE 3BSE027062R10
Load Cell
ABB PFCL 201CE 3BSE027062R20
Load Cell
ABB PFCL 201CE 3BSE027062R50
Load Cell
ABB PFCL 201C 3BSE027070R20
Pillow-Type Load Cell
Popular Related Models
Model
Product Type
ABB PFCL 201CE 3BSX802939-108
Load Cell
ABB PFCL 201C 3BSE027070R5
Pillow-Type Load Cell
ABB PFCL 201C 3BSE027070R10
Pillow-Type Load Cell
ABB PFCL 201C 3BSE027070R20
Pillow-Type Load Cell
ABB PFCL 201C 3BSE027070R50
Pillow-Type Load Cell
Applications
The ABB PFCL 201CE 3BSX802939-108 Load Cell is a specialized industrial force-measurement component designed for vertical force and tension-measurement applications. It belongs to ABB’s PFCL 201 family of Pressductor load cells and is particularly suited to machinery where the reaction force generated by a moving strip or web needs to be measured through a roll and bearing arrangement.
A major application area is continuous strip processing. In rolling mills and processing lines, accurate tension feedback can help the automation system maintain stable material handling and reduce variations that may affect finished-product quality. The PFCL 201CE can also be integrated into tension-measurement systems together with suitable junction boxes and control electronics.
Typical applications include:
Steel strip processing
Aluminum processing
Rolling mills
Annealing lines
Pickling lines
Galvanizing lines
Paper and web processing
Continuous material handling
Roll-based tension measurement
Industrial process-control systems
The PFCL 201CE is especially useful when vertical force measurement is preferred or when the mechanical arrangement of the production line makes vertical load measurement the most practical approach.
Its fixed connection-cable configuration is also advantageous in installations where the load cell needs to be connected directly to the associated measurement system without relying on a detachable sensor connector. For replacement projects, the complete 3BSX802939-108 identification should be checked carefully against the installed equipment before procurement.
Key Advantages
Pressductor Measurement Technology
The PFCL 201CE uses ABB Pressductor technology, which is based on changes in magnetic properties under mechanical stress. This provides a robust measurement principle for demanding industrial applications.
Designed for Vertical Force Measurement
The PFCL 201CE configuration is intended for applications where the vertical force component needs to be measured accurately through the machine's roll and bearing structure.
Strong Mechanical Construction
The load cell is designed for industrial machinery where mechanical rigidity and resistance to demanding operating conditions are important.
Excellent Choice for Tension Systems
When installed beneath suitable roll bearings, the PFCL 201CE can measure the reaction force associated with strip tension and provide valuable feedback to the tension-control system.
Fixed Cable Configuration
The PFCL 201CE uses an integrated connection cable, providing a practical solution for installations where a fixed sensor connection is preferred.
Wide Industrial Application Range
Its design makes it suitable for metal processing, continuous web handling, rolling, and other automated production processes requiring dependable force feedback.
Maintenance-Friendly Identification
The exact part number 3BSX802939-108 provides an important reference for spare-parts purchasing and replacement planning.
Technical FAQs
1. What is the ABB PFCL 201CE 3BSX802939-108 designed to measure?
The PFCL 201CE is designed to measure mechanical force and is commonly used for vertical force measurement in industrial tension-measurement systems.
2. What measurement principle does the PFCL 201CE use?
The PFCL 201CE uses ABB Pressductor technology, where mechanical stress changes the magnetic characteristics of the sensing element and produces an electrical measurement signal.
3. Where is the PFCL 201CE normally installed in a tension-measurement system?
In typical installations, load cells are positioned beneath roll bearings so that the reaction force generated by the moving strip is transferred through the roll and bearing structure into the load cells.
4. Is the PFCL 201CE suitable for strip-tension measurement?
Yes. It is specifically suited to industrial tension-measurement arrangements where a force component generated by strip tension needs to be measured and supplied to a control system.
5. What can cause an unstable PFCL 201CE signal?
Possible causes include mechanical vibration, incorrect mounting, damaged cabling, poor electrical connections, excessive external forces, signal-conditioning problems, or faults in associated measurement equipment.
6. Why is correct load-cell positioning important?
The measurement force must be transferred through the intended mechanical path. Incorrect positioning can introduce unwanted force components and affect measurement accuracy.
7. Does the PFCL 201CE have the same sensitivity in tension and compression?
The Pressductor load-cell principle supports measurement of force direction through changes in the generated signal. The actual operating arrangement should be selected according to the mechanical and control requirements of the application.
8. What should be checked when replacing an existing PFCL 201CE?
The complete part number, measurement range, mechanical mounting arrangement, cable configuration, junction box, control unit, and system calibration should be checked before replacement.
9. Can the PFCL 201CE work with an ABB tension-control system?
Yes. It can form part of an ABB tension-measurement system when combined with compatible junction-box and control-unit equipment.
10. How should a replacement PFCL 201CE be commissioned?
After confirming the mechanical installation and electrical connections, technicians should check the sensor signal under controlled conditions, verify stable zero behavior, and confirm that the resulting measurement corresponds correctly with the process force before returning the machine to production.
