Introduction

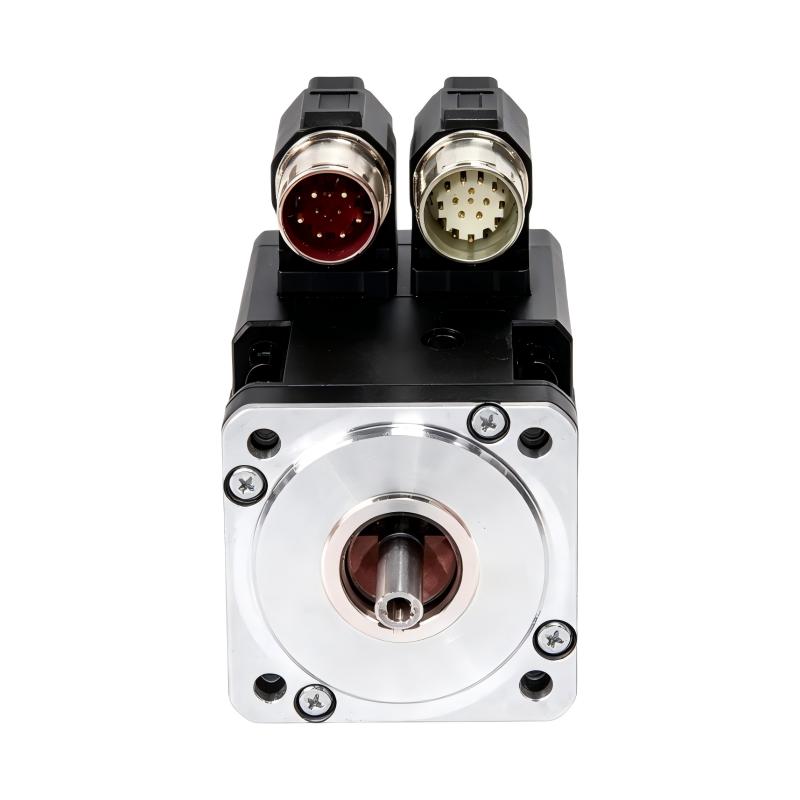

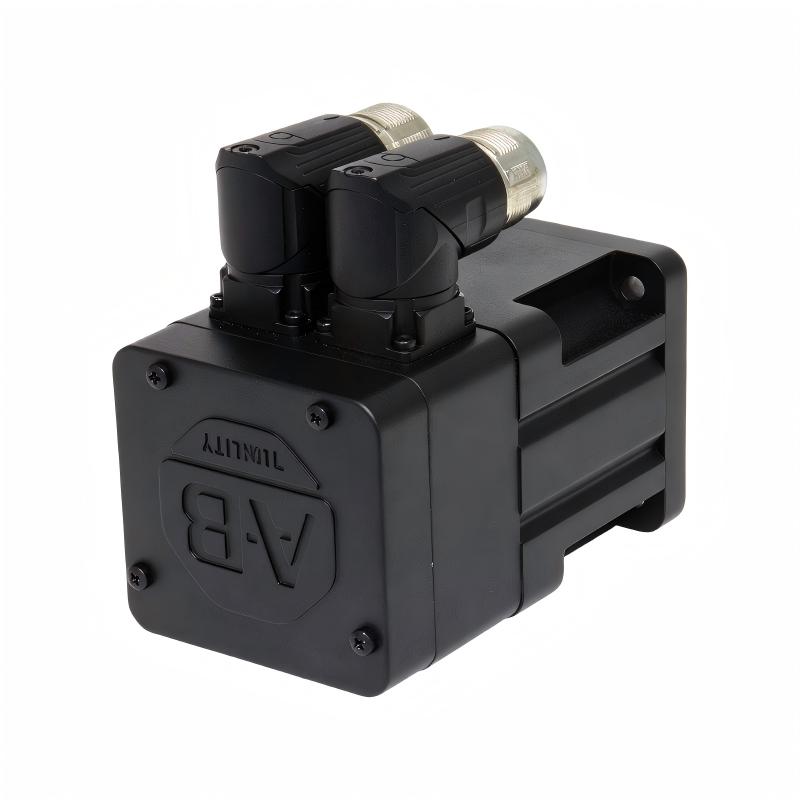

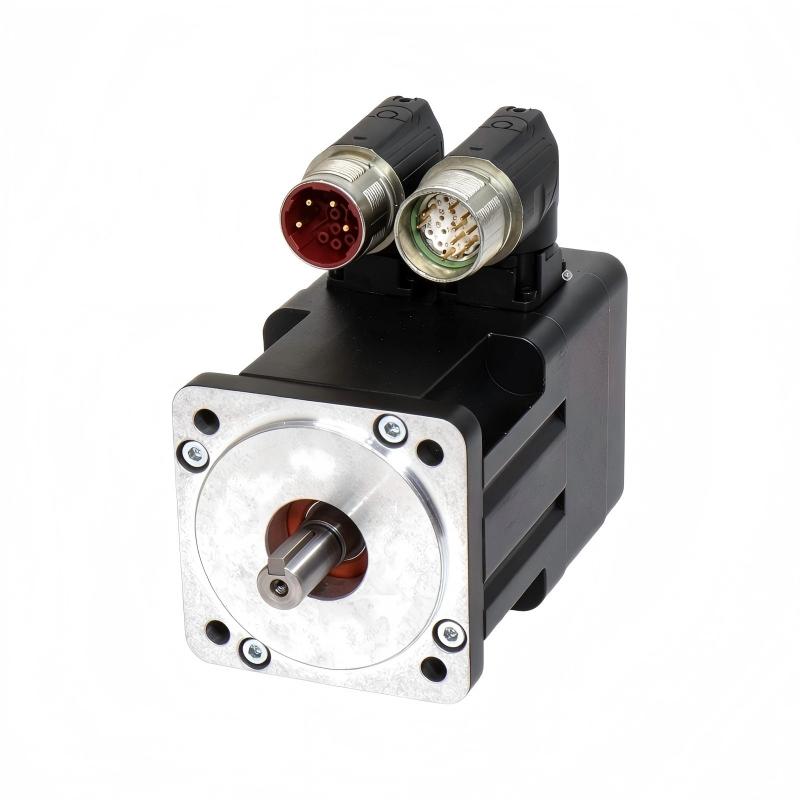

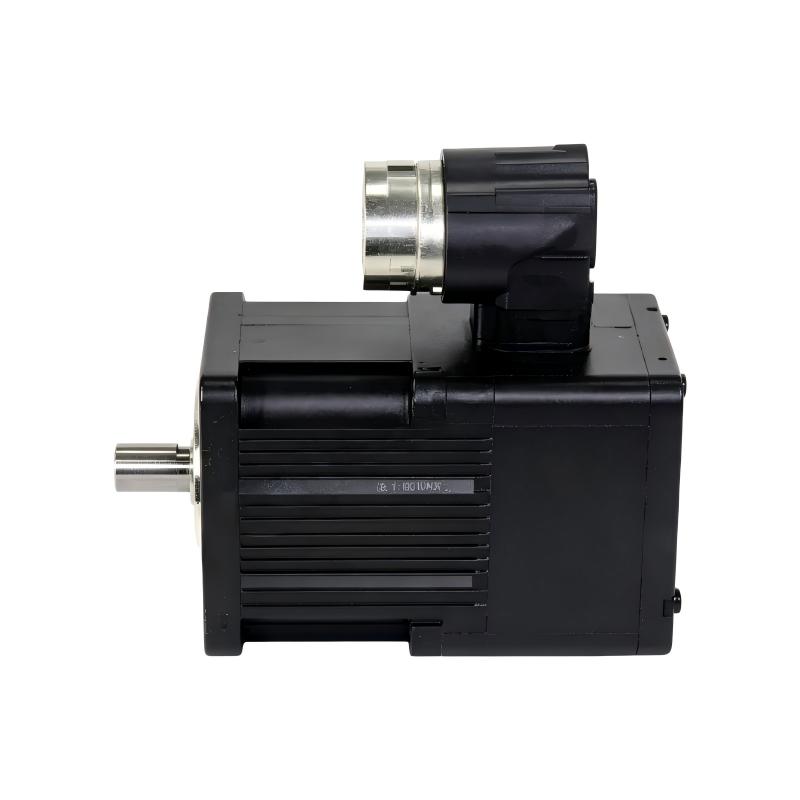

The Allen-Bradley MPL-A210V-HJ72AA MP-Series MPL 240V AC Rotary Servo Motor is a low-inertia brushless servo motor designed for industrial automation and precision motion-control applications. Its 75 mm frame and 25.4 mm magnet stack provide a compact motor platform for machines that require responsive rotary motion.

The motor has a 3500 RPM rated speed, making it suitable for applications where controlled speed, positioning accuracy, and dynamic response are more important than extremely high rotational speed. Compared with higher-speed MPL configurations, the HJ72AA is well suited to machinery requiring a practical combination of speed and torque.

A key feature of this model is its 2000-line incremental encoder. The encoder provides position and speed feedback to a compatible servo drive, allowing the motion-control system to regulate motor operation in a closed-loop configuration. This is important for applications such as indexing, positioning, coordinated motion, and automated production equipment.

The motor uses a keyed shaft extension. This mechanical configuration provides a positive connection for suitable couplings, pulleys, gears, and other driven components. Proper shaft alignment and appropriate mechanical loading should be maintained during installation to help protect the motor bearings and ensure stable operation.

The SpeedTEC DIN right-angle connector provides additional flexibility during machine installation. Its 180-degree rotational capability allows the connector orientation to be adjusted according to available space and cable-routing requirements.

The HJ72AA configuration is supplied without a motor brake. This should be considered carefully when selecting the motor for vertical axes or applications where the load must remain mechanically held after servo power is removed. Where a brake is required, a compatible MPL configuration with the appropriate brake option should be selected.

The motor uses IEC metric mounting with free mounting holes, allowing it to be installed on compatible machine structures. The compact 75 mm frame is useful for automation equipment where cabinet and machine-space requirements are important.

For replacement applications, the complete catalog number MPL-A210V-HJ72AA should be verified. Other MPL-A210V motors can have different speeds, feedback systems, brake options, and other configuration characteristics. Matching the complete catalog number helps ensure that the replacement motor has the required electrical, mechanical, and feedback characteristics.

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley
Product Family	MP-Series MPL
Catalog Number	MPL-A210V-HJ72AA
Product Type	Low-Inertia Brushless AC Servo Motor
Motor Type	240 V AC Rotary Servo Motor
Armature Voltage	230 V AC
Voltage Class	200 V AC
Frame Size	75 mm / Frame Size 2
Magnet Stack Length	25.4 mm (1.0 in.)
Rated Speed	3500 RPM
Feedback	2000-Line Incremental Encoder
Shaft Type	Keyed Shaft Extension
Brake	No Brake
Connector	SpeedTEC DIN, Right Angle
Connector Rotation	180° Rotatable
Mounting	IEC Metric, Free Mounting Holes
Motor Design	Low Inertia
Dimensions	Not specified in the supplied data
Weight	1.40 kg (3.09 lb)

Recommended Related Models

Model	Product Type
Allen-Bradley MPL-A210V-HJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-HJ74AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-EJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-EJ74AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-VJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-VJ74AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A220T-HJ72AA	MP-Series MPL Servo Motor

When choosing a related MPL motor, compare the rated speed, feedback type, brake option, magnet stack length, shaft configuration, and connector arrangement rather than selecting solely by frame size.

Popular Related Models

Model	Product Type
Allen-Bradley MPL-A210V-HJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-HJ74AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-EJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-EJ74AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-VJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A210V-VJ74AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A220T-HJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A220T-HJ74AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A220T-VJ72AA	MP-Series MPL Servo Motor
Allen-Bradley MPL-A220T-VJ74AA	MP-Series MPL Servo Motor

Applications

The Allen-Bradley MPL-A210V-HJ72AA Servo Motor is an MP-Series MPL low-inertia brushless AC rotary servo motor designed for industrial motion-control applications. It features a 75 mm frame size, 25.4 mm magnet stack, and 3500 RPM rated speed.

This configuration uses a 2000-line incremental encoder, keyed shaft extension, right-angle SpeedTEC DIN connector, and no motor brake. Its low-inertia design makes it suitable for applications requiring responsive acceleration, controlled deceleration, and accurate rotary positioning.

Typical applications include:

Packaging machinery
Automated assembly equipment
Conveyor and indexing systems
Material handling machinery
Printing and converting equipment
Machine tools
Production-line automation
Pick-and-place systems
Industrial positioning equipment
OEM machinery
Process automation equipment
General servo motion applications

The compact 75 mm frame makes the motor suitable for machine designs where installation space is limited while still requiring closed-loop servo control.

Advantages

Low-Inertia Servo Construction
The MPL Series low-inertia design provides fast response to motion commands and is suitable for applications involving frequent acceleration and deceleration.

3500 RPM Rated Speed
The 3500 RPM rating provides a practical balance between speed and torque for a wide range of industrial positioning applications.

75 mm Frame Size
The compact Frame 2 / 75 mm construction allows the motor to be integrated into space-conscious machine designs.

Incremental Encoder Feedback
The integrated 2000-line encoder provides feedback for closed-loop speed and position control when used with a compatible Allen-Bradley servo drive.

Keyed Shaft Extension
The keyed shaft provides a secure mechanical interface for compatible couplings and driven machine components.

Right-Angle SpeedTEC Connector
The SpeedTEC DIN connector can be rotated through 180 degrees, helping simplify cable routing and machine integration.

No-Brake Configuration
The HJ72AA configuration does not include a motor brake, making it suitable for axes where a holding brake is not required.

IEC Metric Mounting
IEC metric mounting and free mounting holes support straightforward installation into compatible industrial machinery.

Industrial Motion Compatibility
The MPL family is designed for integration with Allen-Bradley motion-control systems and compatible Kinetix servo drives.

Technical FAQs

1. What is the Allen-Bradley MPL-A210V-HJ72AA?
It is an Allen-Bradley MP-Series MPL low-inertia brushless AC rotary servo motor for industrial motion-control applications.

2. What is the frame size of the MPL-A210V-HJ72AA?
The motor uses a 75 mm frame, corresponding to Frame Size 2.

3. What is the rated speed?
The MPL-A210V-HJ72AA has a rated speed of 3500 RPM.

4. What is the magnet stack length?
The magnet stack length is 25.4 mm (1.0 in.).

5. What type of feedback does this motor use?
This model uses a 2000-line incremental encoder.

6. Does the HJ72AA include a motor brake?
No. The HJ72AA configuration is a no-brake version.

7. What shaft configuration does the motor have?
It uses a keyed shaft extension.

8. What connector is used on the motor?
The motor uses a SpeedTEC DIN right-angle connector with 180-degree rotational capability.

9. Is this motor suitable for closed-loop motion control?
Yes. The incremental encoder provides motor feedback for compatible closed-loop servo applications.

10. What is the specified weight of the motor?
The specified weight is 1.40 kg (3.09 lb).
