Brand:Invensys Triconex Item No.:3805EN Product Origin:USA Product Dimensions:490 x 490 x 68 mm Product Weight:2.27 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

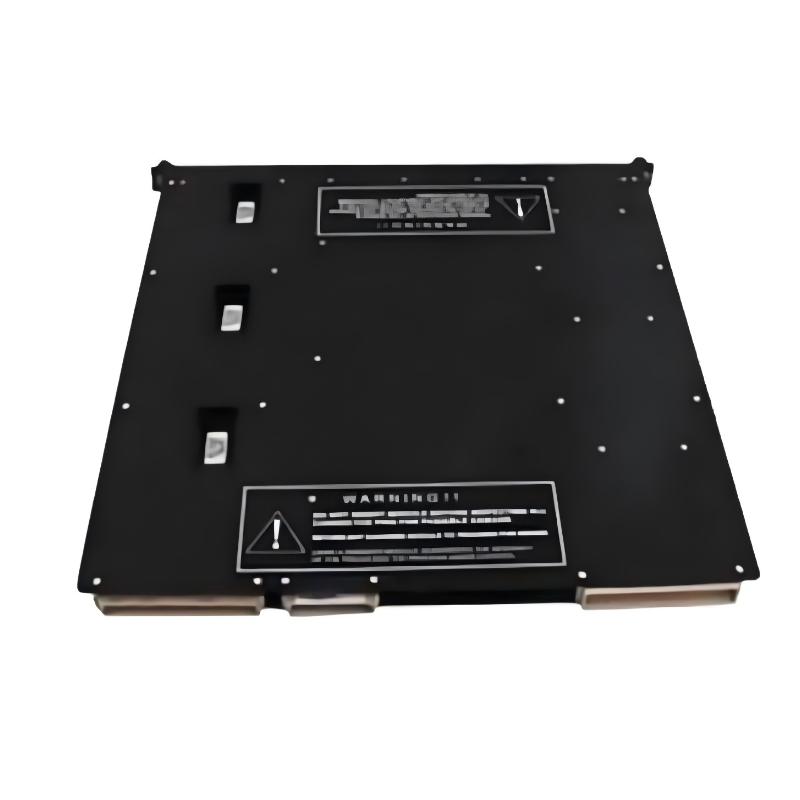

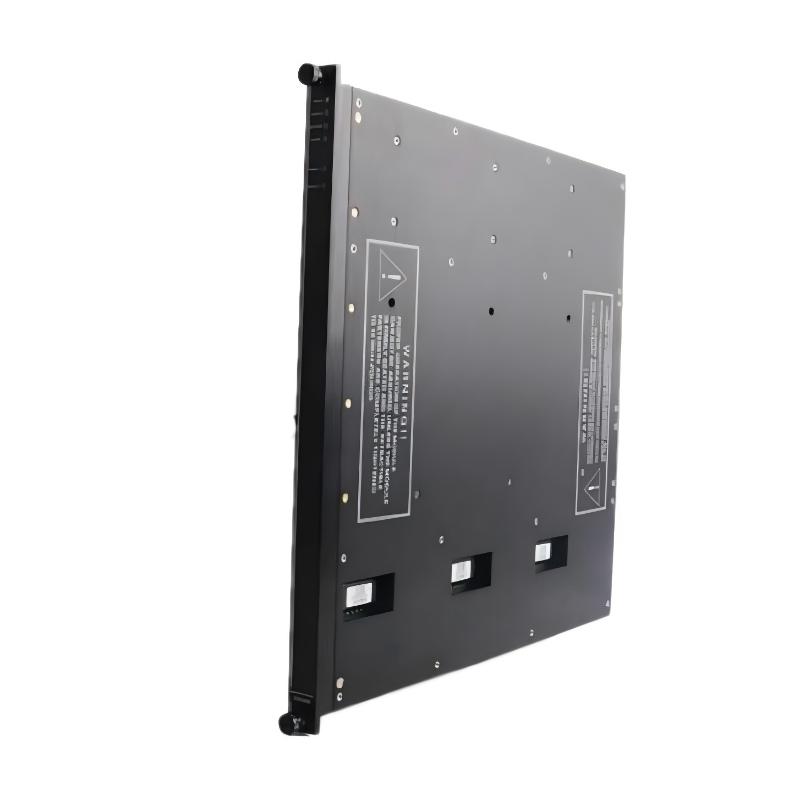

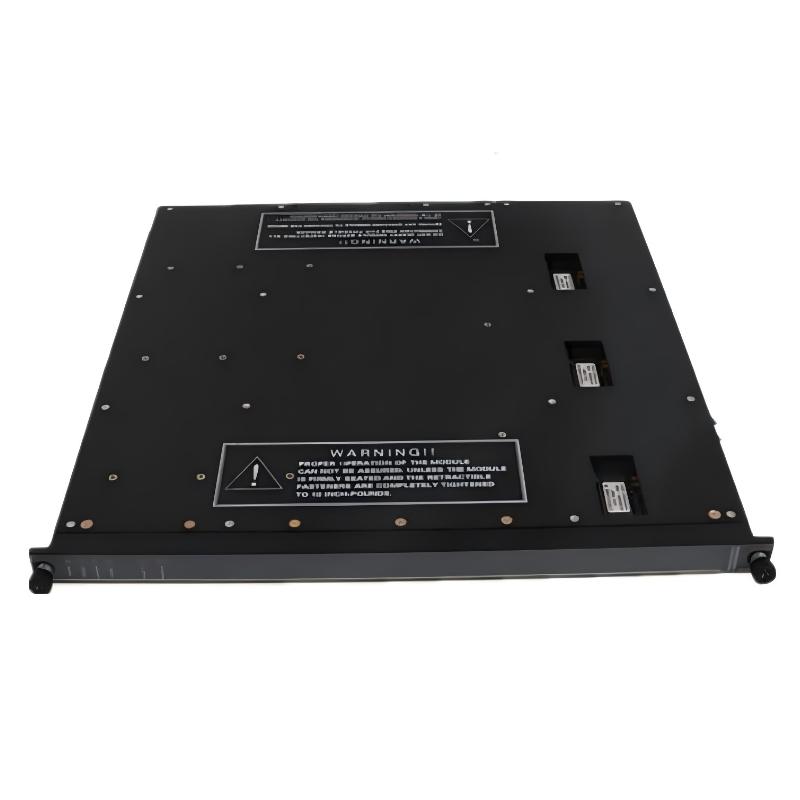

The Triconex 3805EN Analog Output Module offers superior analog signal control for industrial automation systems. Engineered to meet the highest standards of safety and performance, it ensures accurate, consistent outputs even in extreme conditions. Its advanced diagnostics and TMR compatibility make it ideal for high-stakes environments where uptime and precision are critical.
Technical Specifications
Parameter
Specification
Model
Triconex 3805EN
Channels
8 Analog Outputs
Output Type
4–20 mA, 0–10 V
Resolution
16-bit DAC
Accuracy
±0.05% of full scale
Response Time
<10 ms
Redundancy
TMR compatible
Operating Temperature
-40°C to 70°C (-40°F to 158°F)
Dimensions
490 x 490 x 68 mm
Weight
2.27 kg
Power Consumption
6 W typical
Recommended Related Models
Triconex 3721 Analog Input Module
Triconex 3805E/H Analog Output Module
Triconex 3710 Safety Processor Module
Popular Related Models
Triconex 3805EN High-Density Analog Output Module
Triconex 3742 Analog Output Redundant Module
Triconex 3712 Digital Output Module
Applications
The Invensys Triconex 3805EN Analog Output Module is engineered to provide precise analog signals for control and monitoring in Triconex safety and automation systems.
It is widely deployed in industries such as oil & gas, chemical, power generation, and petrochemical facilities. The module enables accurate control of actuators, valves, and other field devices, supporting safe and reliable operation in critical automation applications.
Advantages
High-Precision Output: Delivers accurate analog signals to field devices for precise control.
Industrial-Grade Reliability: Designed to withstand vibration, temperature extremes, and electromagnetic interference.
Seamless Integration: Compatible with Triconex controllers and standard modules for flexible deployment.
Redundancy Support: Works reliably in redundant system configurations to maintain continuous operation.
Maintenance Friendly: Modular design allows easy installation, inspection, and replacement.
Technical FAQs
What is the primary function of the 3805EN Analog Output Module?
To provide precise analog output signals for Triconex automation and safety systems.
Is it compatible with all Triconex systems?
Yes, designed for standard Triconex controllers and I/O modules.
Can it operate in harsh industrial environments?
Yes, built to endure vibration, EMI, and temperature variations.
Does it support redundant configurations?
Yes, fully compatible with Triconex redundant system architectures.
Are diagnostics included?
Yes, LED indicators provide feedback on module status and output health.
Is installation straightforward?
Yes, modular design simplifies placement into racks or cabinets.
Which industries commonly use this module?
Oil & gas, chemical, power generation, and petrochemical sectors.
Does it provide accurate signal control for field devices?
Yes, engineered for high-precision analog output.
Does it include protection mechanisms?
Yes, safeguards prevent electrical faults and ensure safe operation.
Does it require special software for configuration?
Standard Triconex engineering and monitoring tools are used for setup.
