Brand:ABB PLC Item No.:5SDF07F4501 Product Origin:Sweden (SE) Product Dimensions:75 × 26 × 75 mm Product Weight:0.46 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

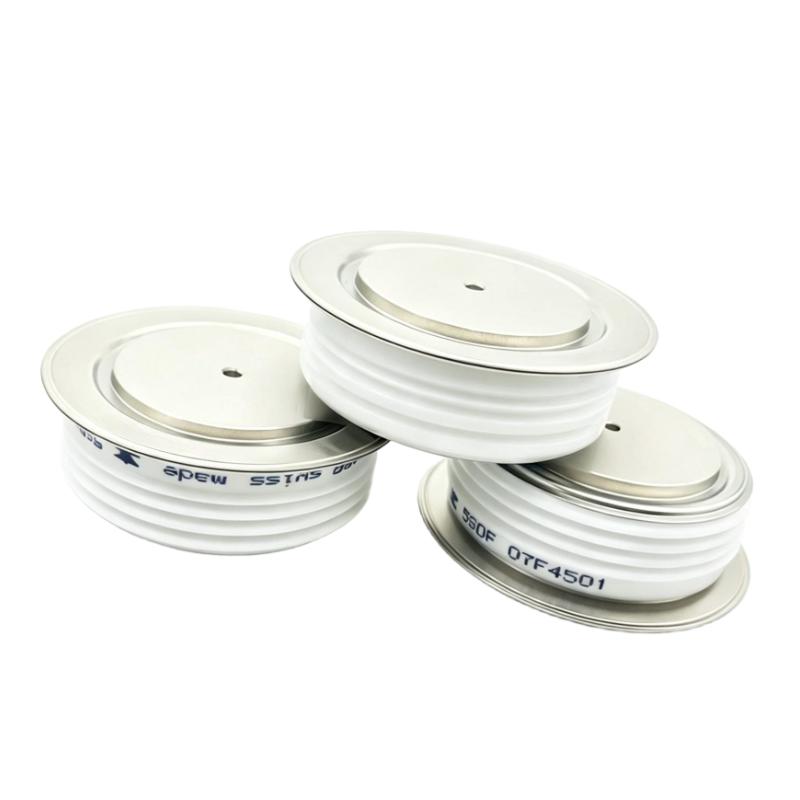

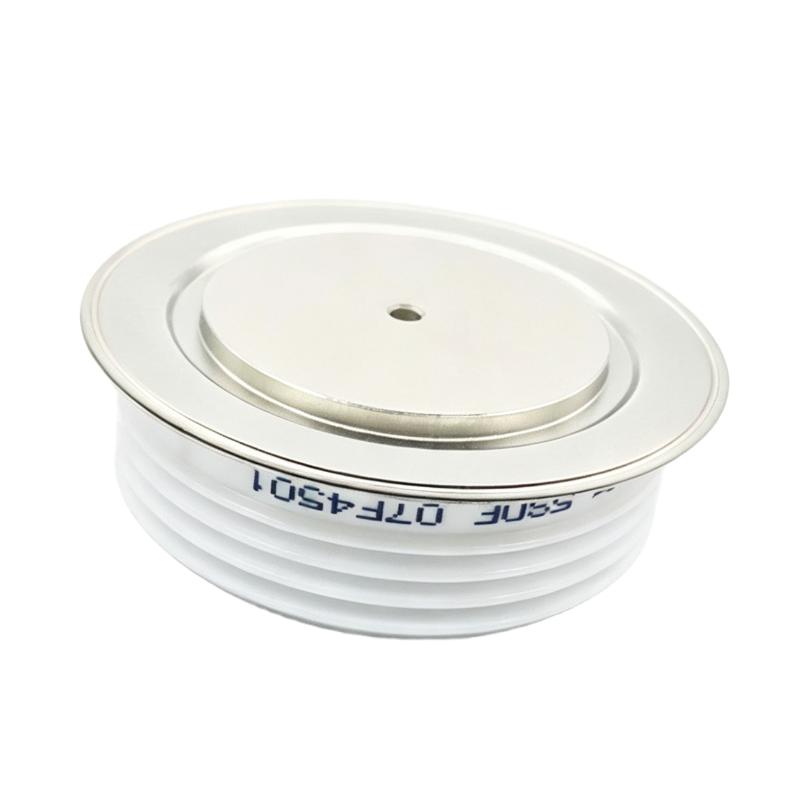

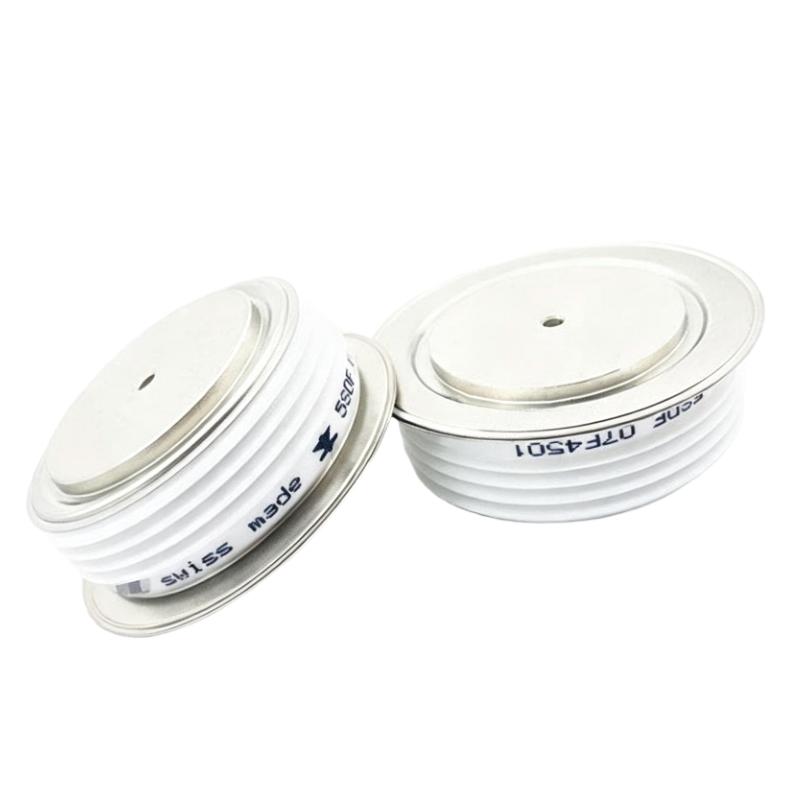

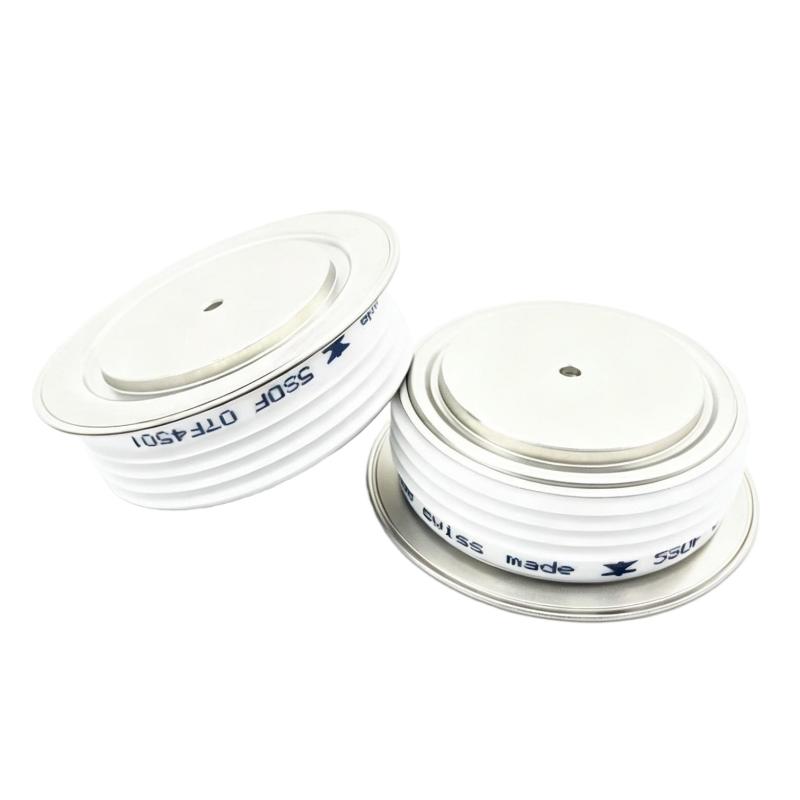

ABB 5SDF07F4501 Fast-Recovery Diode is a high-quality semiconductor component developed for industrial power electronics requiring precise switching control and dependable electrical performance. As part of ABB’s power semiconductor portfolio, this diode supports applications where efficiency, durability, and system availability are critical.
With fast recovery capability and reliable semiconductor technology, ABB 5SDF07F4501 helps reduce switching losses while maintaining stable operation in demanding environments. It is suitable for modernization projects, replacement applications, and new equipment designs requiring industrial-grade power components.
Designed for professional automation and energy applications, this fast-recovery diode provides engineers with a reliable solution for improving the performance of power conversion systems.
Technical Specifications and Product Data
Parameter
Specification
Manufacturer
ABB
Model
5SDF07F4501
Product Type
Fast-Recovery Diode
Semiconductor Type
Power Diode
Application
Power Conversion, Rectification, Industrial Drives
Dimensions
75 × 26 × 75 mm
Weight
0.46 kg (1.01 lb)
Design Feature
Fast Recovery Switching Technology
Installation Type
Industrial Power Semiconductor Assembly
Recommended Related Models
Model
Product Type
ABB 5SDF04D4501
Fast-Recovery Diode
ABB 5SDF10H4501
Fast-Recovery Diode
ABB 5STP45H2800
Thyristor Module
ABB 5STP24H2800
Power Semiconductor Module
Popular Related Models
Model
Product Type
ABB 5STP45Q2800
Thyristor Module
ABB 5STP34L2800
Power Semiconductor Device
ABB 5SNA1200E330100
IGBT Module
ABB 5SDF08H4502
Fast-Recovery Diode
Industrial Applications
ABB 5SDF07F4501 Fast-Recovery Diode is designed for high-performance power electronic applications where fast switching speed, electrical stability, and reliable current handling are essential. This diode is widely used in industrial power conversion systems, motor drive assemblies, renewable energy equipment, and high-power control applications requiring efficient semiconductor performance.
The device is suitable for integration into rectifier circuits, inverter systems, DC link protection applications, and industrial converter platforms. Its fast recovery characteristics help reduce switching losses and improve overall system efficiency, making it a valuable component for demanding automation and energy management environments.
Key Advantages and Performance Benefits
ABB 5SDF07F4501 provides excellent switching performance with optimized reverse recovery characteristics, supporting stable operation in high-frequency power electronic circuits. Its robust semiconductor design helps maintain dependable performance under continuous industrial workloads.
The diode offers several advantages:
Advantage
Description
Fast Recovery Performance
Reduces switching losses and improves converter efficiency
High Electrical Reliability
Designed for stable operation in demanding industrial environments
Efficient Power Handling
Supports reliable current flow and energy conversion
Compact Semiconductor Design
Enables flexible integration into power assemblies
Long Service Capability
Suitable for continuous industrial operation
Its combination of fast switching response and rugged construction makes ABB 5SDF07F4501 an effective choice for engineers looking to improve the reliability and efficiency of power electronic equipment.
Technical FAQs – Engineering Questions & Answers
1. What is the main function of the ABB 5SDF07F4501 Fast-Recovery Diode?
The ABB 5SDF07F4501 is used for high-speed rectification and current control in power electronic circuits, helping improve switching efficiency and system stability.
2. Why are fast-recovery diodes used in industrial power converters?
Fast-recovery diodes minimize reverse recovery time during switching operations, reducing power losses and improving the performance of high-frequency converter systems.
3. Can the ABB 5SDF07F4501 be used in inverter applications?
Yes. Its fast switching characteristics make it suitable for inverter circuits where efficient energy conversion and reliable semiconductor performance are required.
4. What factors should be considered when installing this diode?
Engineers should consider electrical ratings, thermal management, mounting conditions, insulation requirements, and compatibility with the overall power circuit design.
5. How does reverse recovery performance affect system efficiency?
Lower reverse recovery time reduces switching energy losses, helping improve converter efficiency and reduce thermal stress on surrounding components.
6. Is thermal management important for this diode?
Yes. Proper heat dissipation is essential to maintain semiconductor reliability and ensure stable operation under continuous load conditions.
7. What types of equipment commonly use fast-recovery diodes?
They are commonly found in industrial converters, motor drive systems, power supplies, UPS equipment, and renewable energy power electronics.
8. How can the service life of a power diode be improved?
Maintaining proper operating temperatures, preventing electrical overloads, and ensuring correct installation practices can help extend component service life.
9. What are common causes of diode failure in industrial systems?
Typical causes include excessive current, overheating, voltage spikes, improper cooling, and operation outside recommended electrical limits.
10. How should engineers test a fast-recovery diode during maintenance?
Testing usually includes checking forward voltage characteristics, reverse leakage behavior, insulation conditions, and overall semiconductor performance
