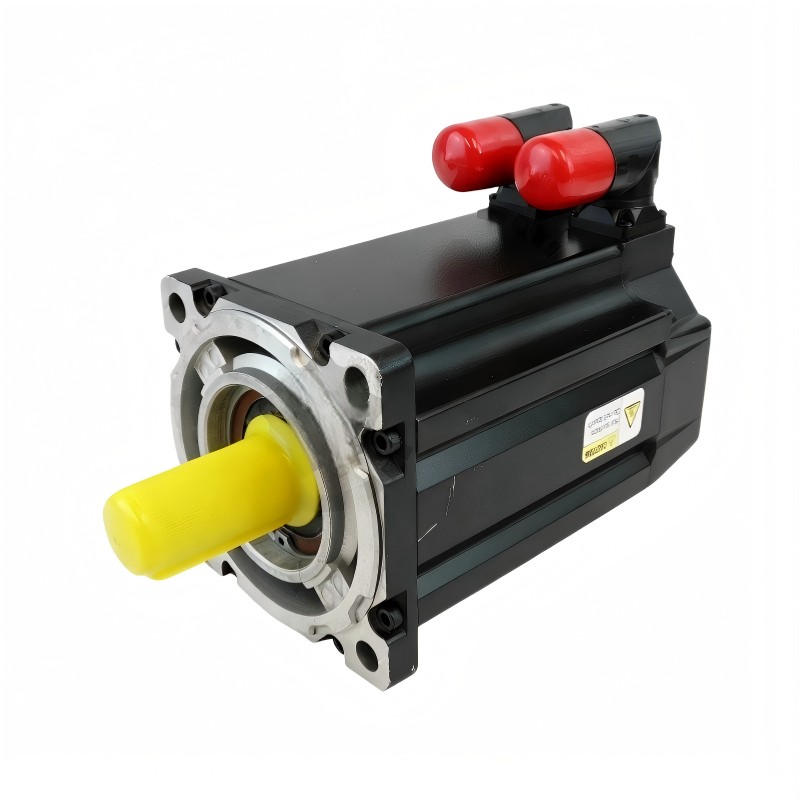

Allen Bradley MPL-A4530K-HJ72AA Servo Motor

Applications and Industrial Motion Control Solutions

Allen Bradley MPL-A4530K-HJ72AA Servo Motor is a high-precision industrial motion component designed for automation systems that require accurate positioning, stable torque performance, and responsive speed control. As part of the Allen Bradley MPL servo motor family, this model is engineered to support demanding machine applications where repeatability and motion accuracy directly impact production efficiency.

The MPL-A4530K-HJ72AA Servo Motor provides a reliable motion solution for OEM equipment manufacturers, system integrators, and industrial users who need consistent servo performance. With its 130 mm frame size, the motor offers an effective combination of compact installation design and dependable operational capability.

Typical application areas include:

• Automated assembly machinery
• Packaging and processing equipment
• Robotics and positioning systems
• Material handling applications
• Precision manufacturing equipment
• Industrial production lines
• Machine upgrade and retrofit projects

The motor can be integrated with compatible Allen Bradley Kinetix servo drive systems to provide coordinated motion control, accurate positioning, and efficient machine performance.

Key Advantages and Industrial Performance Features

High-Precision Motion Control
Allen Bradley MPL-A4530K-HJ72AA Servo Motor delivers accurate speed and position control, helping automation systems achieve stable and repeatable movement.

Excellent Dynamic Response
The servo motor is designed for applications requiring quick acceleration, rapid positioning, and frequent operational cycles.

Compact 130 mm Frame Structure
The optimized mechanical design allows flexible installation in automation equipment while maintaining reliable motion performance.

Stable Torque Output
The motor provides consistent torque characteristics, supporting smooth operation under different industrial load conditions.

Efficient Integration with Allen Bradley Platforms
The MPL-A4530K-HJ72AA is suitable for use with compatible Allen Bradley motion control systems, helping simplify system configuration.

Reliable Operation for Industrial Applications
The servo motor is designed to support long-term automation operation where precision and availability are essential.

Technical FAQs and Engineering Answers

1. What is the Allen Bradley MPL-A4530K-HJ72AA Servo Motor mainly used for?
The MPL-A4530K-HJ72AA Servo Motor is used in industrial motion applications requiring precise positioning, accurate speed control, and dependable torque output.

2. Which servo drives are suitable for this motor?
This motor is commonly paired with compatible Allen Bradley Kinetix servo drives that support MPL series motor specifications.

3. What should be checked before commissioning the MPL-A4530K-HJ72AA?
Engineers should verify motor and drive compatibility, wiring connections, feedback configuration, mechanical mounting, and application load requirements.

4. What causes servo motor positioning deviation?
Positioning deviation may be caused by incorrect tuning, mechanical backlash, excessive load, feedback signal issues, or improper system parameters.

5. How can servo motor vibration problems be diagnosed?
Technicians should inspect servo tuning settings, mechanical alignment, coupling conditions, mounting stability, and feedback performance.

6. Why is encoder feedback important in this servo system?
Encoder feedback provides accurate position and speed information, allowing the control system to maintain precise closed-loop operation.

7. Can the MPL-A4530K-HJ72AA be used in high-speed automation equipment?
Yes, when correctly selected and configured, it can support applications requiring rapid and repeated motion cycles.

8. What maintenance checks should be performed on this servo motor?
Recommended inspections include checking cables, connectors, mounting conditions, abnormal noise, operating temperature, and drive status information.

9. What problems can incorrect servo parameter settings cause?
Incorrect parameters may result in unstable movement, reduced accuracy, excessive current consumption, or servo fault conditions.

10. How can the reliability of a servo motor system be improved?
Proper motor selection, correct installation, accurate tuning, regular maintenance, and suitable operating conditions help improve system reliability.
