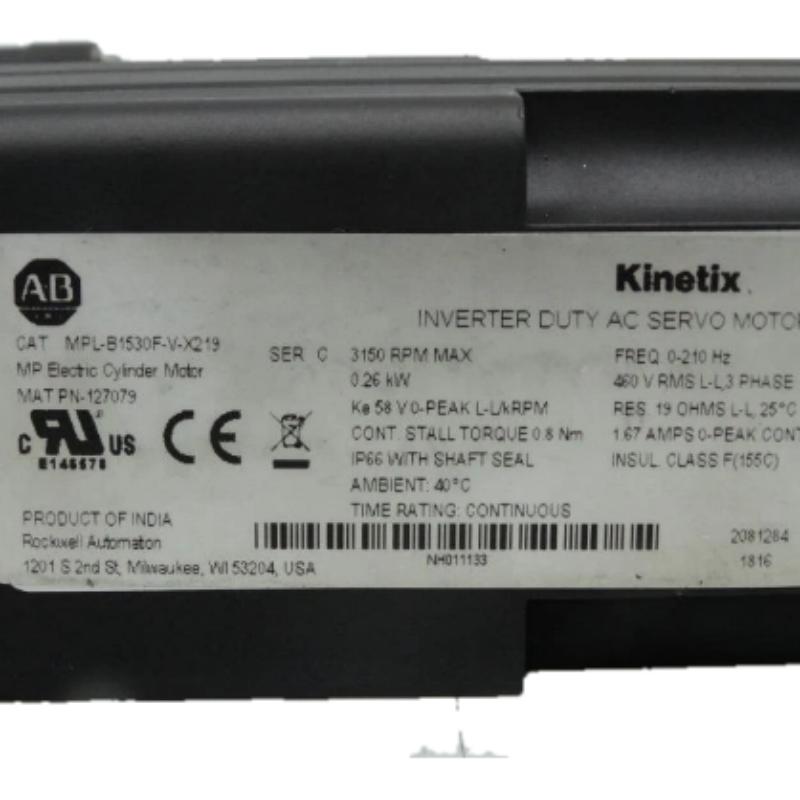

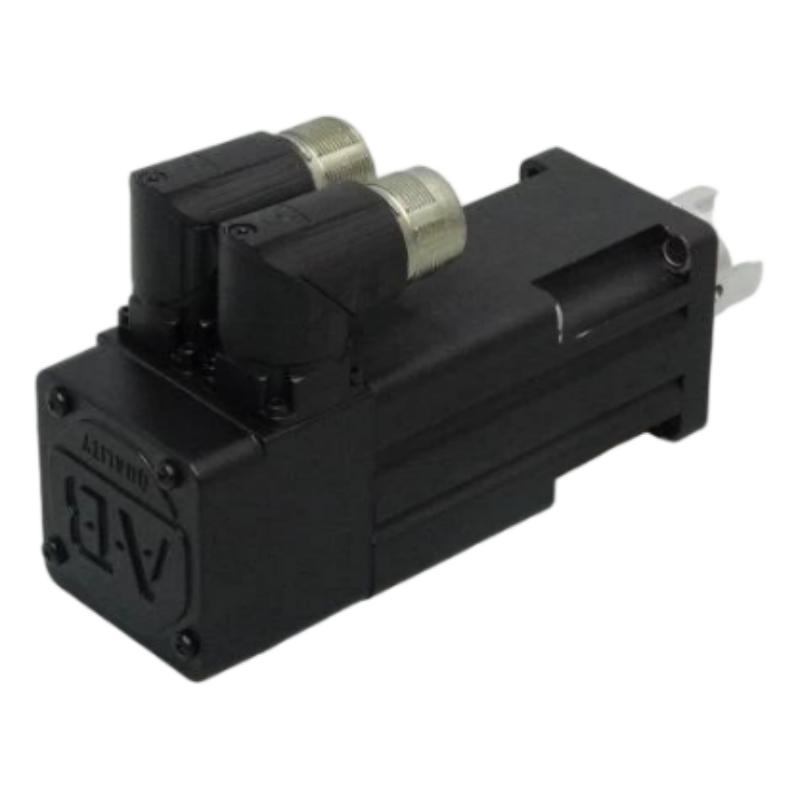

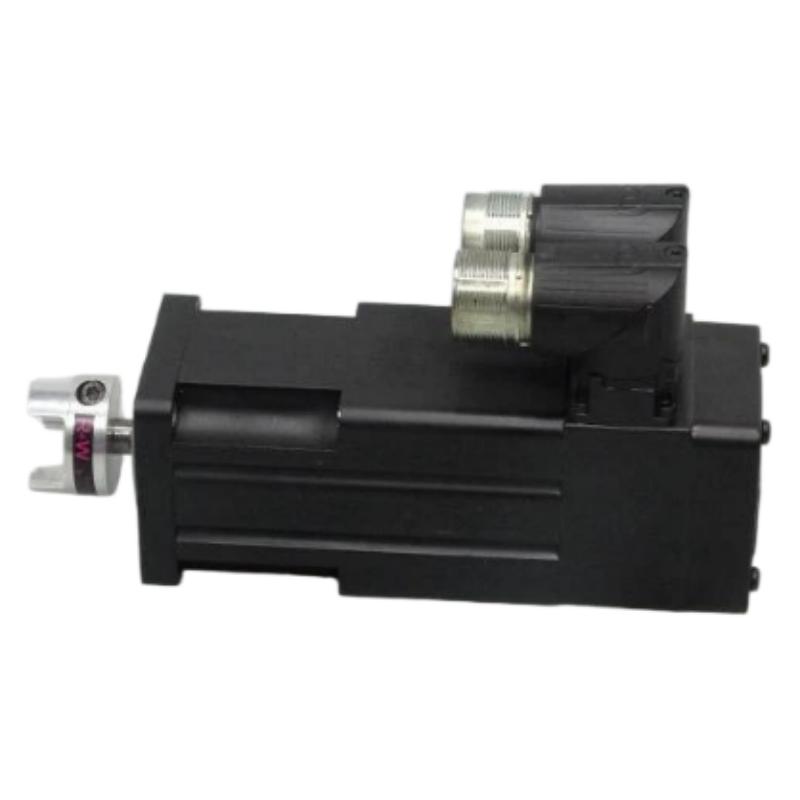

Allen Bradley MPL-B1530F-V-X219 Servo Motor

Applications and Industrial Motion Control Applications

Allen Bradley MPL-B1530F-V-X219 Servo Motor is a compact and high-performance motion control component designed for industrial automation systems requiring accurate positioning, stable speed regulation, and reliable servo performance. As part of the Allen Bradley MPL-B series, this motor provides a flexible solution for automation equipment where precision movement and efficient operation are essential.

With a 40 mm frame size, the MPL-B1530F-V-X219 Servo Motor is designed for applications requiring compact mechanical integration while maintaining dependable motion capability. It is suitable for machine builders, automation engineers, and system integrators developing advanced equipment with precise movement requirements.

Typical application areas include:

• Compact automated machinery
• Precision assembly equipment
• Packaging and inspection systems
• Robotics and positioning devices
• Electronic manufacturing equipment
• Small-scale production automation
• Industrial motion control systems

The servo motor can be integrated with compatible Allen Bradley Kinetix motion control platforms, helping deliver accurate synchronization, smooth movement, and reliable machine operation.

Advantages and Motion Performance Benefits

Compact Servo Motor Design
Allen Bradley MPL-B1530F-V-X219 Servo Motor features a compact 40 mm frame size, making it suitable for equipment with limited installation space.

Accurate Positioning Performance
The motor provides precise closed-loop motion control, supporting repeatable positioning and improved automation accuracy.

Responsive Motion Characteristics
Designed for dynamic applications, the servo motor delivers fast response during acceleration, deceleration, and frequent movement cycles.

Reliable Industrial Operation
The MPL-B1530F-V-X219 offers dependable performance for automation systems requiring continuous and stable motion control.

Efficient System Integration
The motor is compatible with Allen Bradley motion control solutions, helping simplify machine development and commissioning processes.

Flexible Automation Application Support
Its compact structure and servo capability make it suitable for a variety of precision motion applications.

Technical FAQs and Engineering Answers

1. What is the Allen Bradley MPL-B1530F-V-X219 Servo Motor used for?
The MPL-B1530F-V-X219 Servo Motor is used in industrial automation applications requiring accurate positioning, controlled speed, and reliable motion performance.

2. Which equipment is suitable for this servo motor?
It is suitable for compact machinery, assembly systems, packaging equipment, robotics, and precision positioning applications.

3. What should be confirmed before installing this servo motor?
Engineers should verify motor-drive compatibility, wiring connections, feedback configuration, mechanical mounting, and application requirements.

4. What causes servo motor tracking errors?
Tracking errors may occur due to incorrect tuning, mechanical backlash, excessive load conditions, feedback problems, or unsuitable motion settings.

5. How can servo system accuracy be improved?
Accuracy can be improved through correct parameter tuning, proper mechanical installation, stable feedback operation, and suitable load matching.

6. Why is feedback necessary in servo motor applications?
Feedback allows the controller to monitor actual motor movement and adjust operation to maintain accurate closed-loop control.

7. Can the MPL-B1530F-V-X219 support high-speed motion cycles?
Yes, when properly selected and configured, it can support applications requiring quick and repetitive motion.

8. What maintenance should be performed on this servo motor?
Recommended maintenance includes checking cables, connectors, mounting conditions, abnormal vibration, temperature, and drive diagnostics.

9. What problems can result from incorrect motor selection?
Incorrect selection may lead to insufficient performance, unstable motion, overheating, or reduced positioning accuracy.

10. How can users maintain reliable servo motor operation?
Proper installation, correct configuration, regular inspection, and preventive maintenance help ensure stable long-term performance
