Brand:Ingersoll Rand Item No.: 47579628001 85575116 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

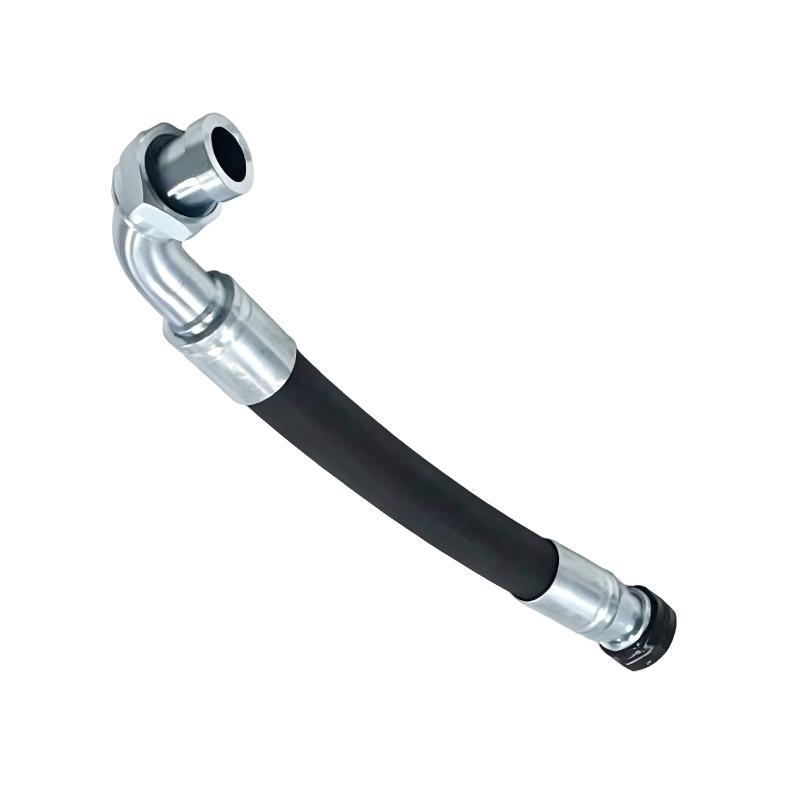

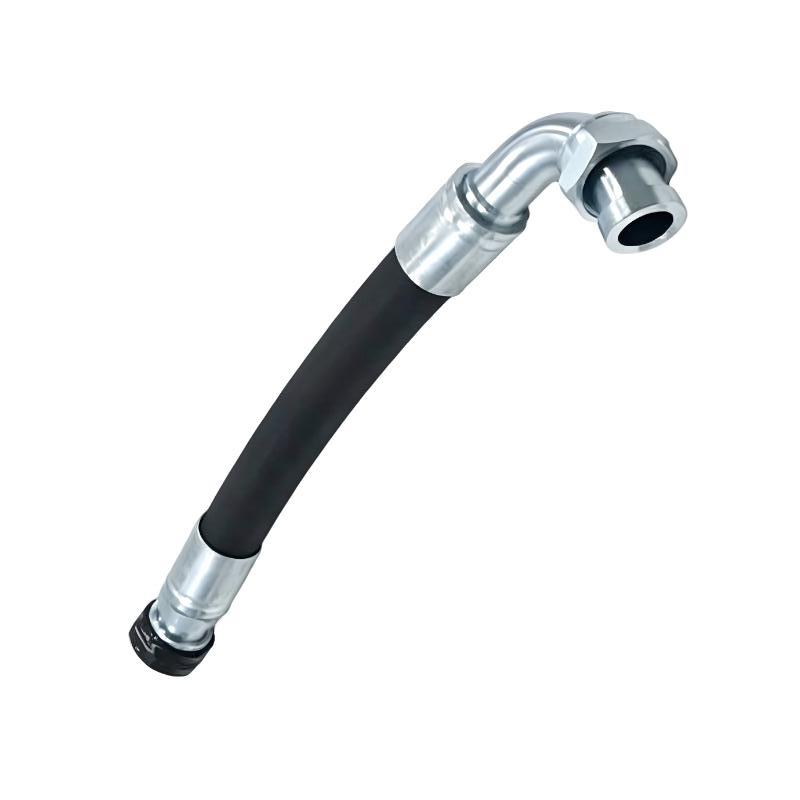

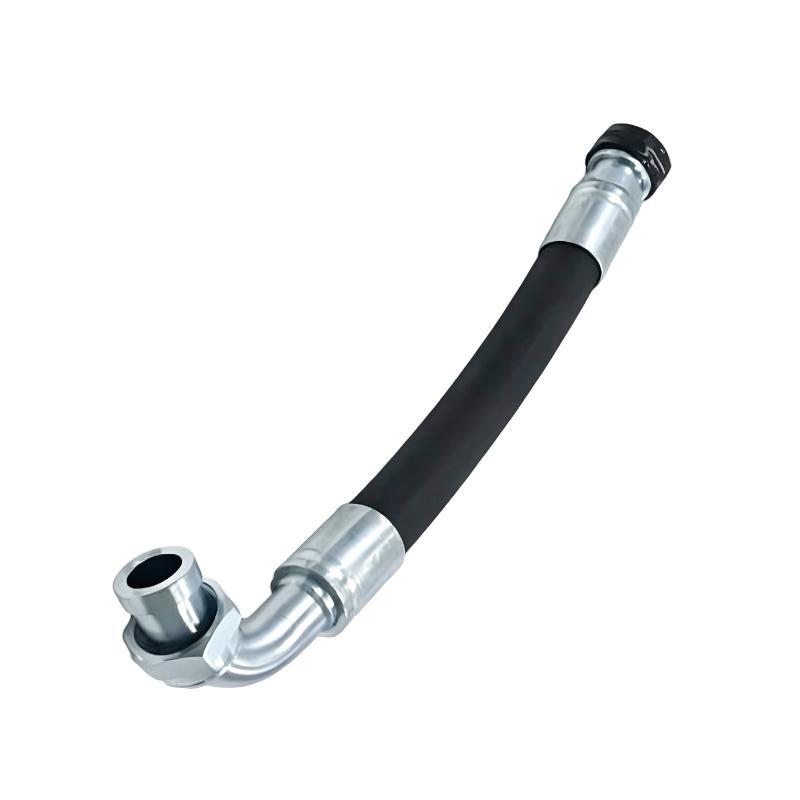

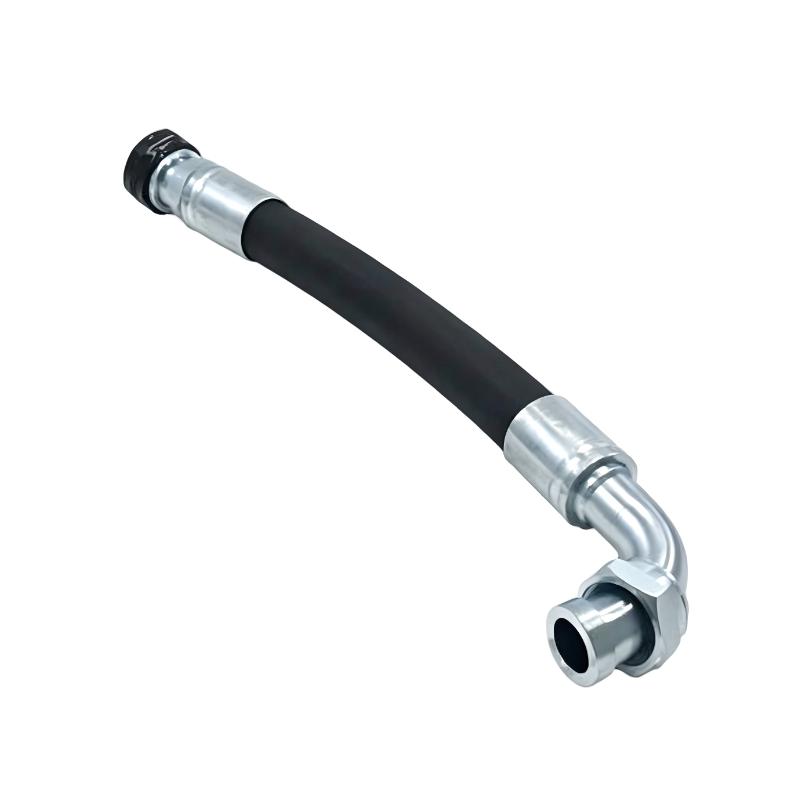

The Ingersoll Rand 47579628001 / 85575116 configuration is associated with the water-cooled hose package used on applicable Sierra 200-300 compressor systems. The package identification 47579628001 is paired with hose 85575116, which is specified as a 1.00-inch diameter and 40.00-inch-long hose with ORFS fittings.
This configuration is intended for compressor maintenance and hose replacement applications where the original routing and connection arrangement must be maintained. Correct part-number verification is recommended before installation because hose configurations can vary between compressor models and system arrangements.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Package Part Number
47579628001
Component Part Number
85575116
Package Type
Water-Cooled Hose Package
Applicable Series
Sierra 200-300
Hose Type
Hydraulic Hose
Nominal Hose Diameter
1.00 in.
Hose Length
40.00 in. / approx. 1,016 mm
End Connections
ORFS straight × ORFS straight
Cooling Configuration
Water-Cooled
Complete Configuration Dimensions
Not reliably published as a fixed value
Complete Configuration Weight
Not reliably published as a fixed value
Recommended Companion Models
Model
Product Name
Sierra 200
Ingersoll Rand Sierra 200 Air Compressor
Sierra 250
Ingersoll Rand Sierra 250 Air Compressor
Sierra 300
Ingersoll Rand Sierra 300 Air Compressor
Sierra 200-300
Ingersoll Rand Sierra 200-300 Water-Cooled Compressor System
Frequently Selected Alternatives
Model
Product Name
47579627001
Ingersoll Rand Water-Cooled Hose Package Sierra 90-150
47580146001
Ingersoll Rand Water-Cooled Hose Package Sierra 37-75
85575108
Ingersoll Rand ORFS Hose 1.00 × 18.00 in.
85575132
Ingersoll Rand Hose 1.00 × 26.00 in.
Where It Fits in Industrial Applications
• Designed for applicable Ingersoll Rand Sierra 200-300 water-cooled compressor configurations.
• Used as part of the water-cooled hose package supporting fluid routing within the compressor system.
• Suitable for maintenance activities where the specified hose configuration requires replacement.
• The 85575116 hose is identified as 1.00 inch in diameter and 40.00 inches in length, with ORFS end fittings.
• Intended for industrial compressed-air equipment where correct hose routing and connection integrity are important.
Key Strengths at a Glance
• Matched package configuration: Combines 47579628001 with the associated 85575116 hose.
• Defined hose size: 1.00-inch nominal diameter and 40.00-inch overall length.
• ORFS connections: Straight ORFS-style fittings provide the specified connection interface.
• Water-cooled system application: Associated with the Sierra 200-300 water-cooled hose package.
• Maintenance-oriented design: Suitable for planned hose replacement and compressor servicing.
Technical FAQs
1. What is Ingersoll Rand 47579628001?
47579628001 is identified as a water-cooled hose package for applicable Sierra 200-300 compressor configurations.
2. What is the role of 85575116 in this configuration?
85575116 is the associated hose component, identified as a 1.00-inch-diameter, 40.00-inch-long hose with ORFS fittings.
3. Are 47579628001 and 85575116 one product configuration?
For this product listing, the two supplied part numbers are treated as one complete configuration, with 47579628001 identifying the hose package and 85575116 identifying the associated hose component.
4. What type of compressor is this package associated with?
The package is associated with applicable Ingersoll Rand Sierra 200-300 water-cooled compressor systems.
5. What is the nominal diameter of hose 85575116?
The hose has a nominal diameter of 1.00 inch.
6. What is the specified length of 85575116?
The listed hose length is 40.00 inches, equivalent to approximately 1,016 mm.
7. What type of fittings does 85575116 use?
The component is listed with ORFS fittings at the hose ends, with straight ORFS connections identified in parts listings.
8. When would this hose configuration normally be replaced?
Replacement is generally considered when the existing hose shows deterioration, leakage, fitting damage, abrasion, or reaches a scheduled maintenance interval.
9. Why is correct hose configuration important in a water-cooled compressor?
The correct hose size, length, routing, and connection type help maintain the intended fluid circuit and reduce the risk of leakage or installation problems.
10. Should the part numbers be checked against the compressor before ordering?
Yes. The compressor model, cooling configuration, existing part number, and applicable parts documentation should be checked before installation to confirm compatibility.
