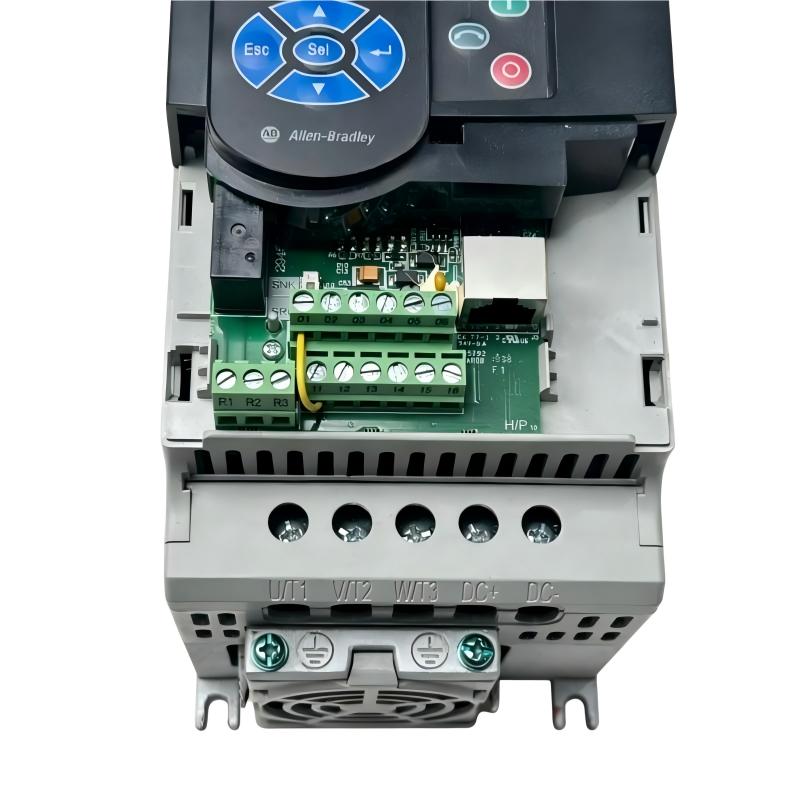

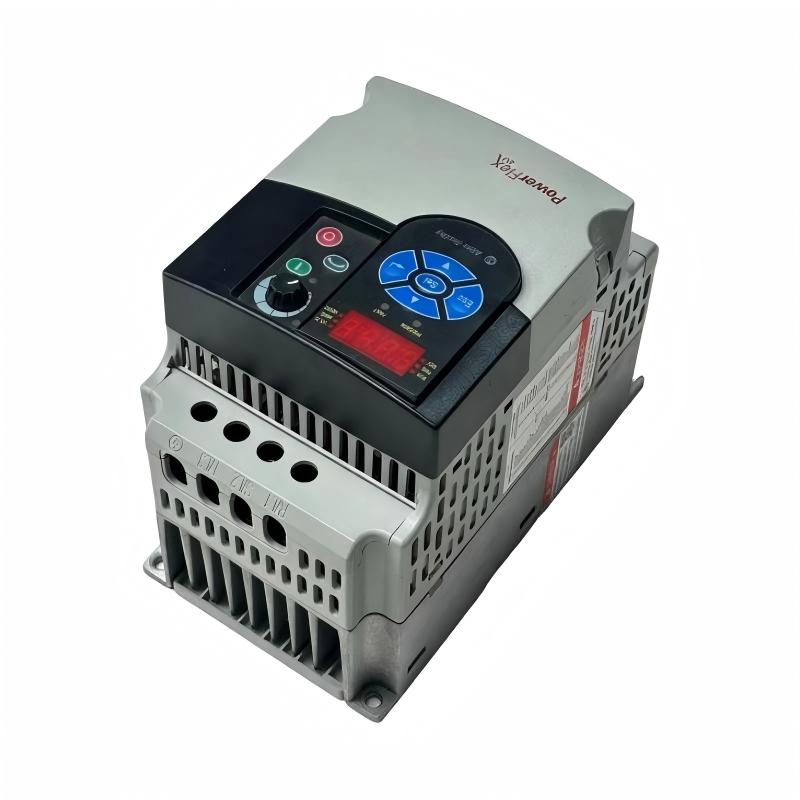

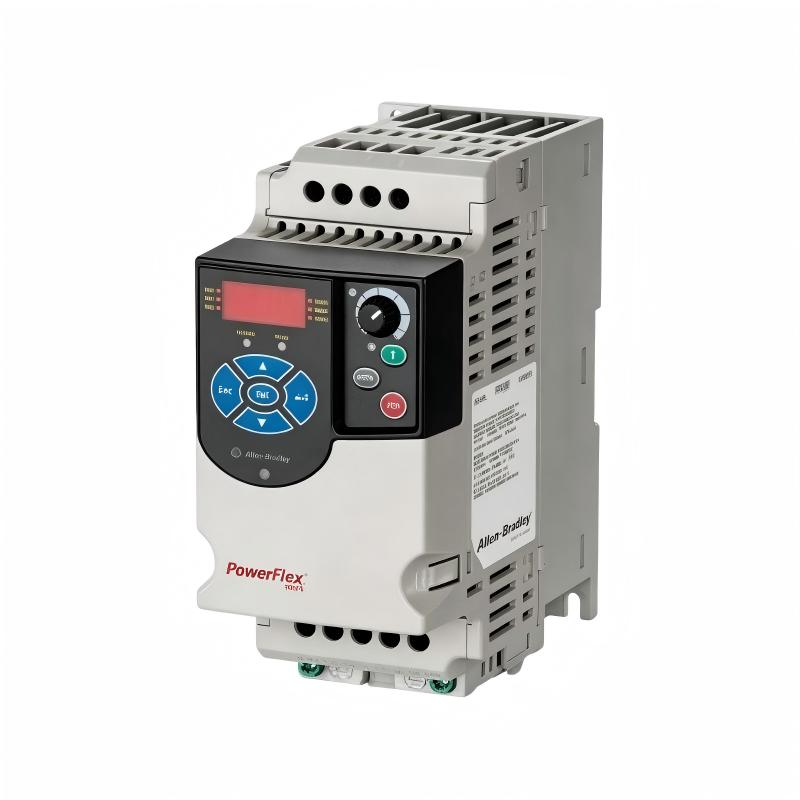

Allen Bradley 22F-A011N113 PowerFlex 4M AC Drive

Allen Bradley 22F-A011N113 PowerFlex 4M AC Drive

0.0
Points

Brand:Allen Bradley PLC
Item No.:22F-A011N113
Product Origin:USA
Product Dimensions:174 x 100 x 136 mm
Product Weight:2.1 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO

Add to cart


Product Introduction

The Allen Bradley 22F-A011N113 belongs to the PowerFlex 4M AC Drive family, developed for compact variable-speed motor control applications. It provides a practical drive solution for machinery that requires adjustable motor operation without the complexity of a larger drive installation.

In an industrial control system, selecting the correct drive involves more than matching motor power. Engineers should also consider supply voltage, motor current, load characteristics, acceleration requirements, control signals, and installation conditions.

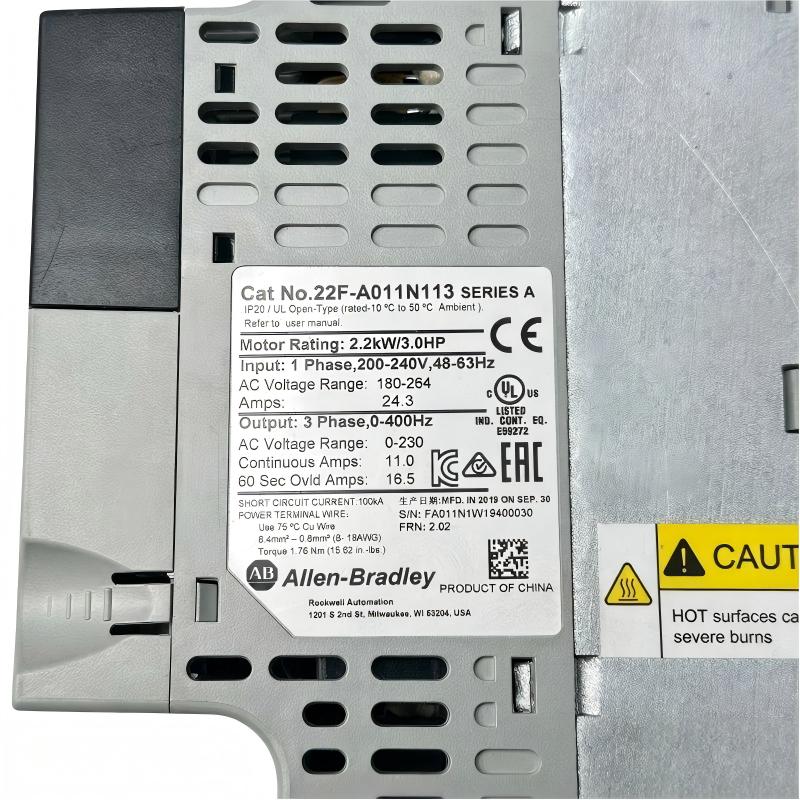

The 22F-A011N113 is identified by its complete catalog number, which should be retained when checking replacement suitability, sourcing spare parts, or comparing drive configurations. Before installation or replacement, confirm the product nameplate and technical documentation to ensure that the unit matches the intended electrical and application requirements.

Technical Specifications

Parameter

Specification

Brand

Allen Bradley

Model

22F-A011N113

Product Type

PowerFlex 4M AC Drive

Product Series

PowerFlex 4M

Drive Category

AC Variable-Frequency Drive

Dimensions

174 × 100 × 136 mm

Weight

2.1 kg / 4.63 lb

Application

Industrial AC motor speed control

Electrical ratings, input voltage, output current, and control options should be verified against the unit's nameplate and the documentation for the exact catalog number.

Recommended Related Models

The following Allen Bradley drive families may be worth considering when evaluating alternative motor-control solutions. They are not confirmed direct replacements for the 22F-A011N113.

Model

Product Description

22A Series

PowerFlex 4 AC Drive

22B Series

PowerFlex 40 AC Drive

22F Series

PowerFlex 4M AC Drive

22C Series

PowerFlex 400 AC Drive

Popular Related Models

For spare-parts planning and product comparison, other PowerFlex drive families commonly considered in industrial motor-control applications include:

  • Allen Bradley PowerFlex 4M AC Drives

  • Allen Bradley PowerFlex 4 AC Drives

  • Allen Bradley PowerFlex 40 AC Drives

  • Allen Bradley PowerFlex 400 AC Drives

  • Allen Bradley PowerFlex 40P AC Drives

Always compare the complete catalog number, electrical ratings, enclosure requirements, and control configuration before selecting an alternative.


Applications

The Allen Bradley 22F-A011N113 PowerFlex 4M AC Drive is designed for variable-speed control of AC motors in compact industrial equipment and machinery. It can be considered for applications where adjustable motor speed, controlled acceleration, and straightforward drive integration are required.

Typical application areas include:

  • Conveyor systems and material handling equipment

  • Small pumps and water circulation systems

  • Industrial fans and ventilation units

  • Packaging and labeling machinery

  • Light-duty processing equipment

  • Compact machine tools and auxiliary motor systems

The drive's suitability should be evaluated against the motor nameplate data, load characteristics, and the electrical requirements of the installation.


Key Advantages and Operational Value

Compact Installation Footprint

With a compact housing, the 22F-A011N113 can be considered for control panels and machinery where available mounting space is limited.

Adjustable Motor Speed

Variable-frequency operation allows motor speed to be adjusted according to process requirements, helping equipment operate at the desired production rate.

Flexible Machine Integration

The PowerFlex 4M family is intended for general-purpose motor control, making it relevant to a range of compact industrial applications.

Controlled Motor Starting and Stopping

Appropriate drive configuration can provide controlled acceleration and deceleration, reducing abrupt mechanical transitions during normal operation.

Practical Maintenance Considerations

Drive status, parameter settings, wiring conditions, and fault indications can be reviewed during routine troubleshooting and maintenance.


Technical FAQs

Q1: What is the primary function of the 22F-A011N113?

It is an AC variable-frequency drive designed to regulate motor speed by controlling the frequency and voltage supplied to an AC motor.

Q2: Which motor information should be checked before installation?

Verify the motor's rated voltage, current, frequency, power, and speed. The drive must be suitable for the motor's electrical ratings and operating conditions.

Q3: Can the drive operate a motor at different speeds?

Yes. Speed can be adjusted through the drive's configured frequency reference, provided the selected operating range is suitable for the motor and driven equipment.

Q4: What should be checked if the motor does not start?

Inspect the incoming power supply, control wiring, start command, parameter configuration, and active fault indications. Also verify that no external interlock is preventing operation.

Q5: Why might the motor run at an unexpected speed?

Possible causes include an incorrect frequency reference, unsuitable minimum or maximum frequency settings, control-source configuration, or an external reference signal problem.

Q6: What can cause an overcurrent fault?

Potential causes include excessive mechanical load, motor or cable faults, incorrect motor data, rapid acceleration settings, or unsuitable application conditions.

Q7: Does the drive require parameter configuration before operation?

Yes. Motor-related parameters and command-source settings should be checked and configured according to the application before commissioning.

Q8: What should be inspected if communication or remote control is unavailable?

Check the selected control method, terminal connections, control wiring, and any applicable communication configuration. Confirm that the selected command source matches the system design.

Q9: Can the drive be used with different types of industrial loads?

It may be suitable for various general-purpose applications, but load type, starting torque, duty cycle, and required speed range must be evaluated before selection.

Q10: What maintenance checks help maintain reliable operation?

Inspect electrical connections, ventilation paths, signs of overheating, accumulated dust, and fault history. Always isolate power and follow the applicable discharge and electrical safety procedures before servicing.
