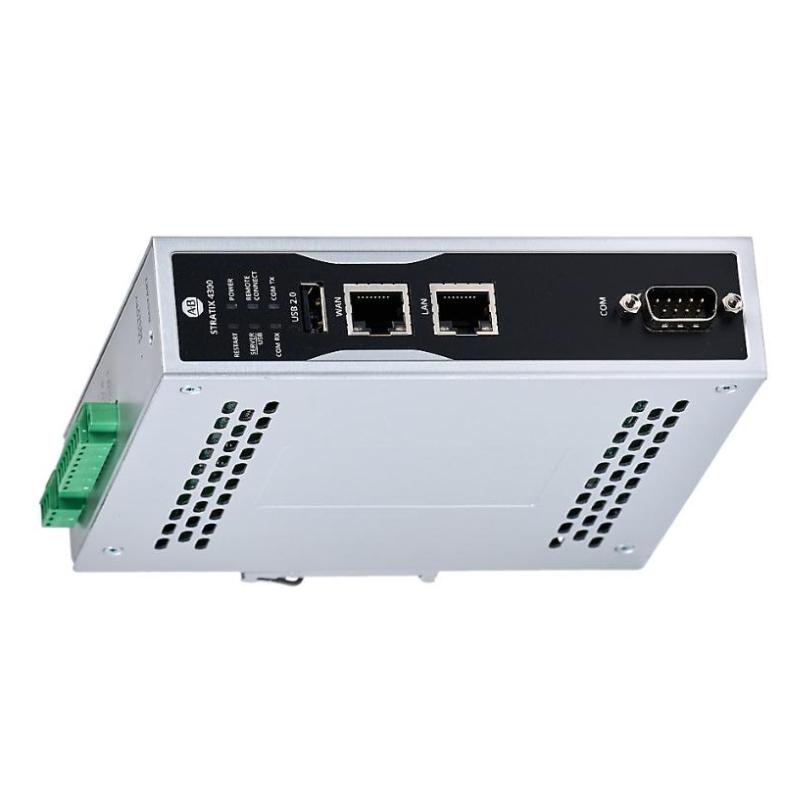

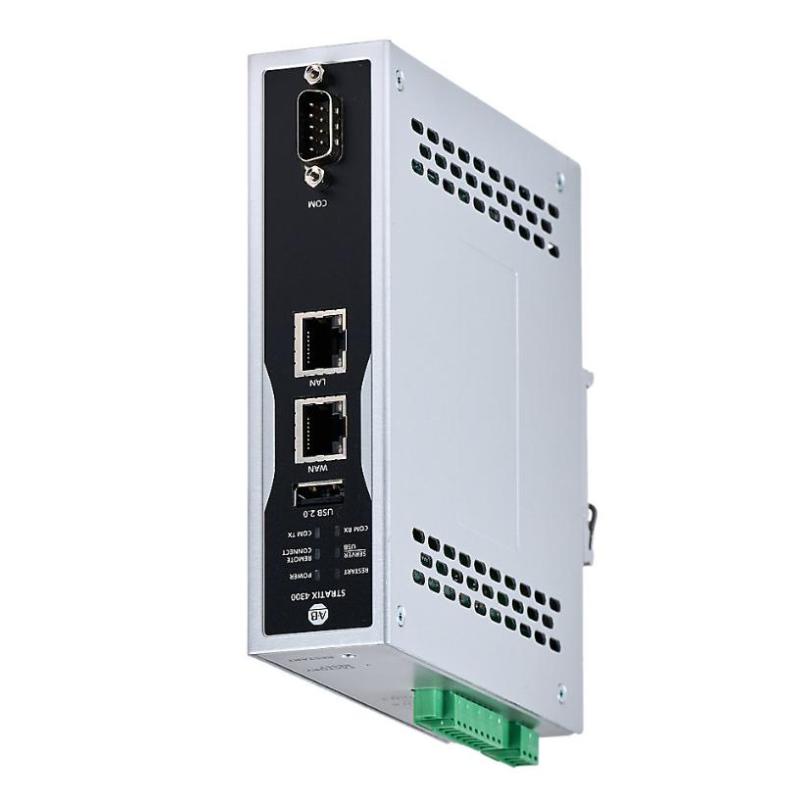

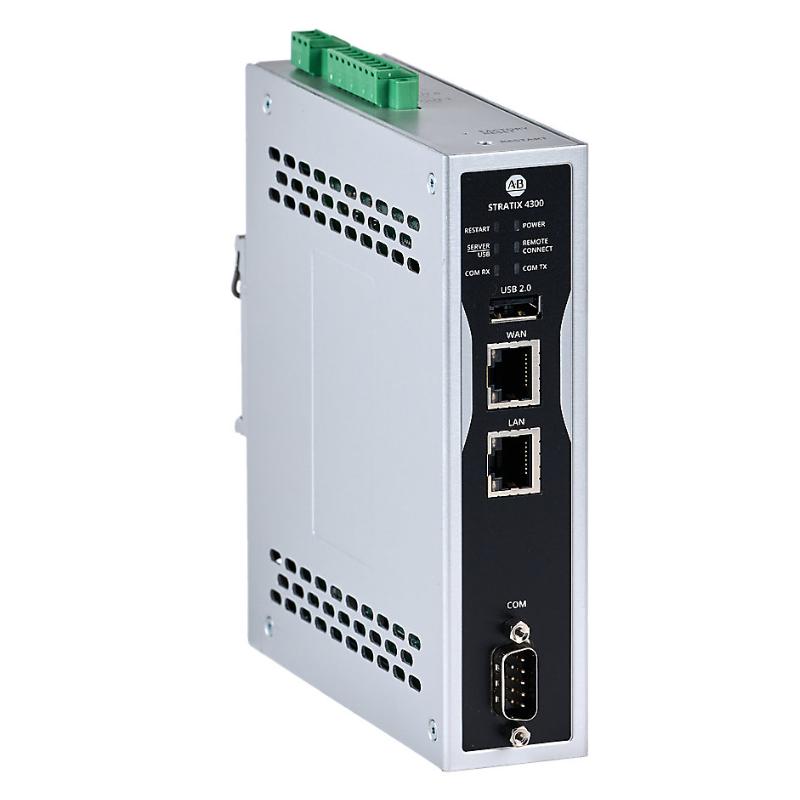

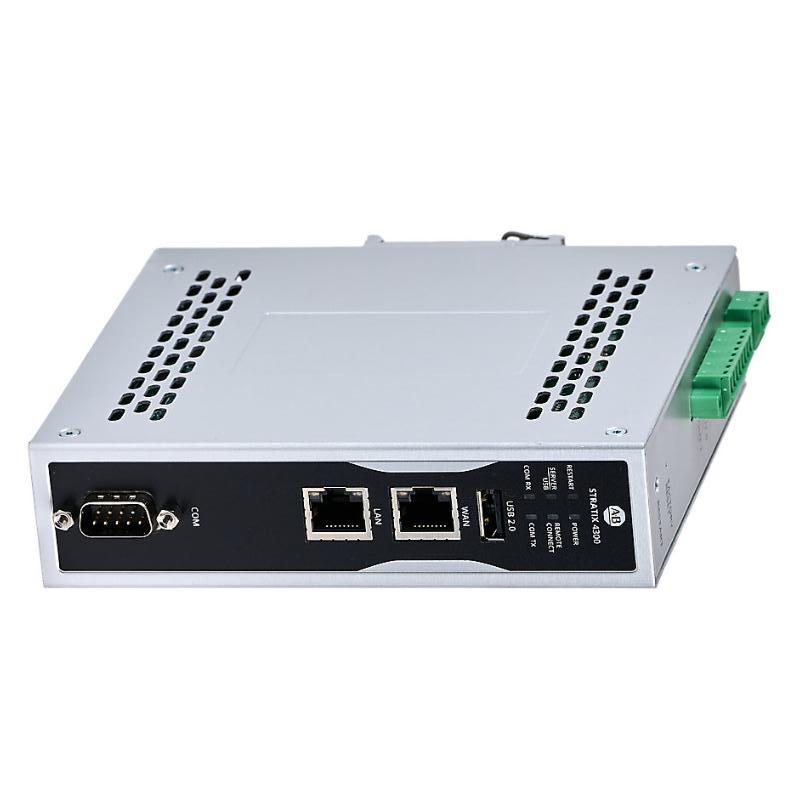

Allen Bradley 1783-RA2TGB Stratix 4300 Remote Access Router
Allen Bradley 1783-RA2TGB Stratix 4300 Remote Access Router
0.0
Points
Brand:Allen Bradley PLC Item No.:1783-RA2TGB Product Origin:USA Product Dimensions:146 x 36.4 x 129 mm Product Weight:0.415 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1783-RA2TGB Stratix 4300 Remote Access Router provides a practical networking solution for industrial automation systems that require remote connectivity. As manufacturing equipment becomes more distributed, remote service and diagnostics have become increasingly valuable for both plant operators and machine builders.
Instead of relying exclusively on on-site service, an appropriately designed remote-access architecture can give authorized engineering personnel a way to investigate equipment status, communication problems, and selected configuration issues from a remote location.
The 1783-RA2TGB can therefore be used in machine automation, production facilities, OEM equipment, and distributed industrial systems where remote technical support is an important part of the maintenance strategy.
Its compact design also makes it convenient for integration into automation cabinets and industrial networking panels. When replacing an existing unit or expanding an automation network, engineers should evaluate the complete network topology and configuration requirements to ensure that the router works correctly with the surrounding infrastructure.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
1783-RA2TGB
Product Family
Stratix 4300
Product Type
Remote Access Router
Dimensions
146 × 36.4 × 129 mm
Weight
0.415 kg (0.91 lb)
The 146 × 36.4 × 129 mm dimensions provide a compact footprint for industrial control cabinets and networking panels. With a weight of 0.415 kg (0.91 lb), the router can also be handled conveniently during installation, replacement, and maintenance operations.
Recommended Related Models
Model
Product Type
1783-MMX8E
Stratix 5800 Expansion Module
1783-MMX8EA
Stratix 5800 Expansion Module
1783-MMX8S
Stratix 5800 Expansion Module
1783-MMX8SA
Stratix 5800 Expansion Module
1783-MMX8TA
Stratix 5800 Expansion Module
1783-MX04E
Stratix 8000 Expansion Module
1783-MX04S
Stratix 8000 Expansion Module
1783-MX08S
Stratix 8000 Managed Ethernet Switch
Popular Related Models
Model
Product Type
1783-BMS10CL
Stratix Managed Ethernet Switch
1783-BMS10CGN
Stratix Managed Ethernet Switch
1783-BMS20CL
Stratix Managed Ethernet Switch
1783-BMS20CGN
Stratix Managed Ethernet Switch
1783-MX08S
Stratix 8000 Managed Ethernet Switch
1783-MMX8S
Stratix 5800 Expansion Module
1783-MMX8E
Stratix 5800 Expansion Module
Applications
The Allen Bradley 1783-RA2TGB Stratix 4300 Remote Access Router is designed for industrial Ethernet environments where reliable and controlled remote connectivity is required. It can be integrated into automation networks to provide authorized engineers and maintenance personnel with remote access to connected industrial equipment.
Typical applications include:
PLC and controller remote access
Industrial machine maintenance
Remote equipment diagnostics
OEM machine support
Factory automation networks
Distributed control systems
Production line troubleshooting
Remote commissioning
Engineering workstation connectivity
Industrial Ethernet infrastructure
The 1783-RA2TGB is particularly useful for machines and automation systems installed at remote facilities or locations where frequent on-site service is inconvenient. With an appropriate network architecture, maintenance personnel can remotely investigate equipment conditions and communication problems while reducing unnecessary service visits.
Advantages
Designed for industrial networking
The 1783-RA2TGB is built for remote-access applications within industrial automation environments, making it suitable for control systems that require structured external connectivity.
Improves maintenance efficiency
Remote connectivity allows authorized engineers to investigate selected automation equipment without always requiring immediate physical access to the installation.
Supports remote troubleshooting
The router can be incorporated into service architectures that provide remote access to PLCs, HMIs, industrial computers, drives, and other Ethernet-connected devices.
Compact installation design
Its compact construction makes the unit suitable for control cabinets and automation panels where available space is limited.
Useful for OEM equipment
Machine builders can incorporate remote access into equipment designs to support commissioning, diagnostics, software maintenance, and technical service after installation.
Integrates into Stratix networking environments
For facilities already using Allen Bradley networking products, the 1783-RA2TGB can be incorporated into a broader industrial Ethernet architecture.
Technical FAQs
1. What is the primary function of the 1783-RA2TGB?
The 1783-RA2TGB is a Stratix 4300 Remote Access Router designed to provide controlled remote connectivity to industrial automation networks.
2. Can the 1783-RA2TGB be used with Allen Bradley PLCs?
Yes. It can be integrated into Ethernet-based Allen Bradley automation systems where remote access to PLCs and other connected devices is required.
3. What types of automation equipment can be accessed through the router?
Depending on the network configuration, authorized users may access Ethernet-connected PLCs, HMIs, industrial PCs, drives, and other compatible automation equipment.
4. Is the 1783-RA2TGB suitable for OEM machines?
Yes. OEMs can use remote-access networking to support machine commissioning, diagnostics, troubleshooting, and after-sales technical service.
5. Is the 1783-RA2TGB an Ethernet switch?
No. It is a remote access router. A router provides communication between different network segments, while an Ethernet switch is primarily used to connect devices within an Ethernet network.
6. Can the router be used for remote PLC troubleshooting?
Yes. When correctly configured, it can provide authorized remote access that helps engineers investigate PLC communication and connected automation equipment.
7. What should be configured before enabling remote access?
Network addressing, routing, access permissions, network segmentation, authentication requirements, and the site's applicable security policies should be reviewed before commissioning.
8. Can the router support remote commissioning?
Yes. Remote connectivity can be useful during selected commissioning activities, particularly when engineers need to diagnose communication or configuration issues at an installed machine.
9. Why is network segmentation important for industrial remote access?
Network segmentation helps separate control equipment from other network environments and allows access to be managed according to the requirements of the automation system.
10. What should be checked when remote communication is unavailable?
Check the router's power and Ethernet connections first, followed by network addressing, routing, access permissions, and communication with the target automation devices. Configuration and security policies should also be reviewed.
