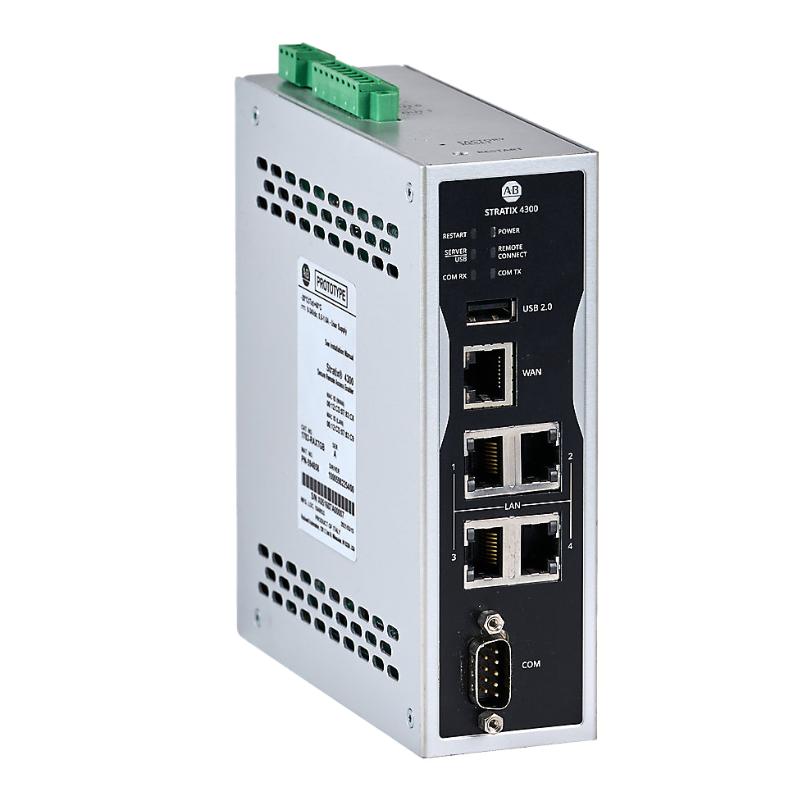

Allen Bradley 1783-RA5TGB Stratix 4300 Remote Access Router
Allen Bradley 1783-RA5TGB Stratix 4300 Remote Access Router
0.0
Points
Brand:Allen Bradley PLC Item No.:1783-RA5TGB Product Origin:USA Product Dimensions:146 x 46.4 x 129 mm Product Weight:0.53 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1783-RA5TGB Stratix 4300 Remote Access Router is intended for industrial networking applications where automation equipment needs to be reached from a remote engineering or service location. It addresses a practical requirement found in modern factories and OEM installations: maintaining access to distributed equipment without depending entirely on physical service visits.
Remote connectivity can be particularly valuable when production machinery is installed at geographically separated locations. Engineers can use an appropriately configured remote-access infrastructure to investigate communication problems, support commissioning activities, and assist maintenance teams with equipment diagnostics.
The 1783-RA5TGB can form part of an industrial Ethernet architecture containing Allen Bradley controllers, HMIs, industrial computers, drives, and networking equipment. Its compact construction also allows it to be incorporated into control cabinets where available panel space needs to be managed carefully.
For system replacement or expansion, the router should be evaluated together with the existing network topology, addressing scheme, access requirements, and industrial communication architecture.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
1783-RA5TGB
Product Family
Stratix 4300
Product Type
Remote Access Router
Dimensions
146 × 46.4 × 129 mm
Weight
0.53 kg (1.17 lb)
The 146 × 46.4 × 129 mm form factor provides a practical footprint for industrial control cabinets and network panels. With a weight of 0.53 kg (1.17 lb), the 1783-RA5TGB can be conveniently handled during panel installation, replacement, and service operations.
Recommended Related Models
Model
Product Type
1783-RA2TGB
Stratix 4300 Remote Access Router
1783-MMX8E
Stratix 5800 Expansion Module
1783-MMX8EA
Stratix 5800 Expansion Module
1783-MMX8S
Stratix 5800 Expansion Module
1783-MMX8SA
Stratix 5800 Expansion Module
1783-MMX8TA
Stratix 5800 Expansion Module
1783-MX04E
Stratix 8000 Expansion Module
1783-MX04S
Stratix 8000 Expansion Module
Popular Related Models
Model
Product Type
1783-MX08S
Stratix 8000 Managed Ethernet Switch
1783-BMS10CL
Stratix Managed Ethernet Switch
1783-BMS10CGN
Stratix Managed Ethernet Switch
1783-BMS20CL
Stratix Managed Ethernet Switch
1783-BMS20CGN
Stratix Managed Ethernet Switch
1783-MMX8E
Stratix 5800 Expansion Module
1783-MMX8S
Stratix 5800 Expansion Module
Applications
The Allen Bradley 1783-RA5TGB Stratix 4300 Remote Access Router is designed for industrial automation networks that require dependable remote connectivity between engineering personnel and field equipment. It can be integrated into machine networks, plant Ethernet infrastructures, and distributed automation systems where remote service and diagnostics are part of the maintenance strategy.
Typical applications include:
Remote PLC and controller access
Industrial machine maintenance
Remote diagnostics and troubleshooting
OEM equipment support
Factory automation networks
Distributed production systems
Remote commissioning
Engineering access to automation equipment
Industrial Ethernet architectures
Technical support for installed machinery
The router is especially useful for equipment deployed across multiple production areas or remote customer facilities. When properly configured, it can help maintenance teams investigate network and automation issues without requiring every service task to begin with an on-site visit.
Advantages
Purpose-built for remote industrial connectivity
The 1783-RA5TGB provides a dedicated platform for remote access within industrial automation environments, supporting a more organized approach to remote engineering and maintenance.
Facilitates faster technical support
Remote connectivity can help engineers access authorized automation equipment for diagnostics, configuration checks, and troubleshooting, potentially reducing service response time.
Suitable for machine builders and OEMs
OEMs can incorporate the router into machine networking architectures to provide remote support after equipment has been installed at the customer's facility.
Compact cabinet integration
Its compact form factor makes it suitable for industrial control cabinets and network panels where space efficiency is an important consideration.
Supports distributed automation environments
The router can be incorporated into systems containing PLCs, HMIs, industrial computers, drives, and other Ethernet-based automation equipment.
Fits Allen Bradley networking architectures
For automation facilities already using Allen Bradley control and Stratix networking products, the 1783-RA5TGB can be integrated into an established industrial Ethernet infrastructure.
Technical FAQs
1. What is the Allen Bradley 1783-RA5TGB used for?
The 1783-RA5TGB is a Stratix 4300 Remote Access Router designed to provide controlled remote connectivity to industrial automation networks.
2. Can the 1783-RA5TGB communicate with Allen Bradley PLCs?
Yes. It can be incorporated into Ethernet-based Allen Bradley control architectures to provide authorized remote connectivity to PLCs and other networked automation devices.
3. What equipment can be accessed through the router?
Depending on the network design and access configuration, remote users may access PLCs, HMIs, industrial PCs, drives, and other Ethernet-enabled industrial equipment.
4. Can the 1783-RA5TGB be installed in an OEM machine?
Yes. Its remote-access functionality makes it suitable for OEM machinery where remote commissioning, diagnostics, and technical support are required.
5. Does the router replace an industrial Ethernet switch?
No. The router and switch perform different networking functions. A switch primarily connects devices within an Ethernet network, while the router provides connectivity between separate network segments.
6. Can it be used for remote PLC diagnostics?
Yes. When the network is properly configured, authorized engineers can use remote connectivity to investigate PLC communication and other connected automation devices.
7. What network configuration is required for remote access?
The installation may require appropriate network addressing, routing, access permissions, segmentation, authentication, and other settings defined by the site's network architecture.
8. Is network segmentation important when using this router?
Yes. Separating control equipment from external or general-purpose networks can help establish a more structured industrial communication architecture and control access to automation assets.
9. Can the 1783-RA5TGB support remote machine maintenance?
Yes. Remote access can be used as part of a maintenance strategy for diagnostics, communication checks, configuration review, and other authorized engineering activities.
10. What should be checked if connected equipment cannot be reached remotely?
Verify power and Ethernet connections, IP addressing, routing, access permissions, network configuration, and the communication path between the router and target device. Any applicable network security controls should also be checked.
