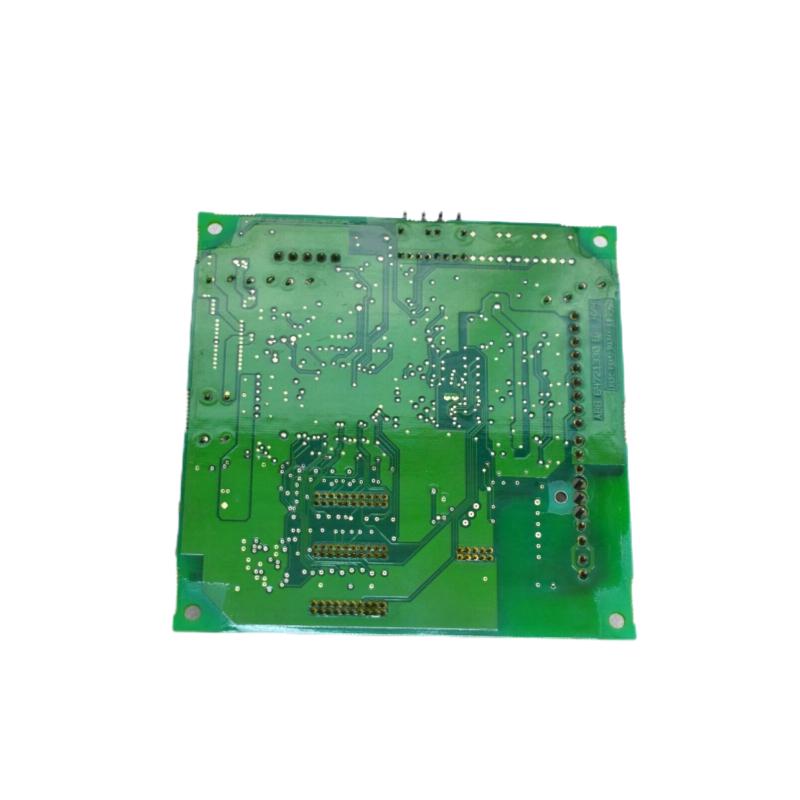

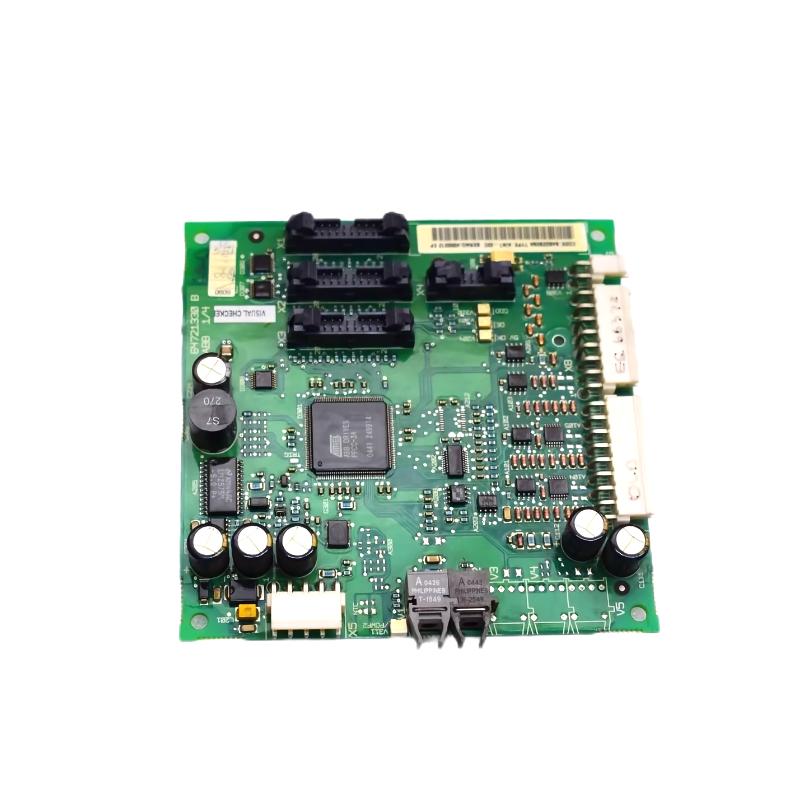

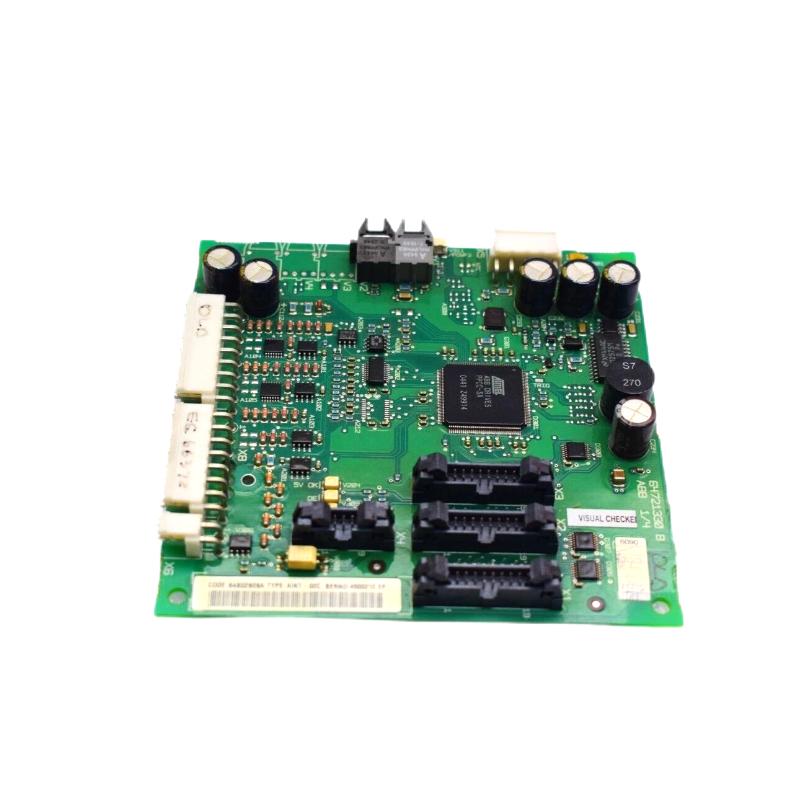

AINT-02C 64721330B-2 AINT-02C 64721330B-4 AINT-02C 64721330B-3 AINT-02C 64721330B-1

The ABB AINT-02C Analog Input and Temperature Module is a versatile and high-performance solution designed for industrial automation systems. As part of the AC 800M platform, this module provides the capability to monitor both analog inputs and temperature signals with exceptional accuracy and reliability. Featuring support for various analog input types, along with precise temperature measurement, the AINT-02C is ideal for applications in power generation, chemical processing, water treatment, and other industries where continuous monitoring of both process variables and environmental conditions is essential.

This module integrates seamlessly into the AC 800M control system, providing real-time, accurate data acquisition that is critical for maintaining operational efficiency and safety in complex industrial environments. With its robust design, the AINT-02C excels in demanding applications where high precision and quick response times are required.

Technical Specifications

Feature	Specification
Module Type	Analog Input and Temperature Module (AINT-02C)
Input Channels	8 Analog Inputs, 2 Temperature Inputs
Input Types	Voltage (0-10V), Current (4-20mA), RTD (Resistance Temperature Detector)
Resolution	16-bit
Temperature Range	-200°C to 850°C (for RTD inputs)
Power Supply	24 VDC
Input Impedance	> 1 MΩ
Mounting	DIN Rail Mount
Operating Temperature	-25°C to 70°C
Weight	0.45 kg
Dimensions	140 mm (W) x 120 mm (H) x 75 mm (D)
Accuracy	±0.1% Full Scale (for analog inputs)
Response Time	< 1 ms

Recommended Related Models

ABB AI840A – A higher-channel analog input module for large-scale applications that require high precision.
ABB AO810 – Analog output module for controlling field devices such as actuators and valves.
ABB DI810 – Digital input module designed for precise monitoring of discrete signals.

Popular ABB Models

ABB AC 800M Controller – The core control unit in ABB’s automation systems, compatible with all ABB I/O modules, including AINT-02C.
ABB AI830A – A reliable 16-channel analog input module ideal for a wide variety of industrial applications.
ABB DO820 – Digital output module for controlling actuators and devices based on system signals.
ABB AO830 – Analog output module used to control external equipment, offering precise voltage or current outputs.

Applications

The ABB AINT-02C Analog Input and Temperature Module is used in industries where precise monitoring of temperature and other process variables is crucial. Some of the key applications include:

Power Generation – Measure temperatures and other critical process variables such as pressure and flow in turbines, boilers, and other systems.
Chemical Processing – Accurately measure the temperature and concentration of chemicals in reactors and other industrial processes.
Water Treatment – Monitor water quality parameters including pH, turbidity, and temperature to maintain optimal water treatment processes.
Manufacturing – Monitor temperature in furnaces, kilns, and other heat-intensive manufacturing processes to ensure consistent quality and safety.

Advantages

High Accuracy: With 16-bit resolution and ±0.1% full-scale accuracy for analog inputs, the AINT-02C delivers precise measurements critical for maintaining control in industrial applications.
Dual Input Capability: Supports both analog and temperature inputs, making it a versatile choice for systems that require both types of data for effective control and monitoring.
Temperature Range for RTD Inputs: Can measure temperatures from -200°C to 850°C, making it suitable for a wide range of industrial temperature sensing applications.
Compact Design: The module’s compact form factor is ideal for installations where space is limited, such as control panels and cabinets.
Wide Temperature Tolerance: The AINT-02C operates in extreme environmental conditions, with a temperature range from -25°C to 70°C, allowing it to perform in harsh industrial environments.
Fast Response: The module features a fast response time of less than 1 ms, ensuring quick data processing for real-time applications.

Technical FAQs

What types of signals can the AINT-02C module handle?
- The AINT-02C handles both voltage (0-10V), current (4-20mA), and temperature signals (RTD inputs for temperature measurement).
What is the resolution of the AINT-02C module?
- The AINT-02C offers a 16-bit resolution for high-precision analog signal processing.
How many input channels does the AINT-02C have?
- The module features 8 analog input channels and 2 temperature input channels for versatile data acquisition.
What is the operating temperature range for the AINT-02C module?
- The module operates efficiently in a temperature range from -25°C to 70°C, making it suitable for harsh industrial environments.
What is the accuracy of the AINT-02C module?
- The AINT-02C offers an accuracy of ±0.1% of full scale for analog inputs, ensuring reliable and precise measurements.
What is the temperature range for RTD inputs?
- The AINT-02C supports RTD inputs with a temperature range from -200°C to 850°C, providing flexibility for various industrial temperature monitoring applications.
How is the AINT-02C mounted?
- The module is designed for DIN rail mounting, making it easy to install and save space in industrial control panels.
Can the AINT-02C module be used in hazardous environments?
- The module is designed for use in non-hazardous environments. For hazardous locations, you will need to explore ABB’s hazardous area-certified modules.
What is the response time of the AINT-02C?
- The AINT-02C features a fast response time of less than 1 ms, ensuring real-time monitoring and control of critical processes.
What type of power supply is required for the AINT-02C?
- The AINT-02C operates with a 24 VDC power supply.
