Product Overview and Engineering Description

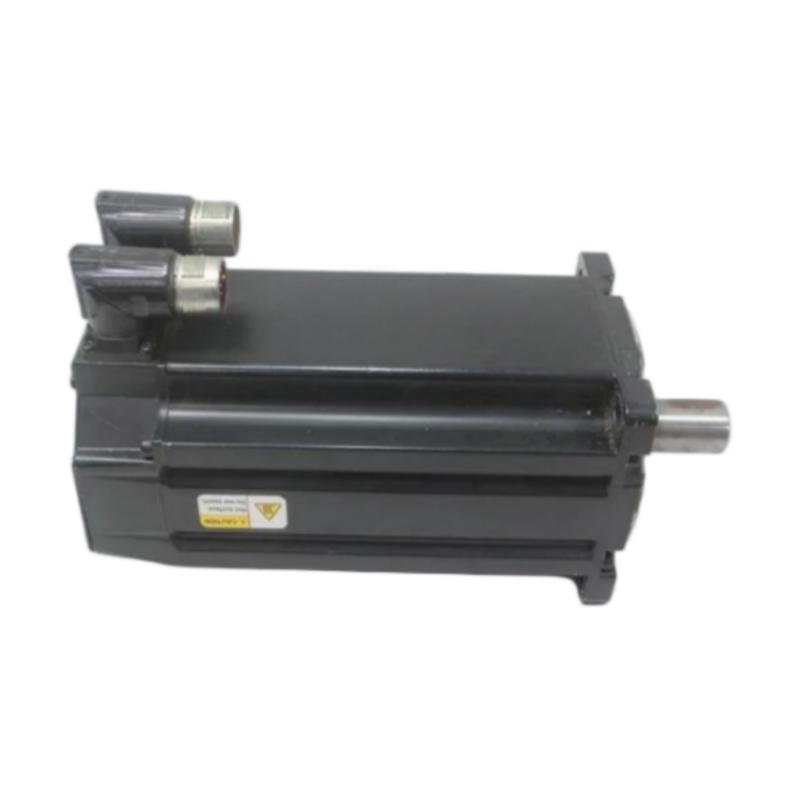

The Allen Bradley MPL-B4530K-SK74AA combines the responsiveness expected from an industrial servo motor with the integration advantages of the MP-Series platform. It is designed for machinery where precise motion and repeatable operation directly influence productivity and product quality.

For machine builders, the motor can be particularly valuable in applications involving repeated positioning cycles, synchronized axes, or frequent changes in operating speed. Its low-inertia characteristics support responsive motion, while integration with an appropriate Allen-Bradley control architecture allows engineers to build coordinated and programmable motion systems.

For replacement and maintenance applications, correct model identification is especially important. The full catalog number should be checked against the existing motor, servo drive, feedback arrangement, and machine requirements before installation.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Model	MPL-B4530K-SK74AA
Product Type	Servo Motor
Series	MP-Series
Frame Size	130 mm
Motor Design	Low-Inertia Servo Motor
Application	Industrial Motion Control
Typical System	Servo Drive and Motion Controller
Dimensions	Frame size: 130 mm
Weight	7.30 kg (16.09 lb)
Mounting	Industrial machine mounting
Application Focus	Precision positioning, coordinated motion, automated machinery

The 7.30 kg (16.09 lb) motor weight should be considered when designing mounting structures, handling procedures, and mechanical support arrangements.

Recommended Related Models

The following Allen-Bradley MP-Series servo motor models are relevant for engineers comparing motor frame sizes, winding configurations, and application requirements:

Model	Product Type	Typical Relevance
MPL-B4530K-SJ74AA	MP-Series Servo Motor	Same general motor family and frame class
MPL-B4530K-SK72AA	MP-Series Servo Motor	Related 130 mm frame servo motor
MPL-B4530K-SK74AA	MP-Series Servo Motor	Target model
MPL-B4530K	MP-Series Servo Motor	Related MPL-B4530K motor family

Popular Related Models

Model	Product Type
MPL-A4530K-SJ72AA	MP-Series Servo Motor
MPL-A4530K-SJ74AA	MP-Series Servo Motor
MPL-B4530K-SJ74AA	MP-Series Servo Motor
MPL-B4530K-SK72AA	MP-Series Servo Motor
MPL-B4530K-SK74AA	MP-Series Servo Motor

The MPL-B4530K-SK74AA is a practical option for machine builders and maintenance teams seeking an industrial servo motor for precise, repeatable motion. Correct drive matching, feedback configuration, mechanical installation, and commissioning remain essential to achieving reliable performance in the finished automation system.

Applications & Motion Control Integration

The MPL-B4530K-SK74AA can be used in industrial automation systems where controlled acceleration, repeatable positioning, and synchronized machine movement are important. Its servo architecture makes it suitable for applications that demand more than conventional motor speed control.

Typical applications include:

Packaging and filling machinery
Material handling equipment
Automated assembly systems
Printing and converting machinery
Machine tools
Robotics and positioning systems
Pick-and-place equipment
Electronic manufacturing equipment
Automated inspection machinery
High-speed indexing applications

In multi-axis installations, the motor can support coordinated motion profiles when paired with an appropriate Allen-Bradley servo drive and controller. This makes it a practical choice for machine builders looking to maintain repeatable motion across demanding production cycles.

Key Performance Advantages

Low-Inertia Motion Response
The motor is designed for responsive acceleration and deceleration, making it appropriate for applications with frequent starts, stops, and position changes.

Precise Positioning Capability
Servo-based operation provides the control foundation needed for accurate positioning and repeatable machine movement.

Suitable for Dynamic Machinery
The MP-Series design is particularly useful in machinery where rapid motion changes and controlled mechanical response are important.

Allen-Bradley System Compatibility
When correctly matched with the applicable Allen-Bradley servo drive, feedback configuration, and motion controller, the motor can be incorporated into an integrated motion-control architecture.

Efficient Machine Integration
Its compact 130 mm frame size allows machine designers to incorporate servo motion into equipment where installation space and mechanical arrangement need careful consideration.

Reliable Industrial Operation
The motor is intended for industrial automation environments and can provide consistent performance when correctly installed, configured, and maintained.

Technical FAQs for Engineers

1. What type of applications is the MPL-B4530K-SK74AA designed for?
It is intended for servo motion applications requiring controlled speed, acceleration, deceleration, and positioning. Typical uses include packaging, material handling, automated assembly, indexing, and other precision machinery.

2. Can this servo motor operate as a standalone motor?
A servo motor requires an appropriate servo drive and control system to provide regulated power, feedback processing, and motion control. It should therefore be selected as part of a complete servo system rather than treated as a conventional standalone motor.

3. What should be considered when selecting a servo drive for this motor?
The drive should be matched to the motor's electrical characteristics, feedback arrangement, rated operating requirements, and intended motion profile. The complete combination should also be compatible with the selected Allen-Bradley controller and motion architecture.

4. Why is motor inertia important in a servo application?
Motor inertia affects acceleration response and the ability of the servo system to control rapid changes in motion. Proper inertia matching between the motor and driven load helps improve tuning stability and dynamic performance.

5. How does the feedback system affect servo performance?
Feedback provides the control system with information about motor position and movement. The servo drive uses this information to regulate operation and maintain the commanded motion profile.

6. What is important when commissioning the MPL-B4530K-SK74AA?
The motor should be mechanically installed correctly, electrically connected according to the applicable system design, and configured with the correct motor and feedback parameters in the servo system. Initial commissioning should also include direction, limit, acceleration, deceleration, and fault checks.

7. Can the motor be used in a multi-axis motion system?
Yes. Servo motors of this type are commonly incorporated into coordinated multi-axis systems. Proper drive, controller, feedback, and mechanical load matching are essential for synchronized operation.

8. What can cause unstable servo operation after installation?
Potential causes include incorrect motor parameters, inappropriate servo tuning, mechanical backlash, excessive load inertia, improper feedback configuration, wiring problems, or unsuitable acceleration and deceleration settings. Troubleshooting should begin with drive diagnostics and system configuration.

9. How can servo motor performance be maintained over long-term operation?
Regular inspection of mechanical connections, motor cables, feedback connections, machine loading, and operating conditions can help maintain reliable performance. Abnormal noise, vibration, temperature, or repeated drive faults should be investigated before continued operation.

10. What should be checked before replacing an existing servo motor with this model?
Engineers should verify electrical compatibility, feedback configuration, mechanical mounting, shaft and coupling requirements, drive compatibility, controller configuration, and application load requirements. A replacement should be treated as a complete system compatibility check rather than a motor-only substitution.
