Product Overview & Engineering Characteristics

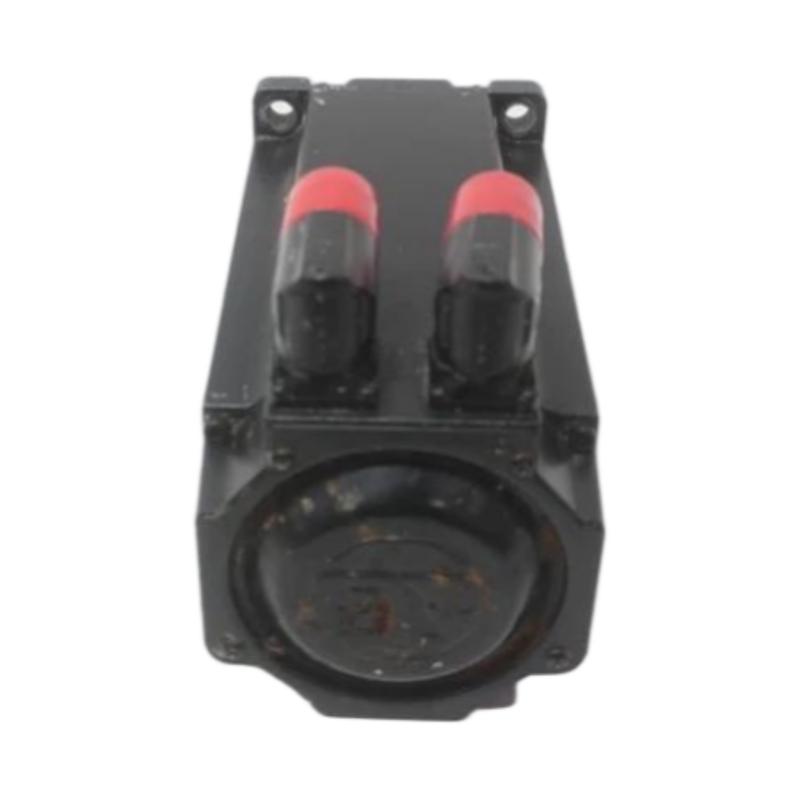

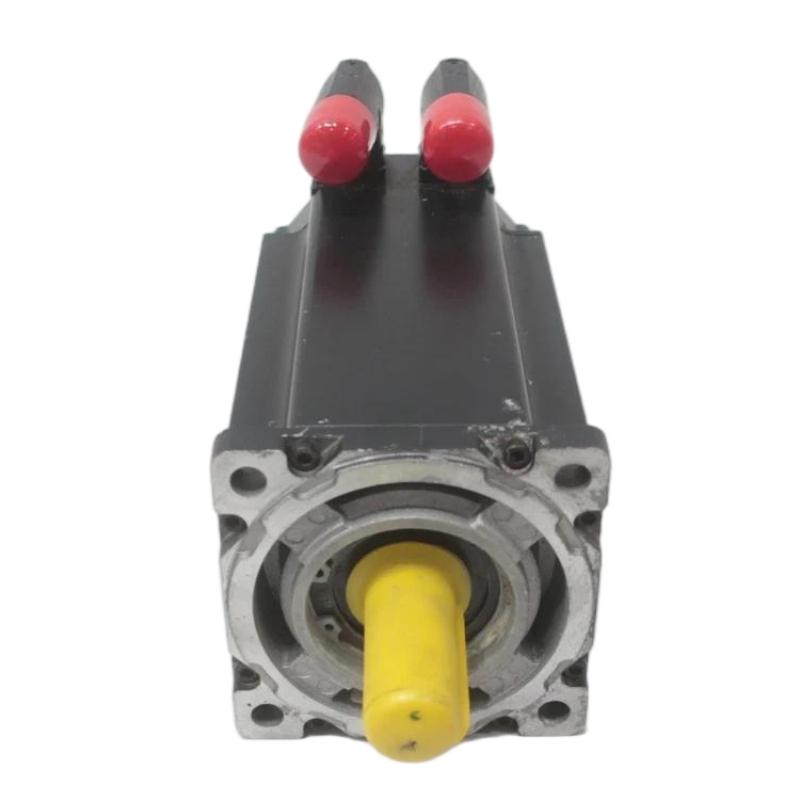

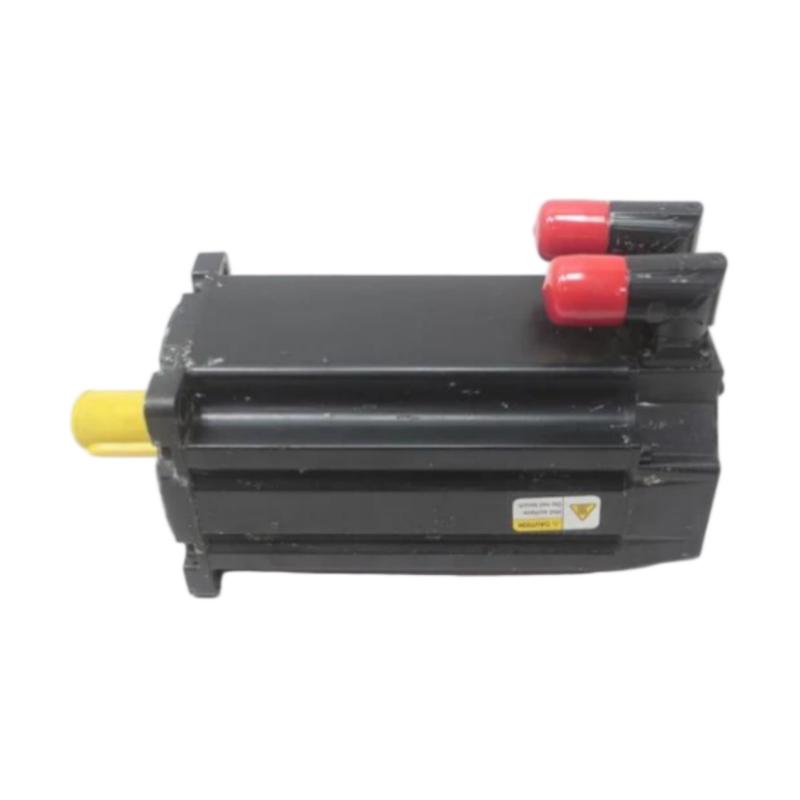

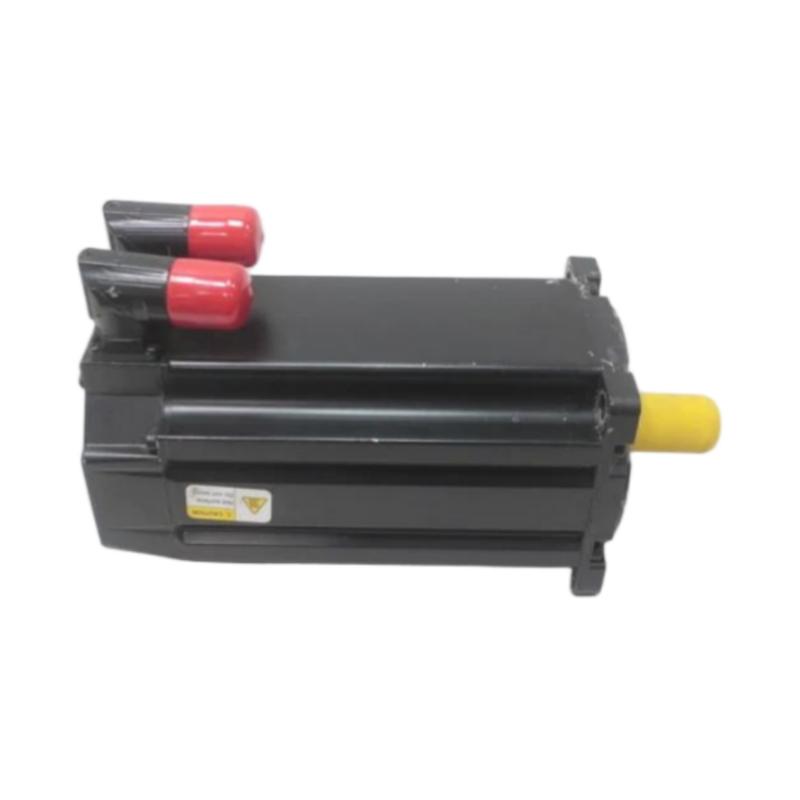

The Allen Bradley MPL-B4540F-HJ74AA is designed for industrial motion systems where controlled and repeatable motor movement is an important part of machine operation. Servo technology allows the motor to operate as part of a closed-loop motion system, giving the controller and drive the information required to manage the commanded movement.

For automated machinery, this type of motor can support production processes that depend on consistent positioning and predictable dynamic response. Packaging machines, assembly lines, indexing equipment, and material-handling systems are typical examples where servo-controlled movement can provide practical advantages over basic motor-control methods.

The motor should always be evaluated together with its drive, feedback configuration, mechanical load, and controller. Correct system matching is essential for achieving stable operation, minimizing commissioning issues, and maintaining consistent machine performance.

For replacement projects, engineers should also confirm the complete catalog number rather than relying only on the motor family designation. Model variations can have different system requirements and should be checked before installation.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Model	MPL-B4540F-HJ74AA
Product Type	Servo Motor
Series	MP-Series
Frame Size	130 mm
Motor Type	Industrial Servo Motor
Application	Motion Control and Industrial Automation
System Configuration	Servo Drive + Motion Controller
Typical Applications	Packaging, assembly, indexing, material handling, positioning
Dimensions	Frame size: 130 mm
Weight	8.60 kg (18.96 lb)

The 8.60 kg (18.96 lb) weight should be considered when planning mechanical support, motor handling, mounting procedures, and machine-side installation.

Recommended Related Models

Model	Product Type	Relationship
MPL-B4540F-HJ72AA	MP-Series Servo Motor	Closely related model in the same motor family
MPL-B4530K-SK74AA	MP-Series Servo Motor	Related 130 mm frame servo motor
MPL-B4530K-SJ74AA	MP-Series Servo Motor	Related MP-Series motor
MPL-B4540F	MP-Series Servo Motor	Same MPL-B4540F motor family

Popular Related Models

Model	Product Type
MPL-A4540C-SJ74AA	MP-Series Servo Motor
MPL-A4540C-SK72AA	MP-Series Servo Motor
MPL-B4530K-SJ74AA	MP-Series Servo Motor
MPL-B4530K-SK74AA	MP-Series Servo Motor
MPL-B4540F-HJ72AA	MP-Series Servo Motor
MPL-B4540F-HJ74AA	MP-Series Servo Motor

The Allen Bradley MPL-B4540F-HJ74AA is a suitable component for industrial motion architectures requiring controlled and repeatable servo movement. Its value is best realized when the motor, drive, feedback system, controller, and mechanical load are selected as a coordinated system, providing a solid foundation for dependable automated production.

Automation Applications & Motion Integration

The MPL-B4540F-HJ74AA is suitable for machinery where servo-controlled movement is an important part of the production process. Its application can extend across systems requiring repeatable positioning, coordinated movement, and controlled acceleration or deceleration.

Common application areas include:

Automated assembly equipment
Packaging and filling machines
Material handling systems
Pick-and-place machinery
Printing and converting equipment
Machine tools
Automated inspection systems
Indexing equipment
Electronics manufacturing machinery
Multi-axis motion platforms

When integrated with an appropriate Allen-Bradley servo drive and motion controller, the motor can support programmed motion profiles and coordinated machine-axis operation. This makes it useful for equipment where repeatability and dynamic response contribute directly to production efficiency.

Key Benefits for Industrial Motion

Responsive Dynamic Performance
The servo motor is designed for controlled motion applications involving repeated acceleration, deceleration, and changes in commanded speed.

Precision Motion Control
When combined with the correct drive and feedback configuration, the motor can support accurate positioning and repeatable machine movement.

MP-Series Platform Integration
The motor can be incorporated into compatible Allen-Bradley motion architectures, helping simplify integration for machines already designed around the MP-Series platform.

Suitable for Automated Production
Its servo-based design makes it appropriate for machinery where precise and programmable movement is more important than simple continuous rotation.

130 mm Frame Class
The 130 mm frame size provides a practical mechanical format for industrial equipment requiring a relatively substantial servo motor within a defined machine envelope.

Reliable System-Level Operation
With correct drive sizing, feedback configuration, mechanical installation, and commissioning, the motor can contribute to consistent operation across demanding production cycles.

Technical FAQs for Engineers

1. What is the MPL-B4540F-HJ74AA used for?
The MPL-B4540F-HJ74AA is an industrial servo motor intended for automated machinery requiring controlled speed, acceleration, deceleration, and positioning. It can be used in applications such as packaging, assembly, indexing, and material handling.

2. Can the motor be connected directly to an industrial power supply?
No. A servo motor requires a compatible servo drive to convert and regulate electrical power according to the motor and motion-control requirements. The drive also manages feedback and commanded motion.

3. How should the servo drive be selected for this motor?
The drive should be matched according to the motor's electrical characteristics, feedback requirements, operating conditions, continuous and peak load requirements, and the intended motion profile.

4. What role does feedback play in this servo system?
The feedback system supplies motor position and motion information to the drive. The drive uses this information to regulate the motor and maintain the desired relationship between commanded and actual movement.

5. Is this motor appropriate for synchronized multi-axis motion?
It can be used within a compatible multi-axis motion architecture. Successful synchronization depends on proper controller configuration, servo-drive compatibility, feedback performance, and correct mechanical coordination between axes.

6. What parameters should be verified during commissioning?
Motor identification, feedback configuration, drive parameters, rotation direction, acceleration, deceleration, velocity limits, current behavior, and fault monitoring should be checked before placing the machine into normal production.

7. What could cause poor positioning accuracy?
Potential causes include incorrect servo tuning, mechanical backlash, excessive load inertia, coupling problems, incorrect feedback configuration, unsuitable motion parameters, or mechanical vibration. Both the servo system and mechanical transmission should be evaluated.

8. How can repeated servo faults be diagnosed?
Start by recording the specific drive fault code and operating conditions when the fault occurs. Check motor and feedback wiring, load conditions, configured parameters, temperature, and mechanical resistance before making targeted adjustments.

9. What should be considered when using the motor in repetitive-cycle machinery?
The complete duty cycle should be evaluated, including acceleration, deceleration, operating speed, load inertia, cycle frequency, peak torque requirements, and thermal conditions. Motor and drive selection should account for the actual machine profile.

10. What should be verified before installing this motor as a replacement?
Verify the complete model number, servo-drive compatibility, feedback arrangement, electrical configuration, mounting requirements, coupling, shaft interface, controller settings, and load characteristics. The replacement should be validated against the complete motion system.
