Product Introduction & Engineering Overview

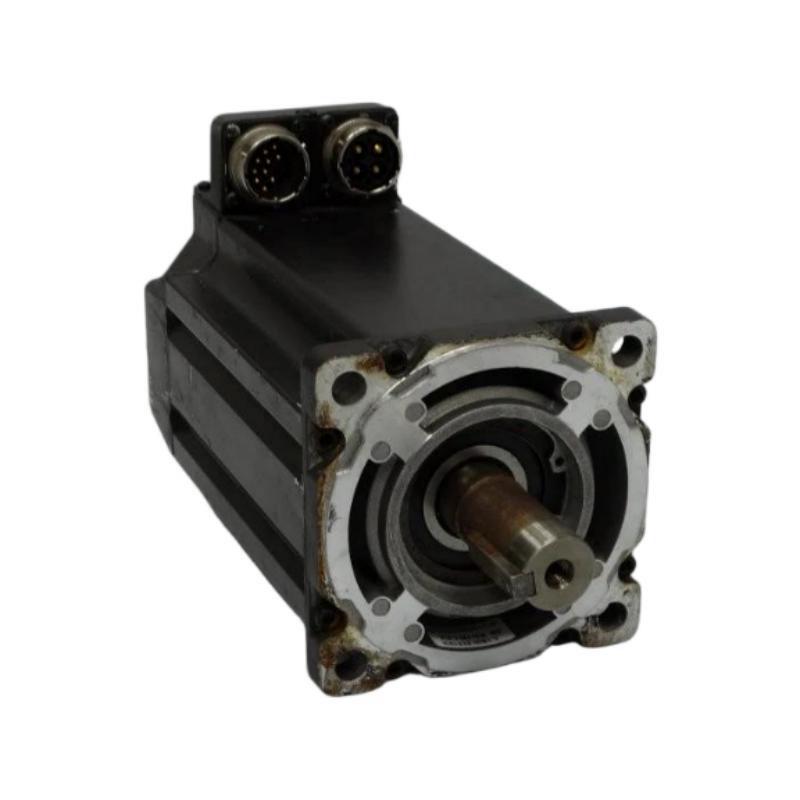

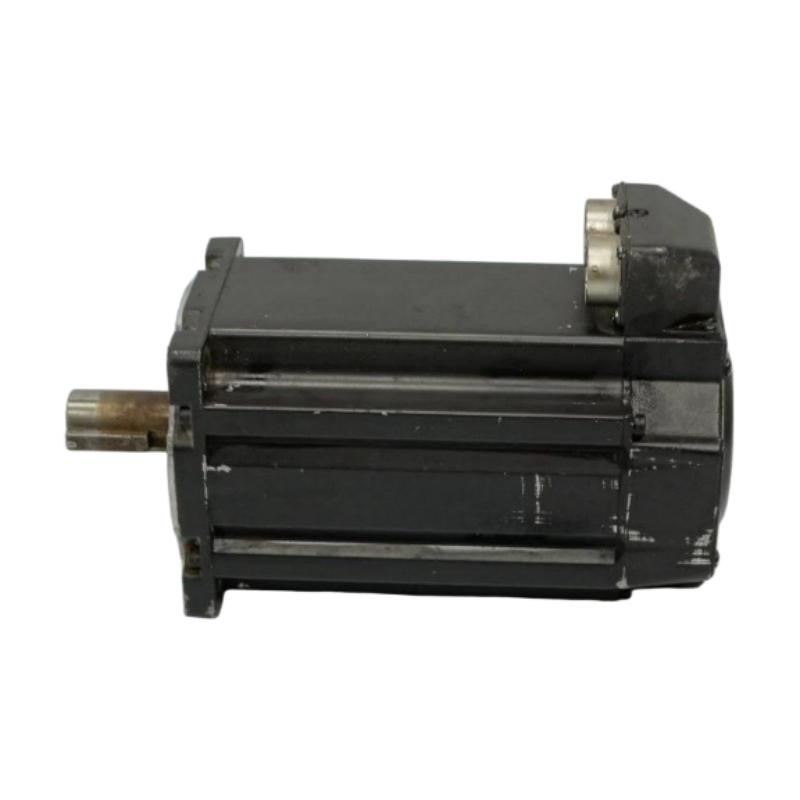

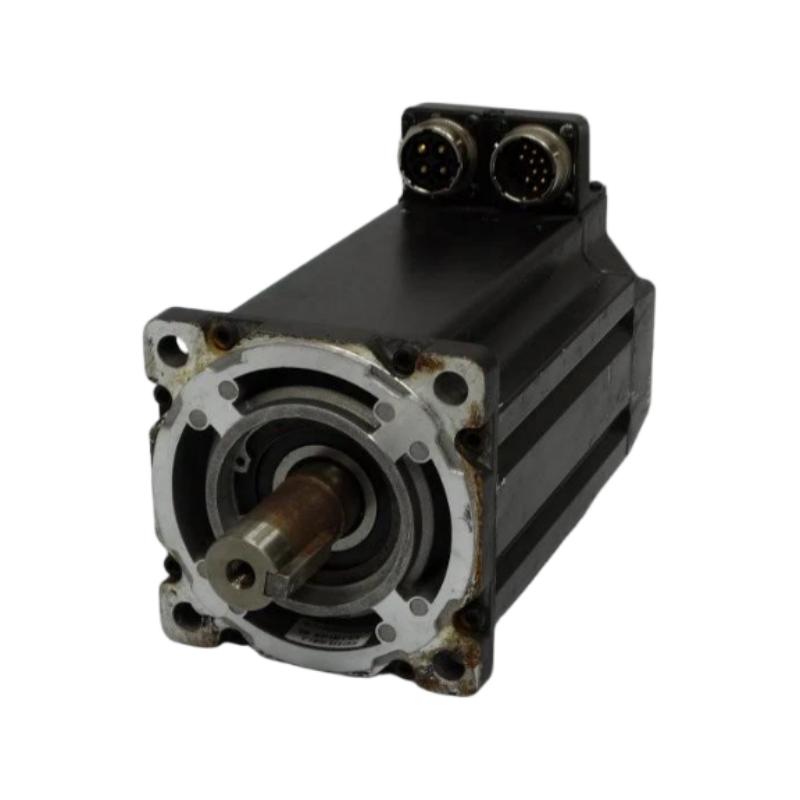

The Allen Bradley MPL-B4540F-MJ22AA is designed for industrial motion applications where machine movement needs to be controlled as part of a programmed automation process. Instead of operating simply as a fixed-speed motor, it forms part of a servo system in which the drive and feedback architecture work together to regulate movement.

This makes the motor suitable for equipment where repeatability and controlled dynamic response are important. Automated assembly systems, packaging machinery, indexing equipment, material handling applications, and other production systems can use servo technology to execute defined motion profiles with greater control.

For machine builders, the motor should be selected according to the complete application rather than motor specifications alone. Load inertia, required acceleration, operating speed, mechanical transmission, feedback configuration, and servo-drive capacity all influence final system behavior.

During replacement or modernization projects, confirming the complete MPL-B4540F-MJ22AA catalog number is especially important. Related MP-Series models can have different system characteristics, so the motor, drive, controller, and feedback arrangement should be reviewed together before commissioning.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Model	MPL-B4540F-MJ22AA
Product Type	Servo Motor
Series	MP-Series
Frame Size	130 mm
Motor Type	Industrial Servo Motor
Application	Industrial Motion Control
System Configuration	Servo Drive and Motion Controller
Typical Applications	Packaging, assembly, indexing, positioning, material handling
Dimensions	Frame size: 130 mm
Weight	8.87 kg (19.55 lb)

The 8.87 kg (19.55 lb) motor weight should be considered when planning mechanical support, handling procedures, mounting hardware, and servicing access.

Recommended Related Models

Model	Product Type	Relationship
MPL-B4540F-HJ72AA	MP-Series Servo Motor	Related MPL-B4540F motor
MPL-B4540F-HJ74AA	MP-Series Servo Motor	Related MPL-B4540F motor
MPL-B4540F-HK72AA	MP-Series Servo Motor	Closely related MP-Series servo motor
MPL-B4540F-HK74AA	MP-Series Servo Motor	Closely related MP-Series servo motor
MPL-B4530K-SK74AA	MP-Series Servo Motor	Related 130 mm frame motor

Popular Related Models

Model	Product Type
MPL-A4540C-SJ74AA	MP-Series Servo Motor
MPL-A4540C-SK72AA	MP-Series Servo Motor
MPL-B4530K-SJ74AA	MP-Series Servo Motor
MPL-B4530K-SK74AA	MP-Series Servo Motor
MPL-B4540F-HJ74AA	MP-Series Servo Motor
MPL-B4540F-HK74AA	MP-Series Servo Motor
MPL-B4540F-MJ22AA	MP-Series Servo Motor

The Allen Bradley MPL-B4540F-MJ22AA provides a practical foundation for automated motion applications where controlled and repeatable machine movement is required. With appropriate drive selection, feedback configuration, mechanical integration, and commissioning, it can support dependable performance across a wide range of industrial automation equipment.

Automation Applications & Motion Solutions

The MPL-B4540F-MJ22AA is suitable for industrial equipment where programmed motion, repeatable positioning, and coordinated movement are required. It can support machine operations involving frequent starts, stops, acceleration changes, and position corrections.

Typical applications include:

Automated assembly lines
Packaging and labeling machinery
Material handling equipment
Pick-and-place systems
Indexing machines
Printing and converting equipment
Automated inspection machinery
Machine tools
Electronics manufacturing equipment
Multi-axis motion systems

When combined with an appropriately matched Allen-Bradley servo drive and controller, the motor can participate in coordinated motion sequences, helping machinery maintain consistent positioning and repeatable production cycles.

Key Advantages for Industrial Motion

Responsive Servo Performance
The servo motor is designed for controlled dynamic movement, making it suitable for machinery with frequent changes in velocity and position.

Repeatable Positioning
A properly configured closed-loop servo system can provide the feedback and control needed for repeatable machine positioning.

MP-Series Integration
Its membership in the Allen-Bradley MP-Series family makes it a practical component for compatible Allen-Bradley motion-control architectures.

Versatile Machine Integration
The motor can be incorporated into different types of automated machinery where programmable movement is required for production operations.

130 mm Frame Configuration
The 130 mm frame size provides a defined mechanical format for machine builders designing suitable motor mounting and transmission arrangements.

Industrial Motion Reliability
Correct sizing, drive matching, installation, tuning, and maintenance help the motor deliver consistent performance throughout repeated operating cycles.

Technical FAQs for Motion Engineers

1. What applications are suitable for the MPL-B4540F-MJ22AA?
The motor is intended for industrial servo applications requiring controlled speed, acceleration, deceleration, and positioning. Examples include packaging, assembly, indexing, material handling, and automated inspection machinery.

2. Does the MPL-B4540F-MJ22AA operate without a servo drive?
No. It requires a compatible servo drive to provide controlled electrical power, process feedback, and execute the required motion commands.

3. What factors are important when selecting the servo drive?
Engineers should evaluate the motor's electrical requirements, feedback configuration, continuous and peak load demands, duty cycle, acceleration requirements, and compatibility with the motion controller.

4. Why is closed-loop feedback important for servo control?
Feedback allows the control system to monitor actual motor movement and compare it with the commanded position or velocity. The drive can then adjust operation to maintain the required motion profile.

5. Is this motor suitable for multi-axis motion systems?
It can be integrated into an appropriately designed multi-axis architecture. The controller, servo drives, feedback systems, and mechanical transmission must be configured for coordinated operation.

6. What should be verified during commissioning?
Engineers should verify motor wiring, feedback connections, drive parameters, motor identification, rotation direction, acceleration and deceleration settings, velocity limits, safety functions, and diagnostic status.

7. What can cause inaccurate positioning?
Potential causes include unsuitable servo tuning, excessive load inertia, mechanical backlash, coupling problems, feedback issues, incorrect motor parameters, or overly aggressive motion settings.

8. How should recurring servo faults be investigated?
Begin by recording the actual drive fault and the machine conditions under which it occurs. Then inspect feedback and motor wiring, load characteristics, drive parameters, tuning, temperature, and mechanical resistance.

9. What should be considered for high-frequency motion cycles?
The complete duty cycle should be reviewed, including operating speed, acceleration, deceleration, cycle frequency, continuous load, peak torque, and thermal conditions. Motor and drive sizing should reflect the actual machine profile.

10. What should be checked before installing this model as a replacement?
Verify the complete catalog number, servo-drive compatibility, feedback arrangement, mounting configuration, shaft and coupling requirements, controller settings, electrical characteristics, and machine load before replacement.
