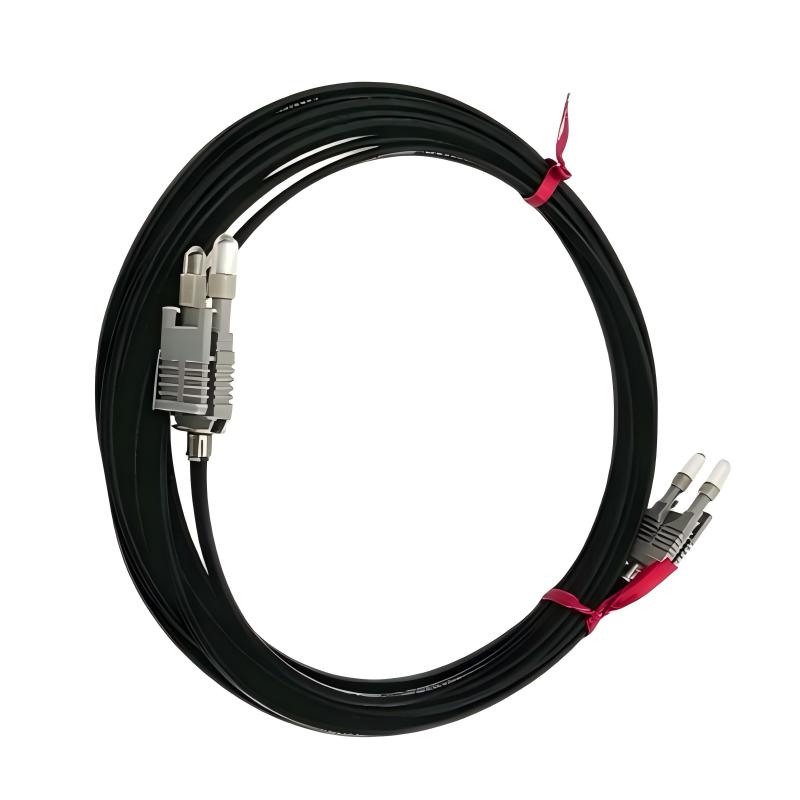

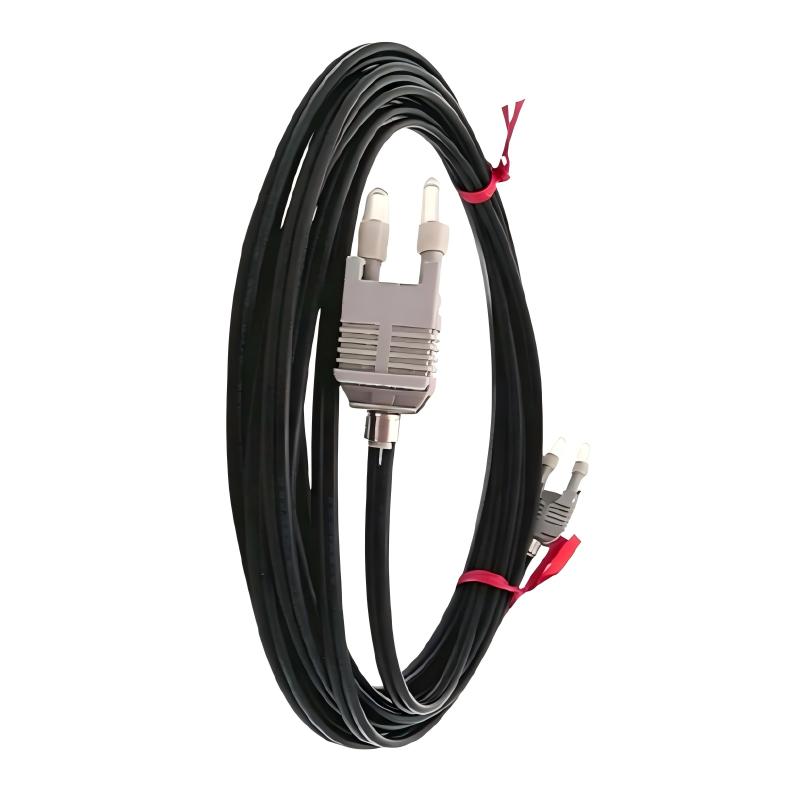

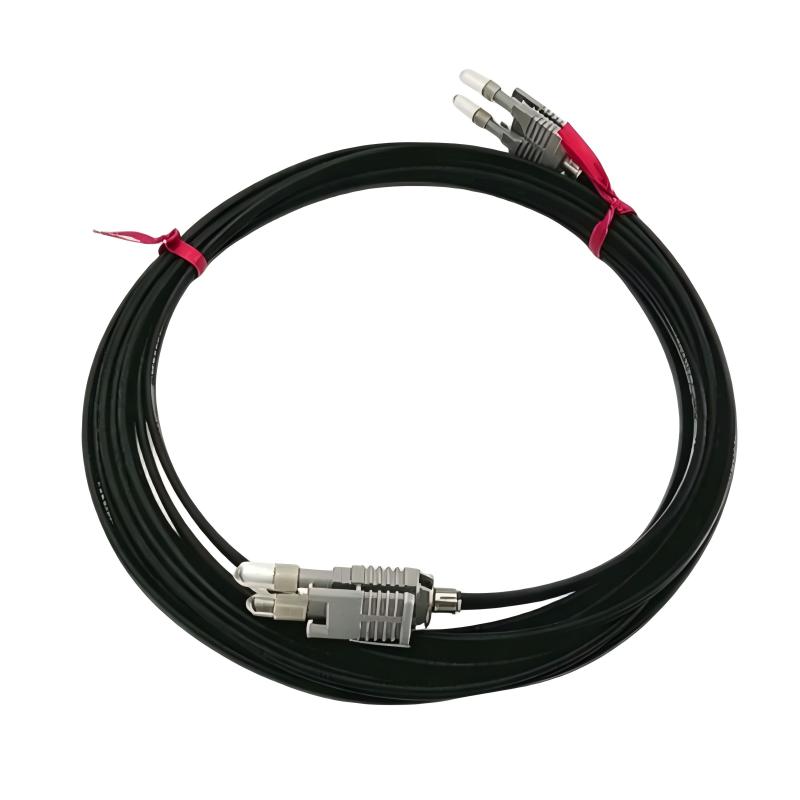

Allen Bradley 80026-053-04-R Duplex Fiber Optic Cable

Applications

The Allen Bradley 80026-053-04-R can be used in industrial communication installations where fiber-optic connectivity is required between compatible automation devices.

Typical applications include:

• Industrial control network connections
• PLC and automation system communication
• Fiber-optic equipment interconnection
• Factory-floor communication infrastructure
• Electrically noisy industrial environments
• Control cabinet communication links
• Remote equipment communication
• Industrial networking installations
• Data communication between automation devices
• Replacement of compatible fiber-optic cable assemblies

The 5-meter length is suitable for equipment interconnections where a relatively short, organized fiber path is required.

Advantages for Industrial Communication

Fiber-Optic Data Transmission
Fiber technology provides a communication medium that is inherently resistant to electromagnetic interference, making it useful in industrial environments containing motors, drives, contactors, and other electrical equipment.

Electrical Isolation
Fiber-optic communication does not create a conventional conductive electrical path between connected devices. This can be valuable in systems where electrical isolation is an important part of the network design.

Compact 5-Meter Configuration
The 5-meter cable length provides a practical solution for short-distance connections between nearby industrial communication devices while helping keep cabinet and equipment wiring organized.

Duplex Communication Design
The duplex configuration provides separate optical paths for bidirectional communication, supporting compatible fiber-optic communication interfaces.

Lightweight Construction
At 0.07 kg, the cable is easy to route and handle during installation, maintenance, and replacement work.

Suitable for Industrial Automation Networks
When matched with compatible Allen-Bradley equipment and the correct optical interface, the cable can support dependable communication within an industrial automation infrastructure.

Technical FAQs

1. What is the Allen Bradley 80026-053-04-R used for?
The 80026-053-04-R is a duplex fiber-optic cable designed to provide optical communication between compatible industrial automation devices.

2. Why use fiber optic instead of copper communication cable?
Fiber optic provides strong immunity to electromagnetic interference and can provide electrical isolation between connected equipment. These characteristics are particularly useful around variable-frequency drives, motors, and high-power electrical equipment.

3. What does duplex fiber optic mean?
A duplex fiber configuration uses two optical fibers, normally providing separate paths for transmitting and receiving data in compatible bidirectional communication systems.

4. What is the cable length of the 80026-053-04-R?
The specified cable length is 5 meters, making it suitable for short-distance equipment interconnections.

5. Can this cable be used with any fiber-optic device?
No. The cable should only be connected to equipment with compatible fiber type, connectors, optical specifications, and communication requirements. Connector and interface compatibility should be verified before installation.

6. What should be checked before installing a fiber-optic cable?
Verify the connector type, fiber compatibility, transmission requirements, routing path, bend limitations, and cleanliness of the optical interfaces. The cable should also be protected from excessive pulling, crushing, or sharp mechanical stress.

7. Can electromagnetic interference affect this fiber-optic cable?
Fiber-optic transmission is inherently resistant to electromagnetic interference because communication is carried by light rather than electrical signals. This makes fiber particularly useful in electrically noisy industrial environments.

8. What can cause intermittent fiber-optic communication?
Common causes include contaminated connectors, damaged fiber, excessive bending, loose connections, incorrect interface components, or problems elsewhere in the communication system.

9. How should fiber-optic connectors be maintained?
Optical connector surfaces should be kept clean and protected from dust and contamination. When maintenance is required, use appropriate fiber-optic cleaning procedures and avoid touching optical surfaces directly.

10. What should be considered when replacing this cable?
The replacement cable should match the original cable's fiber configuration, connector arrangement, optical characteristics, and required length. A visually similar cable is not necessarily a technically compatible replacement.
