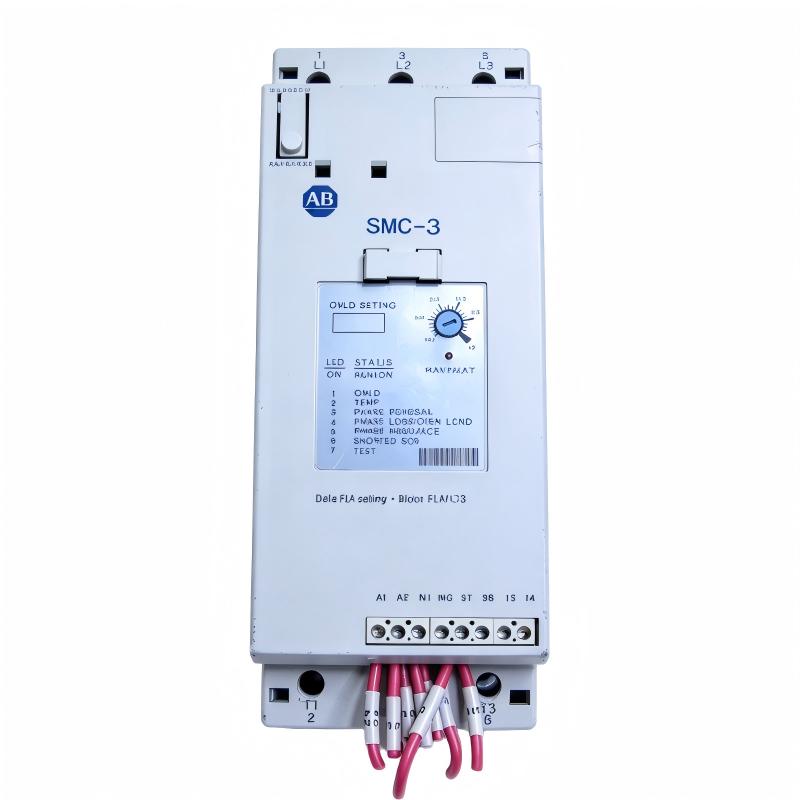

Allen Bradley 150-C43NCD SMC-3 Smart Motor Controller

Applications

The 150-C43NCD is suitable for industrial motor-control applications where conventional across-the-line starting may create excessive starting current or mechanical shock.

Typical applications include:

• Conveyor systems
• Pumps and pumping stations
• Fans and blowers
• Compressors
• Material handling machinery
• Machine tools
• Packaging equipment
• Industrial processing equipment
• HVAC-related motor applications
• General three-phase motor starting and stopping

The controller can be used where controlled motor acceleration and deceleration are beneficial to the machine, driven load, and overall electrical system.

Advantages for Industrial Motor Control

Controlled Motor Starting
The SMC-3 platform provides solid-state motor control that can manage the starting process more gradually than a conventional direct-on-line starter, helping reduce mechanical shock during acceleration.

Reduced Starting Stress
Controlled acceleration can help limit sudden torque changes transmitted through couplings, belts, gearboxes, and other mechanical components.

Compact Industrial Design
With dimensions of 206 × 72 × 130 mm, the controller provides a practical solution for motor-control panels where cabinet space is an important consideration.

Flexible Motor Applications
The controller is suitable for a range of three-phase motor-driven equipment, including pumps, conveyors, fans, compressors, and general industrial machinery.

Improved Machine Operation
Controlled starting and stopping can contribute to smoother machine operation and help reduce abrupt transitions in motor-driven processes.

Practical Panel Integration
The compact form factor and industrial construction make the SMC-3 suitable for integration into motor-control panels and automation cabinets.

Technical FAQs

1. What is the Allen Bradley 150-C43NCD used for?
The 150-C43NCD is an SMC-3 Smart Motor Controller used to control the starting and stopping of compatible three-phase motors in industrial applications.

2. What is the purpose of a smart motor controller?
A smart motor controller manages motor operation electronically and can provide controlled starting and stopping functions. This can help reduce mechanical shock and improve the way a motor-driven machine transitions between operating states.

3. Can the 150-C43NCD be used with pumps and conveyors?
Yes. SMC-3 controllers are suitable for various motor-driven applications, including pumps, conveyors, fans, and other industrial loads, provided the motor and controller ratings are correctly matched.

4. How does controlled starting differ from direct-on-line starting?
A direct-on-line starter applies the motor supply essentially immediately, while a solid-state controller can regulate the starting process. Controlled starting can reduce abrupt torque changes and help provide smoother acceleration.

5. What should be checked when selecting this controller for a motor?
Verify the motor's voltage, current, phase configuration, load characteristics, starting requirements, and the controller's applicable ratings. Proper sizing is essential for reliable operation.

6. Can the controller provide controlled stopping?
The SMC-3 family is designed for controlled motor starting and stopping functions. The exact stopping behavior depends on the controller configuration, motor characteristics, and application requirements.

7. What can cause an SMC-3 controller to trip?
Potential causes include motor overload, excessive current, incorrect wiring, unsuitable motor-controller sizing, supply problems, phase-related faults, or abnormal load conditions. The controller's status and fault information should be reviewed during troubleshooting.

8. Why can a motor still experience high current during controlled starting?
A controlled starter reduces and manages the starting process but does not eliminate the fundamental current requirements of the motor. Load inertia, acceleration settings, motor characteristics, and supply conditions all influence starting current.

9. What should be checked if the motor does not start?
Check incoming power, control signals, motor connections, controller status, protection settings, and any active fault condition. The motor itself and the driven mechanical load should also be inspected for abnormal conditions.

10. What is important when replacing an existing SMC-3 controller?
The replacement should be checked against the motor's electrical requirements, controller ratings, control configuration, wiring arrangement, enclosure installation, and application requirements. The complete catalog number should be verified before replacement.
