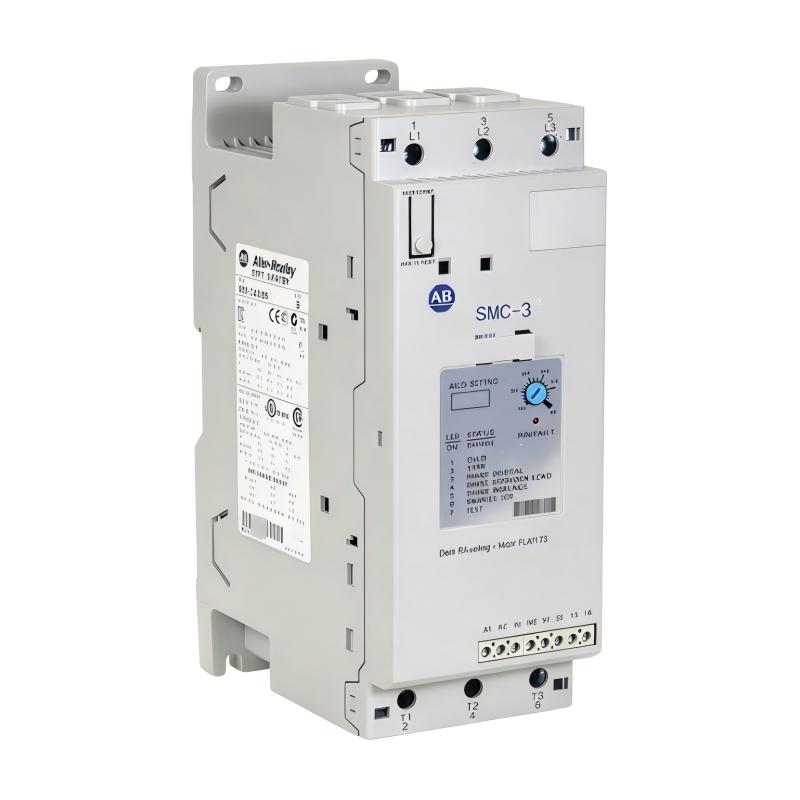

Allen Bradley 150-C43NBR SMC-3 Smart Motor Controller

Applications

The 150-C43NBR can be applied to industrial equipment where controlled motor operation is preferred over conventional direct-on-line starting.

Common applications include:

• Conveyor and material-handling systems
• Industrial pumps
• Fans and blowers
• Compressors
• Packaging machinery
• Machine tools
• Processing equipment
• Automated production lines
• HVAC motor applications
• General-purpose three-phase motor systems

It is particularly useful in applications where smooth motor acceleration and controlled stopping can help reduce mechanical shock and improve the operating behavior of the driven equipment.

Advantages for Industrial Motor Control

Smooth Motor Starting
The SMC-3 solid-state design provides controlled motor starting, helping reduce the abrupt torque transition associated with conventional direct-on-line starting.

Reduced Mechanical Stress
Controlled acceleration can reduce sudden forces transmitted through shafts, couplings, belts, gearboxes, and other mechanical components.

Compact Panel Footprint
With dimensions of 206 × 72 × 130 mm, the controller is suitable for industrial control panels where efficient use of cabinet space is important.

Reliable Solid-State Control
Electronic motor control provides a practical alternative to conventional electromechanical starting arrangements for many industrial motor applications.

Broad Application Flexibility
The controller can be incorporated into different motor-driven systems, including pumps, conveyors, fans, compressors, and automated machinery, when properly sized for the application.

Straightforward System Integration
The SMC-3 architecture can be incorporated into industrial motor-control panels alongside compatible control, protection, and automation equipment.

Technical FAQs

1. What is the Allen Bradley 150-C43NBR?
The 150-C43NBR is an Allen-Bradley SMC-3 Smart Motor Controller designed for controlled operation of compatible three-phase motors.

2. What is the main purpose of the SMC-3 controller?
Its primary purpose is to electronically control motor starting and stopping. Controlled starting can help reduce abrupt electrical and mechanical effects during motor acceleration.

3. What types of loads can this controller operate?
Typical applications include pumps, conveyors, fans, blowers, compressors, and other industrial motor-driven loads. The motor and controller must be correctly matched to the specific application.

4. What is the benefit of soft starting a motor?
Soft starting can reduce the sudden torque and current transition that occurs when a motor starts directly across the line. This can help reduce stress on both the electrical supply and connected mechanical equipment.

5. How should the controller be sized?
Selection should consider the motor's rated voltage, full-load current, phase configuration, starting characteristics, driven-load inertia, operating cycle, and required starting and stopping performance.

6. Can the 150-C43NBR be integrated with a PLC control system?
It can be incorporated into an automation system where the controller's control interface and the PLC's output or control architecture are compatible. The complete control circuit should be designed according to the equipment requirements.

7. What should be checked if the motor fails to start?
Check incoming power, control signals, motor wiring, controller status, protective conditions, and any active fault indications. The mechanical load should also be checked for conditions that could prevent normal motor acceleration.

8. What can cause repeated controller trips?
Possible causes include motor overload, excessive starting demand, incorrect controller sizing, supply abnormalities, motor faults, wiring problems, or an abnormal mechanical load.

9. Does a soft starter eliminate motor starting current?
No. A soft starter manages the starting process but does not eliminate the motor's fundamental requirement for starting current. The actual current depends on motor characteristics, load, supply conditions, and configured starting parameters.

10. What should be verified before replacing a 150-C43NBR?
Verify the complete catalog number, motor electrical characteristics, controller rating, control wiring, application requirements, and installation configuration. A physically similar controller may not have the same electrical or control characteristics.
