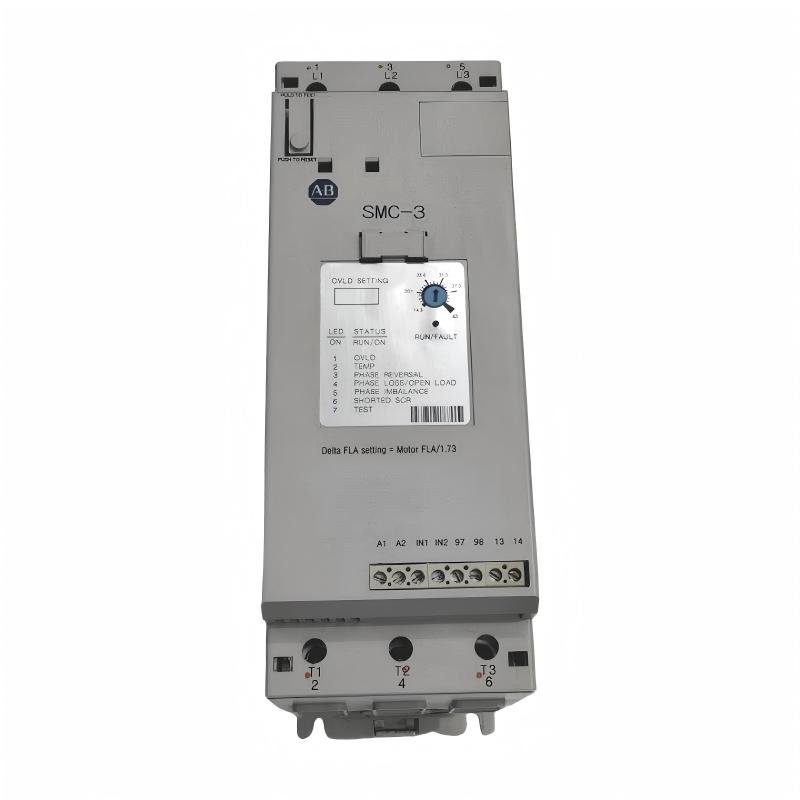

Allen Bradley 150-C43NCR SMC-3 Smart Motor Controller

Applications

The 150-C43NCR is suitable for industrial motor-control systems where controlled acceleration and stopping are required. It can be integrated into motor-control panels and automated production equipment where dependable motor operation is important.

Typical applications include:

• Conveyor and material-handling systems
• Industrial pumps
• Fans and blowers
• Compressors
• Packaging machinery
• Machine tools
• Processing equipment
• Automated production lines
• HVAC-related motor systems
• General three-phase motor applications

The controller is especially useful for applications where sudden motor starting can place unnecessary stress on mechanical components or the electrical supply.

Advantages for Industrial Motor Control

Controlled Motor Starting
The SMC-3 solid-state architecture allows the motor to transition into operation in a controlled manner, helping reduce the abrupt torque associated with conventional direct-on-line starting.

Reduced Mechanical Shock
Smoother acceleration can help reduce stress on shafts, couplings, belts, gearboxes, and other components connected to the motor.

Compact Panel Design
The 206 × 72 × 130 mm form factor makes the controller practical for industrial control cabinets where available panel space needs to be used efficiently.

Solid-State Motor Control
Electronic control provides a practical solution for applications requiring controlled motor operation without relying exclusively on conventional electromechanical starting methods.

Versatile Industrial Applications
The controller can be applied to various motor-driven loads, including pumps, conveyors, fans, compressors, and automated machinery, when properly selected for the motor and load.

Straightforward Automation Integration
The SMC-3 platform can be incorporated into industrial control architectures alongside suitable motor protection, control devices, and automation equipment.

Technical FAQs

1. What is the Allen Bradley 150-C43NCR?
The 150-C43NCR is an Allen Bradley SMC-3 Smart Motor Controller designed for controlled operation of compatible three-phase motors.

2. What is the primary function of the SMC-3 controller?
Its primary function is to manage motor starting and stopping electronically. Controlled starting can help reduce abrupt mechanical and electrical effects during motor acceleration.

3. What applications are suitable for the 150-C43NCR?
Typical applications include conveyors, pumps, fans, blowers, compressors, packaging equipment, and other industrial machinery driven by compatible three-phase motors.

4. How does controlled starting benefit a motor-driven machine?
Controlled starting can reduce sudden torque changes and help the motor accelerate more smoothly. This can be beneficial for mechanical transmissions and equipment where abrupt starting forces are undesirable.

5. How should the controller be matched to a motor?
The motor's voltage, current, phase configuration, load characteristics, starting requirements, and operating cycle should be compared with the controller's applicable ratings before installation.

6. Can the 150-C43NCR be used with a PLC-controlled machine?
It can be incorporated into a compatible automation control circuit where the controller's control interface and the PLC output architecture are properly matched. The complete control and protection scheme should be verified during system design.

7. What should be checked if the motor does not start?
Check the incoming power, control signal, motor wiring, controller status, protection conditions, and any available fault indication. The driven mechanical load should also be checked for conditions that could prevent normal acceleration.

8. What can cause repeated motor-controller trips?
Possible causes include motor overload, excessive starting demand, unsuitable controller sizing, supply abnormalities, motor faults, incorrect wiring, or mechanical problems within the driven equipment.

9. Does an SMC-3 controller eliminate starting current?
No. The controller manages the motor-starting process but does not eliminate the motor's fundamental starting-current requirement. Actual current depends on the motor, load, supply, and configured operating conditions.

10. What should be verified when replacing a 150-C43NCR?
Verify the complete catalog number, motor electrical requirements, controller ratings, control wiring, installation arrangement, and application requirements. Physical similarity alone is not sufficient to establish electrical compatibility.
