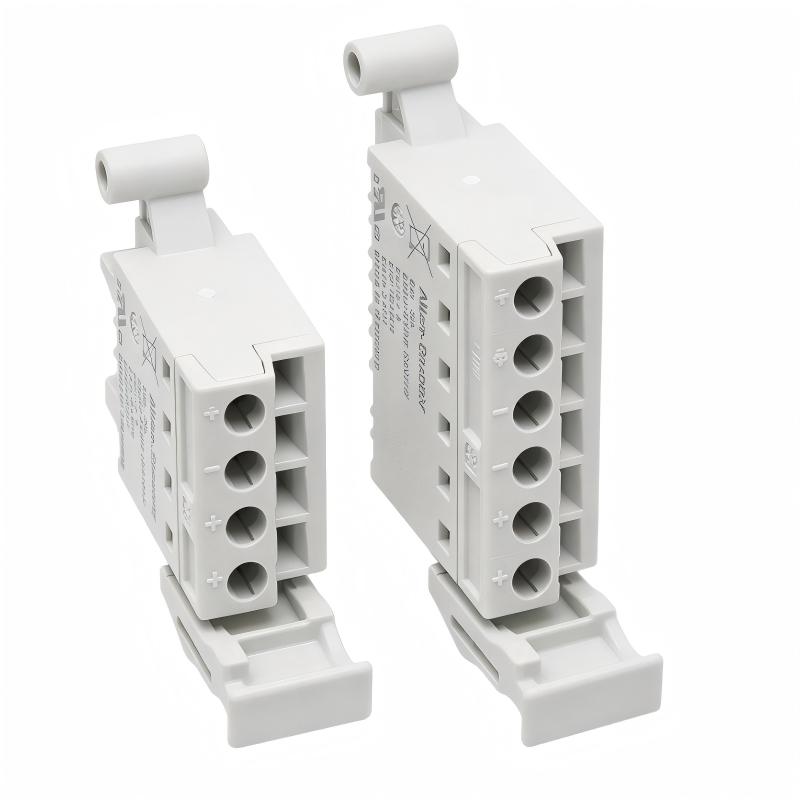

Allen Bradley 5069-RTB4-SCREW Compact 5000 I/O Power Terminal RTB Kit

Applications

The 5069-RTB4-SCREW is intended for use with compatible Allen Bradley Compact 5000 I/O installations where a removable terminal block is required for field or power wiring.

Typical applications include:

• Compact 5000 I/O systems
• PLC-based control panels
• Industrial automation cabinets
• Machine control systems
• Distributed I/O installations
• Factory automation equipment
• Process monitoring systems
• Control-system maintenance
• I/O module replacement
• Panel wiring and commissioning

The RTB kit is particularly useful during installation or replacement work where secure, organized termination of field wiring is required.

Advantages for Compact 5000 I/O Systems

Secure Screw-Terminal Connections
The screw-terminal design provides a familiar and practical method for connecting conductors, making it suitable for industrial control-panel wiring and maintenance.

Compact I/O Integration
The terminal kit is designed for compatible Compact 5000 I/O equipment, helping maintain a clean connection arrangement around the I/O module.

Convenient Maintenance
A removable terminal block can simplify wiring maintenance and module replacement because field wiring can be managed through the terminal assembly rather than being permanently attached to the electronic module.

Organized Panel Wiring
Properly terminated RTB connections help keep control-panel wiring structured and easier to identify during commissioning and troubleshooting.

Lightweight Construction
At only 0.02 kg, the terminal kit is easy to handle during installation, replacement, and service operations.

Practical Replacement Accessory
Keeping a compatible RTB available can help maintenance teams restore an I/O installation more efficiently when a terminal assembly requires replacement.

Technical FAQs

1. What is the Allen Bradley 5069-RTB4-SCREW?
The 5069-RTB4-SCREW is a Compact 5000 I/O Power Terminal RTB Kit designed for compatible Allen-Bradley Compact 5000 I/O installations.

2. What type of connection does this RTB use?
The specified version uses screw-terminal connections, providing a conventional method for terminating compatible control or power wiring.

3. What does RTB stand for?
RTB stands for Removable Terminal Block. It provides a detachable wiring interface between field conductors and the associated I/O equipment.

4. How many pins are associated with the 5069-RTB4-SCREW kit?
The supplied specification identifies 4-pin and 6-pin configurations. The exact terminal arrangement should be verified against the applicable Compact 5000 I/O module before installation.

5. Why use a removable terminal block on an I/O module?
A removable terminal block can simplify installation and maintenance by allowing wiring to remain organized while the associated I/O module is serviced or replaced.

6. What should be checked before installing the RTB?
Verify that the RTB is compatible with the specific Compact 5000 I/O module and that the terminal arrangement matches the wiring requirements. Wiring should also be installed according to the applicable electrical specifications.

7. Can the RTB be reused after removing an I/O module?
Reuse depends on the condition of the terminal block, screw terminals, wiring, and installation. Inspect the assembly for damage or loose connections before reusing it.

8. What can cause an intermittent I/O connection at the RTB?
Loose terminal screws, damaged conductors, incorrect wire preparation, contamination, excessive mechanical stress, or an improperly seated terminal assembly can contribute to intermittent connections.

9. Why is correct terminal tightening important?
Insufficient tightening can create a high-resistance or intermittent connection, while excessive tightening may damage the terminal or conductor. The applicable installation specifications should always be followed.

10. What should be considered when replacing an existing RTB?
Confirm the complete catalog number, terminal configuration, compatible I/O module, wiring arrangement, and mechanical fit before replacement. The replacement should match the original system configuration.
