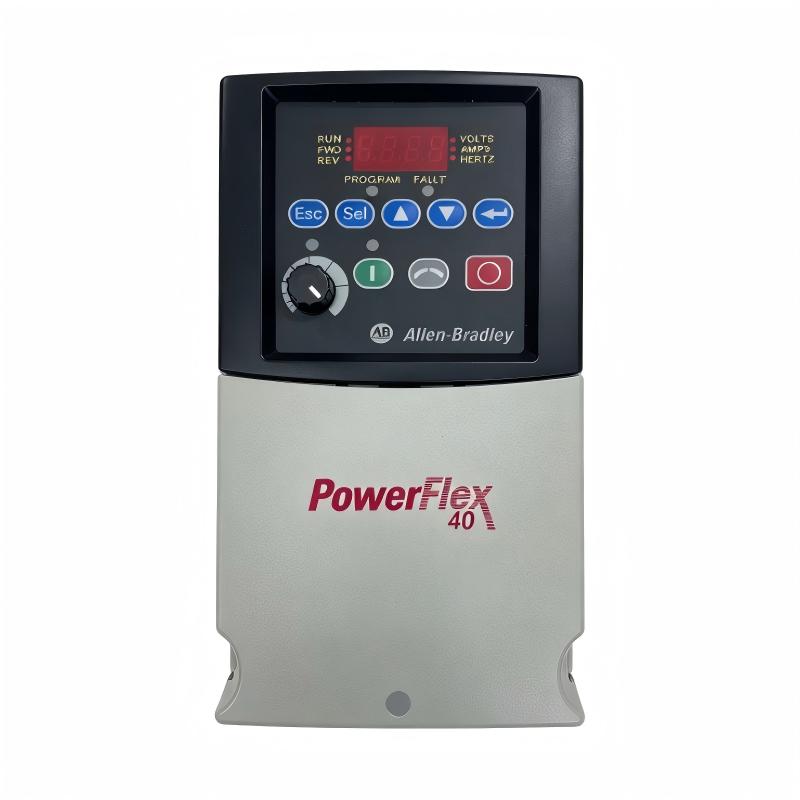

Allen Bradley 22B-V2P3N104 PowerFlex 40 AC Drive

Applications

The 22B-V2P3N104 is suitable for a wide range of general-purpose motor-control applications where variable-speed operation can improve process control and machine performance.

Typical applications include:

• Conveyor systems
• Pumps and pumping equipment
• Fans and blowers
• Packaging machinery
• Material-handling equipment
• Machine tools
• Small automated production machines
• Processing equipment
• HVAC-related motor applications
• General-purpose industrial motor control

The drive is particularly useful where motor speed needs to be adjusted according to production requirements rather than operated continuously at a fixed speed.

Advantages for Industrial Motor Control

Flexible Speed Regulation
The PowerFlex 40 platform provides adjustable motor-speed control, allowing machinery to operate at different speeds according to the requirements of the production process.

Controlled Acceleration and Deceleration
Adjustable acceleration and deceleration profiles can help reduce abrupt changes in motor speed and minimize mechanical shock within the driven system.

Compact Installation
With dimensions of 180 × 100 × 136 mm, the drive provides a practical form factor for control cabinets and machinery where panel space is limited.

Efficient Motor Operation
Variable-speed control can allow motors to operate closer to the speed required by the process, which can be beneficial in applications such as fans and pumps.

Suitable for General-Purpose Machinery
The PowerFlex 40 family is designed for a broad range of industrial applications, making the 22B-V2P3N104 suitable for machinery requiring dependable adjustable-speed control.

Easy Automation Integration
The drive can be incorporated into compatible control architectures using appropriate control signals and communication arrangements, allowing motor speed and operating commands to be coordinated with the automation system.

Technical FAQs

1. What is the Allen Bradley 22B-V2P3N104?
The 22B-V2P3N104 is an Allen Bradley PowerFlex 40 AC drive designed to provide variable-speed control for compatible industrial motors.

2. What is the main purpose of an AC drive?
An AC drive controls the operating speed and other characteristics of an AC motor by regulating the electrical power supplied to the motor. This provides more flexible control than operating the motor directly from a fixed-frequency supply.

3. What types of applications are suitable for the PowerFlex 40?
Typical applications include conveyors, pumps, fans, blowers, packaging machinery, material-handling systems, and other general-purpose industrial equipment requiring adjustable motor speed.

4. Why use a variable frequency drive instead of direct-on-line starting?
A VFD can provide controlled acceleration and deceleration as well as adjustable operating speed. This can improve process control and reduce abrupt mechanical transitions compared with fixed-speed operation.

5. What should be checked when selecting a drive for a motor?
The motor's voltage, rated current, power requirements, operating speed, load characteristics, and application duty should be compared with the drive's applicable ratings.

6. Can the 22B-V2P3N104 be controlled by a PLC?
A compatible PowerFlex 40 installation can be integrated into an automation control system using suitable control inputs or communication methods. The specific interface depends on the system architecture and drive configuration.

7. What can cause an AC drive to trip during operation?
Possible causes include motor overload, excessive current, overvoltage, undervoltage, acceleration settings that are too aggressive, grounding problems, motor faults, or abnormal mechanical loading.

8. What should be checked if the motor runs at the wrong speed?
Check the commanded frequency or speed reference, drive parameter settings, control signals, motor data, and any active speed limitations. The reference source should also be verified to ensure the drive is receiving the intended command.

9. Why is motor parameter configuration important?
Accurate motor data allows the drive to control the motor more effectively and apply appropriate protection and operating limits. Incorrect motor parameters can lead to poor performance or unnecessary trips.

10. What should be verified when replacing an existing PowerFlex 40 drive?
Verify the complete catalog number, input power requirements, motor ratings, output requirements, control method, enclosure arrangement, and application parameters. The replacement should be matched to the actual motor and system rather than selected solely by physical size.
