Brand:Allen Bradley PLC Item No.:22B-V5P0C104 Product Origin:USA Product Dimensions:180 x 100 x 136 mm Product Weight:2.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

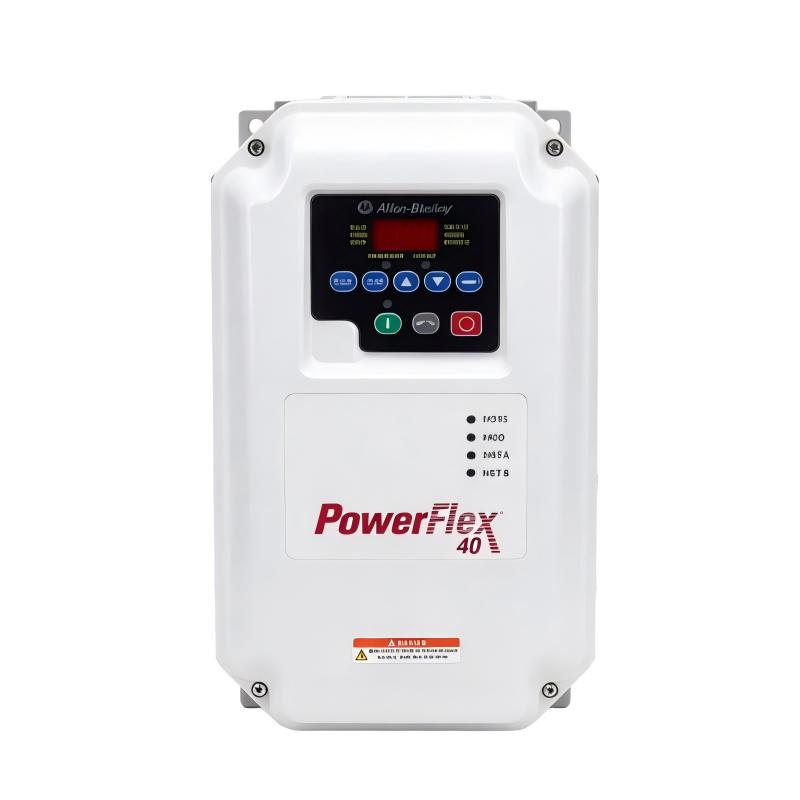

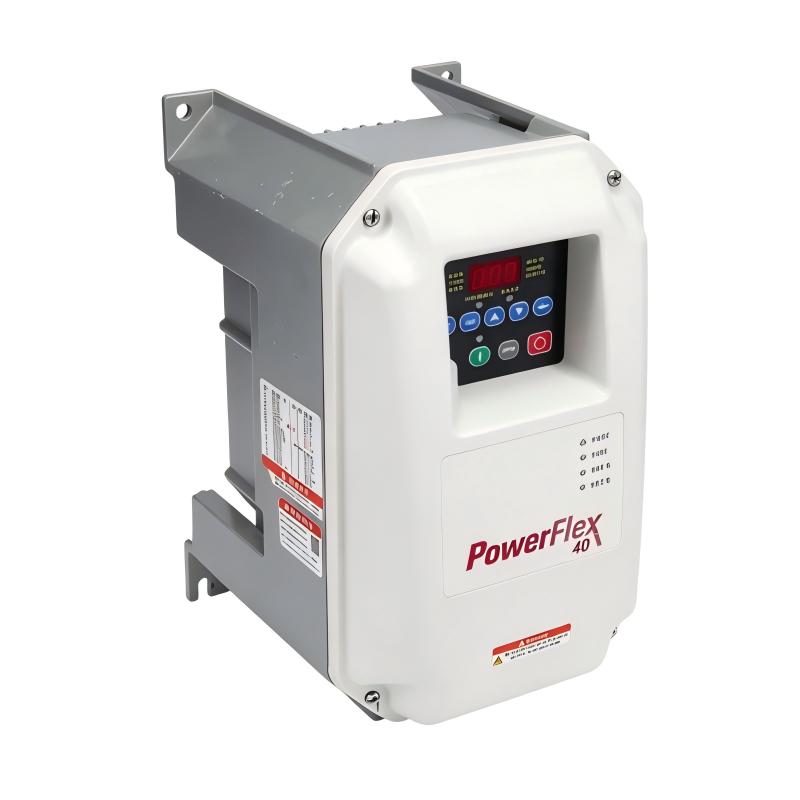

The Allen Bradley 22B-V5P0C104 PowerFlex 40 AC Drive provides a compact solution for industrial motor speed control. It is intended for applications where AC motors need to operate at controlled and adjustable speeds rather than at a single fixed operating point.
In production equipment, the ability to adjust motor speed can be important for maintaining consistent material flow, matching machine cycles, and adapting equipment operation to different production requirements. The PowerFlex 40 platform provides a practical drive architecture for these types of applications.
The 22B-V5P0C104 also offers an efficient physical format for control-panel installations. Measuring 180 × 100 × 136 mm, it can be incorporated into machine panels where available installation space must be carefully managed.
For maintenance and replacement projects, the exact catalog number and electrical characteristics should always be verified before installation. Proper matching of the drive to the motor and application helps ensure dependable operation and simplifies commissioning.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
22B-V5P0C104
Product Family
PowerFlex 40
Product Type
AC Drive
Application
AC Motor Speed Control
Dimensions
180 × 100 × 136 mm
Weight
2.20 kg (4.85 lb)
Installation
Industrial Control Panel
Typical Applications
Conveyors, Pumps, Fans, Packaging Machinery, Material Handling
Recommended Related Models
Model
Product Type
Application
22B-V2P3N104
PowerFlex 40 AC Drive
General AC motor speed control
22F-A011N113
PowerFlex 40P AC Drive
Variable-speed motor applications
25-ENC-1
PowerFlex 525 Encoder
Motor feedback applications
2098-DSD-075-SE
Ultra3000 Drive
Servo motion control
Popular Related Models
Model
Product Type
22B-V2P3N104
PowerFlex 40 AC Drive
22F-A011N113
PowerFlex 40P AC Drive
25-ENC-1
PowerFlex 525 Encoder
1606-XL120DR
Power Supply
1732E-8IOLM12R
EtherNet/IP ArmorBlock I/O Module
Applications
The Allen Bradley 22B-V5P0C104 can be applied to a variety of industrial motor-control systems where adjustable-speed operation is required.
Conveyor Systems: Provides controlled motor operation for material transportation and production lines.
Pump Applications: Supports adjustable motor speed for process and utility pumping equipment.
Fan and Blower Systems: Allows motor operation to be adapted to changing process requirements.
Packaging Machinery: Suitable for machines that require repeatable and controlled motor speeds.
Material Handling: Can be integrated into automated handling and transfer equipment.
General Industrial Machinery: Provides variable-speed control for auxiliary and production equipment.
The drive is particularly useful for applications requiring a compact and practical AC motor-control solution within an industrial automation environment.
Advantages
Compact Installation
The 22B-V5P0C104 has a compact 180 × 100 × 136 mm form factor, allowing it to be incorporated into control panels where available cabinet space is limited.
Reliable Motor Speed Control
The PowerFlex 40 platform is designed for adjustable-speed AC motor applications, providing controlled motor operation for a wide range of industrial machinery.
Flexible Industrial Applications
Its general-purpose design makes the drive suitable for conveyors, pumps, fans, packaging equipment, and other machinery requiring variable motor speed.
Easy Integration
The drive can be incorporated into suitable Allen-Bradley automation architectures, making it a practical option for systems using Rockwell Automation control and motor-control equipment.
Efficient Cabinet Layout
The relatively small physical footprint helps machine builders optimize panel layouts while leaving space for PLCs, terminal blocks, circuit protection, contactors, and other control components.
Practical Replacement Option
For maintenance and modernization projects, the 22B-V5P0C104 can provide a suitable replacement solution when its electrical specifications and application requirements match the existing installation.
Technical FAQs
1. What is the Allen Bradley 22B-V5P0C104?
The 22B-V5P0C104 is an Allen Bradley PowerFlex 40 AC Drive designed for adjustable-speed control of compatible AC motors in industrial applications.
2. What is the main function of the 22B-V5P0C104?
Its primary function is to control AC motor operation by regulating motor speed according to the requirements of the connected machine or process.
3. What applications are suitable for this PowerFlex 40 drive?
Typical applications include conveyors, pumps, fans, blowers, packaging machinery, material handling equipment, and other general-purpose industrial machines.
4. Can the 22B-V5P0C104 be used for conveyor systems?
Yes. Variable frequency drives are commonly used on conveyors where controlled motor speed, acceleration, and deceleration are required.
5. What should be checked before installing the drive?
The installer should verify the incoming power, motor nameplate data, motor wiring, grounding, control connections, programmed parameters, and applicable protection settings before commissioning.
6. Why is correct motor data important?
Correct motor information allows the drive to be configured appropriately for the connected motor and helps maintain stable operation while reducing the possibility of incorrect current, voltage, or frequency settings.
7. Can this drive be used in an Allen-Bradley automation system?
Yes. The PowerFlex 40 family is designed for industrial automation environments and can be integrated into suitable Allen-Bradley control architectures.
8. What can cause a PowerFlex 40 drive to trip?
Possible causes include motor overload, excessive current, unsuitable acceleration or deceleration settings, input-power problems, motor wiring issues, or mechanical problems affecting the driven equipment.
9. How should a fault condition be investigated?
First identify the displayed fault or status information, then check the motor, wiring, incoming power, programmed parameters, and mechanical load. Correct the underlying condition before returning the equipment to normal operation.
10. What should be considered when replacing a 22B-V5P0C104?
The replacement should be checked against the original drive's catalog number, electrical requirements, motor characteristics, control wiring, application duty, and programmed parameters to ensure system compatibility.
