Brand:Allen Bradley PLC Item No.:25B-V2P5N104 Product Origin:USA Product Dimensions:172 x 72 x 152 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

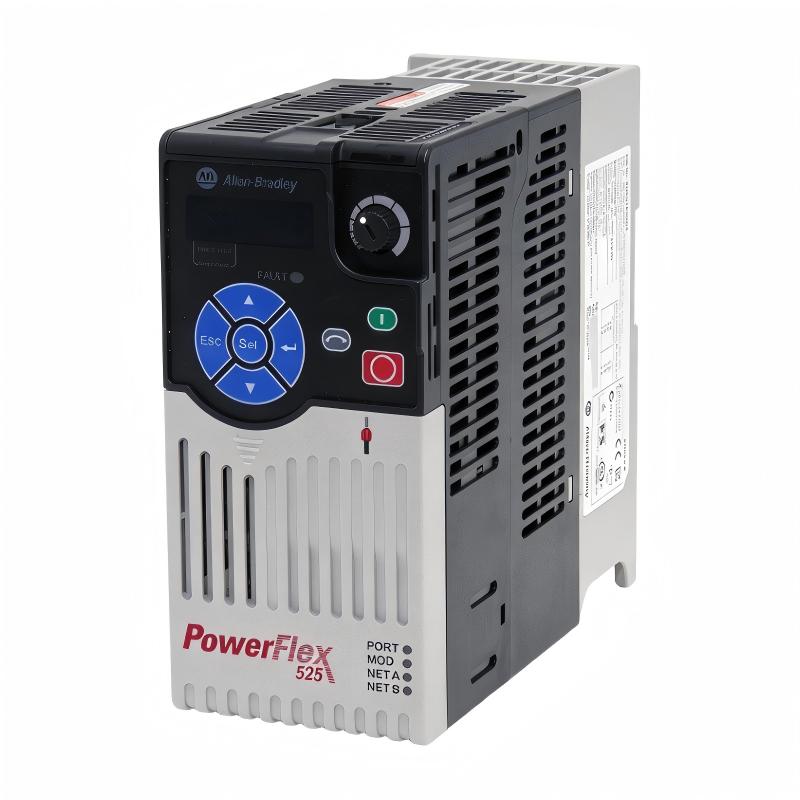

The Allen Bradley 25B-V2P5N104 PowerFlex 525 AC Drive is designed to provide adjustable-speed control for AC motor applications in industrial automation environments. Its compact construction makes it particularly useful for machine builders and system integrators working with limited control-panel space.
Variable frequency drives can help machinery operate at speeds appropriate to different process conditions rather than relying exclusively on fixed-speed motor operation. This makes adjustable-speed control useful in applications such as conveyors, pumps, fans, packaging systems, and material handling equipment.
The 25B-V2P5N104 measures 172 × 72 × 152 mm, giving engineers a practical option for compact control cabinets. Its 1.10 kg (2.43 lb) weight also supports easier handling during panel assembly, replacement, and maintenance work.
As part of the PowerFlex 525 family, the drive can be incorporated into suitable Allen-Bradley automation systems. For new installations or replacements, engineers should verify the complete catalog number and electrical requirements to ensure the drive is correctly matched to the motor and application.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
25B-V2P5N104
Product Family
PowerFlex 525
Product Type
AC Drive
Application
AC Motor Speed Control
Dimensions
172 × 72 × 152 mm
Weight
1.10 kg (2.43 lb)
Installation
Industrial Control Panel
Typical Applications
Conveyors, Pumps, Fans, Packaging Machinery, Material Handling
Recommended Related Models
Model
Product Type
Typical Application
25-ENC-1
PowerFlex 525 Encoder
Motor feedback applications
22B-V2P3N104
PowerFlex 40 AC Drive
General-purpose AC motor control
22F-A011N113
PowerFlex 40P AC Drive
Adjustable-speed motor applications
2098-DSD-075-SE
Ultra3000 Drive
Servo motion control
Popular Related Models
Model
Product Type
25-ENC-1
PowerFlex 525 Encoder
22B-V2P3N104
PowerFlex 40 AC Drive
22F-A011N113
PowerFlex 40P AC Drive
1606-XL120DR
Power Supply
1732E-8IOLM12R
EtherNet/IP ArmorBlock I/O Module
Applications
The Allen Bradley 25B-V2P5N104 can be used across a variety of industrial applications where adjustable AC motor speed is required.
Conveyor Systems: Provides controlled motor speed for material transfer and production lines.
Pump Systems: Supports variable-speed operation for process and utility pumps.
Fans and Blowers: Allows motor speed to be adjusted according to process requirements.
Packaging Machinery: Helps maintain controlled and repeatable machine operation.
Material Handling Equipment: Suitable for automated transport and handling systems.
General Industrial Machinery: Provides a flexible drive solution for auxiliary and production equipment.
Advantages
Compact and Space-Efficient Design
With a compact 172 × 72 × 152 mm form factor, the 25B-V2P5N104 can be installed in control panels where available space is limited.
Flexible Motor Control
The PowerFlex 525 platform is designed for adjustable-speed AC motor applications, allowing motor operation to be adapted to different process and production requirements.
Suitable for Modern Automation Systems
The drive can be incorporated into suitable Allen-Bradley automation architectures, making it a practical choice for machine builders and industrial control engineers.
Broad Application Flexibility
The 25B-V2P5N104 can support common applications such as conveyors, pumps, fans, packaging equipment, and material handling machinery.
Efficient Panel Utilization
Its relatively small footprint helps engineers optimize cabinet layouts while accommodating other automation components such as PLCs, I/O modules, terminal blocks, and circuit protection.
Practical Maintenance Solution
For replacement and modernization projects, the 25B-V2P5N104 provides a compact PowerFlex 525 platform that can be considered when its electrical and application requirements match the existing system.
Technical FAQs
1. What is the Allen Bradley 25B-V2P5N104?
The 25B-V2P5N104 is an Allen Bradley PowerFlex 525 AC Drive designed for adjustable-speed control of compatible AC motors in industrial automation systems.
2. What is the primary purpose of the PowerFlex 525 drive?
Its primary purpose is to regulate AC motor operation, allowing the motor to run at controlled speeds according to the requirements of the connected machine or process.
3. What types of applications are suitable for the 25B-V2P5N104?
Typical applications include conveyors, pumps, fans, blowers, packaging machines, material handling equipment, and other general-purpose industrial machinery.
4. Can the 25B-V2P5N104 be used for conveyor applications?
Yes. The drive is suitable for applications where controlled motor speed and predictable acceleration or deceleration are required, including many conveyor systems.
5. What information should be checked before commissioning?
Technicians should verify the incoming power, motor nameplate information, motor connections, grounding, control wiring, drive parameters, and applicable protection settings before commissioning.
6. Why should motor nameplate data be entered correctly?
Correct motor data helps the drive operate with appropriate electrical parameters and supports stable motor control. Incorrect configuration can lead to poor performance or drive faults.
7. Can the PowerFlex 525 be integrated into an Allen-Bradley control system?
Yes. The PowerFlex 525 family is intended for industrial automation environments and can be integrated into suitable Allen-Bradley control architectures using the available control and communication capabilities.
8. What are common causes of drive faults?
Potential causes include motor overload, excessive current, unsuitable acceleration or deceleration settings, input-power problems, incorrect motor wiring, or mechanical issues affecting the driven load.
9. How should a drive fault be investigated?
The displayed fault information should be checked first. Technicians can then inspect motor wiring, incoming power, programmed parameters, load conditions, and other relevant system components to identify the underlying problem.
10. What should be checked when replacing an existing PowerFlex 525 drive?
The exact catalog number, electrical ratings, motor requirements, control connections, application duty, and existing configuration should be verified before installing a replacement unit.
