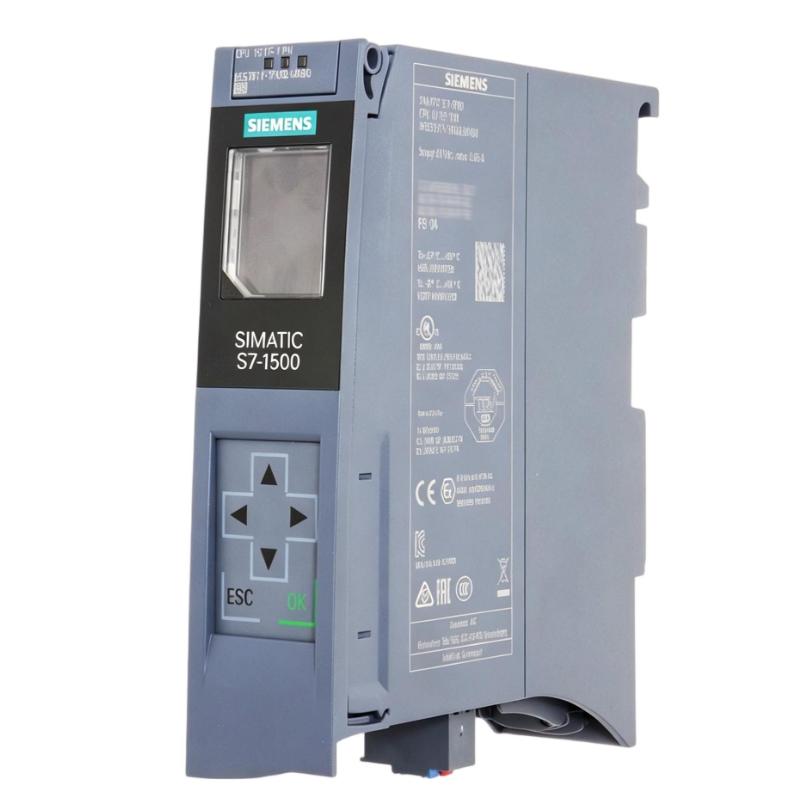

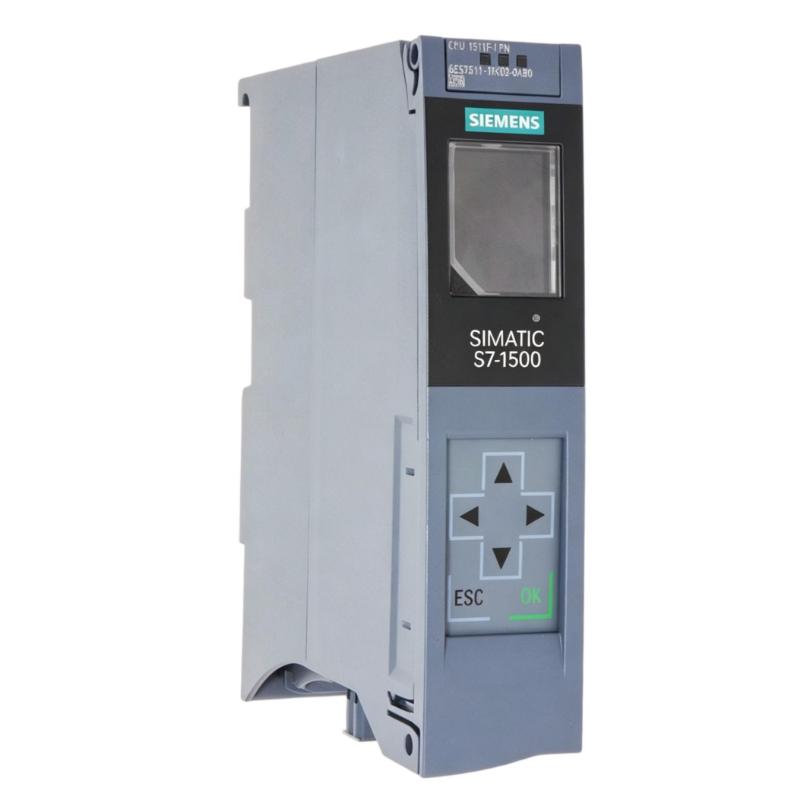

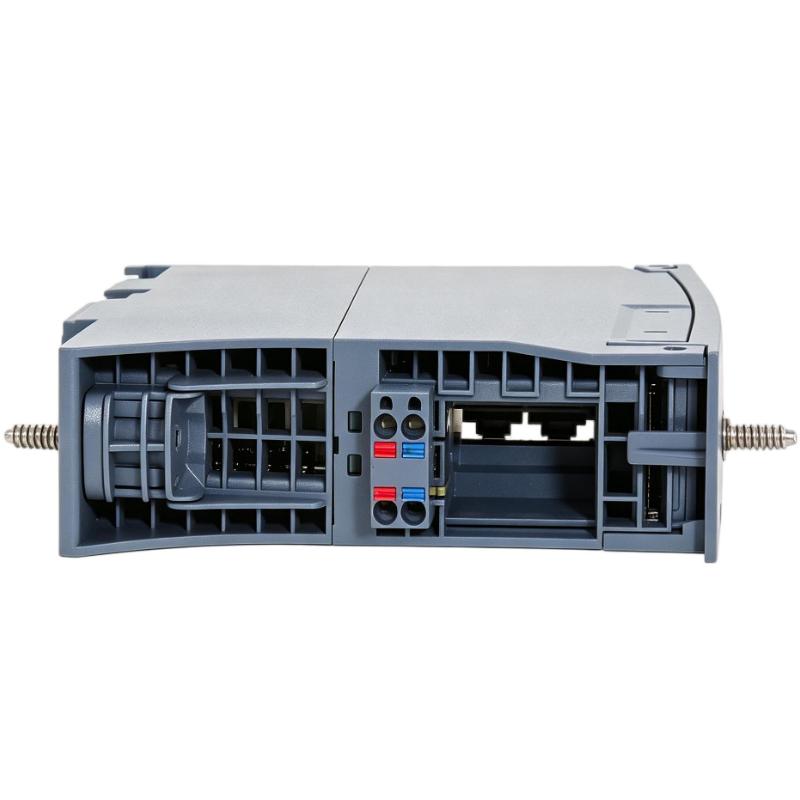

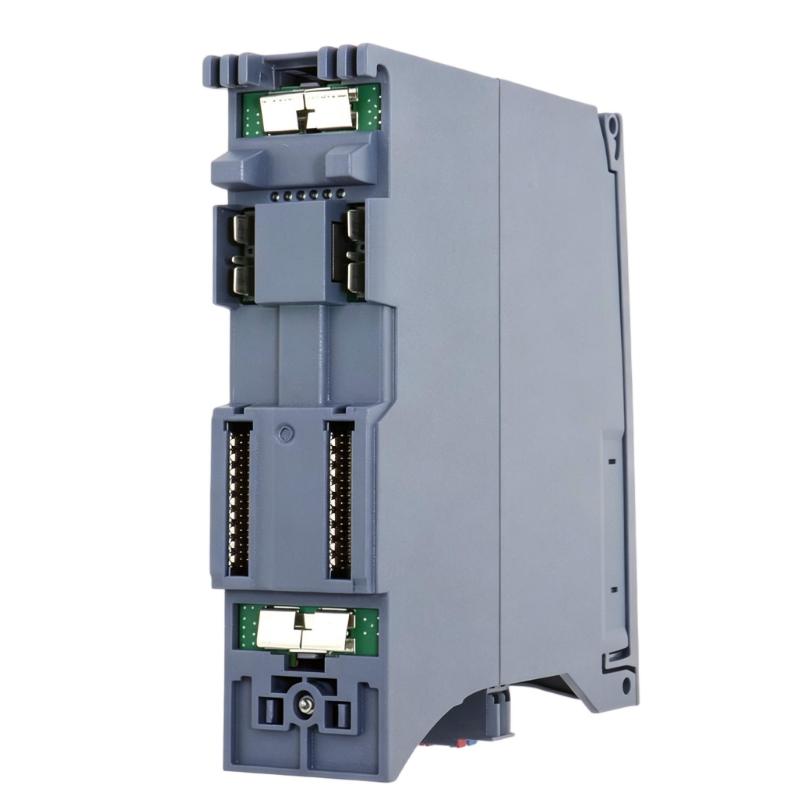

Siemens 6AG1511-1FK02-2AB0 Central Processing Unit

Applications

The Siemens 6AG1511-1FK02-2AB0 can be applied in various PLC-based industrial control environments.

• Machine Automation: Controls machine sequences, interlocks, and automated operating functions.
• Production Equipment: Coordinates sensors, actuators, drives, and other automation devices.
• Packaging Machinery: Supports programmed sequences and coordinated machine operations.
• Material Handling: Suitable for conveyors, transfer systems, and automated handling equipment.
• Process Control: Can be used in suitable industrial process applications requiring centralized PLC logic.
• OEM Equipment: Its compact design is well suited to machine builders working with limited control-panel space.

Advantages

Space-Saving PLC Design

Measuring only 35 × 147 × 129 mm, the CPU provides an efficient solution for control cabinets where available mounting space is limited.

Lightweight Construction

At 0.24 kg (0.53 lb), the CPU is easy to handle during panel assembly, maintenance, and replacement work.

Centralized Control Processing

The CPU executes the PLC program and provides the processing foundation for machine sequences, logic functions, monitoring, and device coordination.

Flexible Automation Integration

It can be incorporated into suitable Siemens automation architectures and work with compatible I/O, HMI, communication, and field devices.

Efficient Panel Layout

The compact footprint allows engineers to allocate cabinet space efficiently for additional PLC modules, terminal components, power supplies, and communication equipment.

Practical for Modernization Projects

For system upgrades and maintenance applications, the 6AG1511-1FK02-2AB0 can be considered when its hardware and software requirements match the existing Siemens control architecture.

Technical FAQs

1. What is the Siemens 6AG1511-1FK02-2AB0?

The 6AG1511-1FK02-2AB0 is a Siemens Central Processing Unit designed for industrial PLC and automation control applications.

2. What is the main function of this CPU?

The CPU executes the configured PLC program and manages control operations involving connected I/O, field devices, and other compatible automation components.

3. What types of applications are suitable for this CPU?

It can be used in machine automation, production equipment, packaging machinery, material handling, and suitable industrial process-control applications.

4. What role does a CPU play in a PLC system?

The CPU serves as the central processing element. It processes the user program, evaluates input information, controls outputs, and coordinates programmed automation functions.

5. What should be checked before installing the CPU?

Verify the system power requirements, hardware configuration, I/O architecture, communication connections, firmware compatibility, engineering software, and PLC program before installation.

6. Why is firmware compatibility important?

Firmware compatibility can affect supported functions, engineering-software communication, system behavior, and available features. It should therefore be checked when installing or replacing the CPU.

7. Can this CPU be used with other Siemens automation components?

Yes. It can be integrated into a suitable Siemens automation architecture together with compatible I/O modules, communication components, HMIs, and other industrial devices.

8. What can cause a CPU to report an error?

Possible causes include power-supply problems, incorrect hardware configuration, incompatible firmware, communication faults, program errors, or issues with connected components.

9. What should be checked if the CPU does not start correctly?

Check the power supply and wiring first, followed by status indicators, hardware configuration, diagnostic information, communication connections, and the loaded PLC program.

10. What should be considered when replacing this CPU?

Confirm the complete order number, firmware requirements, PLC program, I/O configuration, communication setup, power requirements, and application specifications before commissioning the replacement.
