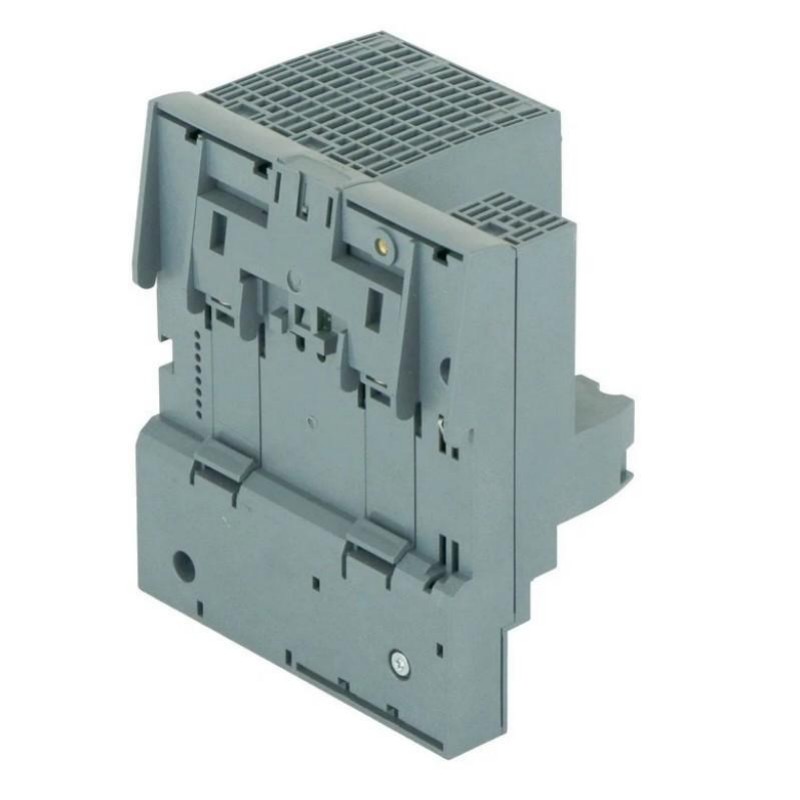

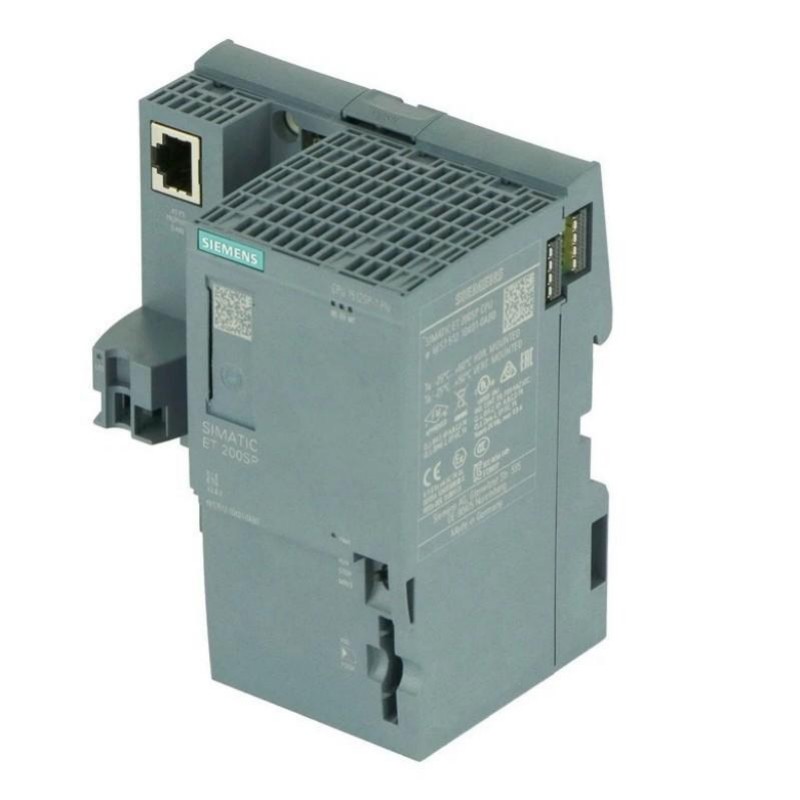

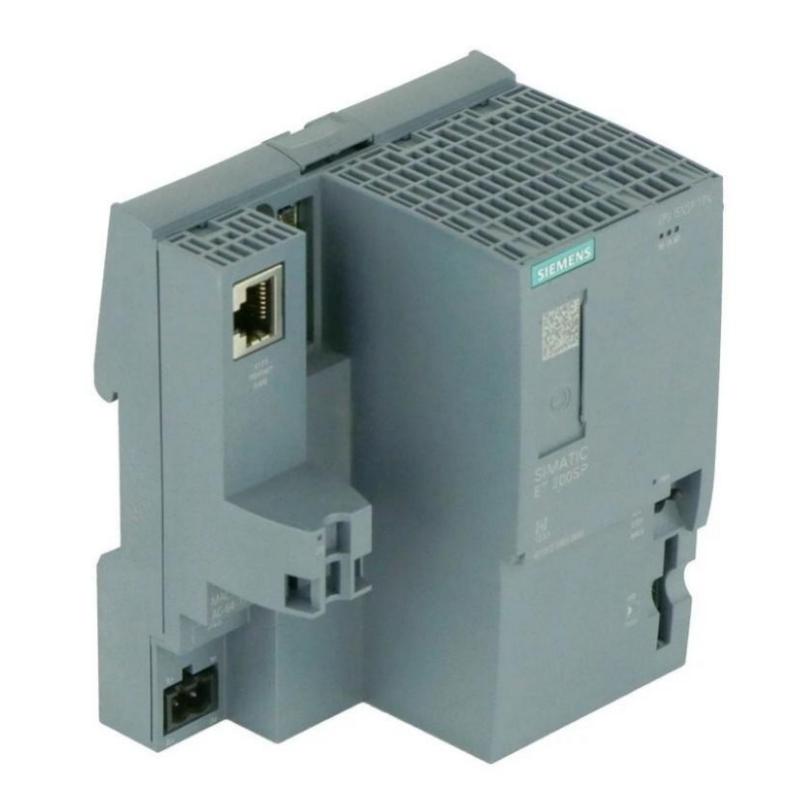

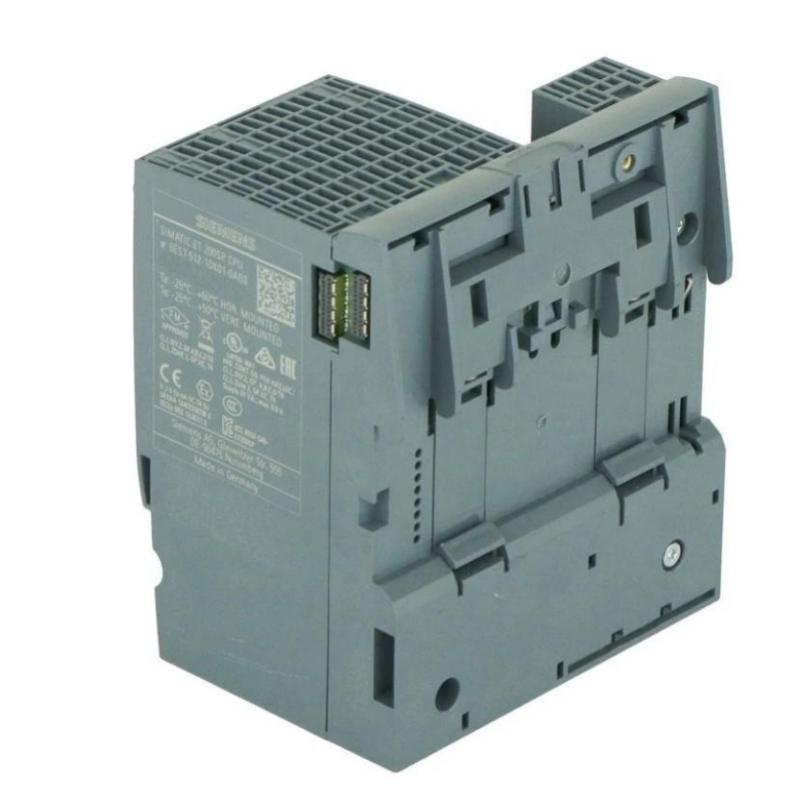

Siemens 6AG1512-1DK01-2AB0 Central Processing Unit
Siemens 6AG1512-1DK01-2AB0 Central Processing Unit
0.0
Points
Brand:Siemens Item No.:6AG1512-1DK01-2AB0 Product Origin:Germany Product Dimensions:100 × 117 × 75 mm Product Weight:0.39 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6AG1512-1DK01-2AB0 Central Processing Unit provides centralized PLC processing for industrial automation systems. It is designed to execute programmed control logic while coordinating signals and operating functions across connected automation equipment.
In a typical control application, the CPU continuously processes the user program and responds to information from sensors, operator interfaces, and other field devices. It can coordinate machine sequences, monitor operating conditions, manage outputs, and exchange information with other components within the automation architecture.
Its 100 × 117 × 75 mm dimensions provide a compact solution for industrial control cabinets. The 0.39 kg (0.86 lb) weight also allows convenient handling during panel installation, equipment servicing, and replacement work.
For new projects or maintenance applications, engineers should verify the exact Siemens order number and system requirements before commissioning. Firmware, PLC software, I/O configuration, communication architecture, and application requirements should be reviewed to ensure proper integration.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1512-1DK01-2AB0
Product Type
Central Processing Unit
Product Family
SIMATIC S7
Application
Industrial PLC and Automation Control
Dimensions
100 × 117 × 75 mm
Weight
0.39 kg (0.86 lb)
Installation
Industrial Control Cabinet
Typical Applications
Machine Automation, Production Control, Packaging, Process Control, Material Handling
Recommended Related Models
Model
Product Type
Typical Application
6AG1511-1AK02-2AB0
Central Processing Unit
SIMATIC S7 automation
6AG1511-1FK02-2AB0
Central Processing Unit
Compact PLC control
6AG1511-1AK02-7AB0
Central Processing Unit
Industrial PLC control
6AG1510-1SJ01-2AB0
Central Processing Unit
Industrial automation
Popular Related Models
Model
Product Type
6AG1511-1AK02-2AB0
Central Processing Unit
6AG1511-1FK02-2AB0
Central Processing Unit
6AG1511-1AK02-7AB0
Central Processing Unit
6AG1510-1SJ01-2AB0
Central Processing Unit
6AG1443-5DX05-4XE0
Communication Processor
Applications
The Siemens 6AG1512-1DK01-2AB0 can be used as a central controller in a range of industrial automation applications.
Machine Automation: Executes machine sequences, interlocks, and control logic.
Production Lines: Coordinates sensors, actuators, drives, and other automation components.
Packaging Equipment: Supports repeatable and coordinated machine-control sequences.
Material Handling: Suitable for conveyor, transfer, sorting, and handling systems.
Process Automation: Provides centralized PLC processing for suitable industrial processes.
OEM Machinery: Offers a compact controller solution for machine-building applications.
Advantages
Compact Installation
The CPU measures 100 × 117 × 75 mm, providing an efficient footprint for control cabinets and automation panels where available space is limited.
Dependable PLC Processing
The CPU provides the processing foundation for executing control programs, evaluating input information, and managing programmed machine operations.
Flexible Automation Integration
It can be incorporated into a suitable Siemens automation architecture and coordinated with compatible I/O, communication devices, HMIs, drives, and field equipment.
Efficient Cabinet Design
Its compact dimensions allow engineers to organize PLC components and associated control equipment efficiently within an industrial enclosure.
Suitable for Diverse Applications
The CPU can support a broad range of machine-control and industrial automation tasks, from production equipment to material-handling systems.
Practical for Replacement Projects
The 6AG1512-1DK01-2AB0 can be considered for maintenance and modernization applications when the CPU's hardware, firmware, program, and system configuration are compatible with the existing installation.
Technical FAQs
1. What is the Siemens 6AG1512-1DK01-2AB0?
The 6AG1512-1DK01-2AB0 is a Siemens Central Processing Unit designed for industrial PLC and automation-control applications.
2. What is the primary function of the CPU?
The CPU executes the PLC program and coordinates control functions involving connected inputs, outputs, field devices, and other automation components.
3. What applications are suitable for this CPU?
Typical applications include machine automation, production lines, packaging equipment, material handling, and suitable process-control systems.
4. What role does the CPU play in a PLC architecture?
It acts as the central processing element that executes application logic, evaluates system inputs, controls outputs, and manages programmed automation sequences.
5. What should be checked before commissioning?
Verify the power supply, hardware configuration, I/O architecture, communication connections, firmware requirements, engineering software compatibility, and PLC program before commissioning.
6. Why is firmware compatibility important?
Firmware can influence supported functions, engineering-software compatibility, communication behavior, and system operation. The CPU firmware should therefore be compatible with the intended configuration.
7. Can the CPU communicate with other Siemens automation components?
Yes. It can be incorporated into suitable Siemens automation architectures and communicate with compatible I/O, HMI, communication, drive, and field devices.
8. What can cause the CPU to enter a fault condition?
Potential causes include power-supply problems, configuration errors, firmware incompatibility, communication faults, PLC program issues, or problems with connected hardware.
9. What should be checked if the CPU does not operate normally?
Check the power supply and wiring, status indicators, hardware configuration, diagnostic information, communication connections, and PLC program to identify the source of the problem.
10. What should be considered when replacing the 6AG1512-1DK01-2AB0?
Confirm the complete order number, firmware requirements, PLC program, I/O configuration, communication architecture, power requirements, and application specifications before installation.
