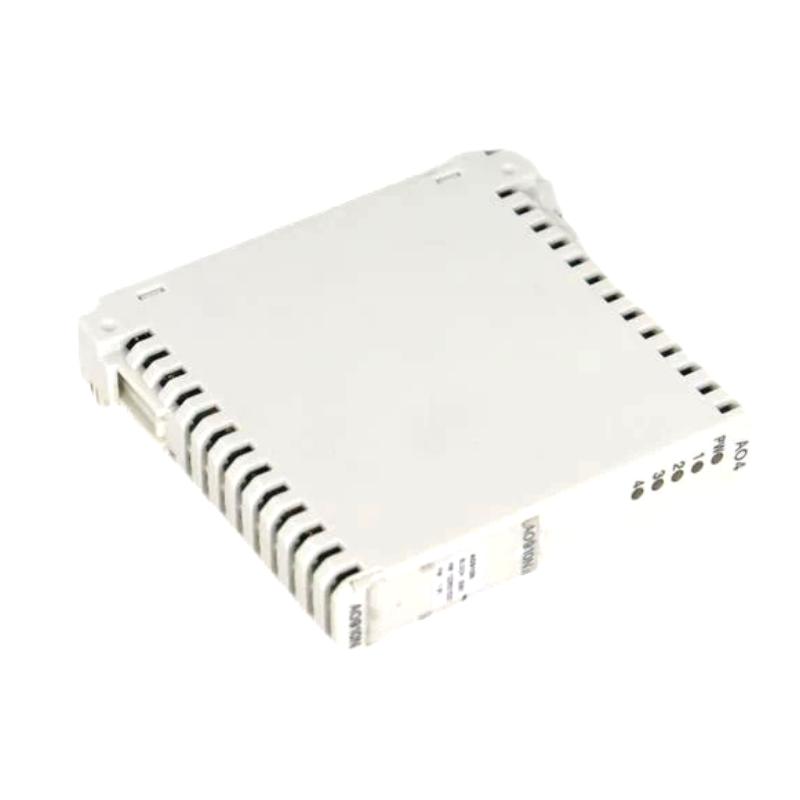

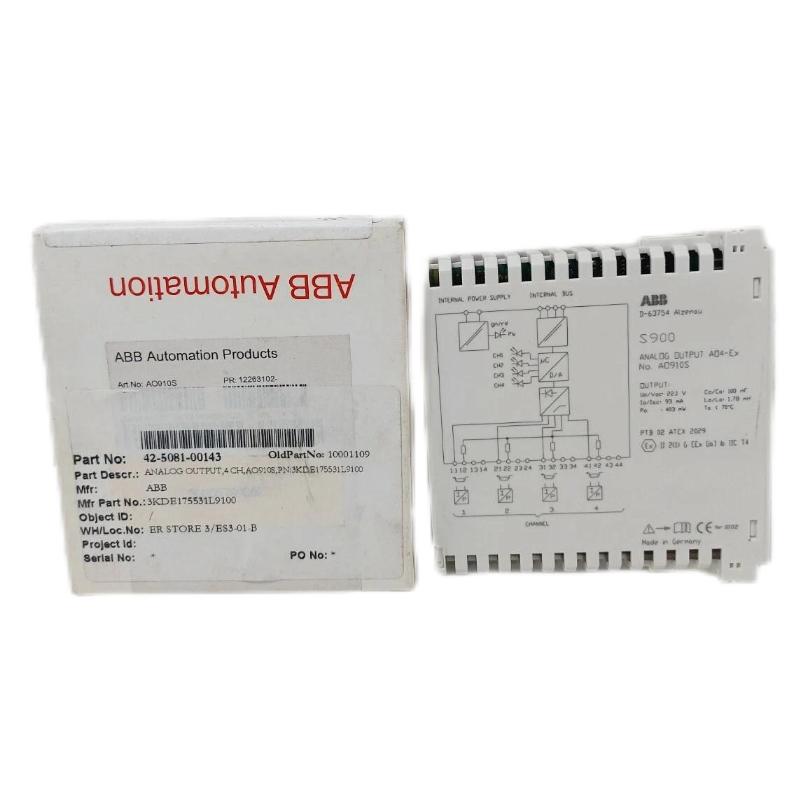

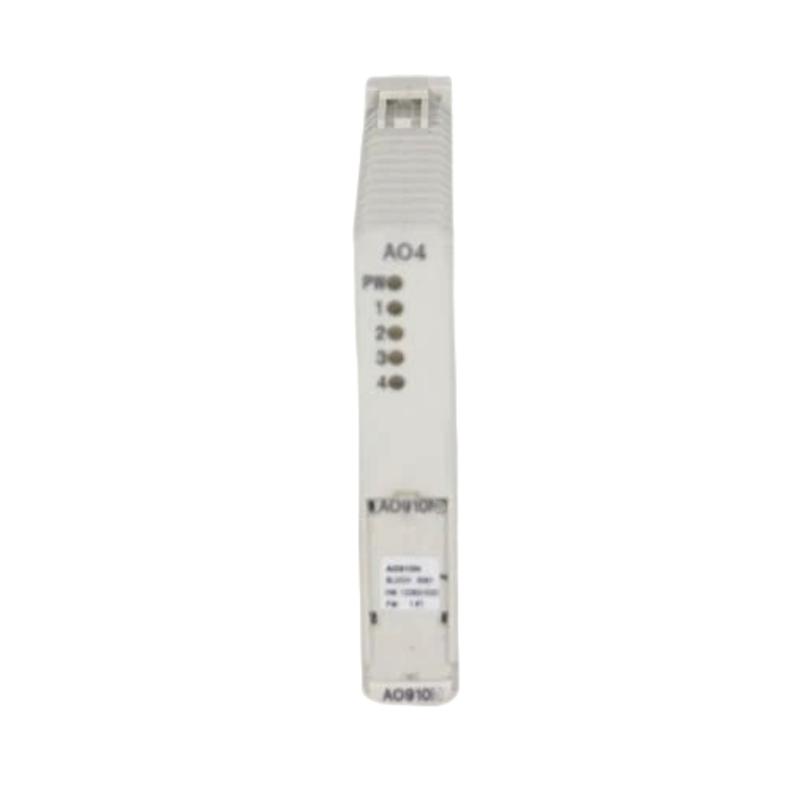

The ABB AO910S Analog Output Module is an essential component designed for use within the AC 800M control system. This high-performance module is designed to provide 8 channels of precise analog output, making it ideal for controlling field devices such as actuators, valves, and other equipment in industrial automation systems. Offering excellent signal integrity and fast response times, the AO910S module ensures optimal performance in demanding applications, where precise control over analog outputs is critical.

Whether you're working in power generation, chemical processing, water treatment, or manufacturing, the AO910S delivers reliable and accurate control of various industrial processes, helping to maintain smooth operations and ensuring system stability.

Technical Specifications

Feature	Specification
Module Type	Analog Output Module (AO910S)
Output Channels	8 Analog Output Channels
Signal Type	Voltage (0-10V), Current (4-20mA)
Resolution	16-bit
Power Supply	24 VDC
Mounting	DIN Rail Mount
Operating Temperature	-25°C to 70°C
Weight	0.75 kg
Dimensions	140 mm (W) x 120 mm (H) x 90 mm (D)
Accuracy	±0.1% Full Scale (for analog outputs)
Response Time	< 1 ms
Communication Interface	Integrated with AC 800M Controller

Recommended Related Models

ABB AI840A – A versatile 16-channel analog input module, ideal for large-scale applications requiring high-density data acquisition.
ABB AO810 – A general-purpose analog output module for controlling external devices based on system outputs.
ABB DI810 – Digital input module for precise monitoring of discrete signals in industrial applications.

Popular ABB Models

ABB AC 800M Controller – The primary control unit for ABB’s industrial automation platform, providing integration with various I/O modules, including the AO910S.
ABB AI830A – A 16-channel analog input module known for its high precision in industrial monitoring.
ABB DO820 – Digital output module for controlling actuators and field devices in real-time.
ABB AO830 – Analog output module used to output precise voltage or current signals for field device control.

Applications

The ABB AO910S Analog Output Module is ideal for industrial applications where precise control of analog signals is required. Some of the key applications include:

Power Generation – Control of field devices such as actuators and control valves in turbines, boilers, and generators to ensure optimal performance.
Chemical Processing – Regulation of chemical flows, dosing, and reactor temperature via actuators and valves for safe and efficient processing.
Water Treatment – Control of pumps, chemical dosing units, and other field devices to ensure the safe treatment of water and wastewater.
Manufacturing – Managing temperature, pressure, and other production parameters to maintain quality and consistency in the manufacturing process.

Advantages

High Output Precision: The AO910S provides 16-bit resolution and ±0.1% full scale accuracy for both current and voltage outputs, ensuring precise control over field devices.
Dual Output Support: The module supports both voltage (0-10V) and current (4-20mA) output signals, making it compatible with a wide range of industrial actuators, valves, and controllers.
Wide Operating Temperature Range: The AO910S is suitable for harsh industrial environments, with an operating temperature range of -25°C to 70°C.
Compact and Space-Efficient Design: The DIN rail-mountable design allows for easy installation in control panels, saving space while ensuring efficient system integration.
Fast Response Time: With a response time of less than 1 ms, the AO910S ensures quick signal processing, which is essential for real-time control in critical applications.
Reliable Communication: The AO910S integrates seamlessly with the AC 800M Controller, providing stable communication and ensuring consistent control over complex automation systems.

Technical FAQs

What types of signals can the AO910S module output?
- The AO910S can output both voltage (0-10V) and current (4-20mA) signals, making it compatible with a wide range of industrial control devices.
How many output channels does the AO910S have?
- The AO910S provides 8 analog output channels, allowing for simultaneous control of multiple devices.
What is the operating temperature range of the AO910S?
- The AO910S operates efficiently in temperatures ranging from -25°C to 70°C, making it suitable for both mild and harsh environments.
What is the accuracy of the AO910S module?
- The AO910S has an accuracy of ±0.1% full scale for analog outputs, ensuring reliable and consistent control.
How is the AO910S mounted?
- The module is designed for DIN rail mounting, making installation simple and space-efficient in industrial control panels.
Can the AO910S module be used in hazardous environments?
- The AO910S is suitable for non-hazardous environments. For hazardous areas, ABB provides other modules with appropriate certifications.
What is the response time of the AO910S module?
- The AO910S features a response time of less than 1 ms, allowing for quick data processing and real-time control.
What power supply is required for the AO910S module?
- The AO910S operates with a 24 VDC power supply, ensuring stable and efficient performance.
What is the communication interface of the AO910S?
- The AO910S integrates seamlessly with the AC 800M Controller, providing reliable communication within industrial automation systems.
Which industries benefit most from the AO910S module?
- The AO910S is ideal for industries such as power generation, chemical processing, water treatment, and manufacturing, where precise control of analog signals is essential for system performance.
