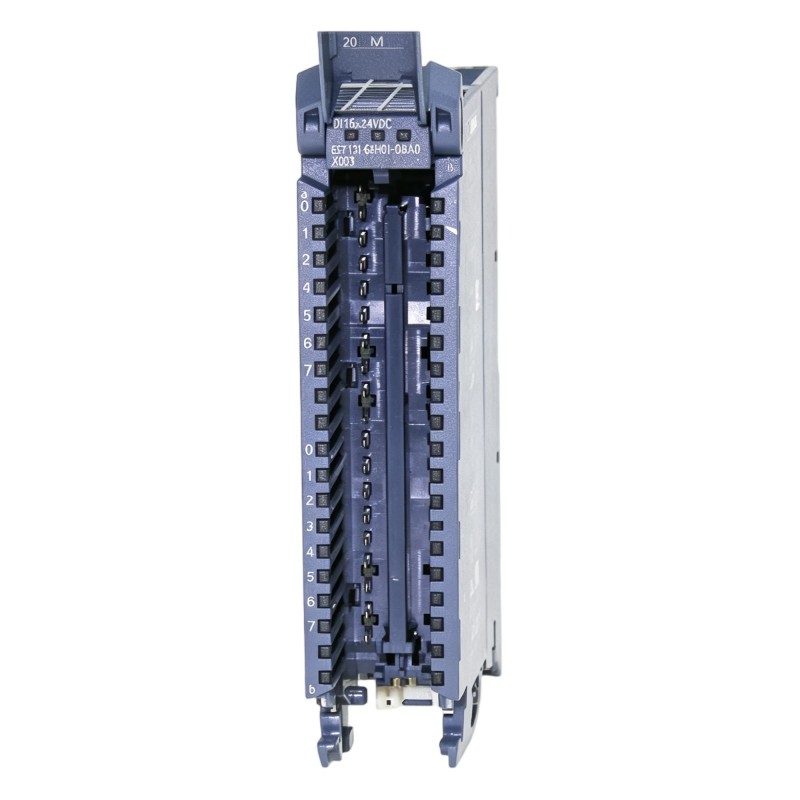

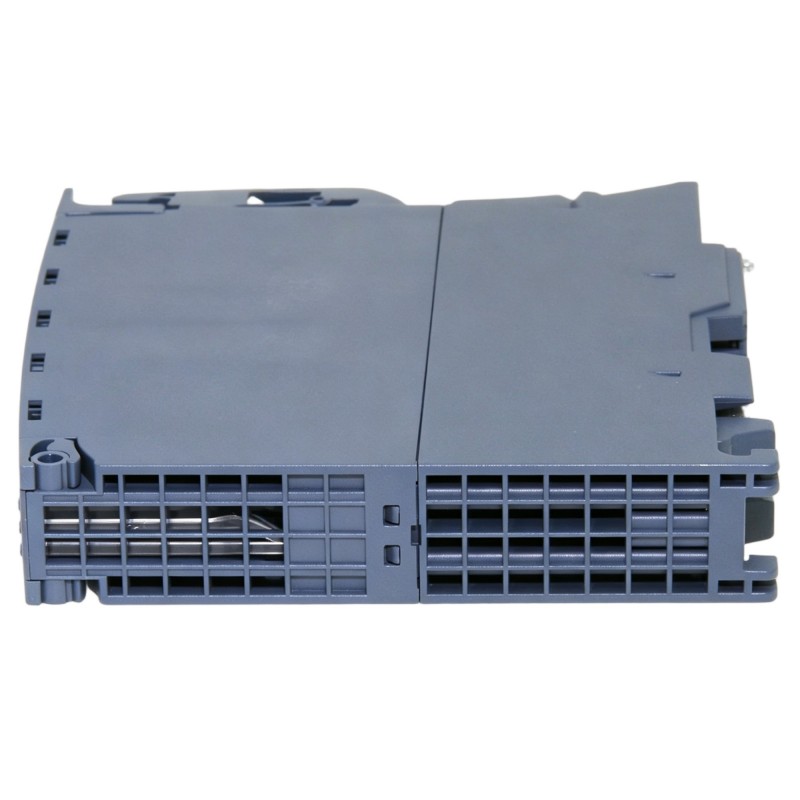

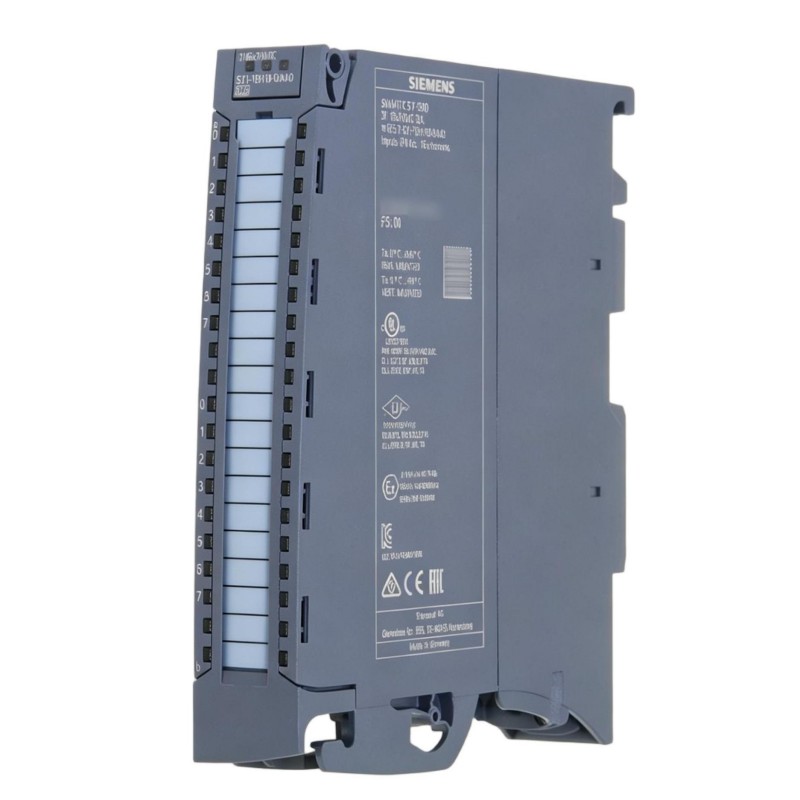

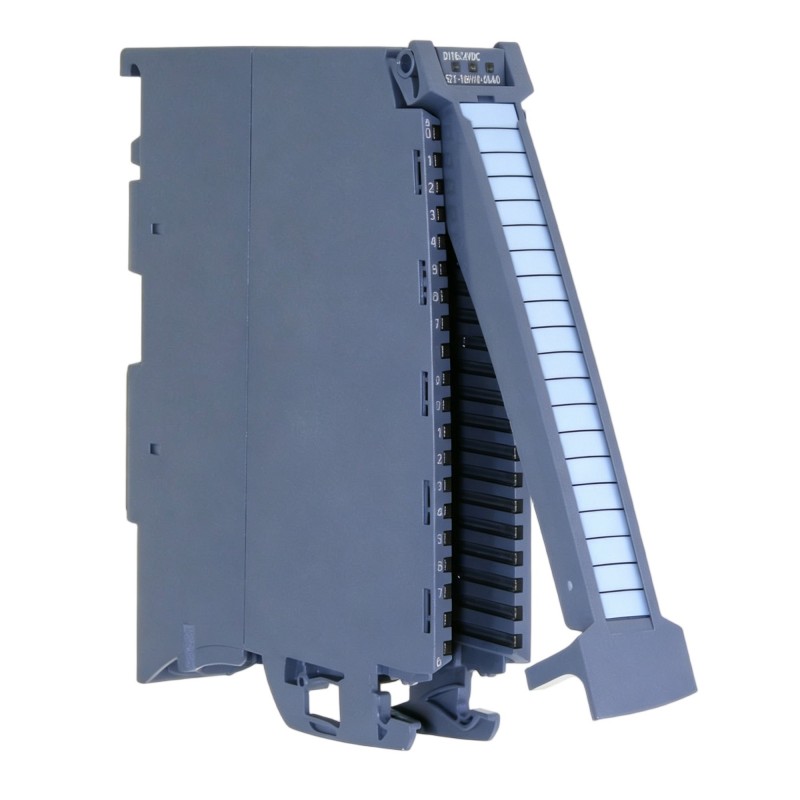

Siemens 6AG1521-1BH50-7AA0 Digital Input Module

Applications

The Siemens 6AG1521-1BH50-7AA0 Digital Input Module is designed for industrial automation systems that require dependable acquisition of discrete field signals. It can connect compatible binary field devices to a Siemens PLC system, allowing the controller to monitor machine states, operator commands, sensor signals, and equipment feedback.

Typical applications include:

• Machine and equipment status monitoring
• Production-line control
• Discrete sensor signal acquisition
• Limit and position detection
• Conveyor and material-handling systems
• Manufacturing equipment
• Process equipment monitoring
• Modular distributed I/O architectures

The module provides an organized interface between field-level digital devices and the PLC, allowing discrete signal conditions to become part of the application's control logic.

Advantages

Reliable digital signal acquisition

The 6AG1521-1BH50-7AA0 provides a dedicated interface for monitoring discrete field conditions, making it suitable for applications where accurate ON/OFF status information is important.

Efficient PLC integration

The module can be incorporated into a compatible Siemens automation architecture, allowing acquired field signals to be processed by the central controller and used within application logic.

Compact modular construction

Its 35 × 147 × 129 mm dimensions make the module suitable for structured control-cabinet installations where organized and space-efficient I/O placement is required.

Industrial application focus

As part of the Siemens 6AG SIPLUS family, the module is intended for industrial automation applications where environmental robustness and dependable operation are important selection factors.

Convenient system expansion

A dedicated digital input module allows additional discrete field signals to be integrated into an automation system without requiring a complete redesign of the controller architecture.

Technical FAQs

1. What is the Siemens 6AG1521-1BH50-7AA0?

The 6AG1521-1BH50-7AA0 is a Siemens Digital Input Module designed to acquire discrete signals from compatible industrial field devices for use by a PLC control system.

2. What field devices can typically be connected to the module?

Typical applications include switches, push buttons, proximity sensors, limit switches, contact signals, and other compatible binary signal devices.

3. What role does the digital input module play in a PLC system?

It acts as the interface between field devices and the PLC control program. The module detects the state of connected digital signals and makes that information available to the controller.

4. Can it be used for machine-position feedback?

Yes. Digital inputs are commonly used to monitor limit switches, proximity sensors, position switches, and other devices that provide discrete position information.

5. What should be checked during digital input commissioning?

Engineers should verify field wiring, supply conditions, terminal assignments, signal polarity where applicable, input addressing, and the response of each connected device.

6. Why might a connected input fail to change state in the PLC?

Possible causes include incorrect wiring, missing field power, an incorrectly assigned PLC address, an unsuitable signal level, a faulty field device, or an issue in the I/O configuration.

7. How can an intermittent input signal be investigated?

Monitor the corresponding PLC input while operating the field device and inspect terminals, cables, connectors, and field power. Electrical interference and unstable sensors should also be considered.

8. Can this module be used in a larger modular automation system?

Yes. It can be incorporated into a compatible Siemens automation architecture together with the appropriate CPU, I/O, communication, and system components.

9. What should be verified before replacing the module?

Check the complete order number, system compatibility, hardware configuration, wiring, input assignments, project configuration, and any relevant firmware requirements before installing the replacement.

10. How should each digital input be tested after installation?

Activate each connected field device individually and confirm that the corresponding PLC input changes to the expected state. Diagnostic information should also be checked for unexpected module or communication conditions.
