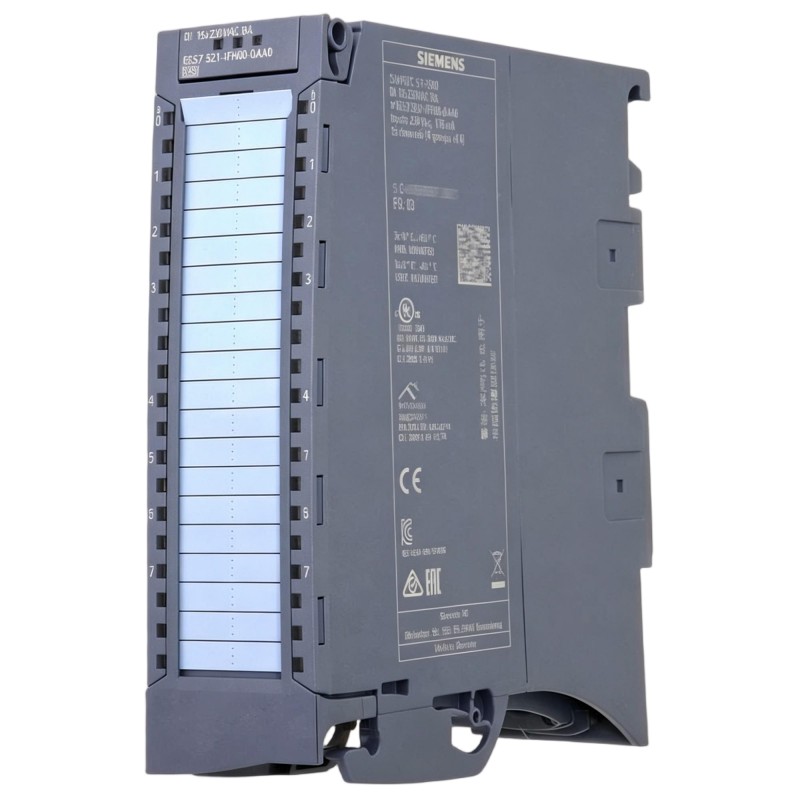

Siemens 6AG1521-1FH00-7AA0 Digital Input Module

Applications

The Siemens 6AG1521-1FH00-7AA0 Digital Input Module is designed for industrial automation systems that require dependable monitoring of discrete field signals. It provides an interface between compatible field devices and the PLC, allowing binary operating conditions to be incorporated into machine control, process monitoring, and automation sequences.

Typical applications include:

• Machine and equipment status monitoring
• Automated production and assembly lines
• Sensor and switch signal acquisition
• Position and limit detection
• Conveyor and material-handling systems
• Manufacturing machinery
• Process equipment monitoring
• Modular PLC and distributed I/O systems

The module can collect field-level digital information and make the corresponding signal states available to the PLC application for logic processing and control decisions.

Advantages

Dependable digital signal acquisition

The 6AG1521-1FH00-7AA0 provides a dedicated interface for discrete field signals, supporting reliable monitoring of equipment and process conditions within an industrial control system.

Straightforward PLC integration

The module can be incorporated into a compatible Siemens automation architecture, allowing acquired digital signals to be processed by the central CPU and used by the application program.

Compact modular design

Its 35 × 147 × 129 mm dimensions allow it to fit into structured industrial control cabinets alongside other compatible Siemens automation components.

Industrial-oriented construction

As part of the Siemens 6AG SIPLUS family, the module is intended for industrial applications where environmental robustness and dependable operation can be important selection considerations.

Convenient I/O expansion

A dedicated digital input module provides an organized way to add discrete field signals to an automation system without changing the overall control architecture.

Technical FAQs

1. What is the Siemens 6AG1521-1FH00-7AA0?

The 6AG1521-1FH00-7AA0 is a Siemens Digital Input Module designed to acquire discrete signals from compatible industrial field devices and provide their status to the PLC.

2. What types of devices can be connected to a digital input module?

Typical applications include switches, push buttons, proximity sensors, limit switches, equipment contacts, and other compatible binary signal devices.

3. What is the role of the module in a PLC system?

The module provides the electrical interface between field devices and the controller. It detects the status of digital signals so that the PLC program can process the information.

4. Can the module be used for machine position monitoring?

Yes. Digital inputs are commonly used with limit switches, proximity sensors, and other discrete devices to detect the position or state of machine components.

5. What should be checked during installation?

Verify terminal assignments, field wiring, supply conditions, signal characteristics, grounding, and PLC input addressing before placing the module into normal operation.

6. What can cause a digital input to remain inactive?

Possible causes include incorrect wiring, missing field power, an improperly configured input address, an unsuitable signal level, a defective sensor, or an issue within the I/O configuration.

7. How should intermittent input signals be investigated?

Monitor the corresponding PLC input while operating the field device and inspect the field wiring, terminals, connectors, sensor operation, and power supply. Electrical interference should also be considered where applicable.

8. Can the module be incorporated into a larger Siemens automation system?

Yes. It can be used as part of a compatible Siemens modular automation architecture together with the appropriate CPU, I/O, communication, and system components.

9. What should be checked before replacing the module?

Confirm the exact order number, system compatibility, hardware configuration, input assignments, project settings, field wiring, and applicable firmware requirements before replacement.

10. How can the inputs be verified after commissioning?

Operate each connected field device individually and confirm that the corresponding PLC input changes to the expected state. Controller and module diagnostics should also be checked for unexpected conditions.
