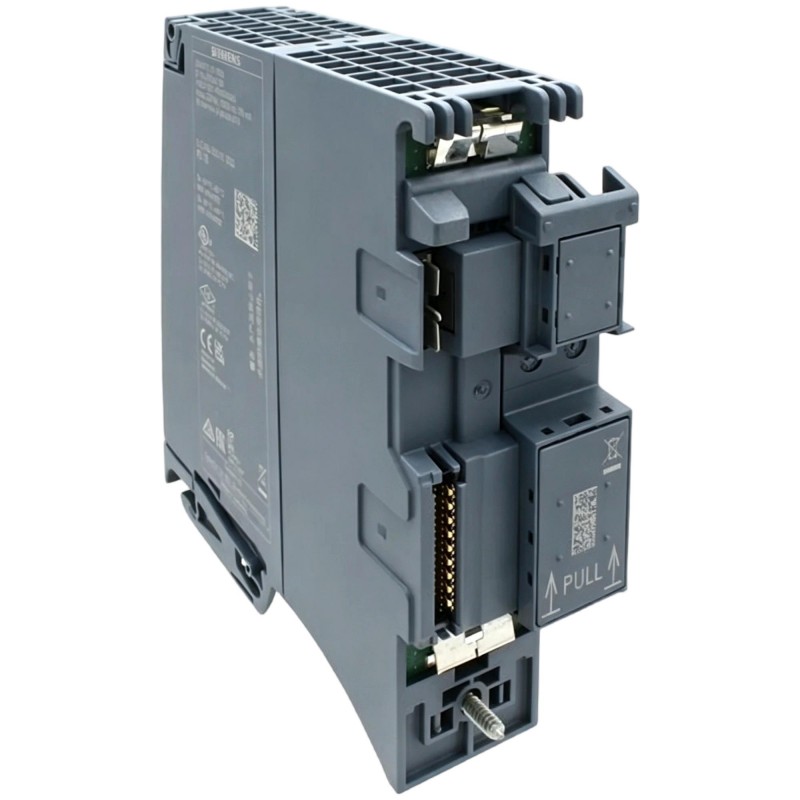

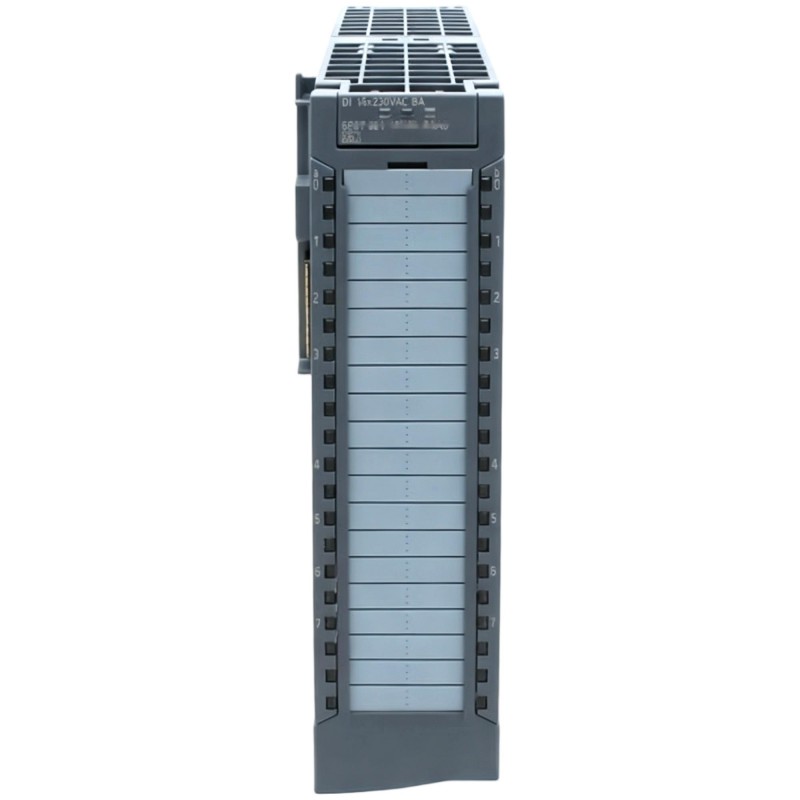

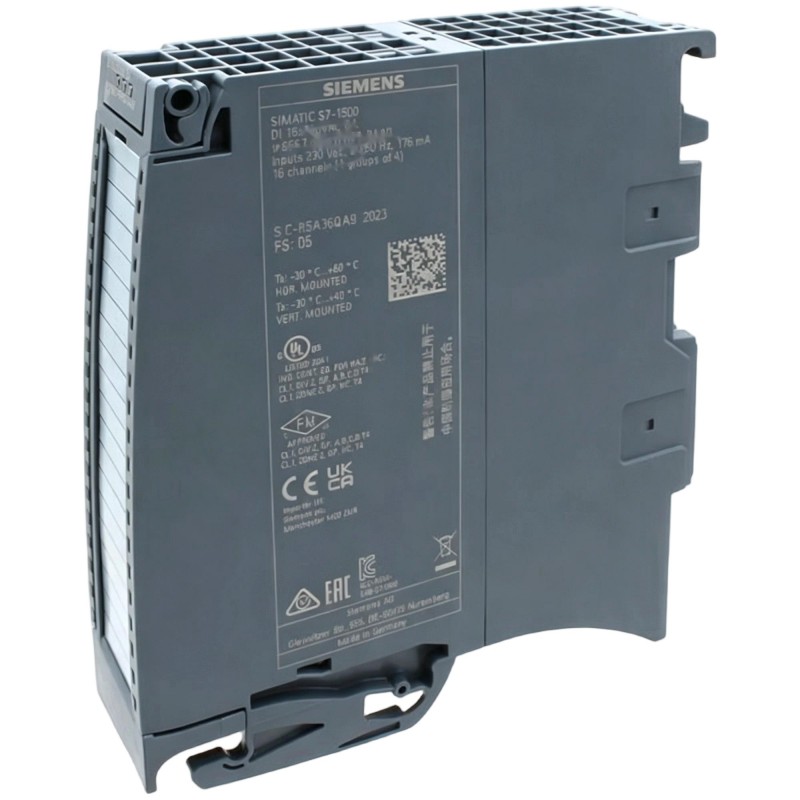

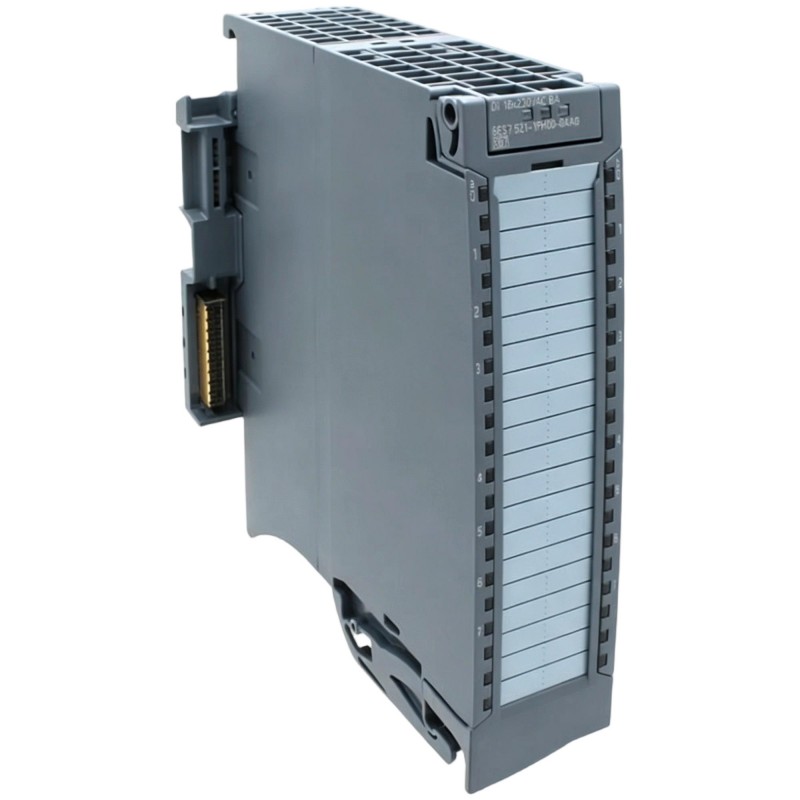

Siemens 6AG1521-7EH00-7AB0 Digital Input Module

Applications

The Siemens 6AG1521-7EH00-7AB0 Digital Input Module is designed for industrial automation systems that require reliable acquisition of discrete field signals. It provides a practical interface between compatible field devices and the PLC, allowing binary operating states to be incorporated into control logic, machine sequencing, and process monitoring.

Typical applications include:

• Machine and equipment status monitoring
• Automated production lines
• Discrete sensor signal acquisition
• Position and limit detection
• Conveyor and material-handling equipment
• Manufacturing and assembly machinery
• Process equipment monitoring
• Modular PLC and I/O architectures

The module can collect field-level digital information and transfer the corresponding signal states to the automation controller for processing.

Advantages

Reliable digital input acquisition

The 6AG1521-7EH00-7AB0 provides a dedicated interface for monitoring discrete field signals, supporting consistent acquisition of equipment and process status information.

Efficient PLC integration

The module can be incorporated into a compatible Siemens automation architecture, allowing digital input states to be processed by the central controller and used within the PLC program.

Compact modular format

With dimensions of 35 × 147 × 129 mm, the module is suitable for structured control-cabinet installations where organized placement of I/O components is important.

Industrial-oriented construction

As part of the Siemens 6AG SIPLUS family, the module is intended for industrial applications where environmental robustness and dependable operation are important considerations.

Practical I/O expansion

The module provides a dedicated method for expanding digital signal acquisition, allowing additional field devices to be integrated into a modular automation system.

Technical FAQs

1. What is the Siemens 6AG1521-7EH00-7AB0?

The 6AG1521-7EH00-7AB0 is a Siemens Digital Input Module designed to acquire discrete signals from compatible industrial field devices for use within a PLC automation system.

2. What field devices can typically be connected?

Typical devices include proximity sensors, limit switches, push buttons, selector switches, equipment contacts, and other compatible binary signal sources.

3. What does the digital input module do?

It receives discrete field signals and makes their status available to the PLC controller, where the information can be used for logic, sequencing, monitoring, and equipment control.

4. Can it be used for machine position detection?

Yes. Digital input channels are commonly used to monitor limit switches, proximity sensors, position switches, and other devices that provide discrete position feedback.

5. What should be checked before wiring the module?

Verify the terminal assignment, field-device wiring, supply conditions, signal characteristics, grounding, and PLC input configuration before applying the system to normal operation.

6. Why might an input signal not appear correctly in the PLC?

Possible causes include incorrect wiring, missing field power, incorrect input addressing, unsuitable signal characteristics, a defective field device, or an error in the PLC hardware configuration.

7. How can an intermittent input be diagnosed?

Monitor the relevant input while operating the field device and inspect the wiring, terminals, connectors, power supply, and sensor. Electrical interference should also be investigated where appropriate.

8. Can this module be used in a modular Siemens automation system?

Yes. It can be incorporated into a compatible Siemens automation architecture with the appropriate CPU, I/O, communication, and system components.

9. What should be verified when replacing the module?

Verify the complete model number, system compatibility, hardware configuration, field wiring, input assignments, PLC project settings, and applicable firmware requirements.

10. How should the module be tested after installation?

Operate each connected field device individually and confirm that the corresponding PLC input changes to the expected state. Module and controller diagnostics should also be reviewed during commissioning.
