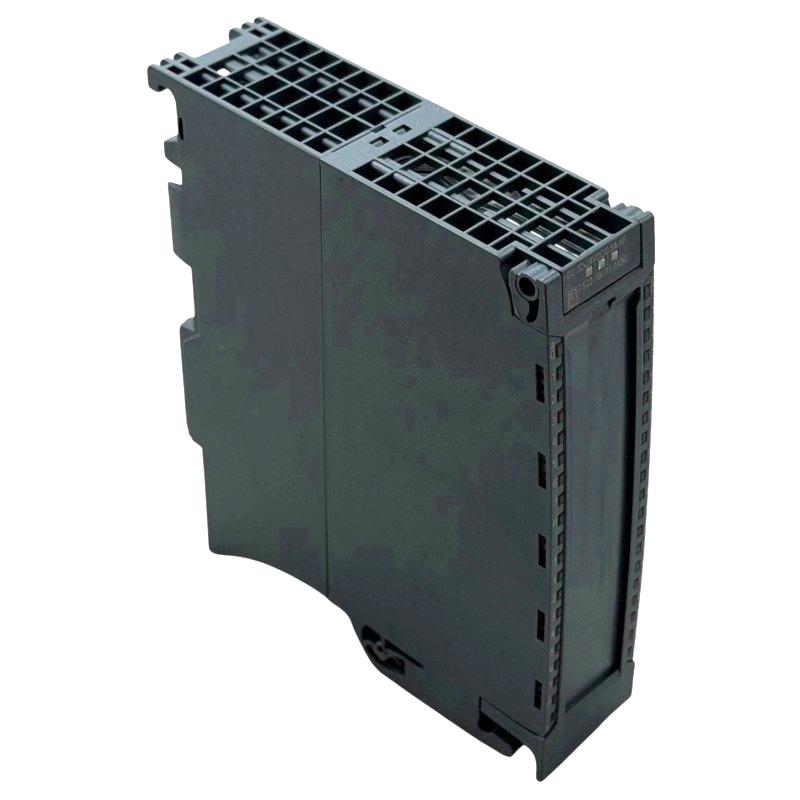

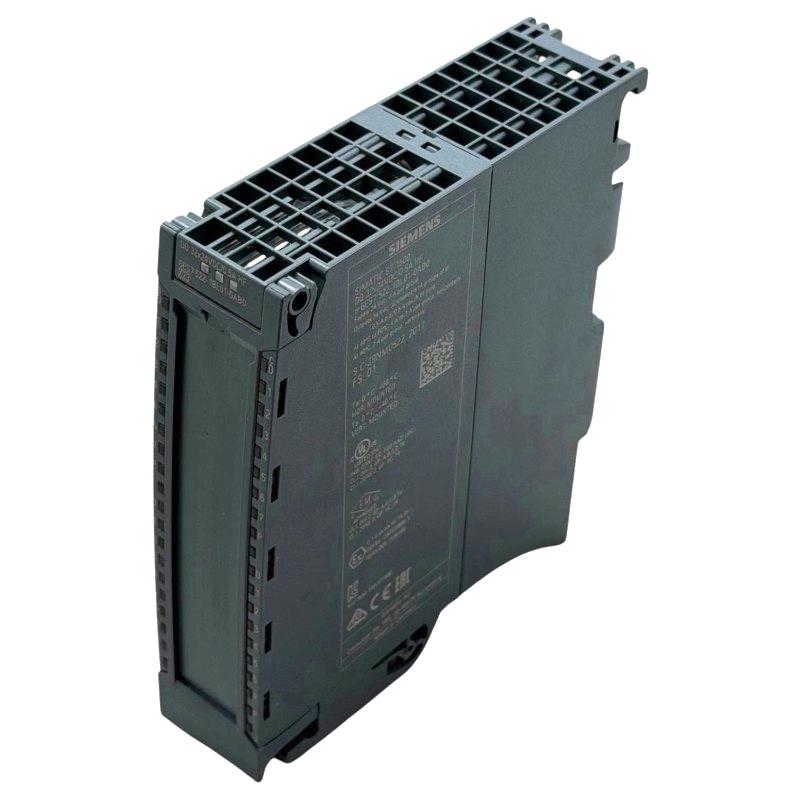

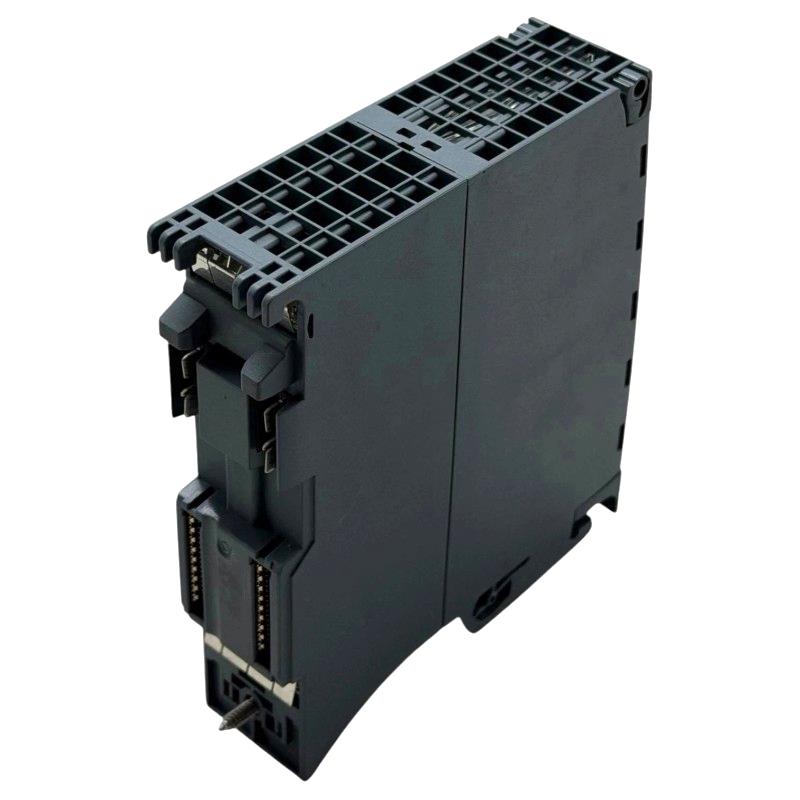

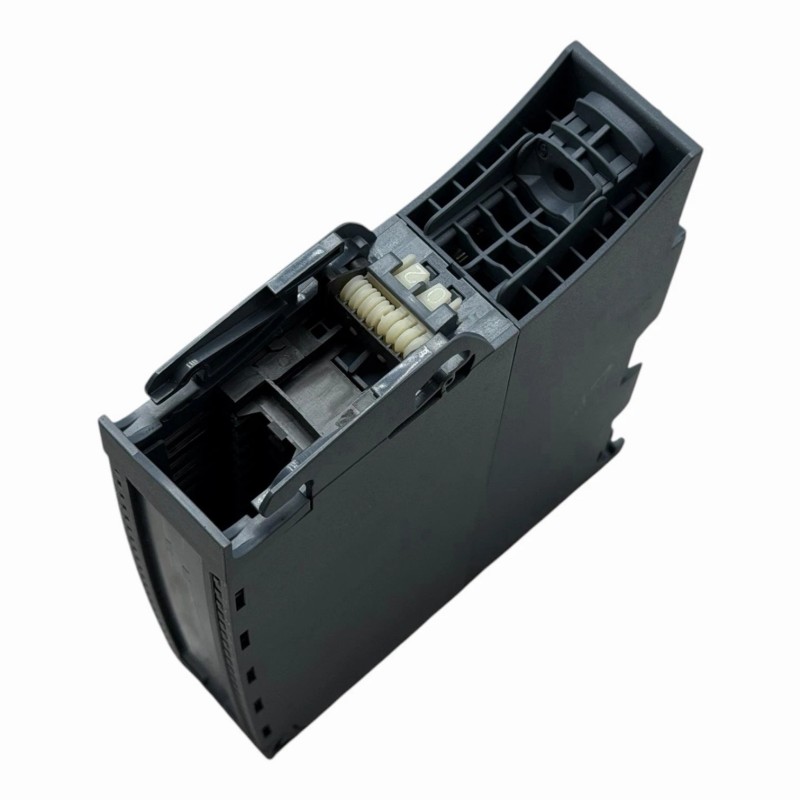

Siemens 6AG1522-1BL01-7AB0 Digital Output Module

Applications

The Siemens 6AG1522-1BL01-7AB0 Digital Output Module is designed to provide dependable discrete output control within Siemens industrial automation systems. It can be used to transfer PLC control commands to field-level devices that require defined ON/OFF switching signals.

This type of output module is well suited to machine automation, production equipment, process control panels, material handling systems, packaging lines, and automated manufacturing systems where reliable digital actuation is essential.

Typical applications include:

• Switching relays and contactors
• Controlling valves, solenoids, and other actuators
• Machine sequence and interlock control
• Industrial alarm and status indication
• Conveyor and material handling equipment
• Automated production and assembly machinery
• Expansion of compatible Siemens PLC output capacity
• Replacement of installed digital output modules in maintenance applications

The compact 35 × 147 × 129 mm form factor also makes the module practical for control cabinets where panel space is limited.

Advantages

Reliable Discrete Control
The 6AG1522-1BL01-7AB0 provides a dedicated interface between PLC logic and digital field devices, supporting consistent switching operations in industrial applications.

Compact Modular Construction
Its 35 mm width allows the module to be incorporated into space-conscious S7-1500 automation assemblies without requiring excessive cabinet space.

Suitable for Machine and Process Automation
The module can support a wide range of discrete control tasks, from actuator switching to machine status and sequence functions.

Easy System Expansion
Where the existing system requires additional digital outputs, a compatible module can provide a practical method of extending the control architecture.

Maintenance-Friendly Design
For industrial facilities using Siemens automation equipment, maintaining compatible digital output modules as replacement units can simplify service planning and reduce equipment downtime.

Designed for Structured PLC Integration
The module works as part of a modular Siemens control system, allowing output functions to be organized within the overall PLC hardware and engineering configuration.

Technical FAQs

1. What is the Siemens 6AG1522-1BL01-7AB0 used for?
It is a digital output module used to provide discrete control signals from a compatible Siemens PLC system to external field devices.

2. What types of devices can a digital output module control?
Depending on the electrical characteristics of the configured output circuit, digital outputs can be used with devices such as relays, contactors, solenoids, valves, indicators, and other discrete actuators.

3. Which Siemens automation family is this module associated with?
The 6AG1522-1BL01-7AB0 is associated with the Siemens SIMATIC S7-1500 automation platform and is intended for compatible system configurations.

4. How does the module receive its output commands?
The PLC CPU executes the user program and determines the required output states. The digital output module then applies the corresponding control states to its field-side outputs.

5. Can the module be used in automated production machinery?
Yes. Digital output modules are commonly used in production machinery for actuator control, sequence operations, interlocks, alarms, and other discrete automation functions.

6. What should be verified before installing a replacement module?
The hardware configuration, electrical characteristics, wiring, terminal assignments, controller compatibility, engineering configuration, and system requirements should all be checked before installation.

7. What is the role of a digital output module in a PLC system?
It provides the physical output interface between the controller's internal logic and external devices. This allows software decisions made by the PLC to initiate real-world switching actions.

8. What are common causes of an unexpected digital output state?
Possible causes include incorrect PLC logic, configuration errors, field wiring problems, power supply issues, external load faults, incorrect addressing, or hardware-related problems.

9. How can a digital output channel be troubleshot?
A structured check should begin with the PLC diagnostic information and programmed output state, followed by module status, wiring, terminal connections, field power, connected load, and the operating condition of the external device.

10. Can the 6AG1522-1BL01-7AB0 be used for system expansion?
It can be used where the existing compatible Siemens automation configuration requires additional digital output functionality. The complete hardware and engineering configuration should be verified before adding the module.
